Scan to email problems

Question

Hello,

Apologies if this is in the wrong group, but I have recently bought a new MFD which has scan to email which I need to use every day for my business. I have also just migrated over to Office365 and I am trying to set this up, but oh my word.. it seems to be the most convoluted and complicated thing I've ever tried to do and I've already wasted an entire day trying to set this up. Previously I could just use SMTP AUTH and it was a breeze!

Is there a simple how-to guide at all? Reading online, it looks like I'm far from the only person facing this problem and the online help on the Microsoft website sends me to about 15 different articles, all telling me different ways to do it which I'm assuming are all incompatible with each other as I've tried to follow the steps as closely as possible but nothing seems to have worked.

The scanner I have does support OAuth 2.0 and TLS 1.3 so the device should be ok but I'm at a loss to work out what I need to do within Azure / Entra / Exchange.

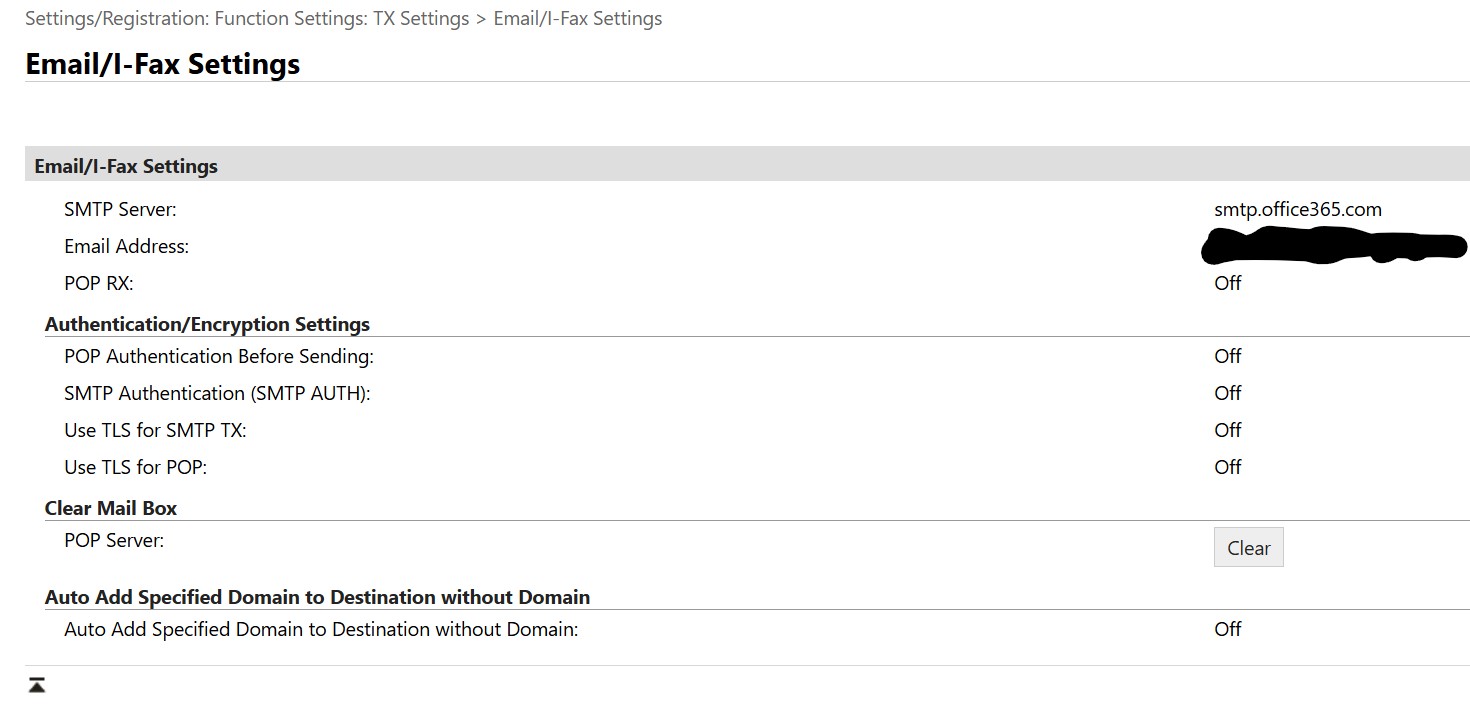

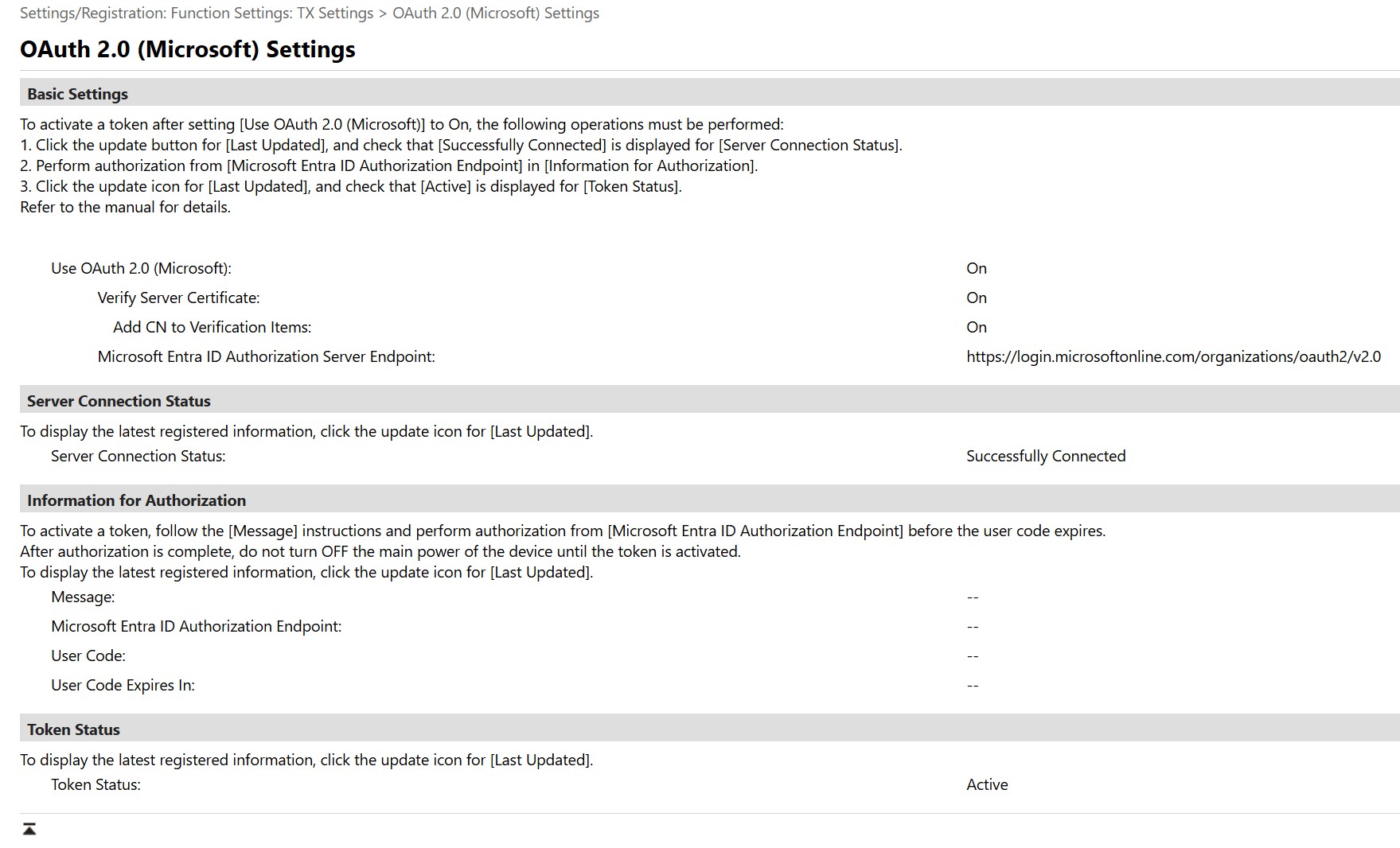

I did get to a point where OAuth said it was active and the smtp connection test on my MFD said everything was fine but I kept getting errors every time I tried to scan anything.

Any help would be greatly appreciate!

Many thanks,

Answer 1

Hi @Ekaterina Cuff

Thank you for contacting the Microsoft Q&A forum.

I completely understand the difficulty of setting up SMTP authentication on your device to send email within your organization.

Based on my research, you may try the steps below to see if they help:

1/ Create a user with an Exchange Online subscription

Create an account within your organization that has an active Exchange Online subscription.  This account will be used to sign in on the device, and the device will send emails using that account.

2/ Enable SMTP authentication for the user

Go to the Microsoft Admin Center and do the following:

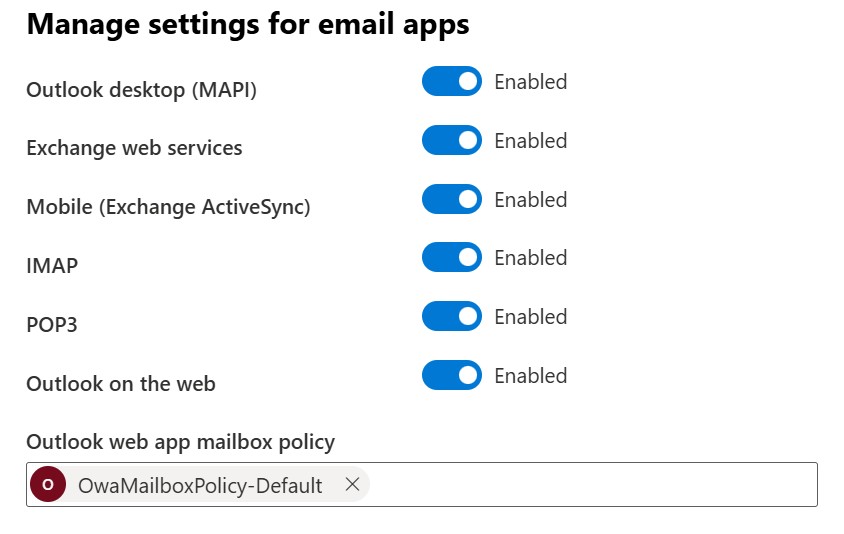

Select Users > Select Active users > Choose the user you created > Go to Mail > Enable SMTP authentication in the Manage email apps section





3/ Set up the SMTP server and email authentication in your device settings.

The Microsoft SMTP server is smtp.office365.com, and it uses port 587 or 25.  Enter the email address you created above and complete the authentication process.

Additionally, you may look for documentation specific to your device brand. Many manufacturers provide clear guidance on how to use the scan‑to‑email feature with Microsoft Exchange through OAuth 2.0.

I hope these suggestions offer some additional insight. If you have any updates, please feel free to share.

---

Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

Answer 2

For a multifunction device (MFD) scanning to email with Exchange Online, there are three supported patterns. The correct setup depends on whether the device can authenticate with a mailbox and whether it must send to external recipients.

1. Decide which configuration model to use

From the description (supports OAuth 2.0, TLS 1.3, and needs to send every day for business, likely to internal and external recipients), the two realistic options are:

• SMTP AUTH client submission (recommended when the device can authenticate as a mailbox and send to internal/external recipients).
• Microsoft 365/Office 365 SMTP relay (when the device must send “as” multiple users or cannot authenticate with a mailbox, and you can send from a static IP).

Direct send is only for sending to recipients in the same Microsoft 365 tenant and cannot send to external addresses.

To confirm what is currently configured on the MFD:

• If the server is smtp.office365.com and a username/password are entered, it is using SMTP AUTH client submission.
• If the server ends with mail.protection.outlook.com and no credentials are configured, it is using direct send.
• If the server ends with mail.protection.outlook.com and there is a connector in Exchange Online for your on-premises IP or certificate, it is using Microsoft 365/Office 365 SMTP relay.

See the section “My printer is already configured for email, but I don't know which configuration option it uses” for a concise comparison of these three options.

2. SMTP AUTH client submission checklist (simplest if device can log on as a mailbox)

Use this if the MFD can:

• Connect to smtp.office365.com on port 587 (TLS).
• Authenticate with a single Microsoft 365 mailbox (username/password).

Key steps:

1. Verify SMTP AUTH is enabled on the mailbox used by the MFD:
   • In Exchange Online PowerShell, run:

          Get-CASMailbox -Identity <EmailAddress> | Format-List SmtpClientAuthenticationDisabled


   • If the value is True, enable SMTP AUTH for that mailbox:

          Set-CASMailbox -Identity <EmailAddress> -SmtpClientAuthenticationDisabled $false


2. Ensure modern security controls are compatible with SMTP AUTH:
   • If multifactor authentication (MFA) is enabled on that mailbox, disable MFA for this account or use an app password (if allowed in the tenant). The guidance in the context explicitly calls out disabling MFA on the licensed mailbox used by the device.
   • If Security Defaults are enabled, they may block legacy auth, including SMTP AUTH. The article describes how to disable Security Defaults (with a clear caution about security risk) under Microsoft Entra ID > Properties > Manage security defaults.
   • If there is a Conditional Access policy blocking legacy authentication, exclude the MFD mailbox under Users and Groups > Exclude in that policy.
3. Configure the MFD:
   • SMTP server: smtp.office365.com
   • Port: 587
   • Encryption: STARTTLS/TLS (device must support TLS 1.2+; TLS 1.3 support is fine)
   • Authentication: username/password of the Microsoft 365 mailbox dedicated for the device.
   • From address: must match the authenticated mailbox address. If the device tries to send “From” a different address, you will see 5.7.60 SMTP; Client does not have permissions to send as this sender and should instead use SMTP relay.
4. Test connectivity from the network where the MFD resides:
   • Use Telnet from a workstation on the same network:
     • Install Telnet Client.
     • Run telnet.
     • open smtp.office365.com 587.
   • If the connection fails, the firewall or ISP is blocking port 587 (or 25 if using that). This must be fixed before the MFD can send mail.
5. Common SMTP AUTH errors and fixes:
   • 535 5.7.3 Authentication unsuccessful or 5.7.57 Client not authenticated to send mail:
     • Confirm SMTP AUTH is enabled on the mailbox.
     • Confirm MFA/Security Defaults/Conditional Access are not blocking the login.
     • Confirm correct username/password.
   • Client was not authenticated to send anonymous mail during MAIL FROM:
     • Indicates the device is connecting to smtp.office365.com but not authenticating. Enter mailbox credentials or switch to direct send/SMTP relay.
6. Direct send (no authentication, internal recipients only)

Use this only if:

• The MFD must send only to recipients in the same Microsoft 365 tenant.
• You want to avoid authentication.

Configuration:

• SMTP server: your tenant MX endpoint (ends with mail.protection.outlook.com).
• Port: 25, TLS if supported.
• No authentication.

Limitations and issues:

• Cannot send to external recipients by design. If external mail is required, use SMTP AUTH or SMTP relay.
• If emails are marked as junk, use a static IP and ensure the SPF record includes that IP.
• If the device is currently pointed at smtp.office365.com without auth, you will see Client was not authenticated to send anonymous mail during MAIL FROM; switch to the MX endpoint for direct send.

4. Microsoft 365/Office 365 SMTP relay (for multiple senders or line-of-business scenarios)

Use this if:

• The device must send as multiple users or addresses that do not match the authenticated account.
• You have a static public IP and can create an inbound connector in Exchange Online.

High-level steps:

• Configure an inbound connector in Exchange Online that identifies your on-premises device by IP or certificate.
• Configure the MFD to send to your tenant’s MX endpoint (*.mail.protection.outlook.com) over port 25 from that static IP.
• Ensure SPF includes the static IP.

If email is marked as junk or rejected:

• Confirm the static IP in the connector and SPF record is correct and up to date (ISP/network changes can alter the IP).
• If the connector no longer matches (IP or certificate changed), update the connector so messages are correctly attributed to the tenant.

5. If configuration still fails

• Re-check the configuration against the official “How to set up a multifunction device or application to send email using Microsoft 365 or Office 365” article referenced in the troubleshooting guide.
• Use the built-in diagnostic in the Microsoft 365 admin center (“Run diagnostic to setup applications or devices sending email using Microsoft 365”) to validate the chosen method (SMTP AUTH, direct send, or SMTP relay) and detect common misconfigurations.

In summary, for a modern MFD that supports TLS 1.2+ and daily business use, the simplest path is usually SMTP AUTH client submission with a dedicated mailbox, ensuring SMTP AUTH is enabled on that mailbox and that security controls (MFA, Security Defaults, Conditional Access) are configured to allow SMTP AUTH for that specific account.

---

References:

• Fix issues with printers, scanners, and LOB apps that send email using Microsoft 365
• Fix issues with SMTP AUTH client submission
• My printer is already configured for email, but I don't know which configuration option it uses
• Fix issues with direct send
• Fix issues with Microsoft 365 or Office 365 SMTP relay
