ipsec tunnel configuration active-active

Question

ipsec tunnel configuration active-active

Christian 0

I have an ipsec tunnel configured from azure to onprem. How do I enabled the second tunnel with the second ip address?

Christian

Vallepu Venkateswarlu 7,625 Reputation points Microsoft External Staff Moderator

2026-03-23T14:55:20.3866667+00:00
Hi @Christian,

Welcome to Microsoft Q&A Platform.

It appears that your Azure VPN Gateway is configured in active-active mode (with two public IPs), but only one tunnel is showing as connected.

In active-active mode, Azure automatically establishes two IPsec/IKE tunnels (one from each gateway instance). However, your on-premises VPN device must also be configured to initiate or accept both tunnels.

Verify VPN Gateway Configuration: In the Azure portal, navigate to: VPN Gateway → IP Configurations and Confirm that you see two Standard SKU static public IP addresses

Check Connection Type:

Ensure the VPN is route-based

Active-active mode is **not supported for policy-based VPNs

Configure On-Premises Device for Second Tunnel:
On your on-prem VPN appliance:

Create a second IKE/IPsec tunnel pointing to the second Azure public IP

Use the same:

Pre-shared key (PSK)

Phase 1 / Phase 2 settings

If Using BGP

Configure two BGP peerings

One for each Azure gateway instance

Use the respective BGP peer IPs

Please "upvote" if the information helped you. This will help us and others in the community as well.
Christian 0 Reputation points

2026-03-23T15:11:35.5866667+00:00

How do I test that both tunnels are established? Where can I disabled one of the tunnels in azure to see if HA is working?
Christian 0 Reputation points

2026-03-23T15:21:17.8266667+00:00

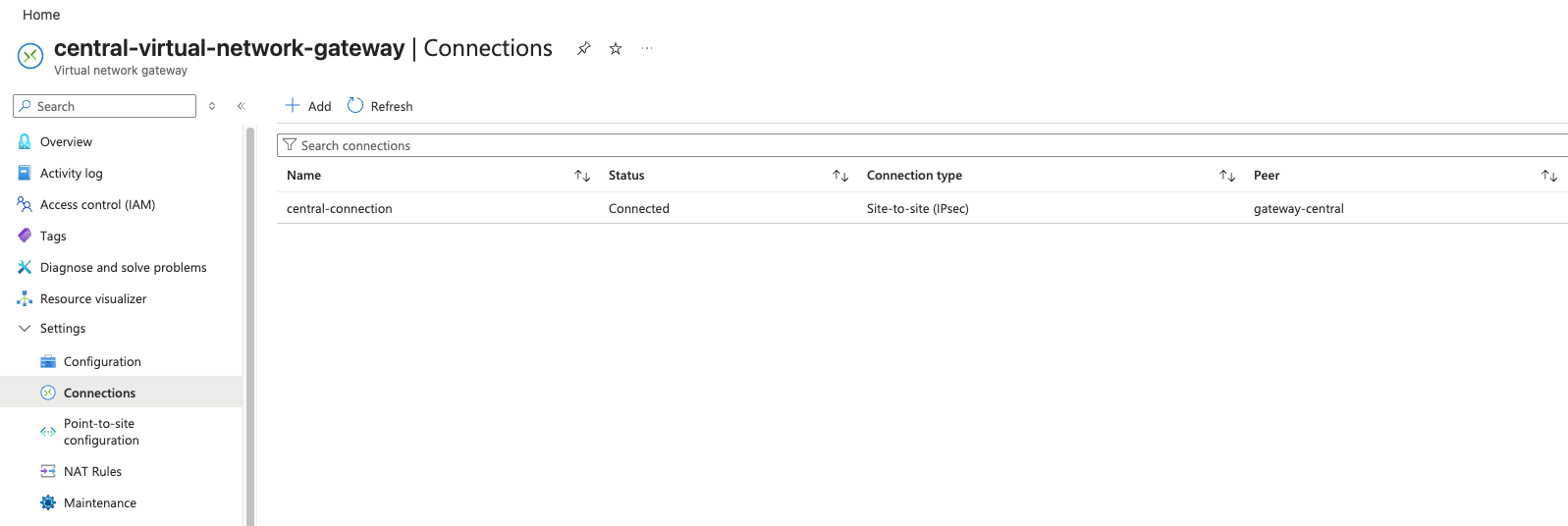

see image. On the azure side, would I see both connections to onprem here? I already configured the second tunnel onprem but connection is not coming up.
Vallepu Venkateswarlu 7,625 Reputation points Microsoft External Staff Moderator

2026-03-23T15:44:23.07+00:00
How do I test that both tunnels are established?

As Stated in Verify a connection for VPN Gateway

In the Azure portal, go to your virtual network gateway.

On the page for your virtual network gateway, click Connections. You can see the status of each connection.

Click the name of the connection that you want to verify. In Essentials, you can view more information about your connection.
The Status values are 'Succeeded' and 'Connected' when you have made a successful connection.

Please "upvote" if the information helped you. This will help us and others in the community as well.
Christian 0 Reputation points

2026-03-23T16:09:48.5366667+00:00

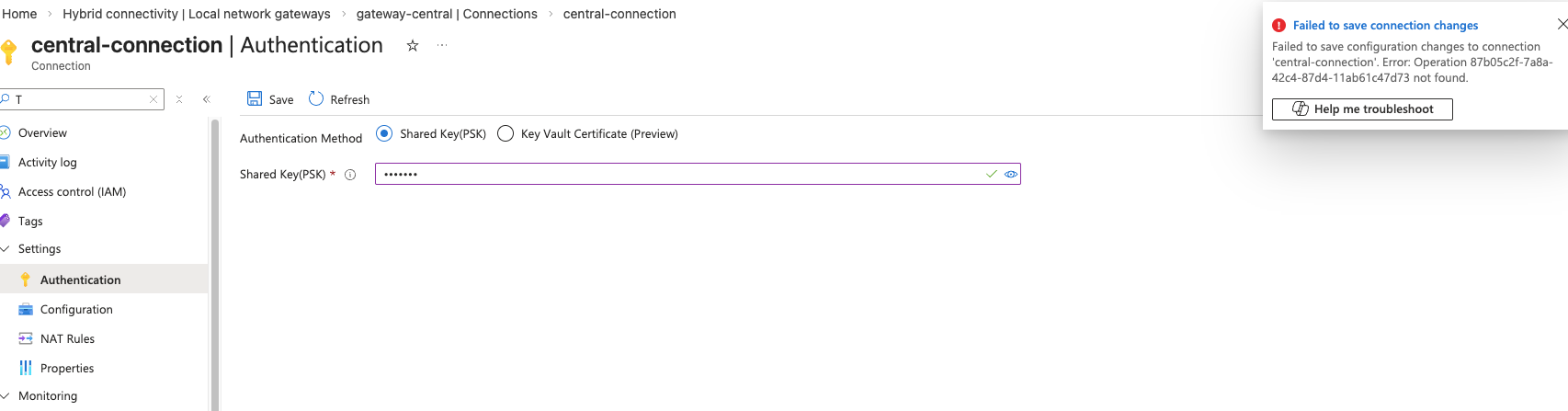

when I try to update the PSK key I get the error on the top right.
Christian 0 Reputation points

2026-03-23T23:32:17.59+00:00

I understand that when using active-active azure creates a single tunnel with both gateways, based on this article. Under connections, I only see one though. Is it possible to see a connection for each gateway in azure going to the onprem ?
Vallepu Venkateswarlu 7,625 Reputation points Microsoft External Staff Moderator

2026-03-24T11:27:18.8633333+00:00

Hi @Christian,

In an active-active Azure VPN Gateway configuration, each gateway instance is assigned a unique public IP address, and each instance establishes its own IPsec/IKE tunnel to the on-premises VPN device. However, both tunnels are logically grouped under a single VPN connection resource in Azure.

Even though two tunnels exist in active-active mode, Azure surfaces them as a single connection resource. Tunnel-level visibility and validation must be performed from the on-premises VPN device (e.g., ASA, SonicWall), not from Azure.

Ref: Active-standby mode behavior

If your gateway is in active-active mode, you'll see two public IP addresses listed, one for each gateway VM instance. When you create a site-to-site connection, you must specify each IP address when configuring your VPN device because both gateway VMs are active, follow the View public IP address

If you are getting an error while updating PSK Key , Please check the Prerequisites and follow the Create VPN connections

Please "upvote" if the information helped you. This will help us and others in the community as well.
Ganesh Patapati 11,915 Reputation points Microsoft External Staff Moderator

2026-03-30T08:54:13.37+00:00

Hello Christian

Thanks for the reply!

I’ve started a private message with you. Please share the required details there so I can assist with troubleshooting.
