Microsoft Reformatted Whole Computer Creating New Drive

Question

Microsoft Reformatted Whole Computer Creating New Drive

Larry B 0

I got Microsoft Phone Support late last year to help me totally reload Windows 11 because the system was acting weirdly. In the process, they created a Drive H. Can this drive be deleted and if so, how?

Thanks.

0 comments

2 answers

Your answer

Answer 1

DaveM121 864.5K Independent Advisor

You will be able to delete that partition, but you may not be able to merge it into the C drive, because Windows has limited partitioning ability.

right click your Start Button and open Disk Management.

Please provide a screenshot of the Disk Management window showing all drives and partitions in the bottom pane of Disk Management.

Larry B 0 Reputation points

2026-03-24T16:11:01.9366667+00:00

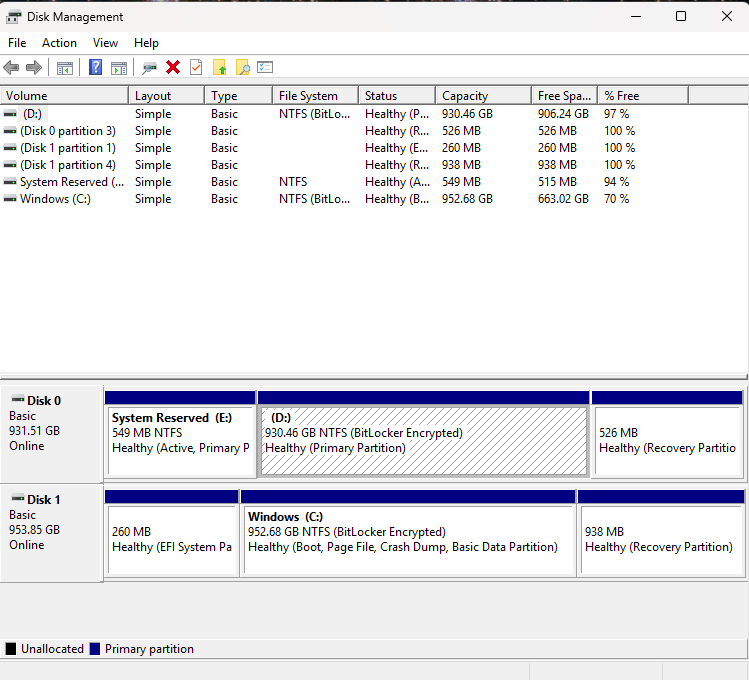

DaveM121, here is the screenshot from Disk Management.
DaveM121 864.5K Reputation points Independent Advisor

2026-03-24T16:19:34.7033333+00:00

Thank you for the screenshot.

The screenshot indicates there is no H drive partition, so the H drive partition you are seeing in File Explore is one of the recovery partitions that has been assigned a drive letter in error, and that drive letter is not appearing in Disk Management.

Before proceeding, do you have any data stored on that top D drive, if you do, copy that data onto the C drive to ensure against data loss.

Then in Disk Management, on the top D drive, starting from the left, right click and delete each partition on the top drive by selecting 'Delete Volume', so the whole drive becomes 'Unallocated Space'

Then, right click the unallocated space and select 'New - Simple Volume' and accept the defaults.
Larry B 0 Reputation points

2026-04-16T20:12:51.0166667+00:00

DaveM121, your suggestion did not work. I restored the D drive and contacted Microsoft. The tech ultimately took control of the computer and was able to remove the name of the H drive. This drive is used for boot up but should not be labeled.

Thanks for the suggestion though.

Answer 2

Yes, an extra drive created during a reinstall can usually be deleted, but only if it is not being used for Windows, recovery, or important data.

Before deleting any drive, verify what it is used for:

Open Settings → System → Storage → Advanced storage settings → Disks & volumes.
Find Drive H: in the list and check:
- Its label/name (for example, “Recovery”, “System”, “Dev Drive”, “Data”, etc.).
- Its size and whether it contains files that need to be kept.

If Drive H is just a data volume (for example, a dev/data volume created during troubleshooting) and does not contain needed files, it can be deleted from Disks & volumes:

In Disks & volumes, select Properties next to Drive H.
Use the Delete option under the Format section to remove that volume.

If Drive H is actually a virtual disk (VHD) mounted as a drive letter, it must be detached and then the VHD file deleted to reclaim space:

Open Computer Management → Disk Management.
In the lower pane, locate the Disk that corresponds to Drive H (not just the volume letter).
Right‑click that Disk (the one hosting the H: volume) and select Detach VHD.
After detaching, delete the underlying VHD file from wherever it is stored to free the disk space.

Do not delete H: if it is labeled as a System, Recovery, or Windows partition, as those are used for booting or recovery.
