Issuse with setting up monitoring for ADF - dashboard not generating after 24 hrs

Mattia Ficarelli 26 Reputation points
2022-04-08T09:23:10.817+00:00

Hi,

I am trying to create a monitoring dashboard for our ADF using log analytics - outlined here: https://learn.microsoft.com/en-us/azure/data-factory/monitor-using-azure-monitor. Following installation of Azure Data Factory Analytics from Azure Marketplace, I turned on diagnostics for the ADF in question and send its log analytics to a new workspace. All i see after 24 hrs is:

"
Performing Assessment
Learn how to configure solution: https://learn.microsoft.com/en-us/azure/data-factory/monitor-using-azure-monitor
"

I am aware this is an existing issue which has been closed - https://github.com/MicrosoftDocs/azure-docs/issues/14765. How can I get this resolved?

Thank you for your help.

Azure Monitor
Azure Monitor
An Azure service that is used to collect, analyze, and act on telemetry data from Azure and on-premises environments.
2,922 questions
Azure Data Factory
Azure Data Factory
An Azure service for ingesting, preparing, and transforming data at scale.
9,893 questions
0 comments No comments
{count} votes

1 answer

Sort by: Most helpful
  1. KranthiPakala-MSFT 46,432 Reputation points Microsoft Employee
    2022-04-12T00:29:15.53+00:00

    Hello @Mattia Ficarelli ,

    Thanks for the question and using MS Q&A platform.

    As per my understanding you have created Azure Data Factory Analytics resource from Azure Market place, but you are seeing the above message (Performing Assessment) in the summary tab. Please correct if I'm not accurate

    Could you please confirm if you have followed this document to create the Azure Data Factory Analytics resource? - Install Azure Data Factory Analytics solution from Azure Marketplace

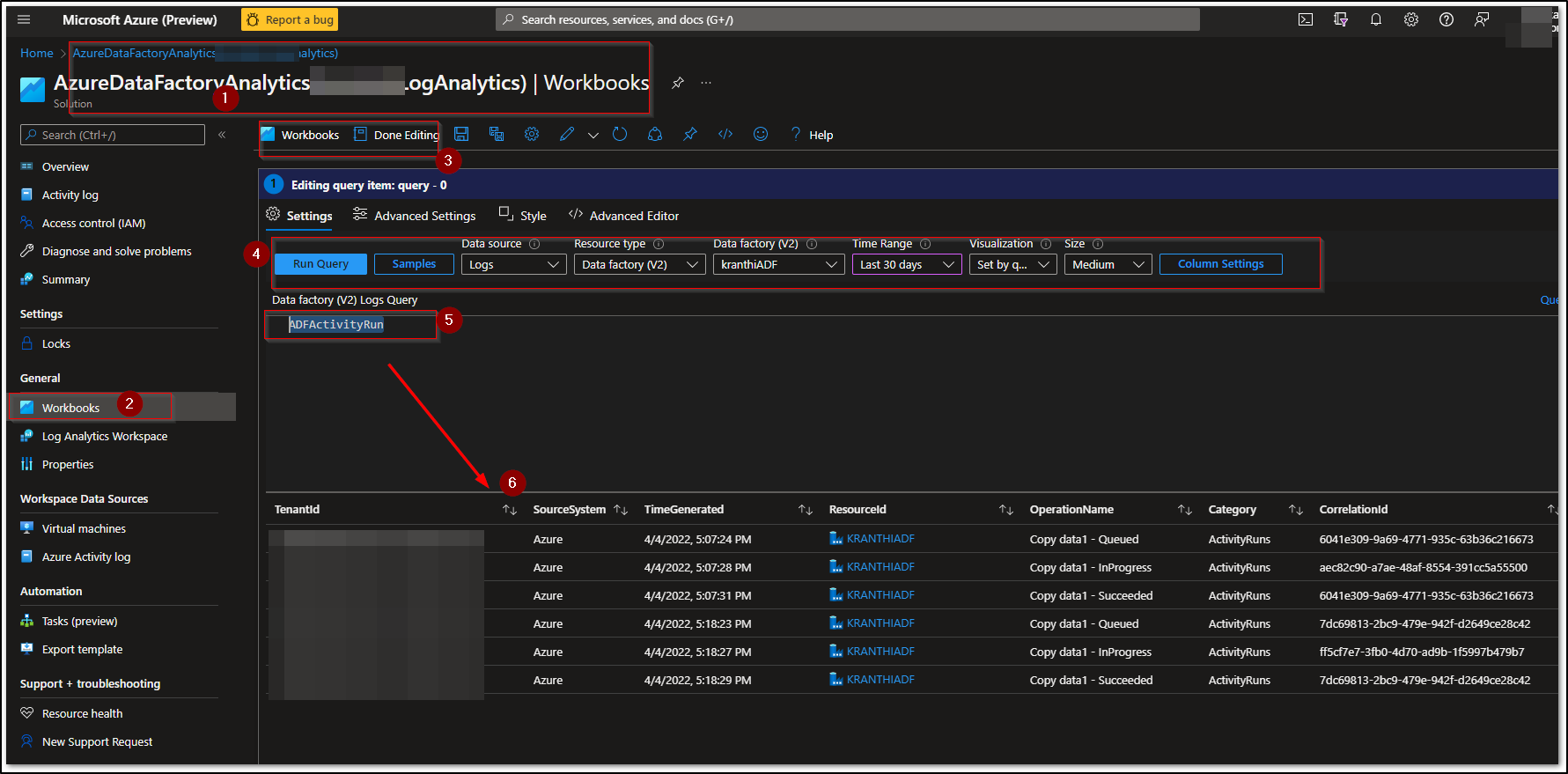

    To view the metrics, you will have to go to your Azure Data Factory Analtytics reosurces and under General tab go to Workbooks and then edit the query accordingly to view your particular resource metrics as shown below:


    Please note that Azure Data Factory Analytics (Preview) sends diagnostic logs to Resource-Specific destination tables. You can write queries against the following tables: ADFPipelineRun, ADFTriggerRun, and ADFActivityRun.

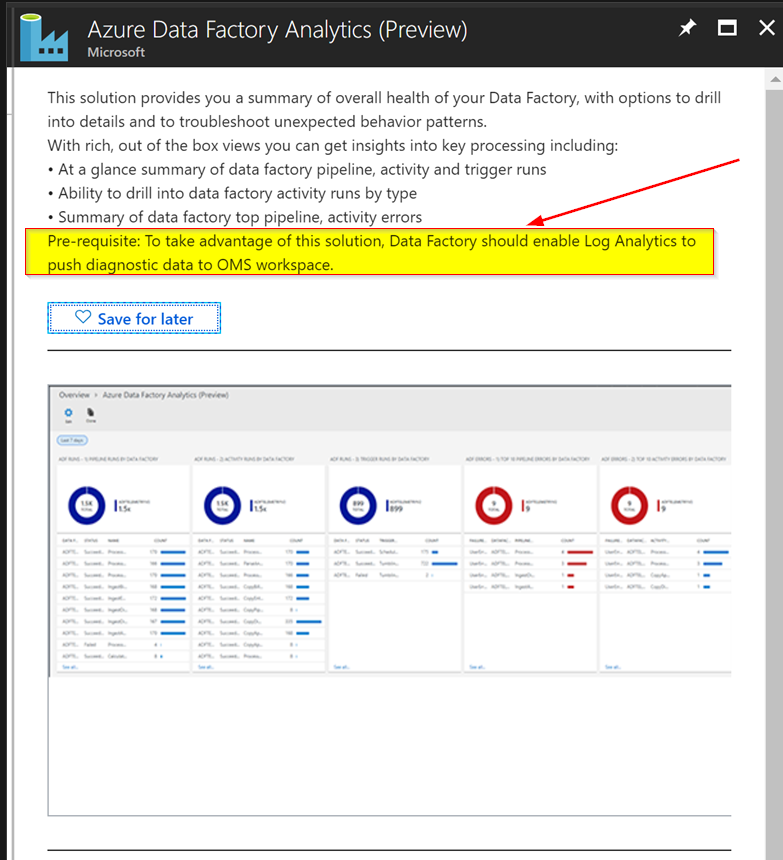

    In order to take the advantage of this feature, please follow the below pre-requisite as called out in the above documentation.


    Hope this will help. Please let us know if any further queries.

    ------------------------------
