How to enter or bind data from another field to the selected DataGridCell in the PreviewKeyDown event?

Question

Hi
I use the following method to set the TextBox date limit.
XAML (MaxLength):

<TextBox x:Name="LoanDate_TextBox" PreviewKeyDown="LoanDate_TextBox_PreviewKeyDown" GotFocus="LoanDate_TextBox_GotFocus" LostFocus="LoanDate_TextBox_LostFocus" Padding="4,4,0,0" Template="{StaticResource TextBoxControlTemplate}" HorizontalAlignment="Left" Height="30" MaxLength="10" TextWrapping="Wrap" VerticalAlignment="Top" Width="178" Margin="0,51,0,0"/>

C#:

    private void LoanDate_TextBox_PreviewKeyDown(object sender, KeyEventArgs e)
    {
        switch (!((e.Key >= Key.D0 && e.Key <= Key.D9) || (e.Key >= Key.NumPad0 && e.Key <= Key.NumPad9) || e.Key == Key.Back || e.Key == Key.Home || e.Key == Key.End || e.Key == Key.Left || e.Key == Key.Right || e.Key == Key.Tab || Keyboard.Modifiers == ModifierKeys.Control))
        {
            case true:
                e.Handled = true;
                break;
            default:
                switch (e.Key == Key.A || e.Key == Key.C || e.Key == Key.V || e.Key == Key.Y || e.Key == Key.Z)
                {
                    case true:
                        break;
                }
                switch (e.Key != Key.Back && e.Key != Key.Home && e.Key != Key.End && e.Key != Key.Left && e.Key != Key.Right)
                {
                    case true:
                        byte j = 0;
                        for (byte i = 0; i < LoanDate_TextBox.Text.Length; i++)
                        {
                            switch (LoanDate_TextBox.Text[i] == '/')
                            {
                                case true:
                                    j++;
                                    break;
                            }
                        }
                        switch (j < 2)
                        {
                            case true:
                                switch (LoanDate_TextBox.Text.Length)
                                {
                                    case 2:
                                        LoanDate_TextBox.Text = '/' + LoanDate_TextBox.Text;
                                        break;
                                    case 5:
                                        LoanDate_TextBox.Text = '/' + LoanDate_TextBox.Text;
                                        break;
                                }
                                break;
                        }
                        break;
                    default:
                        switch (e.Key)
                        {
                            case Key.Back:
                                switch (App.EnumLanguage)
                                {
                                    case AllLanguage.Persian:
                                        switch (LoanDate_TextBox.Text.Length)
                                        {
                                            case 3:
                                                LoanDate_TextBox.SelectionStart = 3;
                                                break;
                                            case 6:
                                                LoanDate_TextBox.SelectionStart = 6;
                                                break;
                                        }
                                        break;
                                }
                                break;
                        }
                        break;
                }
                break;
        }
    }

As you can see it works fine (I just enter numbers):

So I tried to use this method in the DataGridCell PreviewKeyDown event.
XAML:

<DataGridTextColumn x:Name="DateTaken" Binding="{Binding DateTaken}" Width="SizeToHeader">
  <DataGridTextColumn.CellStyle>
    <Style TargetType="DataGridCell">
       <EventSetter Event="PreviewKeyDown" Handler="DateTaken_PreviewKeyDown"/>
    </Style>
  </DataGridTextColumn.CellStyle>
</DataGridTextColumn>

C#:

    TextBox DataGridTextColumnValue = new TextBox();
    public string InputTextFilter(string Input)
    {
        StringBuilder FilteredString = new StringBuilder();
        for (byte i = 0; i < Input.Length; i++)
        {
            switch (char.IsDigit(Input[i]) || Input[i] == '/')
            {
                case true:
                    FilteredString.Append(Input[i]);
                    break;
            }
        }
        return FilteredString.ToString();
    }
    private void DateTaken_PreviewKeyDown(object sender, KeyEventArgs e)
    {
        switch (!((e.Key >= Key.D0 && e.Key <= Key.D9) || (e.Key >= Key.NumPad0 && e.Key <= Key.NumPad9) || e.Key == Key.Back || e.Key == Key.Home || e.Key == Key.End || e.Key == Key.Left || e.Key == Key.Right || e.Key == Key.Tab || Keyboard.Modifiers == ModifierKeys.Control))
        {
            case true:
                e.Handled = true;
                break;
            default:
                DataRowView DV = (DataRowView)BookDataGrid.SelectedItem;
                DataGridTextColumnValue.Text = InputTextFilter(BookDataGrid.CurrentCell.Column.GetCellContent(DV).ToString());
                switch (e.Key == Key.A || e.Key == Key.C || e.Key == Key.V || e.Key == Key.Y || e.Key == Key.Z)
                {
                    case true:
                        break;
                }
                switch (e.Key != Key.Back && e.Key != Key.Home && e.Key != Key.End && e.Key != Key.Left && e.Key != Key.Right)
                {
                    case true:
                        byte j = 0;
                        for (byte i = 0; i < DataGridTextColumnValue.Text.Length; i++)
                        {
                            switch (DataGridTextColumnValue.Text[i] == '/')
                            {
                                case true:
                                    j++;
                                    break;
                            }
                        }
                        switch (j < 2)
                        {
                            case true:
                                switch (DataGridTextColumnValue.Text.Length)
                                {
                                    case 2:
                                        DataGridTextColumnValue.Text = '/' + DataGridTextColumnValue.Text;
                                        break;
                                    case 5:
                                        DataGridTextColumnValue.Text = '/' + DataGridTextColumnValue.Text;
                                        break;
                                }
                                break;
                        }
                        break;
                    default:
                        switch (e.Key)
                        {
                            case Key.Back:
                                switch (App.EnumLanguage)
                                {
                                    case AllLanguage.Persian:
                                        switch (DataGridTextColumnValue.Text.Length)
                                        {
                                            case 3:
                                                DataGridTextColumnValue.SelectionStart = 3;
                                                break;
                                            case 6:
                                                DataGridTextColumnValue.SelectionStart = 6;
                                                break;
                                        }
                                        break;
                                }
                                break;
                        }
                        break;
                }
                break;
        }
    }

Now my question is how to bind the DataGridTextColumnValue text to the selected DataGridCell (lines 50 and 53) ?

Thanks for your attention. I’m looking forward to your reply.

Answer 1

I tried DateTaken_PreviewKeyDown and LoanDate_TextBox_PreviewKeyDown in the EventSetter of CellStyle , without success. You could try by binding the TextBox with the PreviewKeyDown event to the DataGridTemplateCloumn. I commented the relevant code for App.EnumLanguage because I don't know its definition.
MainWindow.xaml:

 <Window.Resources>
        <CollectionViewSource x:Key="CountryView" Source="{Binding Countries}"/>
    </Window.Resources>
    <Grid>
        <DataGrid x:Name="BookDataGrid" Width="400" Height="250" ItemsSource="{Binding Source={StaticResource CountryView}}"
                   SelectedItem="{Binding SelectedCountry}"  AutoGenerateColumns="False">
            <DataGrid.Columns>
                <DataGridTextColumn Header="name" Binding="{Binding Country}"/>

                <DataGridTemplateColumn Header="daten"  Width="100" >

                    <DataGridTemplateColumn.CellTemplate>
                        <DataTemplate>
                            <TextBlock Text="{Binding DateTaken}"/>
                        </DataTemplate>
                    </DataGridTemplateColumn.CellTemplate>
                    <DataGridTemplateColumn.CellEditingTemplate >
                        <DataTemplate>
                            <TextBox x:Name="DataGridTextColumnValue" Text="{Binding  DateTaken}" PreviewKeyDown="LoanDate_TextBox_PreviewKeyDown"/>

                        </DataTemplate>
                    </DataGridTemplateColumn.CellEditingTemplate>
                </DataGridTemplateColumn>
            </DataGrid.Columns>

        </DataGrid>
    </Grid>

MainWindow.xaml.cs:

using System;
using System.Collections.ObjectModel;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Input;

namespace PreviewKeyDownDataGridCell
{
  public partial class MainWindow : Window
  {
    ViewModel vm = new ViewModel();
    public MainWindow()
    {
      InitializeComponent();
      DataContext = vm;
    }

        private void LoanDate_TextBox_PreviewKeyDown(object sender, KeyEventArgs e)
        {

            var LoanDate_TextBox  = sender as TextBox;
            switch (!((e.Key >= Key.D0 && e.Key <= Key.D9) || (e.Key >= Key.NumPad0 && e.Key <= Key.NumPad9) || e.Key == Key.Back || e.Key == Key.Home || e.Key == Key.End || e.Key == Key.Left || e.Key == Key.Right || e.Key == Key.Tab || Keyboard.Modifiers == ModifierKeys.Control))
            {
                case true:
                    e.Handled = true;
                    break;
                default:
                    switch (e.Key == Key.A || e.Key == Key.C || e.Key == Key.V || e.Key == Key.Y || e.Key == Key.Z)
                    {
                        case true:
                            break;
                    }
                    switch (e.Key != Key.Back && e.Key != Key.Home && e.Key != Key.End && e.Key != Key.Left && e.Key != Key.Right)
                    {
                        case true:
                            byte j = 0;
                            for (byte i = 0; i < LoanDate_TextBox.Text.Length; i++)
                            {
                                switch (LoanDate_TextBox.Text[i] == '/')
                                {
                                    case true:
                                        j++;
                                        break;
                                }
                            }
                            switch (j < 2)
                            {
                                case true:
                                    switch (LoanDate_TextBox.Text.Length)
                                    {
                                        case 2:
                                            LoanDate_TextBox.Text = '/' + LoanDate_TextBox.Text;
                                            break;
                                        case 5:
                                            LoanDate_TextBox.Text = '/' + LoanDate_TextBox.Text;
                                            break;
                                    }
                                    break;
                            }
                            break;
                        default:
                            //switch (e.Key)
                            //{
                            //    case Key.Back:
                            //        switch (App.EnumLanguage)
                            //        {
                            //            case AllLanguage.Persian:
                            //                switch (LoanDate_TextBox.Text.Length)
                            //                {
                            //                    case 3:
                            //                        LoanDate_TextBox.SelectionStart = 3;
                            //                        break;
                            //                    case 6:
                            //                        LoanDate_TextBox.SelectionStart = 6;
                            //                        break;
                            //                }
                            //                break;
                            //        }
                            //        break;
                            //}
                            break;
                    }
                    break;
            }
        }
  }
  public class ViewModel
  {
    public ObservableCollection<MyCountry> Countries { get; set; }
    public MyCountry SelectedCountry { get; set; }
    public ViewModel()
    {
      Countries = new ObservableCollection<MyCountry>();
      Countries.Add(new MyCountry() { Country = "Beijing", DateTaken = DateTime.Now });
      Countries.Add(new MyCountry() { Country = "NewYork", DateTaken = DateTime.Now });
      Countries.Add(new MyCountry() { Country = "Shanghai", DateTaken = DateTime.Now });
    }
  }
  public class MyCountry
  {
    public string Country { get; set; }
    public DateTime DateTaken { get; set; }
  }
}

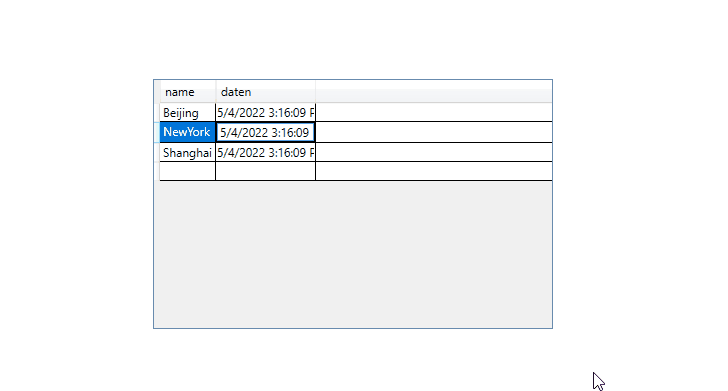

The result:

---
