Tutorial: Azure AD SSO integration with AlertOps
In this tutorial, you'll learn how to integrate AlertOps with Azure Active Directory (Azure AD). When you integrate AlertOps with Azure AD, you can:
- Control in Azure AD who has access to AlertOps.
- Enable your users to be automatically signed-in to AlertOps with their Azure AD accounts.
- Manage your accounts in one central location - the Azure portal.
To get started, you need the following items:
- An Azure AD subscription. If you don't have a subscription, you can get a free account.
- AlertOps single sign-on (SSO) enabled subscription.
In this tutorial, you configure and test Azure AD SSO in a test environment.
- AlertOps supports SP and IDP initiated SSO.
Add AlertOps from the gallery
To configure the integration of AlertOps into Azure AD, you need to add AlertOps from the gallery to your list of managed SaaS apps.
- Sign in to the Azure portal using either a work or school account, or a personal Microsoft account.
- On the left navigation pane, select the Azure Active Directory service.
- Navigate to Enterprise Applications and then select All Applications.
- To add new application, select New application.
- In the Add from the gallery section, type AlertOps in the search box.
- Select AlertOps from results panel and then add the app. Wait a few seconds while the app is added to your tenant.
Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.
Configure and test Azure AD SSO for AlertOps
Configure and test Azure AD SSO with AlertOps using a test user called B.Simon. For SSO to work, you need to establish a link relationship between an Azure AD user and the related user in AlertOps.
To configure and test Azure AD SSO with AlertOps, perform the following steps:
- Configure Azure AD SSO - to enable your users to use this feature.
- Create an Azure AD test user - to test Azure AD single sign-on with B.Simon.
- Assign the Azure AD test user - to enable B.Simon to use Azure AD single sign-on.
- Configure AlertOps SSO - to configure the single sign-on settings on application side.
- Create AlertOps test user - to have a counterpart of B.Simon in AlertOps that is linked to the Azure AD representation of user.
- Test SSO - to verify whether the configuration works.
Configure Azure AD SSO
Follow these steps to enable Azure AD SSO in the Azure portal.
In the Azure portal, on the AlertOps application integration page, find the Manage section and select Single sign-on.
On the Select a Single sign-on method page, select SAML.
On the Set up Single Sign-On with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.
On the Basic SAML Configuration section, if you wish to configure the application in IDP initiated mode, perform the following steps:
In the Identifier text box, type a URL using the following pattern:
In the Reply URL text box, type a URL using the following pattern:
In the Logout Url (Optional) text box, type a URL using the following pattern:
These values are not real. Update these values with the actual Identifier, Reply URL and Logout Url. Contact AlertOps Client support team to get these values. You can also refer to the patterns shown in the Basic SAML Configuration section in the Azure portal.
On the Set up Single Sign-On with SAML page, in the SAML Signing Certificate section, find Certificate (Base64) and select Download to download the certificate and save it on your computer.
On the Set up AlertOps section, copy the appropriate URL(s) based on your requirement.
Create an Azure AD test user
In this section, you'll create a test user in the Azure portal called Britta Simon.
- From the left pane in the Azure portal, select Azure Active Directory, select Users, and then select All users.
- Select New user at the top of the screen.
- In the User properties, follow these steps:
- In the Name field, enter
- In the User name field, enter the firstname.lastname@example.org. For example,
- Select the Show password check box, and then write down the value that's displayed in the Password box.
- Click Create.
- In the Name field, enter
Assign the Azure AD test user
In this section, you'll enable Britta Simon to use Azure single sign-on by granting access to AlertOps.
- In the Azure portal, select Enterprise Applications, and then select All applications.
- In the applications list, select AlertOps.
- In the app's overview page, find the Manage section and select Users and groups.
- Select Add user, then select Users and groups in the Add Assignment dialog.
- In the Users and groups dialog, select Britta Simon from the Users list, then click the Select button at the bottom of the screen.
- If you're expecting any role value in the SAML assertion, in the Select Role dialog, select the appropriate role for the user from the list and then click the Select button at the bottom of the screen.
- In the Add Assignment dialog, click the Assign button.
Configure AlertOps SSO
To automate the configuration within AlertOps, you need to install My Apps Secure Sign-in browser extension by clicking Install the extension.
After adding extension to the browser, click on Setup AlertOps will direct you to the AlertOps application. From there, provide the admin credentials to sign into AlertOps. The browser extension will automatically configure the application for you and automate steps 3-5.
If you want to setup AlertOps manually, open a new web browser window and sign into your AlertOps company site as an administrator and perform the following steps:
Click on the Account settings from the user profile.
On the Account Settings page, click Update SSO and select Use single sign-on (SSO)
In SSO section, perform the following steps:
a. In the Issuer URL textbox, use the identifier value, which you have used in the Basic SAML Configuration section in the Azure portal.
b. In the SAML endpoint URL textbox, paste the Login URL value, which you have copied from the Azure portal.
c. In the SLO endpoint URL textbox, paste the Login URL value, which you have copied from the Azure portal.
d. Select SHA256 as a SAML Signature Algorithm from the dropdown.
e. Open your downloaded Certificate(Base64) file in Notepad. Copy the content of it into your clipboard, and then paste it to the X.509 Certificate text box.
f. Enable Allow username/password login.
Create AlertOps test user
In a different browser window, sign in to your AlertOps company site as administrator.

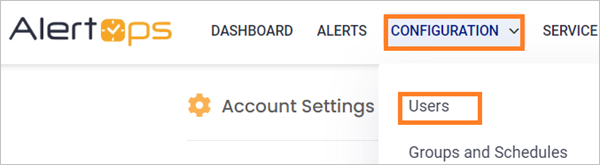

Click on the Configuration and then Users from navigation panel.
Select Add User.
On the Add User dialog, perform the following steps:
a. In the User Name textbox, enter the user name of the user like Brittasimon.
b. In the First Name textbox, enter the first name of user like Britta.
c. In the Last Name textbox, enter the first name of user like Simon.
d. In the Email textbox, enter the email address of the user like
f. Select the User Role of the user from the dropdown as per your organization.
g. Select Submit.
In this section, you test your Azure AD single sign-on configuration with following options.
Click on Test this application in Azure portal. This will redirect to AlertOps Sign on URL where you can initiate the login flow.
Go to AlertOps Sign-on URL directly and initiate the login flow from there.
- Click on Test this application in Azure portal and you should be automatically signed in to the AlertOps for which you set up the SSO.
You can also use Microsoft My Apps to test the application in any mode. When you click the AlertOps tile in the My Apps, if configured in SP mode you would be redirected to the application sign on page for initiating the login flow and if configured in IDP mode, you should be automatically signed in to the AlertOps for which you set up the SSO. For more information about the My Apps, see Introduction to the My Apps.
Once you configure AlertOps you can enforce session control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
