Tutorial: Configure Torii for automatic user provisioning

  • Article

This tutorial describes the steps you need to perform in both Torii and Microsoft Entra ID to configure automatic user provisioning. When configured, Microsoft Entra ID automatically provisions and de-provisions users to Torii using the Microsoft Entra provisioning service. For important details on what this service does, how it works, and frequently asked questions, see Automate user provisioning and deprovisioning to SaaS applications with Microsoft Entra ID.

Supported capabilities

  • Create users in Torii.
  • Remove users in Torii when they do not require access anymore.
  • Keep user attributes synchronized between Microsoft Entra ID and Torii.
  • Single sign-on to Torii (recommended).

Prerequisites

The scenario outlined in this tutorial assumes that you already have the following prerequisites:

  • A Microsoft Entra tenant
  • A user account in Microsoft Entra ID with permission to configure provisioning (for example, Application Administrator, Cloud Application administrator, Application Owner, or Global Administrator).
  • An administrator account with Torii.

Step 1: Plan your provisioning deployment

  1. Learn about how the provisioning service works.
  2. Determine who will be in scope for provisioning.
  3. Determine what data to map between Microsoft Entra ID and Torii.

Step 2: Configure Torii to support provisioning with Microsoft Entra ID

  1. Log in to Torii admin console.

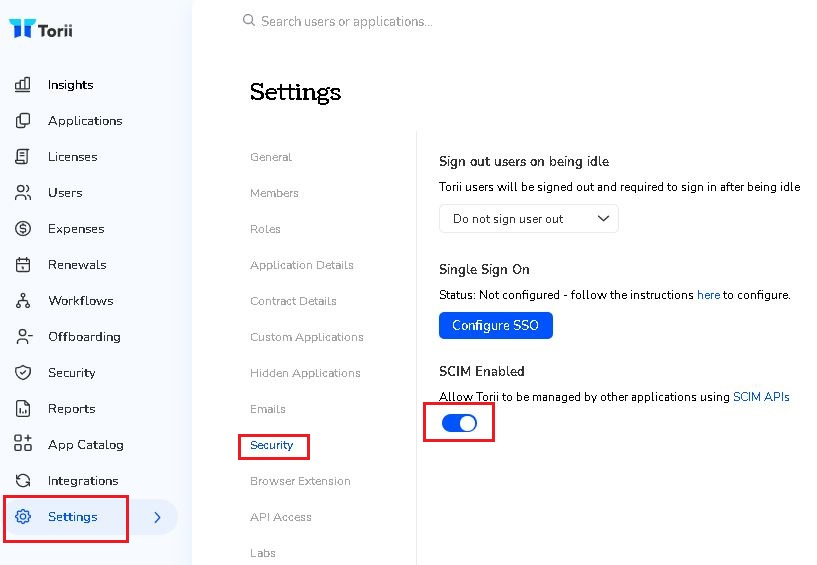

  2. Navigate to Settings page > Security, enable the SCIM toggle.

    Screenshot of SCIM Toggle.

  3. Navigate to the API Access tab. From here, you can view and manage the Torii API keys and SCIM.

  4. Click on Generate API Key to generate a new SCIM.

    Screenshot of Generate API Key.

  5. Choose type: SCIM.

  6. Add Description and set Expiration date. For security purposes, we recommend setting an expiration date when generating a new key.

  7. Click Generate key.

  8. Copy and save the API Key as it won't be available next. This value will be entered in the Secret Token field in the Provisioning tab of your Torii application.

  9. Click Got it.

    Screenshot of Create API Key.

    Screenshot of Copy API Key.

  10. Torii Tenant Url: https://api.toriihq.com/v1.0/scim/v2 will be entered in the Tenant URL field in the Provisioning tab of your Torii application.

Add Torii from the Microsoft Entra application gallery to start managing provisioning to Torii. If you have previously setup Torii for SSO you can use the same application. However it's recommended that you create a separate app when testing out the integration initially. Learn more about adding an application from the gallery here.

Step 4: Define who will be in scope for provisioning

The Microsoft Entra provisioning service allows you to scope who will be provisioned based on assignment to the application and or based on attributes of the user. If you choose to scope who will be provisioned to your app based on assignment, you can use the following steps to assign users to the application. If you choose to scope who will be provisioned based solely on attributes of the user or group, you can use a scoping filter as described here.

  • Start small. Test with a small set of users before rolling out to everyone. When scope for provisioning is set to assigned users, you can control this by assigning one or two users to the app. When scope is set to all users, you can specify an attribute based scoping filter.

  • If you need more roles, you can update the application manifest to add new roles.

Step 5: Configure automatic user provisioning to Torii

This section guides you through the steps to configure the Microsoft Entra provisioning service to create, update, and disable users in TestApp based on user and/or group assignments in Microsoft Entra ID.

To configure automatic user provisioning for Torii in Microsoft Entra ID:

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

  2. Browse to Identity > Applications > Enterprise applications

    Screenshot of Enterprise applications blade.

  3. In the applications list, select Torii.

    Screenshot of the Torii link in the Applications list.

  4. Select the Provisioning tab.

    Screenshot of Provisioning tab.

  5. Set the Provisioning Mode to Automatic.

    Screenshot of Provisioning tab automatic.

  6. Under the Admin Credentials section, input your Torii Tenant URL and Secret Token. Click Test Connection to ensure Microsoft Entra ID can connect to Torii. If the connection fails, ensure your Torii account has Admin permissions and try again.

    Screenshot of Token.

  7. In the Notification Email field, enter the email address of a person or group who should receive the provisioning error notifications and select the Send an email notification when a failure occurs check box.

    Screenshot of Notification Email.

  8. Select Save.

  9. Under the Mappings section, select Synchronize Microsoft Entra users to Torii.

  10. Review the user attributes that are synchronized from Microsoft Entra ID to Torii in the Attribute-Mapping section. The attributes selected as Matching properties are used to match the user accounts in Torii for update operations. If you choose to change the matching target attribute, you'll need to ensure that the Torii API supports filtering users based on that attribute. Select the Save button to commit any changes.

    Attribute Type Supported for filtering Required by Torii
    userName String ✓ ✓
    active Boolean
    name.givenName String
    name.familyName String
    userType String

    Note

    • userName must be a valid email address with a valid domain.
    • userType(role in Torii):
    • It must be exactly as appear at Torii
    • If userType is empty, the user will get the Employee role as the default.
    • The user types(roles) appear here.
    • Only admin users (not from type "Employee") will be displayed in Torii's UI
    • Read more about Torii's attributes here.

  11. To configure scoping filters, refer to the following instructions provided in the Scoping filter tutorial.

  12. To enable the Microsoft Entra provisioning service for Torii, change the Provisioning Status to On in the Settings section.

    Screenshot of Provisioning Status Toggled On.

  13. Define the users that you would like to provision to Torii by choosing the desired values in Scope in the Settings section.

    Screenshot of Provisioning Scope.

  14. When you're ready to provision, click Save.

    Screenshot of Saving Provisioning Configuration.

This operation starts the initial synchronization cycle of all users defined in Scope in the Settings section. The initial cycle takes longer to perform than subsequent cycles, which occur approximately every 40 minutes as long as the Microsoft Entra provisioning service is running.

Step 6: Monitor your deployment

Once you've configured provisioning, use the following resources to monitor your deployment:

  • Use the provisioning logs to determine which users have been provisioned successfully or unsuccessfully
  • Check the progress bar to see the status of the provisioning cycle and how close it's to completion
  • If the provisioning configuration seems to be in an unhealthy state, the application goes into quarantine. Learn more about quarantine states here.
