Azure Monitor pipeline transformations

Azure Monitor pipeline data transformations allow you to filter and manipulate log data before it's sent to Azure Monitor in the cloud. Transformations enable you to structure incoming data according to your analytics needs, ensuring that only relevant information is sent to Azure Monitor and that it's in an appropriate format to be processed.

Benefits of using pipeline transformations include:

  • Lower costs: Filter and aggregate data to reduce ingestion volume and in turn lower ingestion costs
  • Better analytics: Standardized schemas for faster queries and cleaner dashboards.
  • Future proof: Built-in schema validation prevents surprises during deployment.

Azure Monitor pipeline solves the challenges of high ingestion costs and complex analytics by enabling transformations before ingestion, so your data is clean, structured, and optimized before it even hits your Log Analytics Workspace.

Basic query structure

Like Azure Monitor transformations, all pipeline transformation queries start with source, which is a virtual table that represents the input stream. You can then use any supported KQL operators to filter, modify, or add columns to the data as you would with any other table. The query is applied individually to each entry sent by the data source.

See Basic query structure for more details on the query structure and supported operators.

Define a transformation

Pipeline transformations are defined as part of a dataflow. You can configure them using either the Azure portal or ARM templates. You can define your own custom transformation or use prebuilt templates for common patterns. Syntax validation, such as checking KQL expressions, is available to help ensure accuracy before saving your configuration. These capabilities allow for flexible and powerful data shaping directly within your monitoring infrastructure.

To define a transformation in the Azure portal, select Add Data Transformations, which opens the transformation editor. Select a template which provides predefined queries for common scenarios. Use the template as a starting point and modify the KQL query as needed to fit your requirements. Use the Custom template to start with a blank query.

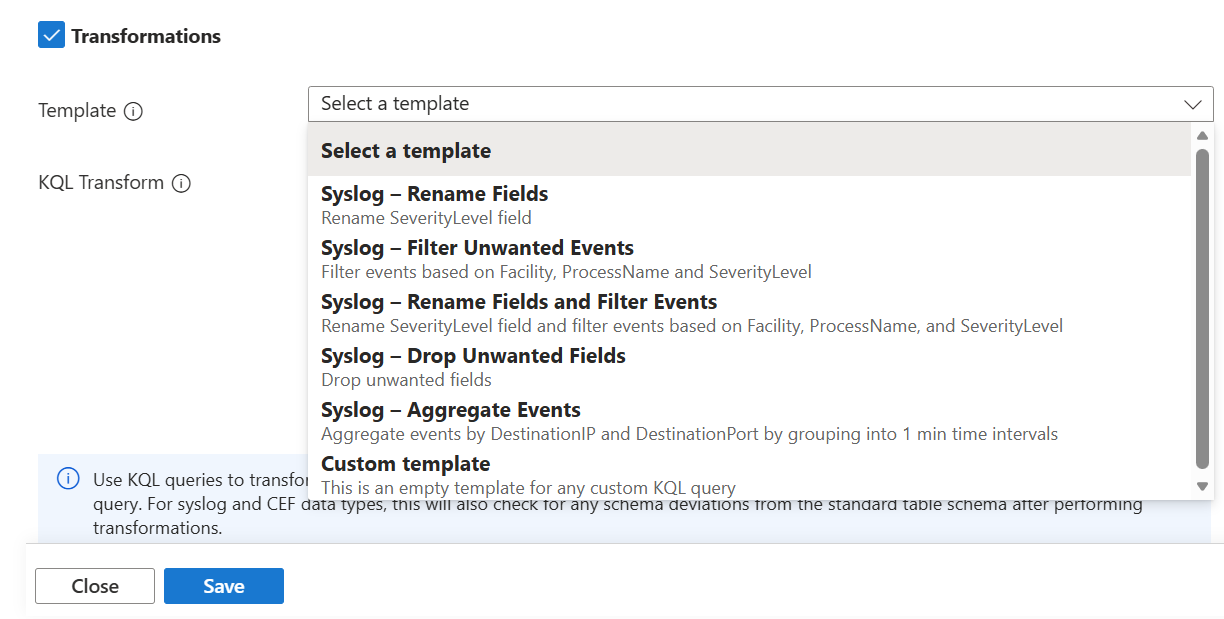

Screenshot of template selection for a transformation.

Once you have the query defined, click Check KQL syntax to validate the syntax of the query before saving the dataflow. For syslog and CEF data, the checker will also verify the data resulting from the transformation matches the schema of the table the data is sent to. If the transformation renames or adds columns as part of an aggregation for example, you'll be prompted to either remove those transformations or send the data to a custom table instead. An example is shown in the following image.

Screenshot of KQL syntax checker and typical error message.

Aggregations

An aggregation in KQL summarizes data from multiple records into a single record based on specified criteria. For example, you can aggregate log entries to calculate the average value of numeric property or count the number of occurrences of specific events over a defined time period. Aggregations help reduce data volume and provide insights by condensing large datasets into meaningful summaries.

Data in Azure Monitor pipeline is retrieved and processed in batches of one minute intervals by default. Aggregations in a pipeline transformation are performed over each batch of data meaning that an aggregated record will be created each minute. To change this time window, you can configure the Batch processor in the pipeline configuration as described in Pipeline configuration. You can't change the time interval using the Azure portal.

Aggregations are defined using the summarize operator in KQL. You specify the aggregation functions and the grouping criteria. For example, the following query counts the number of events collected over the past minute grouped by DestinationIP and DestinationPort:

source
| summarize EventCount=count() by DestinationIP, DestinationPort

The following example extracts CPU usage values from syslog messages, then calculates the average and maximum CPU usage over one-minute intervals:

source
| where Facility == "daemon"
| where SyslogMessage has "CPU="
| parse SyslogMessage with * "CPU=" CPUValue:int *
| summarize AvgCPU = avg(CPUValue), MaxCPU = max(CPUValue)

Aggregation notes

  • When using the summarize operator for aggregation, an automatic latency of up to 5 minutes may be introduced due to batching in the pipeline for the UI experience.
  • A batch processor is always required to perform aggregations. Modify the batch processor to change the aggregation interval. Avoid using batch processor to send data with minimum latency.
  • If an aggregation includes bin(), you may receive multiple records for the same time interval. This occurs because of batching and the streaming nature of data ingestion.
  • Transformations are performed on fully formed Syslog or CEF data. If the transformation alters the schema, then you should send the data to a custom table. When creating the transformation using the Azure portal, the only columns exposed are SeverityText, Body, and TimeGenerated.

Supported KQL

Expand the following sections for KQL functions and operators are supported in Azure Monitor pipeline transformations:

Aggregations
  • sum()
  • max()
  • min()
  • avg()
  • count()
  • bin()
Filtering
  • where
  • contains
  • has
  • in
  • and
  • or
  • ==
  • !=
  • >
  • >=
  • <
  • <=
Schematization
  • extend
  • project
  • project-away
  • project-rename
  • project-keep
  • iif
  • case
  • coalesce
  • parse_json
Functions
  • let
String functions
  • strlen
  • replace_string
  • substring
  • strcat
  • strcat_delim
  • extract
Conversion
  • tostring
  • toint
  • tobool
  • tofloat
  • tolong
  • toreal
  • todouble
  • todatetime
  • totimespan
