Confidential Containers (preview) on Azure Kubernetes Service

With the growth in cloud-native application development, there's an increased need to protect the workloads running in cloud environments as well. Containerizing the workload forms a key component for this programming model, and then, protecting the container is paramount to running confidentially in the cloud.

Confidential Containers on Azure Kubernetes Service (AKS) enable container level isolation in your Kubernetes workloads. It's an addition to Azure suite of confidential computing products, and uses the AMD SEV-SNP memory encryption to protect your containers at runtime.

Confidential Containers are attractive for deployment scenarios that involve sensitive data (for instance, personal data or any data with strong security needed for regulatory compliance).

What makes a container confidential?

In alignment with the guidelines set by the Confidential Computing Consortium, that Microsoft is a founding member of, Confidential Containers need to fulfill the following –

  • Transparency: The confidential container environment where your sensitive application is shared, you can see and verify if it's safe. All components of the Trusted Computing Base (TCB) are to be open sourced.
  • Auditability: You have the ability to verify and see what version of the CoCo environment package including Linux Guest OS and all the components are current. Microsoft signs to the guest OS and container runtime environment for verifications through attestation. It also releases a secure hash algorithm (SHA) of guest OS builds to build a string audibility and control story.
  • Full attestation: Anything that is part of the TEE shall be fully measured by the CPU with ability to verify remotely. The hardware report from AMD SEV-SNP processor shall reflect container layers and container runtime configuration hash through the attestation claims. Application can fetch the hardware report locally including the report that reflects Guest OS image and container runtime.
  • Code integrity: Runtime enforcement is always available through customer defined policies for containers and container configuration, such as immutable policies and container signing.
  • Isolation from operator: Security designs that assume least privilege and highest isolation shielding from all untrusted parties including customer/tenant admins. It includes hardening existing Kubernetes control plane access (kubelet) to confidential pods.

But with these features of confidentiality, the product should additioanally its ease of use: it supports all unmodified Linux containers with high Kubernetes feature conformance. Additionally, it supports heterogenous node pools (GPU, general-purpose nodes) in a single cluster to optimize for cost.

What forms Confidential Containers on AKS?

Aligning with Microsoft’s commitment to the open-source community, the underlying stack for Confidential Containers uses the Kata CoCo agent as the agent running in the node that hosts the pod running the confidential workload. With many TEE technologies requiring a boundary between the host and guest, Kata Containers are the basis for the Kata CoCo initial work. Microsoft also contributed back to the Kata Coco community to power containers running inside a confidential utility VM.

The Kata confidential container resides within the Azure Linux AKS Container Host. Azure Linux and the Cloud Hypervisor VMM (Virtual Machine Monitor) is the end-user facing/user space software that is used for creating and managing the lifetime of virtual machines.

Container level isolation in AKS

By default, AKS all workloads share the same kernel and the same cluster admin. With the preview of Pod Sandboxing on AKS, the isolation grew a notch higher with the ability to provide kernel isolation for workloads on the same AKS node. You can read more about the feature here. Confidential Containers are the next step of this isolation and it uses the memory encryption capabilities of the underlying AMD SEV-SNP virtual machine sizes. These virtual machines are the DCa_cc and ECa_cc sizes with the capability of surfacing the hardware’s root of trust to the pods deployed on it.

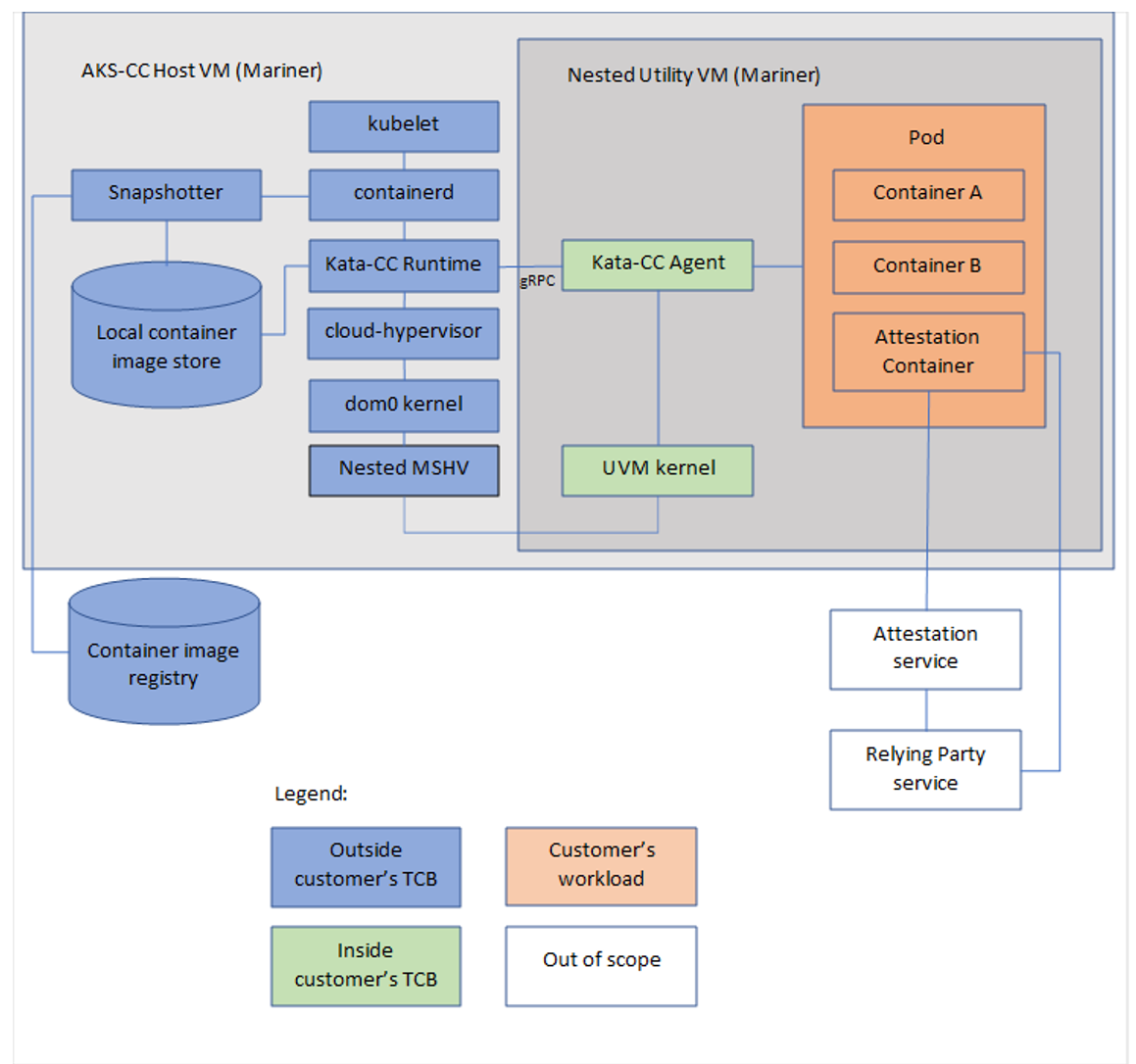

Diagram of various layers of the architecture forming Confidential Containers.

Get started

To get started and learn more about supported scenarios, refer to our AKS documentation here.

Next step

Deploy a Confidential Container on AKS.
