Common Azure Cosmos DB use cases
APPLIES TO: NoSQL MongoDB Cassandra Gremlin Table
This article provides an overview of several common use cases for Azure Cosmos DB. The recommendations in this article serve as a starting point as you develop your application with Azure Cosmos DB.
After reading this article, you'll be able to answer the following questions:
- What are the common use cases for Azure Cosmos DB?
- What are the benefits of using Azure Cosmos DB for retail applications?
- What are the benefits of using Azure Cosmos DB as a data store for Internet of Things (IoT) systems?
- What are the benefits of using Azure Cosmos DB for web and mobile applications?
Azure Cosmos DB is the Azure solution for a fast NoSQL database, with open APIs for any scale. The service is designed to allow customers to elastically (and independently) scale throughput and storage across any number of geographical regions. Azure Cosmos DB is the first globally distributed database service in the market today to offer comprehensive service level agreements encompassing throughput, latency, availability, and consistency.
Azure Cosmos DB is a global distributed, multi-model database that is used in a wide range of applications and use cases. It is a good choice for any serverless application that needs low order-of-millisecond response times, and needs to scale rapidly and globally. It supports multiple data models (key-value, documents, graphs and columnar) and many Azure Cosmos DB APIs for data access including API for MongoDB, API for NoSQL, API for Gremlin, and API for Table natively, and in an extensible manner.
The following are some attributes of Azure Cosmos DB that make it well-suited for high-performance applications with global ambition.
- Azure Cosmos DB natively partitions your data for high availability and scalability. Azure Cosmos DB offers 99.99% guarantees for availability, throughput, low latency, and consistency on all single-region accounts and all multi-region accounts with relaxed consistency, and 99.999% read availability on all multi-region database accounts.
- Azure Cosmos DB has SSD backed storage with low-latency order-of-millisecond response times.
- Azure Cosmos DB's support for consistency levels like eventual, consistent prefix, session, and bounded-staleness allows for full flexibility and low cost-to-performance ratio. No database service offers as much flexibility as Azure Cosmos DB in levels consistency.
- Azure Cosmos DB has a flexible data-friendly pricing model that meters storage and throughput independently.
- Azure Cosmos DB's reserved throughput model allows you to think in terms of number of reads/writes instead of CPU/memory/IOPs of the underlying hardware.
- Azure Cosmos DB's design lets you scale to massive request volumes in the order of trillions of requests per day.
These attributes are beneficial in web, mobile, gaming, and IoT applications that need low response times and need to handle massive amounts of reads and writes.

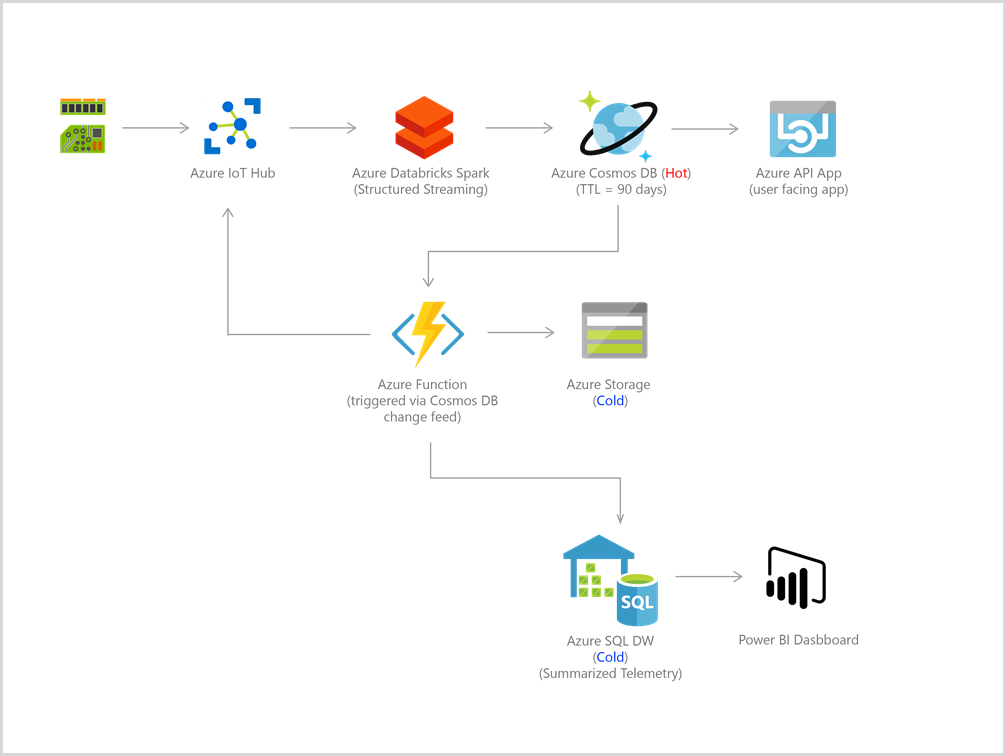

IoT and telematics
IoT use cases commonly share some patterns in how they ingest, process, and store data. First, these systems need to ingest bursts of data from device sensors of various locales. Next, these systems process and analyze streaming data to derive real-time insights. The data is then archived to cold storage for batch analytics. Microsoft Azure offers rich services that can be applied for IoT use cases including Azure Cosmos DB, Azure Event Hubs, Azure Stream Analytics, Azure Notification Hub, Azure Machine Learning, Azure HDInsight, and Power BI.
Bursts of data can be ingested by Azure Event Hubs as it offers high throughput data ingestion with low latency. Data ingested that needs to be processed for real-time insight can be funneled to Azure Stream Analytics for real-time analytics. Data can be loaded into Azure Cosmos DB for adhoc querying. Once the data is loaded into Azure Cosmos DB, the data is ready to be queried. In addition, new data and changes to existing data can be read on change feed. Change feed is a persistent, append only log that stores changes to Azure Cosmos DB containers in sequential order. Then all data or just changes to data in Azure Cosmos DB can be used as reference data as part of real-time analytics. In addition, data can further be refined and processed by connecting Azure Cosmos DB data to HDInsight for Pig, Hive, or Map/Reduce jobs. Refined data is then loaded back to Azure Cosmos DB for reporting.
For a sample IoT solution using Azure Cosmos DB, Event Hubs and Apache Storm, see the hdinsight-storm-examples repository on GitHub.
For more information on Azure offerings for IoT, see Create the Internet of Your Things.
Retail and marketing
Azure Cosmos DB is used extensively in Microsoft's own e-commerce platforms, that run the Windows Store and XBox Live. It is also used in the retail industry for storing catalog data and for event sourcing in order processing pipelines.

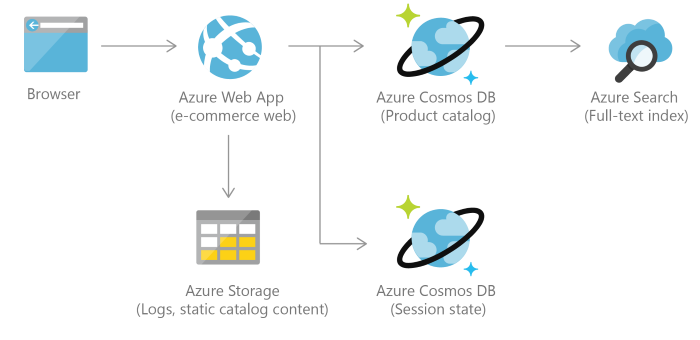

Catalog data usage scenarios involve storing and querying a set of attributes for entities such as people, places, and products. Some examples of catalog data are user accounts, product catalogs, IoT device registries, and bill of materials systems. Attributes for this data may vary and can change over time to fit application requirements.
Consider an example of a product catalog for an automotive parts supplier. Every part may have its own attributes in addition to the common attributes that all parts share. Furthermore, attributes for a specific part can change the following year when a new model is released. Azure Cosmos DB supports flexible schemas and hierarchical data, and thus it is well suited for storing product catalog data.
Azure Cosmos DB is often used for event sourcing to power event driven architectures using its change feed functionality. The change feed provides downstream microservices the ability to reliably and incrementally read inserts and updates (for example, order events) made to an Azure Cosmos DB. This functionality can be leveraged to provide a persistent event store as a message broker for state-changing events and drive order processing workflow between many microservices (which can be implemented as serverless Azure Functions).
In addition, data stored in Azure Cosmos DB can be integrated with HDInsight for big data analytics via Apache Spark jobs. For details on the Spark Connector for Azure Cosmos DB, see Run a Spark job with Azure Cosmos DB and HDInsight.

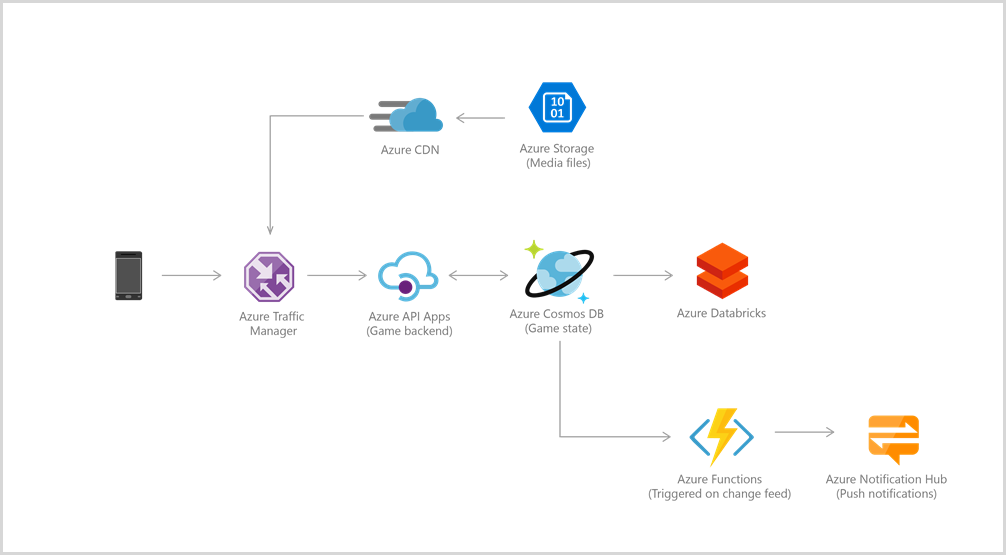

The database tier is a crucial component of gaming applications. Modern games perform graphical processing on mobile/console clients, but rely on the cloud to deliver customized and personalized content like in-game stats, social media integration, and high-score leaderboards. Games often require single-millisecond latencies for reads and writes to provide an engaging in-game experience. A game database needs to be fast and be able to handle massive spikes in request rates during new game launches and feature updates.
Azure Cosmos DB is used by games like The Walking Dead: No Man's Land by Next Games, and Halo 5: Guardians. Azure Cosmos DB provides the following benefits to game developers:
- Azure Cosmos DB allows performance to be scaled up or down elastically. This allows games to handle updating profile and stats from dozens to millions of simultaneous gamers by making a single API call.
- Azure Cosmos DB supports millisecond reads and writes to help avoid any lags during game play.
- Azure Cosmos DB's automatic indexing allows for filtering against multiple different properties in real-time, for example, locate players by their internal player IDs, or their GameCenter, Facebook, Google IDs, or query based on player membership in a guild. This is possible without building complex indexing or sharding infrastructure.
- Social features including in-game chat messages, player guild memberships, challenges completed, high-score leaderboards, and social graphs are easier to implement with a flexible schema.
- Azure Cosmos DB as a managed platform-as-a-service (PaaS) required minimal setup and management work to allow for rapid iteration, and reduce time to market.
Web and mobile applications
Azure Cosmos DB is commonly used within web and mobile applications, and is well suited for modeling social interactions, integrating with third-party services, and for building rich personalized experiences. The Azure Cosmos DB SDKs can be used build rich iOS and Android applications using the popular Xamarin framework.
A common use case for Azure Cosmos DB is to store and query user generated content (UGC) for web, mobile, and social media applications. Some examples of UGC are chat sessions, tweets, blog posts, ratings, and comments. Often, the UGC in social media applications is a blend of free form text, properties, tags, and relationships that are not bounded by rigid structure. Content such as chats, comments, and posts can be stored in Azure Cosmos DB without requiring transformations or complex object to relational mapping layers. Data properties can be added or modified easily to match requirements as developers iterate over the application code, thus promoting rapid development.
Applications that integrate with third-party social networks must respond to changing schemas from these networks. As data is automatically indexed by default in Azure Cosmos DB, data is ready to be queried at any time. Hence, these applications have the flexibility to retrieve projections as per their respective needs.

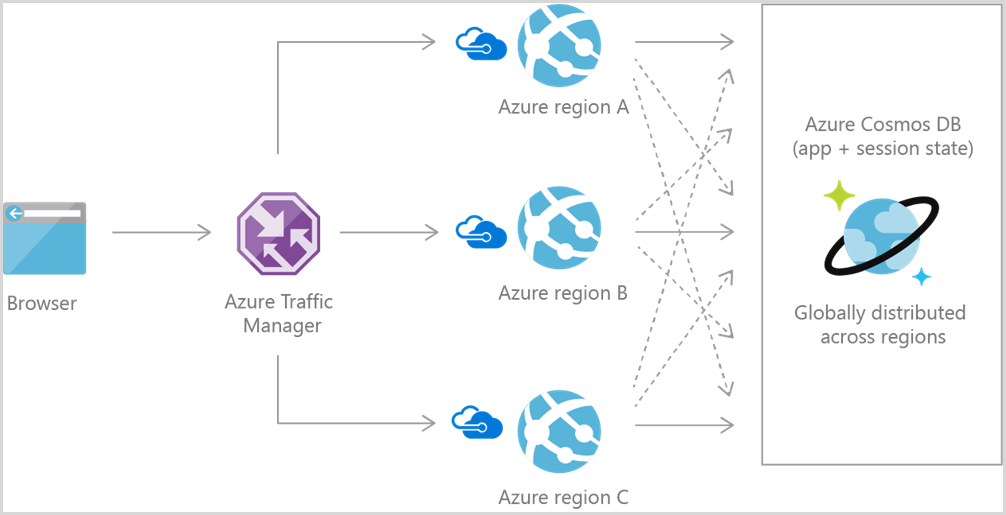

Many of the social applications run at global scale and can exhibit unpredictable usage patterns. Flexibility in scaling the data store is essential as the application layer scales to match usage demand. You can scale out by adding additional data partitions under an Azure Cosmos DB account. In addition, you can also create additional Azure Cosmos DB accounts across multiple regions. For Azure Cosmos DB service region availability, see Azure Regions.

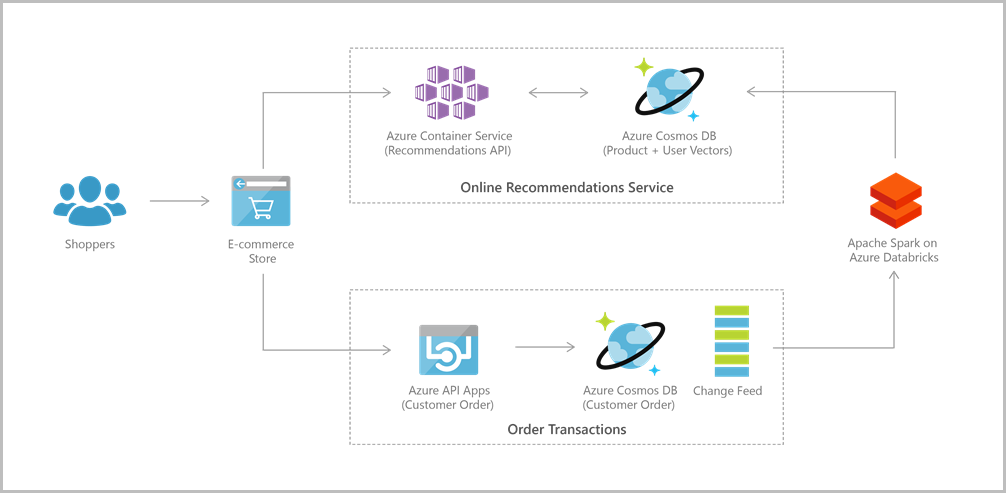

Nowadays, modern applications come with complex views and experiences. These are typically dynamic, catering to user preferences or moods and branding needs. Hence, applications need to be able to retrieve personalized settings effectively to render UI elements and experiences quickly.
To get started with Azure Cosmos DB, follow our quick starts, which walk you through creating an account and getting started with Azure Cosmos DB.
If you'd like to read more about customers using Azure Cosmos DB, see the customer case studies page.
