Tutorial: Configure compute on Azure Stack Edge Pro 2

This tutorial describes how to configure a compute role and create a Kubernetes cluster on your Azure Stack Edge Pro 2 device.

This procedure can take around 20 to 30 minutes to complete.

In this tutorial, you learn how to:

  • Configure compute
  • Get Kubernetes endpoints

Prerequisites

Before you set up a compute role on your Azure Stack Edge Pro device, make sure that:

  • You've activated your Azure Stack Edge Pro 2 device as described in Activate Azure Stack Edge Pro 2.
  • Make sure that you've followed the instructions in Enable compute network and:
    • Enabled a network interface for compute.
    • Assigned Kubernetes node IPs and Kubernetes external service IPs.

Configure compute

To configure compute on your Azure Stack Edge Pro, you'll create an IoT Hub resource via the Azure portal.

  1. In the Azure portal of your Azure Stack Edge resource, go to Overview, and select IoT Edge.

    Get started with compute

  2. In Enable IoT Edge service, select Add.

    Configure compute

  3. On the Configure Edge compute blade, input the following information:

    Field Value
    Subscription Select a subscription for your IoT Hub resource. You can use the same subscription as that used by the Azure Stack Edge resource.
    Resource group Select a resource group for your IoT Hub resource. You can use the same resource group as that used by the Azure Stack Edge resource.
    IoT Hub Choose from New or Existing.
    By default, a Standard tier (S1) is used to create an IoT resource. To use a free tier IoT resource, create one and then select the existing resource.
    In each case, the IoT Hub resource uses the same subscription and resource group that is used by the Azure Stack Edge resource.
    Name Accept the default name or enter a name for your IoT Hub resource.

    Get started with compute 2

  4. When you finish the settings, select Review + Create. Review the settings for your IoT Hub resource, and select Create.

    Resource creation for an IoT Hub resource takes several minutes. After the resource is created, the Overview indicates the IoT Edge service is now running.

    Get started with compute 3

  5. To confirm the Edge compute role has been configured, go to IoT Edge > Properties.

    Get started with compute 4

    When the Edge compute role is set up on the Edge device, it creates two devices: an IoT device and an IoT Edge device. Both devices can be viewed in the IoT Hub resource. An IoT Edge Runtime is also running on this IoT Edge device. At this point, only the Linux platform is available for your IoT Edge device.

It can take 20-30 minutes to configure compute because, behind the scenes, virtual machines and a Kubernetes cluster are being created.

After you have successfully configured compute in the Azure portal, a Kubernetes cluster and a default user associated with the IoT namespace (a system namespace controlled by Azure Stack Edge) exist.

Get Kubernetes endpoints

To configure a client to access Kubernetes cluster, you will need the Kubernetes endpoint. Follow these steps to get Kubernetes API endpoint from the local UI of your Azure Stack Edge device.

  1. In the local web UI of your device, go to Devices page.

  2. Under the Device endpoints, copy the Kubernetes API service endpoint. This endpoint is a string in the following format: https://compute.<device-name>.<DNS-domain>[Kubernetes-cluster-IP-address].

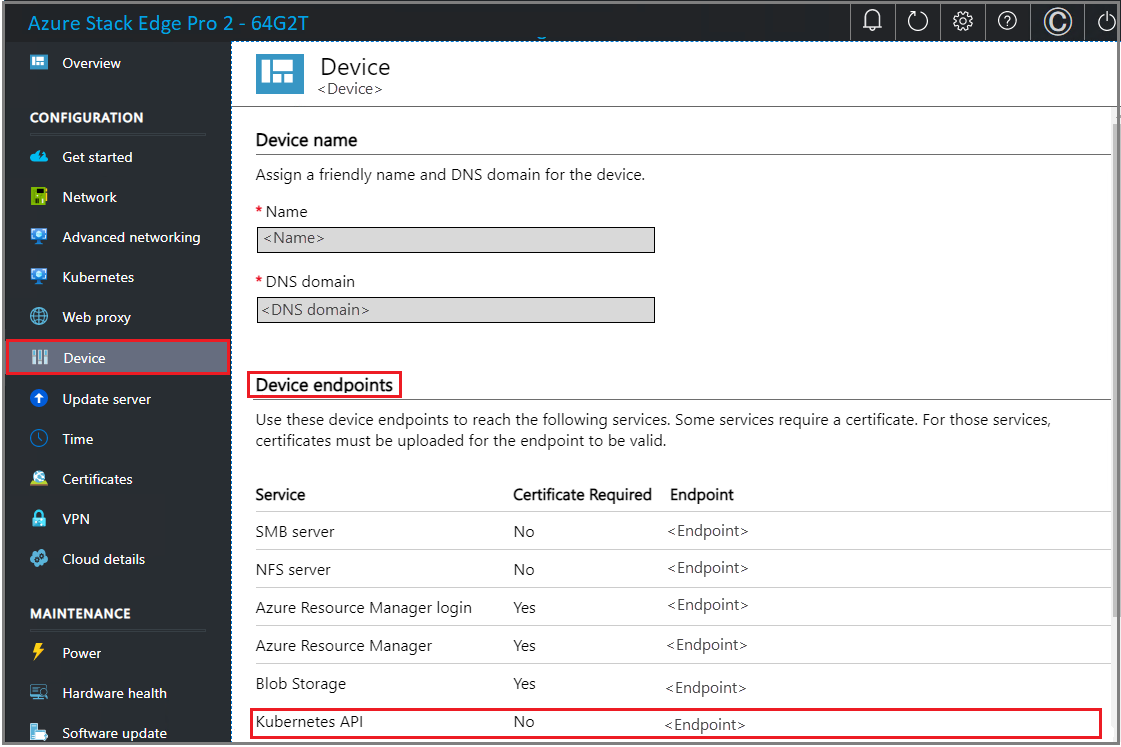

    Screenshot that shows the device page in local UI.

  3. Save the endpoint string. You will use this endpoint string later when configuring a client to access the Kubernetes cluster via kubectl.

  4. While you are in the local web UI, you can:

    • Go to Kubernetes API, select advanced settings, and download an advanced configuration file for Kubernetes.

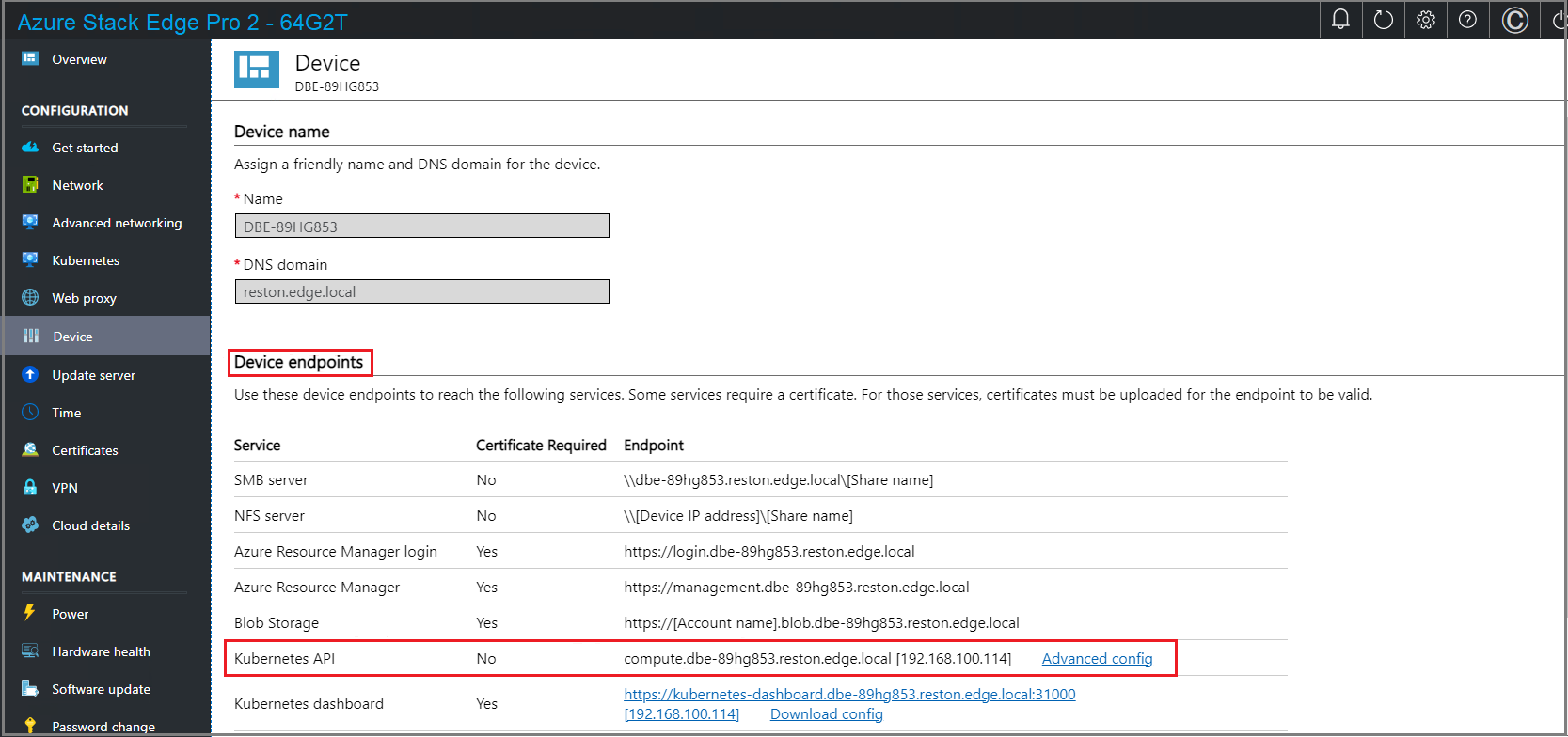

      Screenshot that shows the device page in local UI 1.

      If you have been provided a key from Microsoft (select users may have a key), then you can use this config file.

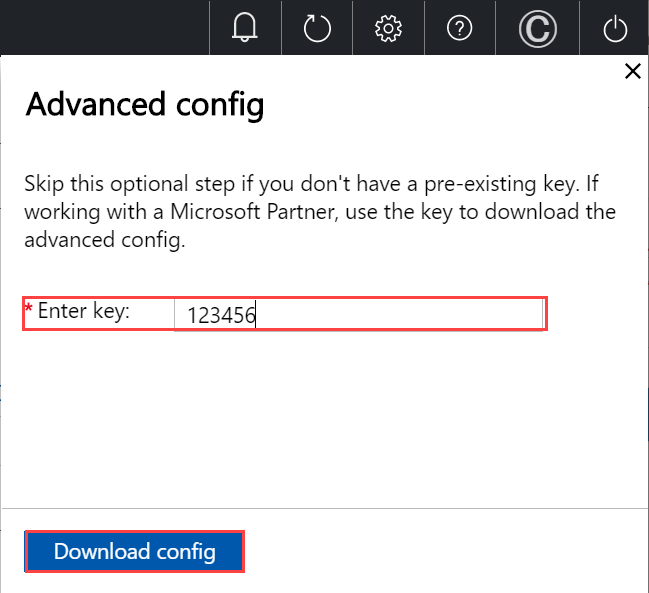

      Screenshot that shows the device page in local UI 2.

    • You can also go to Kubernetes dashboard endpoint and download an aseuser config file.

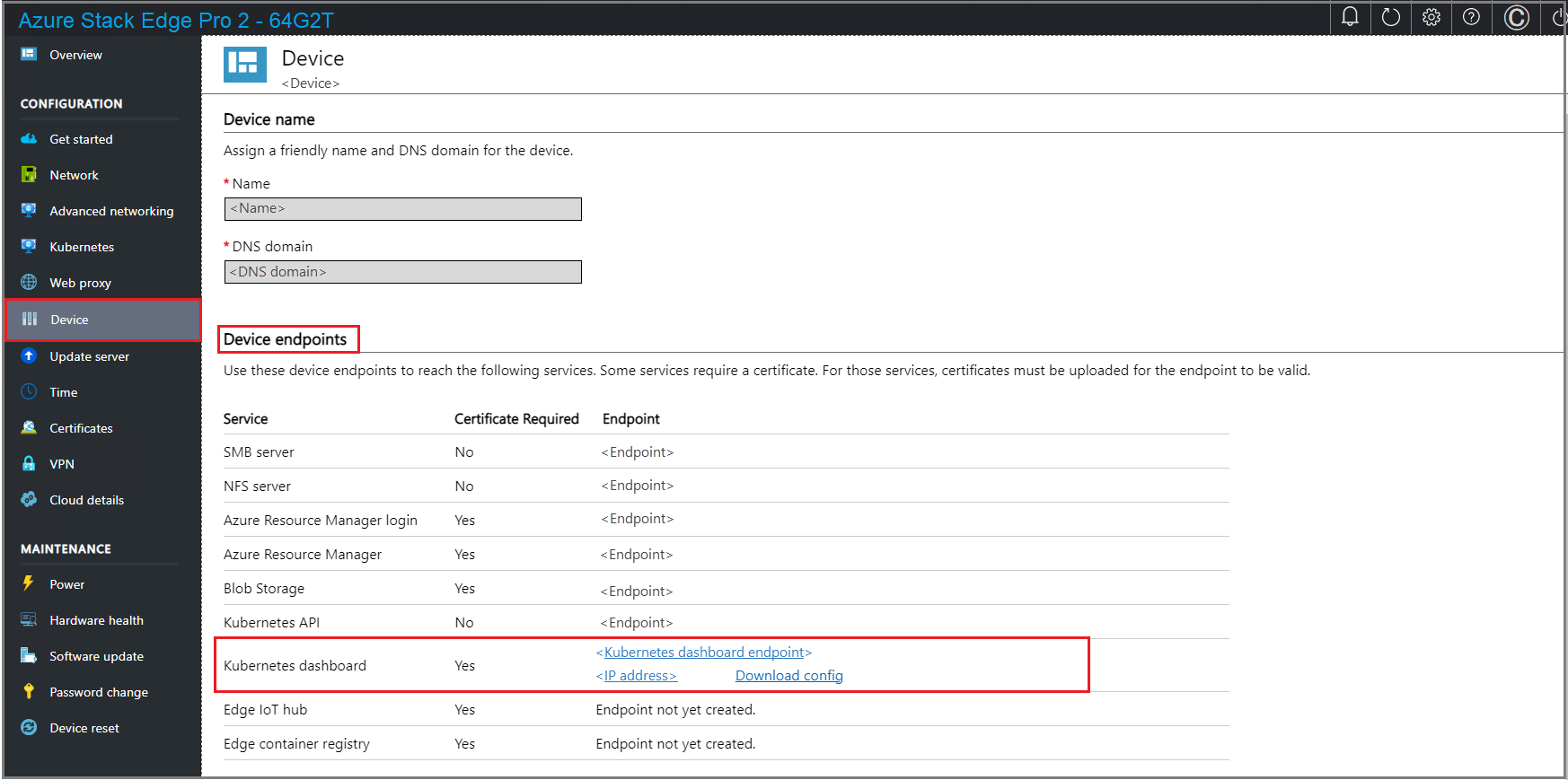

      Screenshot that shows the device page in local UI 3.

      You can use this config file to sign into the Kubernetes dashboard or debug any issues in your Kubernetes cluster. For more information, see Access Kubernetes dashboard.

Next steps

In this tutorial, you learned how to:

  • Configure compute
  • Get Kubernetes endpoints
