This article describes the Heptagon Systems YB3x appliance deployment and installation for OT sensors.
| Appliance characteristic | Details |
|---|---|
| Hardware profile | L100 |
| Performance | Max bandwidth: 20-25 Mbps Max devices: 200 |
| Physical specifications | Ports: 6 x 1-GbE ports |
| Status | Supported, available as preconfigured |

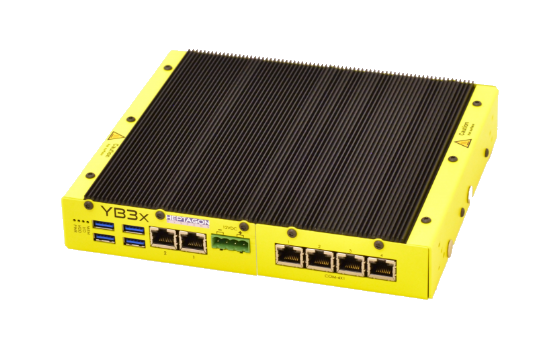

The following image shows a view of the Heptagon Systems YB3x front panel:
Specifications
| Component | Technical specifications |
|---|---|
| Construction | Fanless cooling |
| Dimensions | 1U, 209x187x37.5mm |
| Weight | 1.1 kg |
| CPU | Intel C3708 – 8 cores |
| Memory | 16 GB |
| Storage | 500 GB |
| Network controller | Intel I210, Intel x553 |
| Device access | 4x USB 3.0, TPM 2.0, 2x Serial ports |
| Power Adapter | 12 VDC or optional 9-28 VDC with reverse polarity, Over/under voltage protection |
| BMC | BMC AST2600, OpenBMC, IPMI 2.0, iKVM, Virtual Media |
| Temperature | -40 °C to +75 °C |
| Humidity | 95% @ 40°C (noncondensing) |
| Shock & Vibration | ETSI standard ETS 300 019-1-5, 5M2 |
| Safety | IEC 60950-1, AS/NZS |
| EMC | CE, FCC, AS/NZS |
Heptagon Systems YB3x - Bill of Materials
| Description | PN | Quantity |
|---|---|---|
| CPU: Atom-C3708, 8C, 16 MB Cache, 1.7Ghz, 17 W, Embedded/Ind. Temp DRAM - Not installed COMM1: COM-4X1: Quad 1G Base-T COMM2: No Comm Module BMC: BMC, based on Aspeed AST2600, with Display port video |
YB3708-0-4T0B | 1 |
| 500G NV2 M.2 2280 PCIe 4.0 NVMe SSD | SNV2S/500G | 1 |
| Intel X710 Dual Port 10 GbE SFP+ Adapter | 540-BDQZ | 1 |
| 8 GB 2,666 MT/s DDR4 ECC Reg CL19 DIMM 1Rx8 Hynix D IDT | KSM26RS8/8HDI | 2 |
| Power supply, 110-220 VAC to 12 VDC, 100 W, IP 67, Industrial temp | PS100-12-IP67 | 1 |
Heptagon Systems YB3x software setup
This procedure describes how to install Defender for IoT software on the Heptagon Systems YB3x. The installation process takes about 20 minutes. After the installation, the system restarts several times.
To install Defender for IoT software:
Connect the screen and keyboard to the appliance, and then connect to the CLI.
Connect an external CD or disk-on-key that contains the software you downloaded from the Azure portal.
Start the appliance.
Continue by installing your Defender for IoT software. For more information, see Defender for IoT software installation.
Next steps
Continue understanding system requirements for physical or virtual appliances. For more information, see Which appliances do I need?
Then, use any of the following procedures to continue:
