What is Azure Machine Learning designer(v2)?
Azure Machine Learning designer is a drag-and-drop UI interface for building machine learning pipelines in Azure Machine Learning Workspaces.

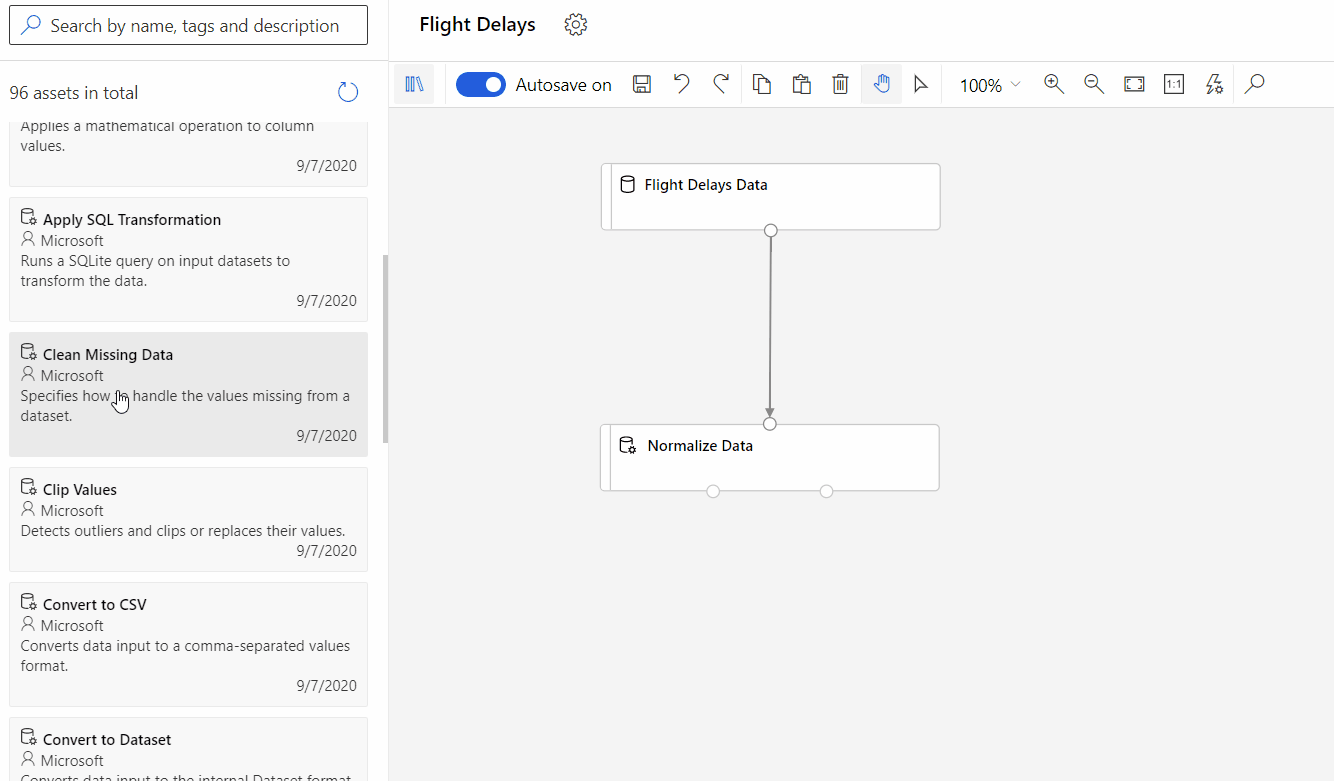

As shown in below GIF, you can build a pipeline visually by dragging and dropping building blocks and connecting them.
Designer supports two types of components, classic prebuilt components (v1) and custom components(v2). These two types of components are NOT compatible.
Classic prebuilt components support typical data processing and machine learning tasks including regression and classification. Though classic prebuilt components will continue to be supported, no new components will be added.
Custom components allow you to wrap your own code as a component enabling sharing across workspaces and seamless authoring across the Azure Machine Learning Studio, CLI v2, and SDK v2 interfaces.
For new projects, we highly recommend that you use custom components since they are compatible with AzureML V2 and will continue to receive new updates.
This article applies to custom components..
The building blocks of pipeline are called assets in Azure Machine Learning, which includes:

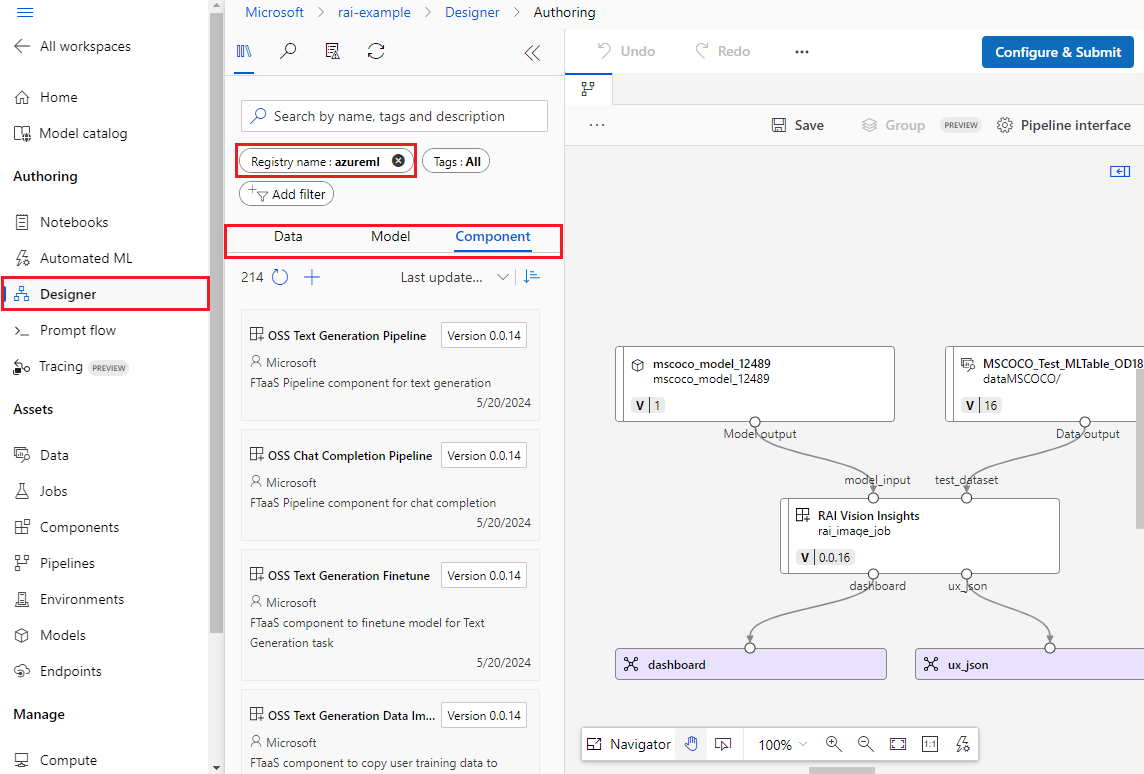

Designer has an asset library on the left side, where you can access all the assets you need to create your pipeline. It shows both the assets you created in your workspace, and the assets shared in registry that you have permission to access.
To see assets from a specific registry, select the Registry name filter above the asset library. The assets you created in your current workspace are in the registry = workspace. The assets provided by Azure Machine Learning are in the registry = azureml.
Designer only shows the assets that you created and named in your workspace. You won't see any unnamed assets in the asset library. To learn how to create data and component assets, read these articles:
Designer is a tool that lets you create pipelines with your assets in a visual way. When you use designer, you'll encounter two concepts related to pipelines: pipeline draft and pipeline jobs.

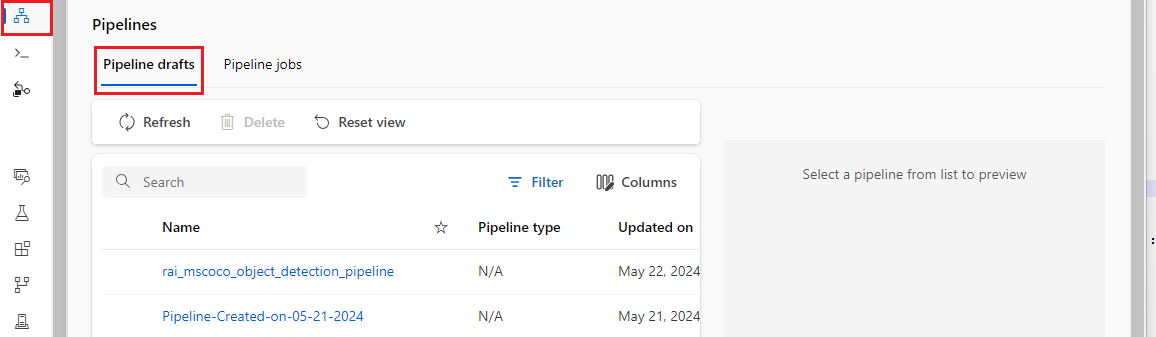

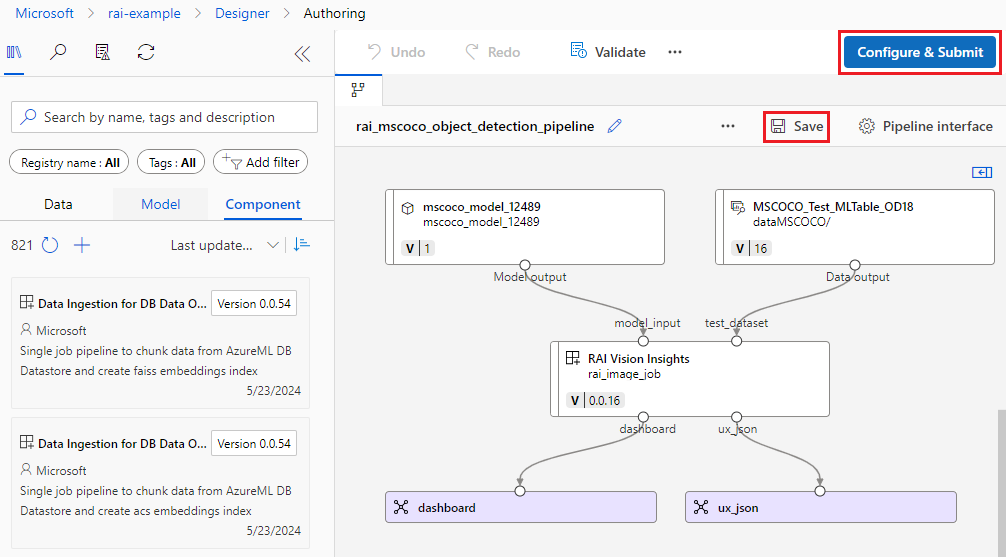

As you edit a pipeline in the designer, your progress is saved as a pipeline draft. You can edit a pipeline draft at any point by adding or removing components, configuring compute targets, creating parameters, and so on.
A valid pipeline draft has these characteristics:
- Data assets can only connect to components.
- Components can only connect to either data assets or other components.
- All required input ports for components must have some connection to the data flow.
- All required parameters for each component must be set.
When you're ready to run your pipeline draft, you submit a pipeline job.

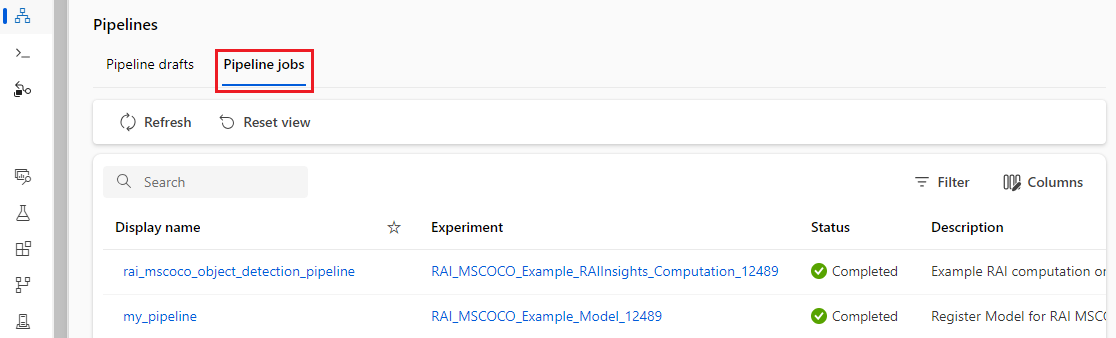

Each time you run a pipeline, the configuration of the pipeline and its results are stored in your workspace as a pipeline job. You can go back to any pipeline job to inspect it for troubleshooting or auditing. Clone a pipeline job creates a new pipeline draft for you to continue editing.
Approaches to build pipeline in designer
Create new pipeline from scratch

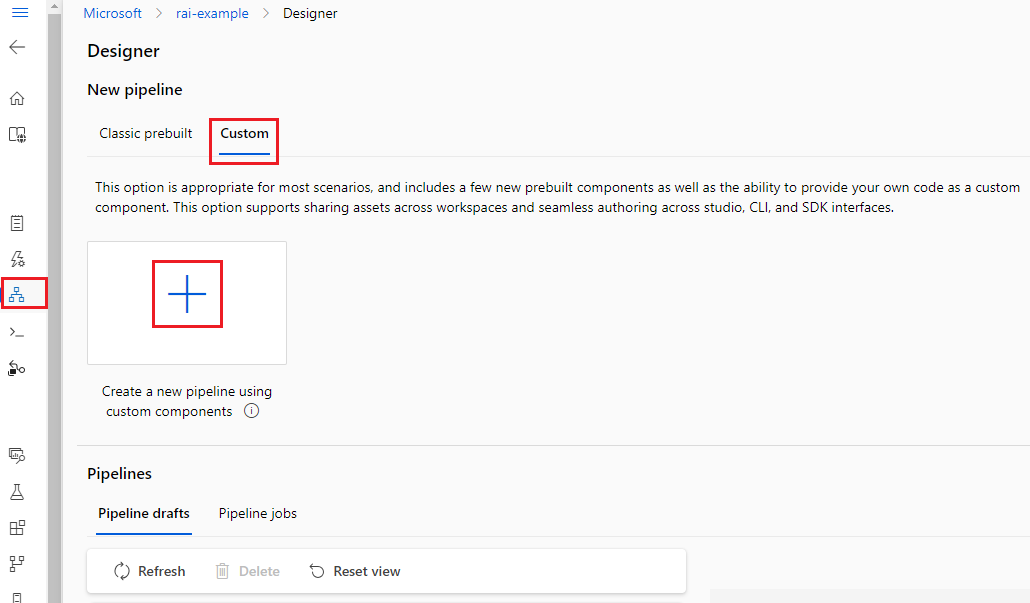

You can create a new pipeline and build from scratch. Remember to select the Custom component option when you create the pipeline in designer.
Clone an existing pipeline job

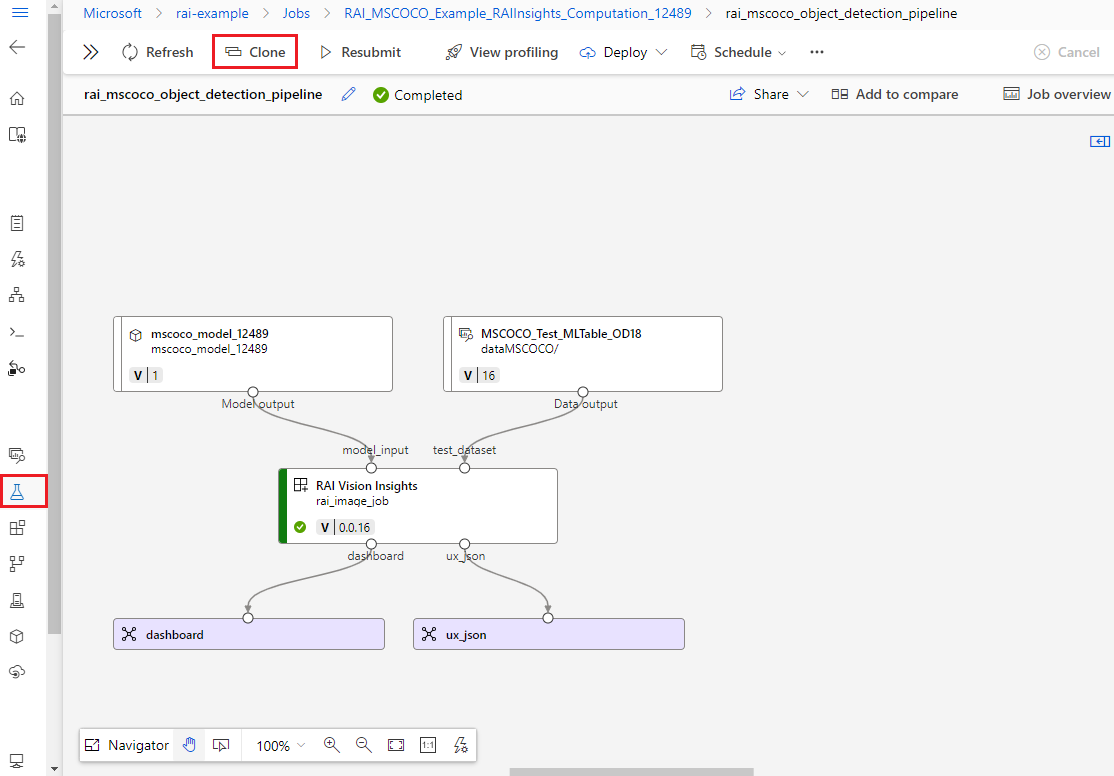

If you would like to work based on an existing pipeline job in the workspace, you can easily clone it into a new pipeline draft to continue editing.

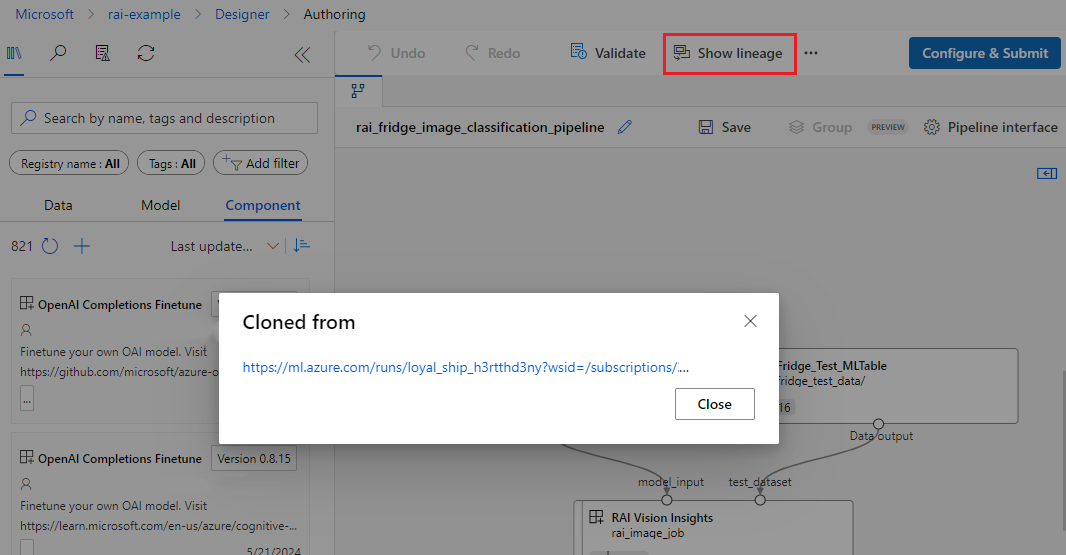

After cloning, you can also know which pipeline job it's cloned from by selecting Show lineage.

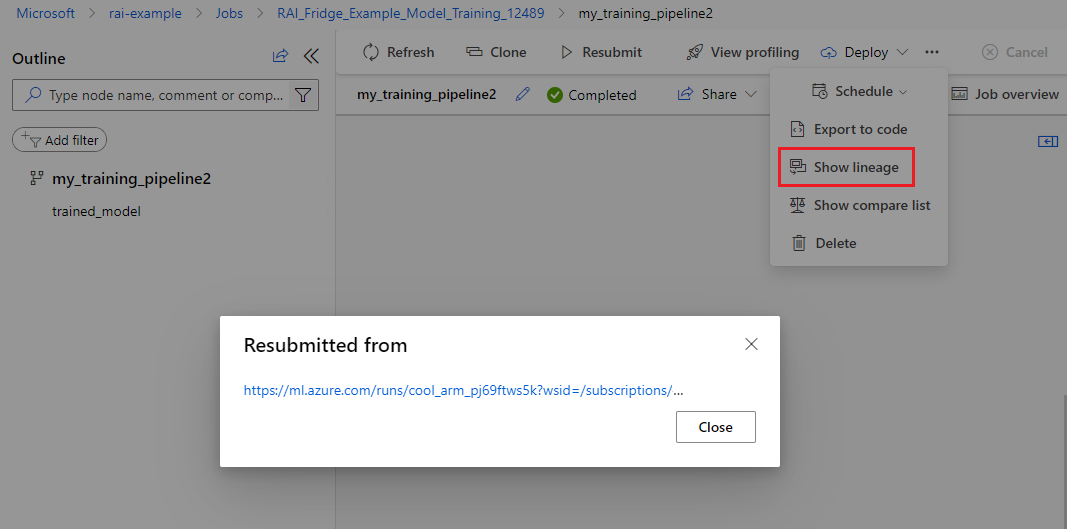

You can edit your pipeline and then submit again. After submitting, you can see the lineage between the job you submit and the original job by selecting Show lineage in the job detail page.
