Azure Virtual Desktop service architecture and resilience

Azure Virtual Desktop is designed to provide a resilient, reliable, and secure service for organizations and users. The architecture of Azure Virtual Desktop comprises many components that make up the service connecting users to their desktops and apps. Most components are Microsoft-managed, but some are customer-managed or partner-managed.

Microsoft provides the virtual desktop infrastructure (VDI) components for core functionality as a service. These components include:

• Web service: the user-facing web site and endpoint, and returns the connection information to the user's device.

• Broker service: orchestrates incoming connections.

• Gateway service: a websocket service that provides the Remote Desktop Protocol (RDP) connectivity from a user's device wherever they're connecting from to the session hosts providing their desktops and apps.

• Resource directory: provides information to instruct the web service which database holds the connection information required for each user. Depending on the deployment scope of the host pool, that is either a geographical database serving a group of Azure regions, or a regional database serving a single Azure region.

• Geographical database: contains the connection files (.rdp) and icons for every resource that a user has provisioned, for host pools created with a deployment scope of Geographical. Each geographical database serves all the Azure regions covered by its geography.

• Regional database: contains the connection files and icons for host pools created with a deployment scope of Regional and stores them within a single Azure region rather than across a geography.

In addition, Azure Virtual Desktop uses other global Azure services, such as Azure Traffic Manager and Azure Front Door to direct users to their closest Azure Virtual Desktop entry points.

You're responsible for creating and managing session hosts, including any operating system image customizations and applications, virtual network connectivity, the resiliency, and the backup and recovery of those session hosts. You also provide and manage user identities and control access to the service. You can use other Azure services to help you meet your requirements, such as:

• Azure availability zones to distribute your session hosts across physically separate datacenter locations within an Azure region, each with independent power, cooling, and networking.
• Azure Backup to back up and restore your session hosts.
• Azure Site Recovery to replicate your session hosts to another Azure region.
• Azure Advisor to help you optimize your Azure resources.

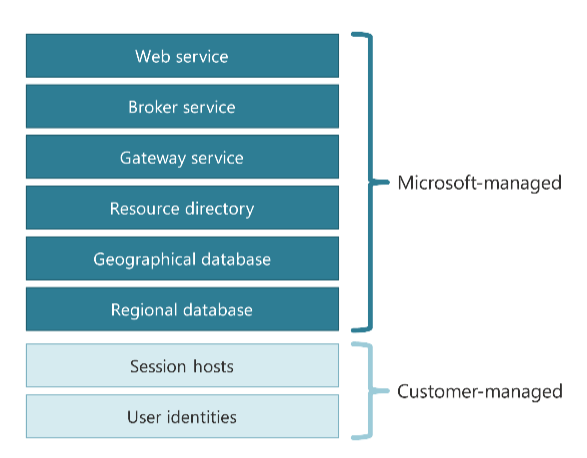

This high-level diagram shows the components and responsibilities:

Deployment Scope

When you create a host pool, you choose a deployment scope. The deployment scope determines where Azure Virtual Desktop stores the metadata for that host pool and its related service objects.

Geographical is the original behavior and remains the default. Metadata is written to the geographical database serving the geography that contains the host pool's Azure region. Regional writes the metadata to a regional database within the host pool's own Azure region. There are no functional differences between geographical host pools and regional host pools; the difference is where the metadata is stored.

Deployment scope also applies to workspaces, application groups and App Attach packages. Regional and geographical objects cannot be mixed: a regional host pool can only be a member of a regional workspace and can only contain regional application groups, and a regional host pool cannot join a geographical workspace or the reverse. Application groups created in a regional host pool are automatically regional.

Deployment scope is set when the object is created and cannot be changed afterwards.

User connections

When a user wants to access their desktops and apps in Azure Virtual Desktop, multiple components are involved in making that connection successful. There are two separate sequences:

1. Feed discovery. The feed is the list of desktops and apps that are available to the user.
2. A connection over the Remote Desktop Protocol to a session host.

Feed discovery

During feed discovery, the desktops and apps available to the user are populated in the app on their local device. The feed contains all the information needed to connect.

The feed discovery process is as follows:

1. The user might be located anywhere in the world. Azure Traffic Manager routes the user's device to the closest instance of the Azure Virtual Desktop web service based on the geographic traffic-routing method, which uses source IP address of the user's device.

2. The web service connects to the Azure Virtual Desktop broker service in the same Azure region to retrieve the RDP files and application icons for the user's feed. The broker service connects to the Azure Virtual Desktop geographical database and resource directory in the same region to retrieve the information.

3. The broker service connects to the resource directory and to the database that holds the host pool's metadata in the same Azure region, which is either the geographical database or, for host pools with a deployment scope of Regional, the regional database for that Azure region.

   Here's a high-level diagram showing the feed discovery process in a single Azure region:

The geographical database only contains the information required for desktops and apps from host pools in the same Azure regions covered by the geography. The regional database only contains the information required for desktops and apps from host pools in that single Azure region, and the resource directory tells the web service to connect to the broker service and route to the correct database in either case.

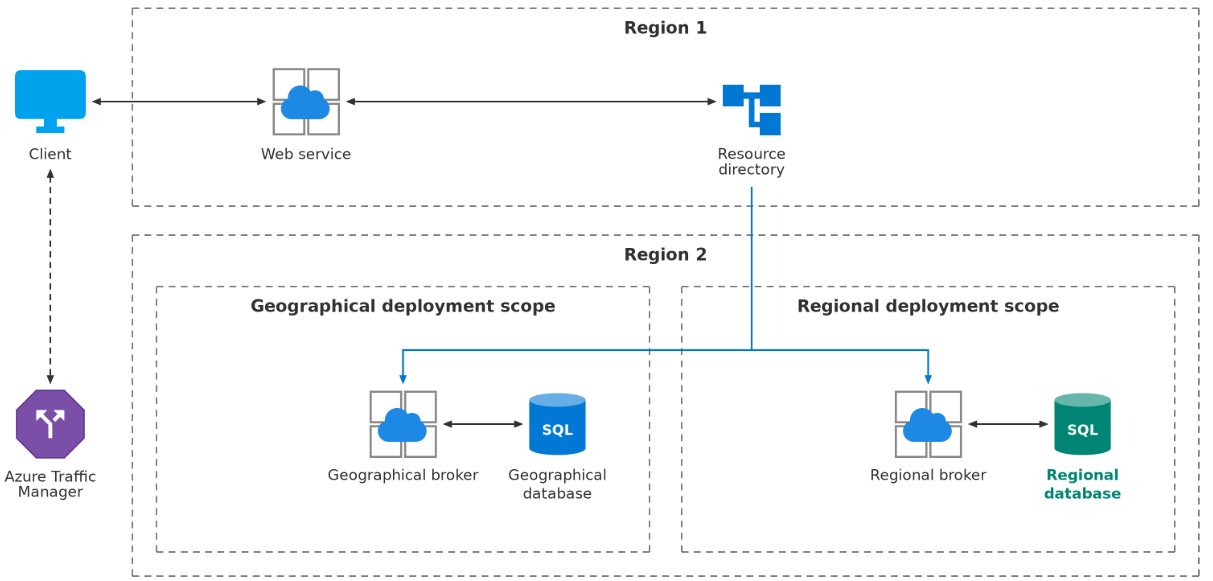

Here's a high-level diagram showing the feed discovery process for a host pool in an Azure region that's covered by a different geography:

RDP connection

When a user connects to a desktop or app from their feed, the RDP connection is established as follows:

1. All remote sessions begin with a connection to Azure Front Door, which provides the global entry point to Azure Virtual Desktop. Azure Front Door determines the Azure Virtual Desktop gateway service with the lowest latency for the user's device and directs the connection to it

2. The gateway service connects to the broker service in the same Azure region. The gateway service enables session hosts to be in any region and still be accessible to users.

3. The broker service takes over and orchestrates the connection between the user's device and the session host. The broker service instructs the Azure Virtual Desktop agent running on the session host to connect to the same gateway service that the user's device has connected through.

4. At this point, one of two connection types is made, depending on the configuration and available network protocols:

   1. Reverse connect transport: after both client and session host connected to the gateway service, it starts relaying the RDP traffic using Transmission Control Protocol (TCP) between the client and session host. Reverse connect transport is the default connection type.

   2. RDP Shortpath: a direct User Datagram Protocol (UDP)-based transport is created between the user's device and the session host, bypassing the gateway service.

Here's a high-level diagram showing the RDP connection process:

Tip

You can find more detailed technical information about network connectivity at Understanding Azure Virtual Desktop network connectivity and RDP Shortpath for Azure Virtual Desktop.

Service resilience

Azure Virtual Desktop is designed to be resilient to failures and provide a reliable service to users. The service is designed to be resilient to failures of individual components, and to be able to recover from failures quickly.

The Microsoft-managed components of Azure Virtual Desktop are currently located in around 40 Azure regions to be closer to users and provide a resilient service. Resiliency has been implemented globally, geographically, and within an Azure region in the following ways:

• Azure Traffic Manager directs traffic for the web service and Azure Front Door directs traffic for the gateway service. If there's an outage that causes the web service or gateway service to be unavailable from one Azure region, or there's a full region outage, traffic is redirected to the next closest available instance in the nearest region. Redirection of the traffic enables users to still make new connections.

• The geographical database uses Azure SQL Database failover and data replication capabilities within each geography. If there's a database outage, the database fails over to the secondary replica and normal operation resumes. During failover, there's a short period of time where new connections fail until failover is complete, however this failover doesn't affect existing connections.

• The regional database uses the same Azure SQL Database failover and data replication capabilities within a single Azure region. Multiple local replicas are stored across availability zones, and metadata is replicated to a paired region (where applicable) for cross-region failover. As with the geographical database, there is a short period during failover where new connections fail; existing connections are unaffected.

• The resource directory, broker service, web service, and gateway service are all available in each of the Azure regions where the Microsoft-managed components for Azure Virtual Desktop are located. Each component has multiple instances so that there isn't a single point of failure. Within each Azure region, there are at least six distinct and separate instances or clusters of each component that operates independently to withstand instance failures.

  For example, a region has enough instances of the gateway service to meet demand, but also with enough capacity to also accommodate failures of those instances. If an instance of the gateway service fails, any TCP-based RDP connections that are being relayed through that particular instance of the gateway service are dropped. When those disconnected users reconnect, the remaining instances handle requests and reconnect each user to their existing session. All other sessions handled by other instances of the gateway service are unaffected.

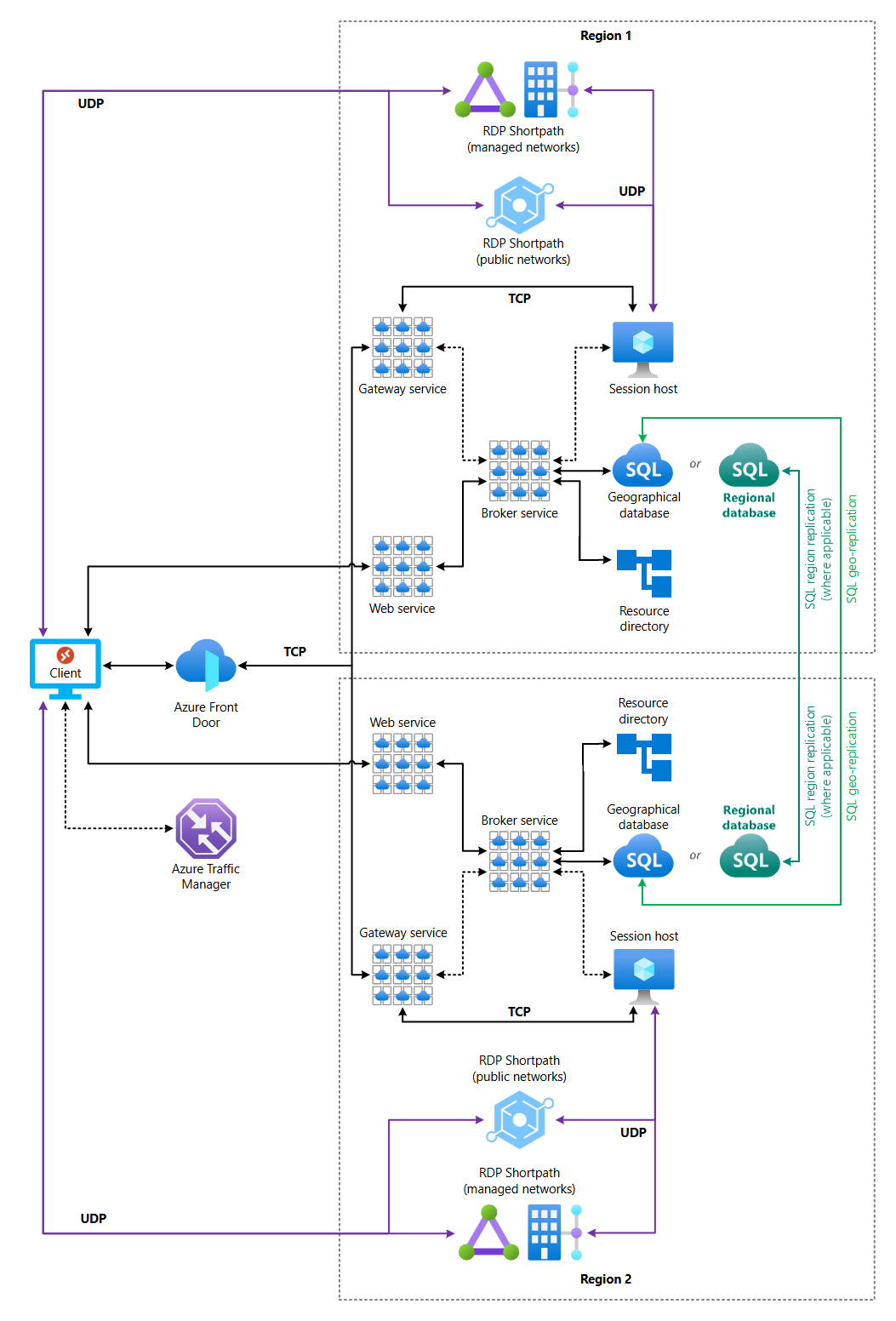

Here's a high-level diagram showing how the Microsoft-managed components are interconnected:

The other Azure services on which Azure Virtual Desktop relies are themselves designed to be resilient and reliable. For more information, see Azure Traffic Manager and Azure Front Door.

Global reach

Azure Virtual Desktop is a service that can help organizations adapt to the demands of their workers, particularly working remotely. It provides a secure, reliable, and flexible way to deliver desktops and applications virtually anywhere. Azure Virtual Desktop is designed to be resilient, using Azure features and services that help ensure a highly available service for your workloads.

Here's a map demonstrating the global reach of Azure Virtual Desktop:

Related content

To learn about the locations that Azure Virtual Desktop stored data for service objects, see Data locations for Azure Virtual Desktop.
