TileMode Enum

Definition

Namespace:

System.Windows.Media

Assembly:

PresentationCore.dll

Describes how a TileBrush paints tiles onto an output area.

public enum class TileMode

public enum TileMode

type TileMode =

Public Enum TileMode

Inheritance

Object

ValueType

Enum

TileMode

Fields

FlipX	1	The same as Tile except that alternate columns of tiles are flipped horizontally. The base tile itself is not flipped.
FlipXY	3	The combination of FlipX and FlipY. The base tile itself is not flipped.
FlipY	2	The same as Tile except that alternate rows of tiles are flipped vertically. The base tile itself is not flipped.
None	0	The base tile is drawn but not repeated. The remaining area is transparent.
Tile	4	The base tile is drawn and the remaining area is filled by repeating the base tile. The right edge of one tile meets the left edge of the next, and similarly for the bottom and top edges.

Remarks

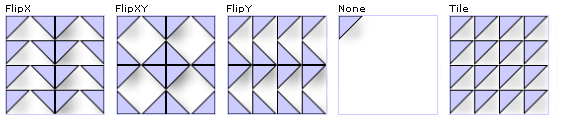

The following illustration shows the different tile modes.

Available tile modes for the TileMode enumeration
