Implement hierarchical security in Microsoft Sustainability Manager

2025-04-15

Introduction

In Microsoft Sustainability Manager, we frequently encounter the need for customers to establish custom security configurations to maintain data confidentiality across the Organizational Units of types Units, Divisions, Departments, Teams, and more. This article aims to address these requirements, focusing on organizational setup and user data access.

Authorization of data (Activities, Emissions, Reference data, etc.) in Microsoft Sustainability Manager uses the Dataverse Platform authorization model. This model is designed to maintain data confidentiality and provide appropriate access control across different organizational levels. Key aspects include:

Role-based security model: Microsoft Sustainability Manager uses the role-based security model in Dataverse. This model allows you to define access privileges on tables, owned by sustainability manager, via. Dataverse security roles and assign them to users based on their specific needs and responsibilities.
Business units: Business units in Dataverse define security boundaries. They help segment users and data across the organization. By aligning your Organization Unit structure in Microsoft Sustainability Manager to Dataverse’s business units, you can achieve the required role-based access.
Security roles: Security roles provides a controled access to the data with varied levels of scope of visibility. Data, presented in user interfaces, such as menus, grid views, and forms, is filtered as per the logged-in user's security roles. There are several built-in security roles you can use or configure or create new to fit your organization’s needs.

For details on Dataverse authorization constructs, visit Microsoft Learn.

Security set up fundamentals

Before diving into the hierarchical security in Microsoft Sustainability Manager, let's review fundamental Dataverse authorization model concepts.

Roles and privileges

Types of privileges: Defines the following actions at a table level:

Read: View records
Create: Add new records
Write: Modify existing records
Delete: Remove records
Append: Attach another record to a record
Append To: Be attached to a record
Assign: Change the owner of a record
Share: Grant access to a record to another user

Access levels of privileges: Access levels (Scope) define the level of access you're granted on any given table data (rows).

None: No access to the records of a given table
User: Access to records owned by the user or shared with the user
Business Unit: Access to records owned by user's owned business unit
Parent:Child Business Unit: Access to records owned by user's owned business unit and all child business units.
Organization: Access to all records within the organization.

For more information, see Security roles and privileges - Power Platform | Microsoft Learn.

Team types

In Microsoft Dataverse, Ownership teams and Access teams serve different purposes and have distinct characteristics:

Aspect	Ownership teams	Access teams
Structure	Owns records and have security roles assigned	Don't own records or have security roles
Privileges	Defined by the team's security roles + individual member roles + other team roles	Defined only by individual member roles and other team roles
Access Rights	Full access rights on team-owned records	Specific shared rights (Read, Write, Append) on records
Usage	Suitable for scenarios where owning records by teams is required by business policies, and daily reporting on progress by owning teams is necessary	Best for dynamically formed teams where the number of teams isn't known during design time, and team members require different levels of access rights

Choosing between these team types depends on how you plan to manage access and ownership of records.

For more information, see Teams in Dataverse - Power Platform | Microsoft Learn.

Record ownership

In Microsoft Dataverse, understanding the difference between User ownership and Team ownership of records is crucial for managing data access and security.

Aspect	User ownership	Team ownership
Definition	Records are owned by individual users	Records are owned by a team rather than individual users
Privileges	Determined by user's security roles	Defined by team's security roles with inheritance by team members
Management	Users have full control over their owned records	Teams have full access rights with flexible member management
Best For	Individual accountability and specific user access scenarios	Collaborative environments requiring shared record access

For more information, see User and team tables (Microsoft Dataverse) - Power Apps | Microsoft Learn.

Record Owning Business Unit

In Microsoft Dataverse, the Owning Business Unit is a key concept that determines which business unit owns a particular record. The key features are:

Default setting: When a record is created, its Owning Business Unit is set to the business unit of the user who created it.

Security and access: The Owning Business Unit works with security roles to define the access level for users. Users in the same business unit as the record’s Owning Business Unit typically have access to that record.

Update the Owning Business Unit: By default, the Owning Business Unit can't be changed after the record is created. However, it's possible to change the owning business unit through the new feature support, Modernized Business Units, from Dataverse. For more information, see Matrix data access structure.

Cascading behavior: Changing the Owning Business Unit can have a cascading effect on related records, depending on the cascade relationship settings.

For more information: Update a record Owner and Owning Business Unit - Power Platform | Microsoft Learn

Matrix data access structure

The Matrix data access structure in Dataverse is designed to provide flexible and efficient data access across different business units and teams. This structure offers a more dynamic and interconnected approach to managing data access, ensuring users can access the information they need while maintaining security and control.

Rather than being confined to a single hierarchical path, this structure allows for multiple pathways. This feature enables users from various business units and teams to collaborate and share data seamlessly. This approach is beneficial in complex organizations where cross-functional collaboration is essential, enhancing overall efficiency and teamwork.

The key features of the Matrix data access structure include:

Hierarchical organization: Data is organized in a hierarchical structure, facilitating easy access and management.
Cross-Unit access: Users can access data from multiple business units, enhancing collaboration and flexibility
Decoupled ownership: The owning business unit can be decoupled from the user, allowing more flexible data management
Enhanced collaboration: Facilitates data sharing and collaboration across different business units
Improved data security: Maintains data security while allowing controlled access across units
Flexibility: Provides flexibility in managing data access and ownership

For more information, see Modernized Business Units in Microsoft Dataverse - Power Platform | Microsoft Learn.

Microsoft Sustainability Manager security setup

Microsoft Sustainability Manager features a security setup that ensures data confidentiality and access control at different organizational levels.

The built-in security roles, customizable to your needs, cover the Organization and Business Unit scopes as follows:

Full access role: Provides read-write access to all areas and data
Read-Only role: Provides read-only access to all areas and data
Ingest role: Allows access for data ingestion actions
Reports role: Grants access to view and edit reports

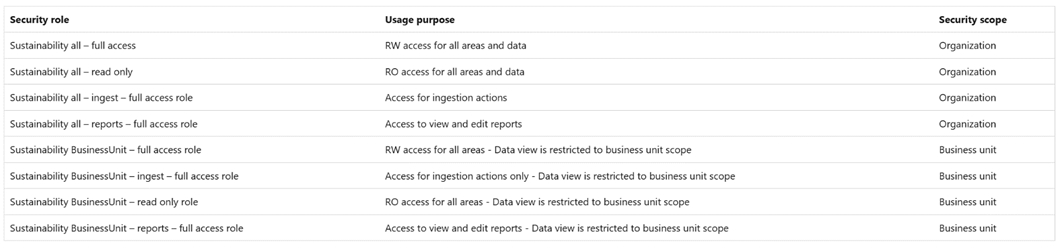

The following OOTB security roles are available to perform application functions like ingestion and report viewing.

You can create custom roles by copying existing roles and modifying them as needed. This feature allows you to fine-tune access control to match your specific requirements.

The Sustainability Service Application Role is a specialized security role used by Microsoft Sustainability Manager. This role is designed to handle specific tasks related to data ingestion and calculation jobs, ensuring that users have the necessary privileges to perform their duties effectively.

In some cases, you may encounter issues where the Sustainability Service Application Role doesn't have the required privileges to handle certain data imports. For example, when importing Activity Data using custom reference data, users might receive an error indicating that the role is missing specific privileges.

To resolve this error, you can provide the required access to a custom security role of Sustainability Service Application Role - Custom and add the necessary privileges

For more information, see Set up user roles and access management - Microsoft Cloud for Sustainability | Microsoft Learn.

Enable hierarchical security configuration in Sustainability Manager

The following sections outline the steps to implement hierarchical security in Microsoft Sustainability Manager. This setup is designed to ensure that users can only access data relevant to their specific business unit, maintaining data confidentiality and security.

Scenario

Contoso Coffee operates in over 20 countries/regions, with production plants in five countries/regions and sales & marketing offices across all its countries/regions. In this setup, Sales & Marketing departments can only access their own activities and emissions. Sustainability practitioners in each country/region can access data at the country/region level, while regional managers have visibility over their respective regions, such as the Americas, EMEA, and APAC. The same structure applies to the production departments.

Data import is centralized to regional sustainability teams. These teams own all data imports and have access to all activities and emissions within their region.

Perform the following actionable steps to enable hierarchical security in Contoso Coffee's Microsoft Sustainability Manager:

Configure Business Units
Assign security roles to users
Enable Matrix Access Data
Configure database setting
Configure alternate key (optional)
Configure data mapping

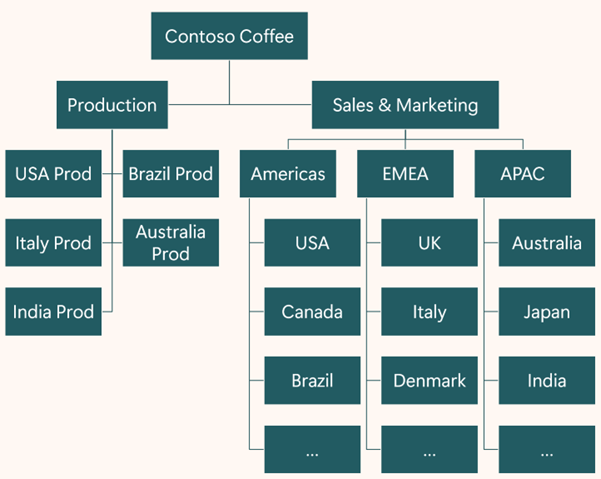

Configure Business Units

This area includes the country/region levels, and departments like Production and Sales & Marketing. The hierarchy is designed to ensure that each department can only access its own activities and emissions, maintaining data confidentiality.

Establish hierarchy: Align the hierarchy with our scenario. At the second level, create departments such as Production and Sales & Marketing. This structure ensures that each department can only access its own activities and emissions, maintaining data confidentiality.

Organize countries/regions: Arrange the country/region to allow sustainability practitioners in each country/region to access data at the country/region level. Regional managers have visibility over their entire region, such as the Americas, EMEA, and APAC. This setup centralizes data import to regional sustainability teams, who own all data imports and can view all activities and emissions in their region.

By structuring Business Units in this manner, you can effectively manage data access and maintain confidentiality across different organizational levels.

Assign security roles to users

It's essential to align system users with their respective business units and assign appropriate security roles to those requiring restricted access. The Sustainability all security role provides organization-wide access, while the Sustainability BusinessUnit roles restrict user access to the business unit scope.

Regional sustainability practitioners are assigned to their respective regions, while local users are designated at the country/region level. Management roles can be assigned at the department, regional level, or the root business unit, Contoso Coffee.

This structured approach ensures each user has the appropriate access level based on their role and location within the organization, maintaining data confidentiality and security.

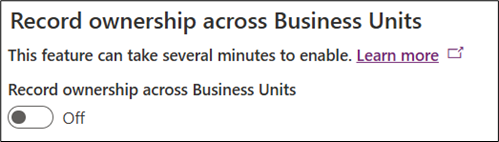

Enable Matrix Access Data

In the given scenario, data ingestion occurs at the regional level. It's essential to ensure that users see only their specific country/region's data. To achieve this objective, we need to disconnect the Owner and Owning Business Unit by enabling cross-business unit ownership.

This configuration allows users to import data on behalf of other business units. The user performing the import remains the owner of the records, while the owning business unit grants access to users in specific countries or regions. This approach ensures data is compartmentalized and accessible only to the appropriate users.

For more information, see Security concepts in Microsoft Dataverse - Power Platform | Microsoft Learn.

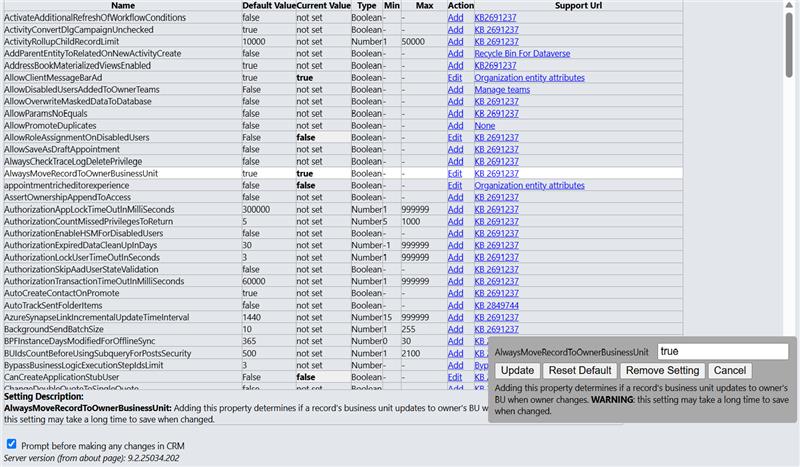

Configure database settings

To ensure records remain connected to the selected business unit when a user's business unit changes, we need to adjust the database settings. Set the AlwaysMoveRecordToOwnerBusinessUnit in the environment database settings to false. If this setting is true, the Owning Business Unit automatically updates to match the user's new business unit whenever it changes.

To make this database settings change, consider using the Organization Settings Editor.

For more information on Organization Settings Editor, see How to change default environment database settings - Power Platform | Microsoft Learn.

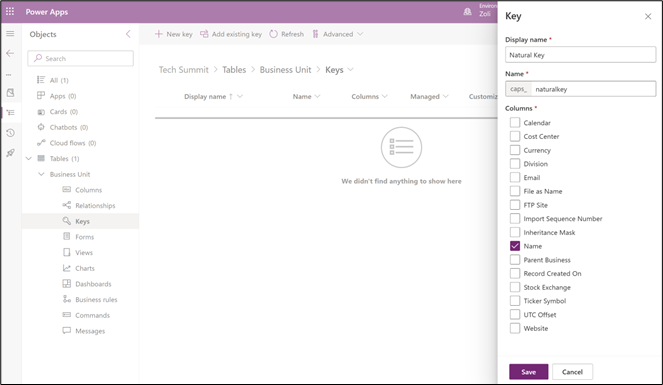

Configure alternate key (optional)

To simplify your data mapping, consider using an alternate key on the Business Unit. This step can be useful if you prefer a different field for data mapping during data ingestion instead of the GUID.

For example, set the Name column as an alternate key, referred to as 'Natural Key', on the Business Unit. This approach offers more flexibility in data mapping and helps streamline the data ingestion process.

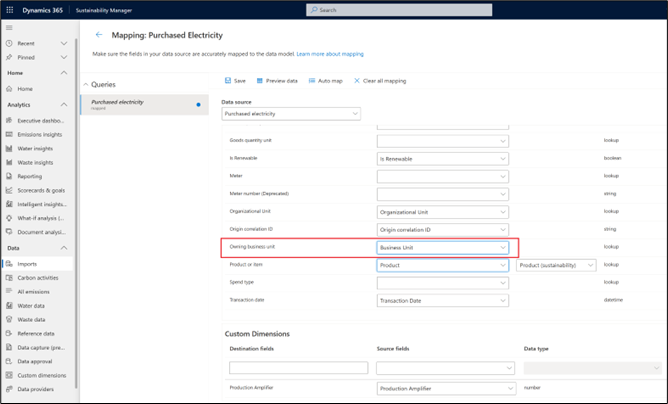

Configure data mapping

After enabling cross-business unit ownership and creating an alternate key, we can proceed with defining import jobs and data mapping. It's crucial to configure the Owning Business Unit in your data mapping to restrict specific data at the organizational level for users.

If cross-business unit ownership isn't configured, any business unit assigned during data mapping reverts to the user's parent business unit post-import. This step maintains controlled data access and alignment with our hierarchical security setup.

For more information:Ingest data into business units - Microsoft Cloud for Sustainability | Microsoft Learn

Considerations and best practices

Existing data considerations

When you're managing existing data in Microsoft Sustainability Manager with Organization Hierarchical Security enabled, several key factors must be addressed:

Ensure that reference data is accessible to all users to facilitate operations such as Create, Update, and Read without any issues.
Maintain clarity on which business unit owns the data even when cross-business unit ownership is enabled. This helps keep data access controlled and aligned with security protocols.
Update existing data ownership to ensure it aligns with its respective Owning Business Unit.

Copy environment considerations

When planning to copy an environment from Development (Dev) to Testing (Test) or from Test to User Acceptance Testing (UAT) as part of your Application Lifecycle Management (ALM) plan or deployment process, it's advisable to start the Business Unit organization hierarchy one level below the root Business Unit.

This recommendation stems from the fact that the root Business Unit's name is automatically derived from the environment's Domain Name by default. While this name can't be altered using the Business Unit Form, it can be modified through the Web API. Additionally, the Root Business Unit has a different Global Unique Identifier (GUID) compared to the source environment. This discrepancy can lead to misalignment of your data, particularly affecting the root business unit, and potentially causing significant organizational issues.

By initiating the hierarchy one level below the Root Business Unit, you can avoid these complications and ensure a smoother transition between environments. This approach helps maintain consistency in your business unit alignment along with data and prevents the root business unit from becoming disorganized due to the differing GUIDs.

Reporting considerations

Dashboard and Insights: The dashboard and insights in Microsoft Sustainability Manager are governed solely by organization scope role access. The business unit reporting role influences report generation access and data, but it doesn't apply to dashboards and insights views.

Custom Power BI reports: To restrict user access based on hierarchy, custom Power BI reports with necessary filters can be developed to limit data access according to the logged-in user’s context or business unit. Additionally, a tailored app derived from the Microsoft Sustainability Manager App might be needed to hide out-of-the-box Power BI reports and display only the features relevant to the logged-in user persona.

Security roles and Power BI: Security roles in Dataverse don't impact Power BI views. While security roles can control access to data and user interfaces within Microsoft Sustainability Manager, they don't apply to Power BI dashboards and reports.

Best practices

Follow principle of least privilege: Always assign the minimum necessary level of access to users. This strategy reduces the risk of unauthorized access and potential data breaches.
Use predefined roles: Utilize the predefined security roles provided by Dataverse, such as Environment Admin and Environment Maker, which follow the principle of minimum required access.
Create Custom roles: Create custom security roles tailored to specific needs. Custom roles allow for more granular control over permissions and access.
Perform regular audits: Regularly audit security settings and monitor access logs to identify and respond to any unauthorized access attempts.
Ensure training and awareness: Ensure your team is aware of security protocols and the importance of data protection. Regular training can help maintain a strong security posture.
Use Business Units: Use business units to define security boundaries within your organization. This step helps in managing users and the data they can access more effectively.
Review and update: Periodically review and update security roles to ensure they align with current business needs and security policies.
