Insights and reports for Attack simulation training

Tip

Did you know you can try the features in Microsoft Defender XDR for Office 365 Plan 2 for free? Use the 90-day Defender for Office 365 trial at the Microsoft Defender portal trials hub. Learn about who can sign up and trial terms here.

In Attack simulation training in Microsoft Defender for Office 365 Plan 2 or Microsoft 365 E5, Microsoft provides insights and reports from the results of simulations and the corresponding trainings. This information keeps you informed on the threat readiness progress of your users, and recommended next steps to better prepare your users for future attacks.

Insights and reports are available in the following locations on the Attack simulation training page in the Microsoft Defender portal:

  • The Overview tab.
  • The simulation report for in-progress or completed simulations that you select from the Recent simulations card on the Overview tab or on the Simulations tab.

The rest of this article describes the available information.

For getting started information about Attack simulation training, see Get started using Attack simulation training.

Insights and reports on the Overview tab of Attack simulation training

To go to the Overview tab, open the Microsoft Defender portal at https://security.microsoft.com, go to Email & collaboration > Attack simulation training, and verify that the Overview tab is selected (it's the default). To go directly to the Overview tab on the Attack simulation training page, use https://security.microsoft.com/attacksimulator?viewid=overview.

The rest of this section describes the information that's available on the Overview tab of Attack simulation training.

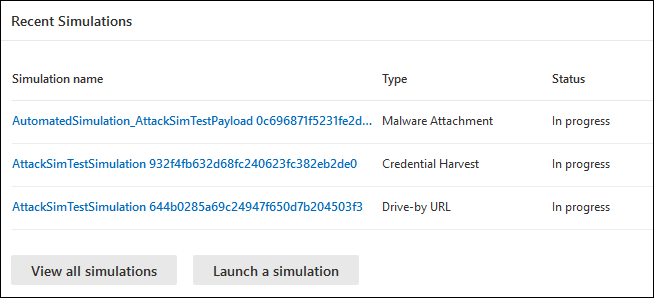

Recent simulations card

The Recent simulations card on the Overview tab shows the last three simulations that you've created or run in your organization.

You can select a simulation to view details.

Selecting View all simulations takes you to the Simulations tab.

Selecting Launch a simulation starts the new simulation wizard. For more information, see Simulate a phishing attack in Defender for Office 365.

The Recent simulations card on the Overview tab in Attack simulation training in the Microsoft Defender portal

Recommendations card

The Recommendations card on the Overview tab suggests different types of simulations to run.

Selecting Launch now starts the new simulation wizard with the specified simulation type automatically selected on the Select technique page. For more information, see Simulate a phishing attack in Defender for Office 365.

The Recommendations card on the Overview tab in Attack simulation training in the Microsoft Defender portal

Simulation coverage card

The Simulation coverage card on the Overview tab shows the percentage of users in your organization who have received a simulation (Simulated users) vs. users who haven't received a simulation (Non-simulated users). You can hover over a section in the chart to see the actual number of users in each category.

Selecting Launch simulation for non-simulated users starts the new simulation wizard where the users who didn't receive the simulation are automatically selected on the Target user page. For more information, see Simulate a phishing attack in Defender for Office 365.

Selecting View simulation coverage report takes you to the User coverage tab for the Attack simulation report.

The Simulation coverage card on the Overview tab in Attack simulation training in the Microsoft Defender portal

Training completion card

The Training completion card on the Overview tab organizes the percentages of users who received trainings based on the results of simulations into the following categories:

  • Completed
  • In progress
  • Incomplete

You can hover over a section in the chart to see the actual number of users in each category.

Selecting View training completion report takes you to the Training completion tab for the Attack simulation report.

Repeat offenders card

The Repeat offenders card on the Overview tab shows the information about repeat offenders. A repeat offender is a user who was compromised by consecutive simulations. The default number of consecutive simulations is two, but you can change the value on the Settings tab of Attack simulation training at https://security.microsoft.com/attacksimulator?viewid=setting. For more information, see Configure the repeat offender threshold.

The chart organizes repeat offender data by simulation type:

  • All
  • Malware Attachment
  • Link to Malware
  • Credential Harvest
  • Link in attachments
  • Drive-by URL

Selecting View repeat offender report takes you to the Repeat offenders tab for the Attack simulation report.

Behavior impact on compromise rate card

The Behavior impact on compromise rate card on the Overview tab shows how your users responded to your simulations as compared to the historical data in Microsoft 365. You can use these insights to track progress in users threat readiness by running multiple simulations against the same groups of users.

The chart data shows the following information:

  • Predicted compromise rate: Historical data across Microsoft 365 that predicts the percentage of people who will be compromised by this simulation. To learn more about the predicted compromise rate (PCR), see Predicted compromise rate.

  • Actual compromise rate: The actual percentage of people who were compromised by the simulation (actual users compromised / total number of users in your organization who received the simulation).

If you hover over a data point in the chart, the actual percentage values are shown.

The following summary information is also shown on the card:

  • users less susceptible to phishing: The difference between the actual number of users compromised by the simulated attack and the predicted compromise rate. This number of users is less likely to be compromised by similar attacks in the future.
  • x% better than predicted rate: Indicates how users did overall in contrast with the predicted compromise rate.

The Behavior impact on compromise rate card on the Overview tab in Attack simulation training in the Microsoft Defender portal

To see a more detailed report, select View simulations and training efficacy report. This report is explained later in this article.

Attack simulation report

You can open the Attack simulation report from the Overview tab by clicking on the View ... report buttons that are available in some of the cards that are described in this article. To go directly to the report, use https://security.microsoft.com/attacksimulationreport

Training efficacy tab for the Attack simulation report

On the Attack simulation report page, the Training efficacy tab is selected by default. This tab provides the same information that's available in the Behavior impact on compromise rate card, with additional context from the simulation itself.

The Training efficacy tab in the Attack simulation report in the Microsoft Defender portal

The chart shows the Predicted compromise rate and Actual compromised rate. If you hover over a section in the chart, the actual percentage values for are shown.

The details table below the chart shows the following information:

  • Simulation name
  • Simulation technique
  • Simulation tactics
  • Predicted compromised rate
  • Actual compromised rate
  • Total users targeted
  • Count of clicked users

You can sort the results by clicking on an available column header.

Select Customize columns to remove the columns that are shown. When you're finished, select Apply.

Use Search box to filter the results by Simulation name or Simulation Technique. Wildcards aren't supported.

If you select the Export report button, report generation progress is shown as a percentage of complete. In the dialog that opens, you can choose to open the .csv file, save the .csv file, and remember the selection.

User coverage tab for the Attack simulation report

The User coverage tab in the Attack simulation report in the Microsoft Defender portal

On the User coverage tab, the chart shows the Simulated users and Non-simulated users. If you hover over a data point in the chart, the actual values are shown.

The details table below the chart shows the following information:

  • Username
  • Email address
  • Included in simulation
  • Date of last simulation
  • Last simulation result
  • Count of clicked
  • Count of compromised

You can sort the results by clicking on an available column header. Select Customize columns to remove the columns that are shown.

Use Search box to filter the results by Username or Email address. Wildcards aren't supported.

If you select the Export report button, report generation progress is shown as a percentage of complete. In the dialog that opens, you can choose to open the .csv file, save the .csv file, and remember the selection.

Training completion tab for the Attack simulation report

The Training completion tab in the Attack simulation report in the Microsoft Defender portal

On the Training completion tab, the chart shows the number of Completed, In progress, and Incomplete simulations. If you hover over a section in the chart, the actual values are shown.

The details table below the chart shows the following information:

  • Username
  • Email address
  • Included in simulation
  • Date of last simulation
  • Last simulation result
  • Name of most recent training completed
  • Date completed
  • All trainings

You can sort the results by clicking on an available column header. Select Customize columns to remove the columns that are shown.

Select Filter to filter the chart and details table by the Status values of the trainings: Completed, In progress, or All.

When you're finished configuring the filters, select Apply, Cancel, or Clear filters.

Use Search box to filter the results by Username or Email address. Wildcards aren't supported.

If you select the Export report button, report generation progress is shown as a percentage of complete. In the dialog that opens, you can choose to open the .csv file, save the .csv file, and remember the selection.

Repeat offenders tab for the Attack simulation report

The Repeat offenders tab in the Attack simulation report in the Microsoft Defender portal

A repeat offender is a user who was compromised by consecutive simulations. The default number of consecutive simulations is two, but you can change the value on the Settings tab of Attack simulation training at https://security.microsoft.com/attacksimulator?viewid=setting. For more information, see Configure the repeat offender threshold.

On the Repeat offenders tab, the chart organizes repeat offender data by simulation type:

  • All
  • Credential Harvest
  • Malware Attachment
  • Link in Attachment
  • Link to Malware
  • Drive-by URL

If you hover over a data point in the chart, the actual values are shown.

The details table below the chart shows the following information:

  • User
  • Repeat count
  • Simulation types
  • Simulations

You can sort the results by clicking on an available column header. Select Customize columns to remove the columns that are shown.

Select Filter to filter the chart and details table by some or all of the simulation type values:

  • Credential Harvest
  • Malware Attachment
  • Link in Attachment
  • Link to Malware

When you're finished configuring the filters, select Apply, Cancel, or Clear filters.

Use Search box to filter the results by any of the column values. Wildcards aren't supported.

If you select the Export report button, report generation progress is shown as a percentage of complete. In the dialog that opens, you can choose to open the .csv file, save the .csv file, and remember the selection.

Simulation report in Attack simulation training

To view the details of in-progress or completed simulations, use either of the following methods:

The page that opens contains Report, Users and Details tabs that contain information about the simulation. The rest of this section describes the insights and reports that are available on the Report tab.

For details about the Users and Details tabs, see View simulation details.

Simulation impact section

The Simulation impact section on the simulation details page shows how many users were completely tricked by the simulation and the total number of users in the simulation. The information that's shown varies based on the simulation type. For example:

  • Links: Entered credentials and Did not enter credentials.

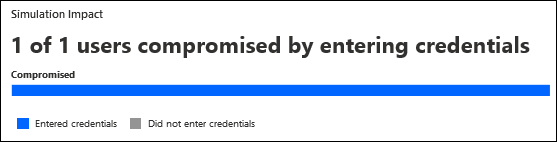

    The Simulation impact section for link-related simulation details

  • Attachments: Opened attachment and Did not open attachment.

    The Simulation impact section for attachment-related simulation details

If you hover over a section in the chart, the actual numbers for each category are shown.

All user activity section

The All user activity section on the simulation details page shows numbers for the possible outcomes of the simulation. The information that's shown varies based on the simulation type. For example:

  • SuccessfullyDeliveredEmail

  • ReportedEmail: How many users reported the simulation message as suspicious.

  • Links:

    • EmailLinkClicked: How many users clicked on the link in the simulation message.

    • CredSupplied: After clicking on the link, how many users supplied their credentials.

      The All user activity section for link-related simulation details

  • Attachments:

    • AttachmentOpened: How many users opened the attachment in the simulation message.

      The All user activity section for attachment-related simulation details

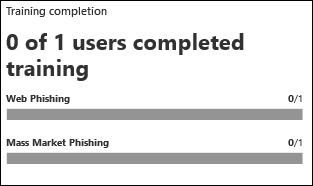

Training completion section

The Training completion section on the simulation details page shows the trainings that are required for the simulation, and how many users have completed the trainings.

The Training completion section for attachment-related simulation details

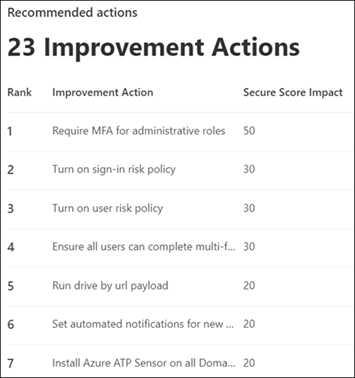

The Recommended actions section on the simulation details page shows recommendation actions from Microsoft Secure Score and the effect the action will have on your Secure Score. These recommendations are based on the payload that was used in the simulation, and will help protect your users and your environment. Selecting an Improvement action from the list takes you to the location to implement the suggested action.

The Recommendation actions section on Attack simulation training
