Build an agent in Teams with Microsoft Agent Framework

This article is not available for the selected development language.

This guide walks through building a Teams agent with Microsoft Agent Framework (MAF) Microsoft's open-source SDK for AI agents. MAF gives you typed primitives Agent, Tool, AgentSession, FunctionMiddleware that wrap the underlying model API, the tool-dispatch loop, and conversation history into composable pieces, so you don't hand-roll chat completions or thread tool calls yourself. It works against multiple model backends (OpenAI, Azure OpenAI, and others) and scales from a single chat agent up to coordinated multi-agent workflows. In a Teams app, MAF runs the agent loop (model calls, tool invocations, and per-conversation memory) while the Teams SDK handles activity routing, streaming, and Teams-native affordances like Adaptive Cards and feedback controls.

Defining the agent

An agent is composed of three core elements: a client (model backend), instructions (system prompt), and tools (capabilities beyond text generation). A minimal setup starts with just a chat-enabled agent:

from agent_framework import Agent
from agent_framework.openai import OpenAIChatClient

client = OpenAIChatClient(
    model=getenv("AZURE_OPENAI_MODEL"),
    azure_endpoint=getenv("AZURE_OPENAI_ENDPOINT"),
    api_key=getenv("AZURE_OPENAI_API_KEY"),
)

agent = Agent(
    client=client,
    instructions="You are a helpful Teams assistant.",
)

Adding a local tool

Tools extend the agent with executable capabilities. They are regular functions annotated so the model can decide when to invoke them. Anything that runs in your process such as database lookups, business logic, or Teams-specific actions like attaching an Adaptive Card to the reply belongs here.

Tools are declared using the @tool decorator from the Agent Framework. The function name, docstring, and type hints (or annotations) are used by the model to understand when and how to call the tool.

from agent_framework import tool

@tool
async def send_welcome_card(
    greeting: Annotated[str, Field(description="Greeting message, e.g. 'Hello, Alex!'")],
) -> str:
    """Attach a welcome card to the reply."""
    cards = pending_cards.get()
    if cards is None:
        return "No active turn context."
    cards.append(AdaptiveCard(version="1.5").with_body([
        TextBlock(text=greeting, size="Large", weight="Bolder", wrap=True),
    ]))
    return "Card attached."

Tools run inside the agent loop, and their outputs can influence both the final response and side effects in the Teams message (such as cards or metadata).

Adding remote MCP tools

Remote tools are exposed via MCP servers and live behind a network boundary. The agent discovers their schemas at runtime and invokes them over HTTP. From the models perspective, they behave like any other tool.

Remote tools are declared using MCP tool wrappers from Agent Framework and passed to the agent just like local tools:

from agent_framework import MCPStreamableHTTPTool

mcp_tools = [
    MCPStreamableHTTPTool(name="MSLearn", url="https://learn.microsoft.com/api/mcp"),
]

agent = Agent(
    client=client,
    instructions="You are a helpful Teams assistant with access to local tools and remote MCP servers..",
    tools=[send_welcome_card, *mcp_tools],
)

Running the agent in Teams

Integrate with Teams by forwarding incoming messages to the agent runtime and streaming the response back to the chat interface chunk by chunk.

@app.on_message
async def handle_message(ctx: ActivityContext[MessageActivity]):
    async for chunk in agent.run(ctx.activity.text or "", stream=True):
        if chunk.text:
            ctx.stream.emit(chunk.text)

Per-conversation memory

By default, the agent is stateless. Each agent.run(...) call starts with no history the model only sees the current message. This works well for one-shot interactions, but is insufficient for multi-turn conversations where users refer back to earlier context. A session provides a conversation buffer that maintains state across turns. Create one per Teams conversation and reuse it for subsequent messages:

from agent_framework import AgentSession

_sessions: dict[str, AgentSession] = {}

@app.on_message
async def handle_message(ctx: ActivityContext[MessageActivity]):
    conversation_id = ctx.activity.conversation.id
    session = _sessions.setdefault(conversation_id, agent.create_session())

    async for chunk in agent.run(ctx.activity.text or "", session=session, stream=True):
        ...

In production push session history into Redis, Cosmos DB, or whatever you already use for state.

Middleware

Middleware sits between tool execution and the model response, enabling you to inspect, transform, or annotate results without coupling this logic to the agent itself. It is implemented by subclassing FunctionMiddleware from Agent Framework and overriding the process method, which receives the tool context and allows you to modify the result before it is passed back to the model.

A common use case is grounding responses with citations extracting references from tool outputs and assigning stable indices so the model can cite them inline.

from agent_framework import FunctionMiddleware

class CitationMiddleware(FunctionMiddleware):
    citations: dict[str, Any]

    async def process(self, context, call_next):
        # Run the wrapped tool first, then post-process its result.
        await call_next()

        data = parse_json(context.result)

        for item in data["results"]:
            pos = len(self.citations) + 1
            url = item.get("contentUrl") or item.get("link")
            snippet = item.get("content") or item.get("description")
            # setdefault dedupes by URL — the same source returned by multiple
            # tool calls keeps a single, stable position.
            entry = self.citations.setdefault(url,{ "position": pos,
                                "url": url,
                                "title": item.get("title", ""),
                                "snippet": snippet[:160],
                                })
            # Attach the citation back onto the result so the model sees it
            # alongside the content and can reference it inline.
            item["citation"] = entry

        context.result = serialize_json(data)


tool_logger = AgentMiddleware()
agent = Agent(
    client=client,
    instructions="""You are a helpful Teams assistant with access to local tools and remote MCP servers.
    When you use information from a search tool, cite your sources inline using the "citation" value """,
    tools=[send_welcome_card, *mcp_tools],
    middleware=[tool_logger],
)

Warning

Our AI libraries are deprecated. The Teams SDK has deprecated its own AI libraries - the @microsoft/teams.ai packages (ChatPrompt, Model, and the older @microsoft/teams.mcp / @microsoft/teams.a2a plugins) - in favor of dedicated AI frameworks. Use the pattern shown in these guides instead: bring the OpenAI SDK (or any framework you like), and wire MCP and A2A directly into your Teams app.

This guide walks through building a Teams agent with the OpenAI SDK against Azure OpenAI. The TypeScript SDK stays agnostic about the intelligence layer — you bring the model client and the tool-call loop, and the Teams SDK handles activity routing, streaming, and Teams-native affordances like Adaptive Cards and feedback controls.

The agent loop here is driven by the OpenAI SDK's runTools() helper, which auto-executes each tool's function callback and feeds the result back to the model until it produces final text — so you don't hand-roll the tool-dispatch loop yourself.

Note

This sample is bound to the OpenAI chat-completions wire protocol — Azure OpenAI and vanilla OpenAI both work; non-OpenAI providers do not.

Full source: examples/ai-mcp.

Defining the agent

An agent is composed of three core elements: a client (model backend), instructions (system prompt), and tools (capabilities beyond text generation). A minimal setup starts with just a chat-enabled agent:

The "agent" is the model client plus a system prompt. The OpenAI SDK's AzureOpenAI client is the model backend, and runTools() (shown below) is the loop that drives instructions and tools together.

import { AzureOpenAI } from 'openai';

const client = new AzureOpenAI({
  endpoint: process.env.AZURE_OPENAI_ENDPOINT!,
  apiKey: process.env.AZURE_OPENAI_API_KEY!,
  deployment: process.env.AZURE_OPENAI_MODEL_DEPLOYMENT_NAME!,
  apiVersion: process.env.AZURE_OPENAI_API_VERSION || '2024-10-21',
});

const SYSTEM_PROMPT = 'You are a helpful Teams assistant.';

Adding a local tool

Tools extend the agent with executable capabilities. They are regular functions the model can decide to invoke. Anything that runs in your process — database lookups, business logic, or Teams-specific actions like attaching an Adaptive Card to the reply — belongs here.

A good example is clarification: when a request is ambiguous, the agent asks the user to pick between interpretations instead of guessing. The tool builds an Adaptive Card and stashes it in a per-turn bucket the handler inspects after the run completes; the user's choice comes back as the next turn.

Tools are declared as RunnableToolFunctions — the OpenAI SDK runs each tool's function callback during the tool loop. The callback pushes the card into a per-turn bucket the handler inspects after the run completes, and returns a short placeholder string.

import type { RunnableToolFunction } from 'openai/lib/RunnableFunction';
import { AdaptiveCard, ChoiceSetInput, ExecuteAction, SubmitData, TextBlock } from '@microsoft/teams.cards';

type ClarificationArgs = { question: string; options: string[] };

export const CLARIFICATION_VERB = 'clarification';
export const CLARIFICATION_INPUT_ID = 'clarificationChoice';

function buildClarificationTool(pendingCards: AdaptiveCard[]): RunnableToolFunction<ClarificationArgs> {
  return {
    type: 'function',
    function: {
      name: 'request_clarification',
      description: 'Show an Adaptive Card asking the user to clarify their request when ambiguous.',
      parameters: {
        type: 'object',
        properties: {
          question: { type: 'string', description: 'The clarification question to ask the user.' },
          options: {
            type: 'array',
            items: { type: 'string' },
            description: '2-4 candidate interpretations the user can pick between.',
          },
        },
        required: ['question', 'options'],
        additionalProperties: false,
      },
      function: async (args: ClarificationArgs) => {
        pendingCards.push(buildClarificationCard(args));
        return 'Clarification card attached.';
      },
      parse: (raw: string) => JSON.parse(raw) as ClarificationArgs,
    },
  };
}

function buildClarificationCard(args: ClarificationArgs): AdaptiveCard {
  return new AdaptiveCard(
    new TextBlock(args.question, { weight: 'Bolder', size: 'Medium', wrap: true }),
    new ChoiceSetInput(...args.options.map((opt) => ({ title: opt, value: opt })))
      .withId(CLARIFICATION_INPUT_ID)
      .withIsRequired(true)
  ).withActions(
    new ExecuteAction({ title: 'Submit' })
      .withData(new SubmitData(CLARIFICATION_VERB))
      .withAssociatedInputs('auto')
  );
}

See clarification cards for how the user's choice flows back in.

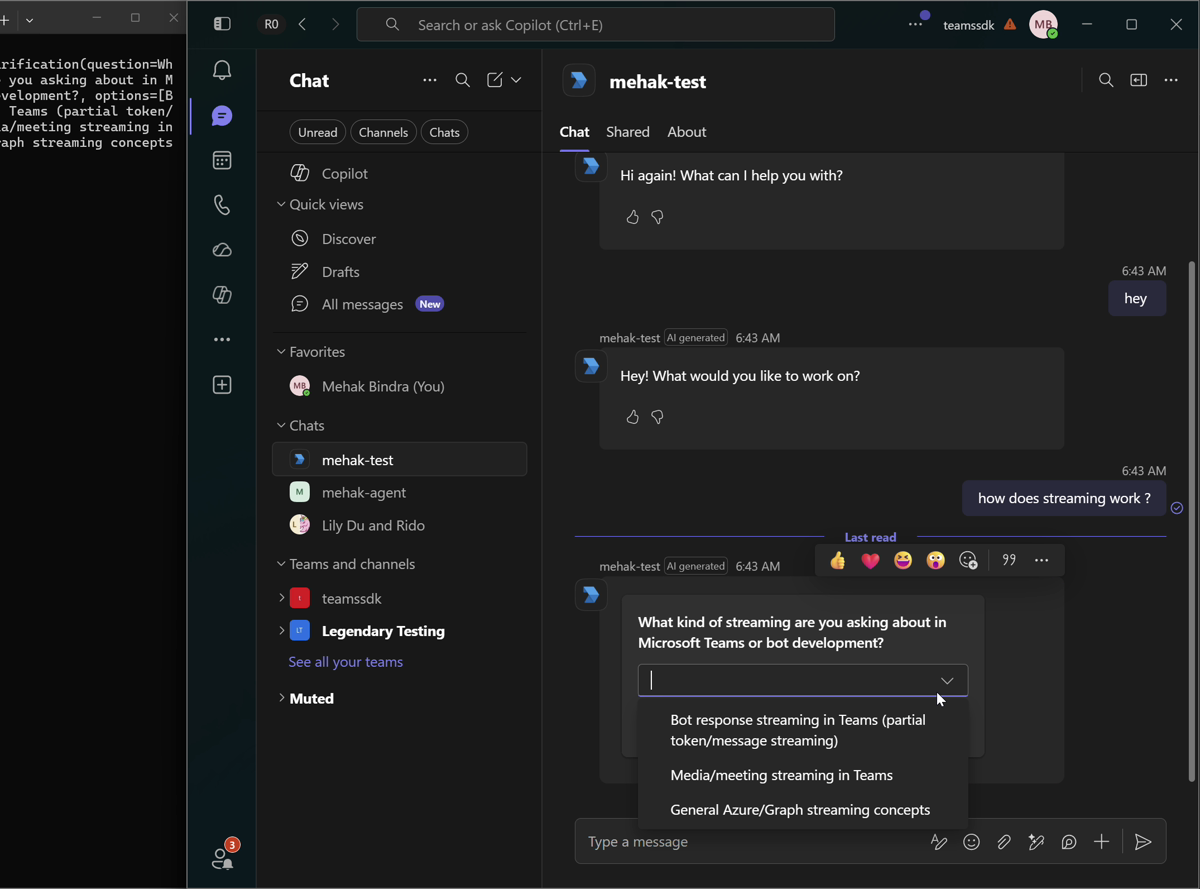

Screenshot of a clarification Adaptive Card in a Teams chat, asking the user to pick between candidate interpretations of an ambiguous question.

Adding remote MCP tools

Remote tools are exposed via MCP servers and live behind a network boundary. The agent discovers their schemas at runtime and invokes them over HTTP. From the model's perspective, they behave like any other tool.

Connect to the MCP server once at startup, list its tools, and wrap each one as a RunnableToolFunction. The callback invokes the server and returns the result text to the model.

import { Client } from '@modelcontextprotocol/sdk/client/index.js';
import { StreamableHTTPClientTransport } from '@modelcontextprotocol/sdk/client/streamableHttp.js';
import type { RunnableToolFunction } from 'openai/lib/RunnableFunction';

const client = new Client({ name: 'ai-mcp-sample', version: '0.0.0' });
await client.connect(new StreamableHTTPClientTransport(new URL('https://learn.microsoft.com/api/mcp')));

const { tools } = await client.listTools();

const mcpTools: RunnableToolFunction<Record<string, unknown>>[] = tools.map((tool) => ({
  type: 'function',
  function: {
    name: tool.name,
    description: tool.description ?? '',
    parameters: (tool.inputSchema as Record<string, unknown>) ?? { type: 'object' },
    function: async (args: Record<string, unknown>) => {
      const result = await client.callTool({ name: tool.name, arguments: args });
      return stringifyResult(result.content);
    },
    parse: (raw: string) => JSON.parse(raw) as Record<string, unknown>,
  },
}));

Running the agent in Teams

Integrate with Teams by forwarding incoming messages to the agent and streaming the response back to the chat interface chunk by chunk.

runTools() sends the request with your tool definitions, auto-invokes any tool the model calls, re-prompts with the result, and repeats until the model produces final text. content events fire for each text delta — forward them straight to the Teams stream.

const runner = client.chat.completions.runTools({
  model: deployment,
  messages: history,
  tools: [clarificationTool, ...mcpTools],
  stream: true,
});

runner.on('content', (delta: string) => stream.emit(delta));
await runner.done();

Per-conversation memory

By default, each run starts with no history — the model only sees the current message. This works for one-shot interactions, but is insufficient for multi-turn conversations where users refer back to earlier context. Keep a per-conversation buffer and reuse it across turns:

Keep one ChatCompletionMessageParam[] per Teams conversation. After each run, sync the runner's view — it includes the system, user, and every tool-call / tool-result / assistant message added during the loop — back into your map so the next turn sees the full prior context.

import type { ChatCompletionMessageParam } from 'openai/resources/chat/completions';

const histories = new Map<string, ChatCompletionMessageParam[]>();

function getOrCreateHistory(convId: string): ChatCompletionMessageParam[] {
  let history = histories.get(convId);
  if (!history) {
    history = [{ role: 'system', content: SYSTEM_PROMPT }];
    histories.set(convId, history);
  }
  return history;
}

// after runner.done():
const ran = runner.messages as ChatCompletionMessageParam[];
history.splice(0, history.length, ...ran);

In production, push conversation history into Redis, Cosmos DB, or whatever you already use for state.

Grounding responses with citations

When a tool returns search results, you usually want the model to cite its sources. The pattern: intercept each tool result, assign every source a stable 1-based index, and hand that index back to the model so it can reference it inline as [1], [2], and so on. The collected citations are attached to the final reply in Enhancing the Teams Experience.

The extraction lives in a small CitationCollector. Each MCP tool callback feeds its raw result into tryExtract, which parses the search payload and assigns every source a stable 1-based position. The same collector instance is captured by every tool call on a turn.

type CitationEntry = { position: number; url: string; title: string; snippet: string };

export class CitationCollector {
  private readonly entries = new Map<string, CitationEntry>();

  tryExtract(result: string): void {
    let doc: any;
    try {
      doc = JSON.parse(result);
    } catch {
      return; // non-JSON tool results are ignored
    }
    for (const item of doc?.results ?? []) {
      const url = item.contentUrl ?? item.link;
      if (!url || this.entries.has(url)) continue;
      const snippet = (item.content ?? item.description ?? '').slice(0, 160);
      this.entries.set(url, {
        position: this.entries.size + 1,
        url,
        title: item.title ?? '',
        snippet,
      });
    }
  }
}

To wire it in, call citations.tryExtract(text) inside each MCP tool's callback before returning the result. The collected entries are attached to the final reply in Enhancing the Teams Experience.

For Teams-specific enhancements continue to Enhancing the Teams Experience using Teams SDK.
