3.2.2.5 DocumentParts Property Example

This is an example of a DocumentParts property (VtVecUnalignedLpstr property (section 2.3.3.1.10)).

The DocumentParts property ought to be viewed together with the HeadingPairs Property (section 3.2.2.6) because the data in the two are closely related. This relationship is illustrated by the following diagram.

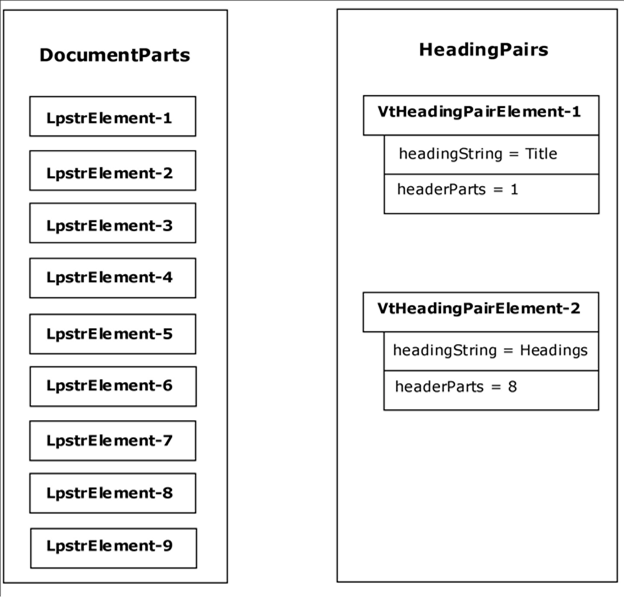

Figure 21: Relationship between the DocumentParts property and the HeadingPairs property

In the figure, the first element of the HeadingPairs property has a headingString value of "Title", meaning it is associated with the title group in the DocumentParts property. The value of the headerParts field is 1, meaning there is only 1 element in the DocumentParts property that is in the title group, LpstrElement-1. The headingString of the second element in the HeadingPairs property is "Headings", meaning this element is associated with the headings group in the DocumentParts property. HeaderParts equals 8, meaning there are 8 elements in the DocumentParts property that are in the headings group. They are LpstrElement-2 through LpstrElement-9.

Offset	Size	Structure	Value
00000154	010D	TypedPropertyValue - GKPIDDSI_DOCPARTS
00000154	0002	WORD - wType	0x101E
00000156	0002	WORD - padding	0x0000
00000158	0109	VtVecUnalignedLpstrValue - UnalignedLpstr Vector
00000158	0004	DWORD - cElements	0x00000009
0000015C	0105	Array of UnalignedLpstr - rgString
0000015C	0020	UnalignedLpstr - LpstrElement-1
0000015C	0004	DWORD - cch	0x0000001C
00000160	001C	Array of CHAR - value	Invoice Approval Procedures
0000017C	0017	UnalignedLpstr - LpstrElement-2
0000017C	0004	DWORD - cch	0x00000013
00000180	0013	Array of CHAR - value	Approval Procedure
00000193	0019	UnalignedLpstr - LpstrElement-3
00000193	0004	DWORD - cch	0x00000015
00000197	0015	Array of CHAR - value	Manager Approval
000001AC	001C	UnalignedLpstr - LpstrElement-4
000001AC	0004	DWORD - cch	0x00000018
000001B0	0018	Array of CHAR - value	Skip-level Approval
000001C8	0021	UnalignedLpstr - LpstrElement-5
000001C8	0004	DWORD - cch	0x0000001D
000001CC	001D	Array of CHAR - value	Organizational Chart
000001E9	0024	UnalignedLpstr - LpstrElement-6
000001E9	0004	DWORD - cch	0x00000020
000001ED	0020	Array of CHAR - value	Skip-level verification
0000020D	0017	UnalignedLpstr - LpstrElement-7
0000020D	0004	DWORD - cch	0x00000013
00000211	0013	Array of CHAR - value	Verification Steps
00000224	001D	UnalignedLpstr - LpstrElement-8
00000224	0004	DWORD - cch	0x00000019
00000228	0019	Array of CHAR - value	Manager Verification
00000241	0020	UnalignedLpstr - LpstrElement-9
00000241	0004	DWORD - cch	0x0000001C
00000245	001C	Array of CHAR - value	Skip-level Verification

Figure 22: Structure of a DocumentParts property

In this example, the LpstrElements share the same structure. For brevity, only one of them is explained in the following section. LpstrElement-2 is explained because it is more representative in the calculation of count of bytes.

GKPIDDSI_DOCPARTS: DocumentParts.

wType: 0x101E indicates this property value is an array of single-byte character strings. In the case of DocumentParts this indicates the property is a VtVecUnalignedLpstr property (section 2.3.3.1.10).

UnalignedLpstr Vector.cElements: 0x00000009 indicates there are 9 elements in the VtVecUnalignedLpstr (section 2.3.3.1.10).

UnalignedLpstr Vector.rgString.LpstrElement-2: The second UnalignedLpstr (section 2.3.3.1.5) in this vector.

UnalignedLpstr Vector.rgString.LpstrElement-2.cch: 0x00000013 (19) is the count of bytes of the value field of the UnalignedLpstr (section 2.3.3.1.5) ("Approval Procedure" followed by a terminating NULL character). The UnalignedLpstr (section 2.3.3.1.5) structure does not require padding. Therefore, in this example, even though 19 is not a multiple of 4 bytes, no padding is added to the value field.

UnalignedLpstr Vector.rgString.LpstrElement-2.value: "Approval Procedure" is the value of the value field of this UnalignedLpstr (section 2.3.3.1.5).

The rest of the UnalignedLpstr (section 2.3.3.1.5) structures in this example have the same format as the Vector.rgString.LpstrElement-2 structure defined previous.
