Checklist for ExpressRoute readiness

Use the following checklist to help you determine whether your organization is ready to implement ExpressRoute for Power Platform.

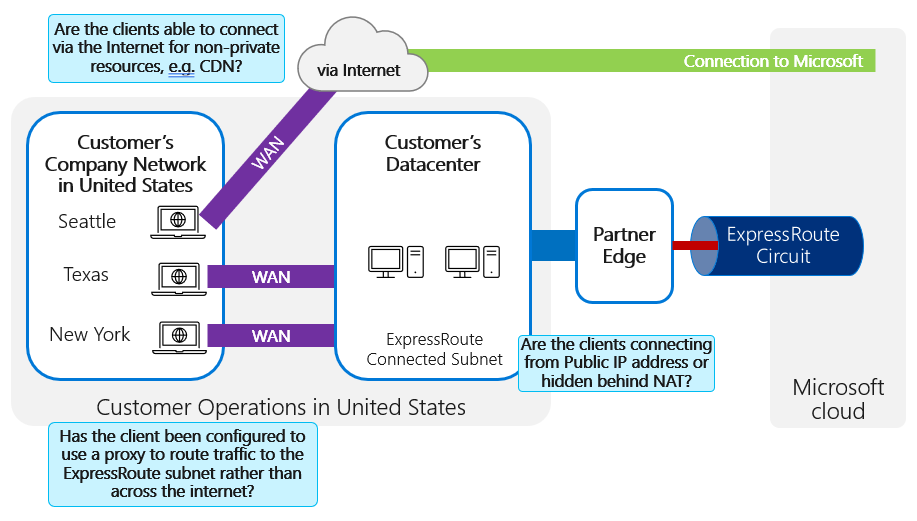

Client routing

The use of ExpressRoute for Power Platform and Microsoft 365 requires routing traffic from the client through the ExpressRoute circuit rather than over the internet.

• Are clients configured to use a proxy to route traffic to the ExpressRoute subnet rather than across the internet?
• Are clients connecting from a public IP address, or are they hidden behind network address translation?
• Are clients able to connect through the internet for non-private resources, such as Azure Content Delivery Network?

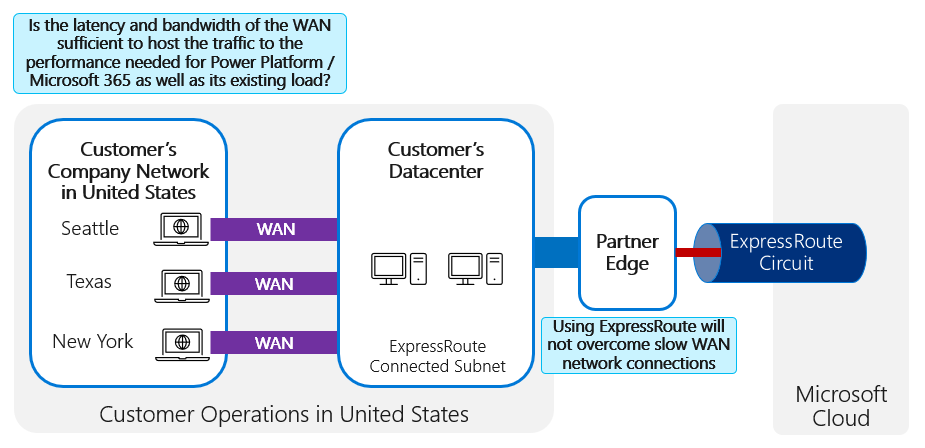

WAN performance

When you use ExpressRoute, client performance is only as good as the slowest link on the connection. Because most clients connect to the ExpressRoute circuit through a wide area network (WAN), the capacity and speed of the WAN connection are critical.

• Are the capacity and speed of the WAN connection sufficient for the traffic it will handle?

Peering

Power Platform uses Microsoft peering.

• Have you configured Microsoft peering appropriately for your needs?

Asymmetric routing

Asymmetric routing can cause firewall and other network issues.

• Have you configured the network and ExpressRoute to ensure that you avoid asymmetric routing?

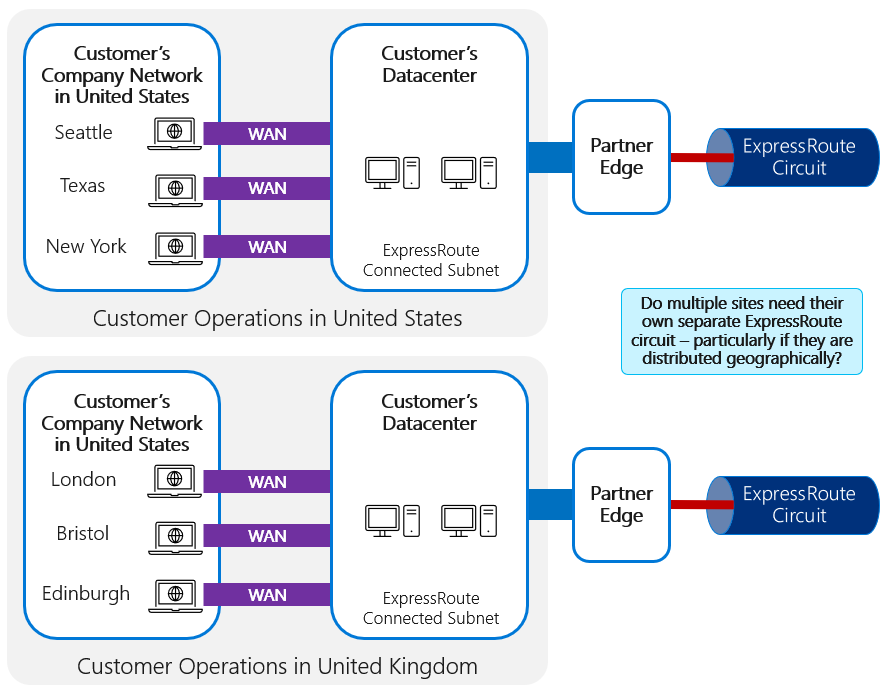

Geographical distribution

• If your users are distributed geographically, have you considered how to optimize the ExpressRoute circuit connectivity?
• Have you determined whether multiple circuits should be distributed geographically for different areas or regions?

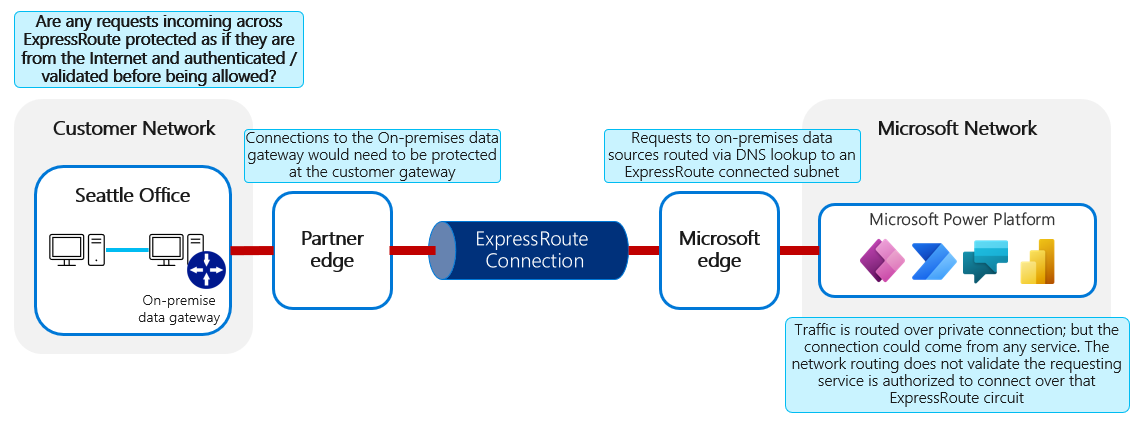

On-premises integration

• Are connections from the Microsoft Cloud to the on-premises network across ExpressRoute protected as if they came from the public internet?
