Azure Percept DK 80/20 integration


Retirement of Azure Percept DK:

Update 22 February 2023: A firmware update for the Percept DK Vision and Audio accessory components (also known as Vision and Audio SOM) is now available here, and will enable the accessory components to continue functioning beyond the retirement date.

The Azure Percept public preview will be evolving to support new edge device platforms and developer experiences. As part of this evolution the Azure Percept DK and Audio Accessory and associated supporting Azure services for the Percept DK will be retired March 30th, 2023.

Effective March 30th, 2023, the Azure Percept DK and Audio Accessory will no longer be supported by any Azure services including Azure Percept Studio, OS updates, containers updates, view web stream, and Custom Vision integration. Microsoft will no longer provide customer success support and any associated supporting services. For more information, please visit the Retirement Notice Blog Post.

The Azure Percept DK and Audio Accessory were designed to integrate with the 80/20 T-slot aluminum building system.

80/20 features

The Azure Percept DK carrier board, Azure Percept Vision device, and Azure Percept Audio accessory are manufactured with integrated 80/20 1010 extrusion connections, which allow for endless mounting configurations with 80/20 rails. This integration enables customers and solution builders to more easily extend their proof of concepts to production environments.

Check out this video for more information on how to use Azure Percept DK with 80/20:

To accelerate your prototype creation, we have also designed a few examples of 80/20 mounting assemblies. We have included the technical drawings of these options below so they can be easily ordered and built by your local 80/20 distributor:

Design Name Overall Design CAD Design 1 CAD Design 2

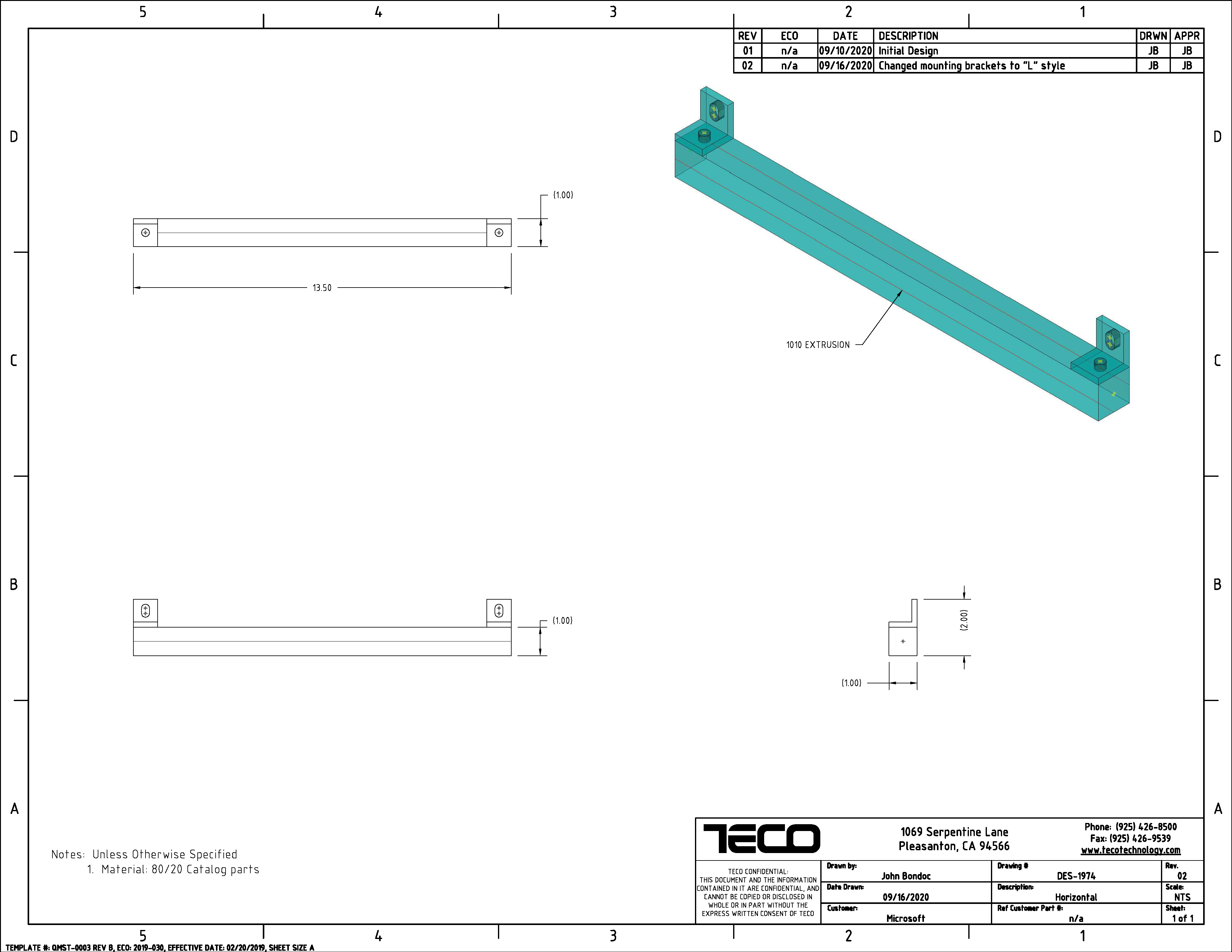

Wall Mounts Wall Mount Image Horizontal Wall Mount Image Vertical Wall Mount Image
Ceiling Mounts Ceiling Mount Image Ceiling Mount Small Image Ceiling Mount Large Image

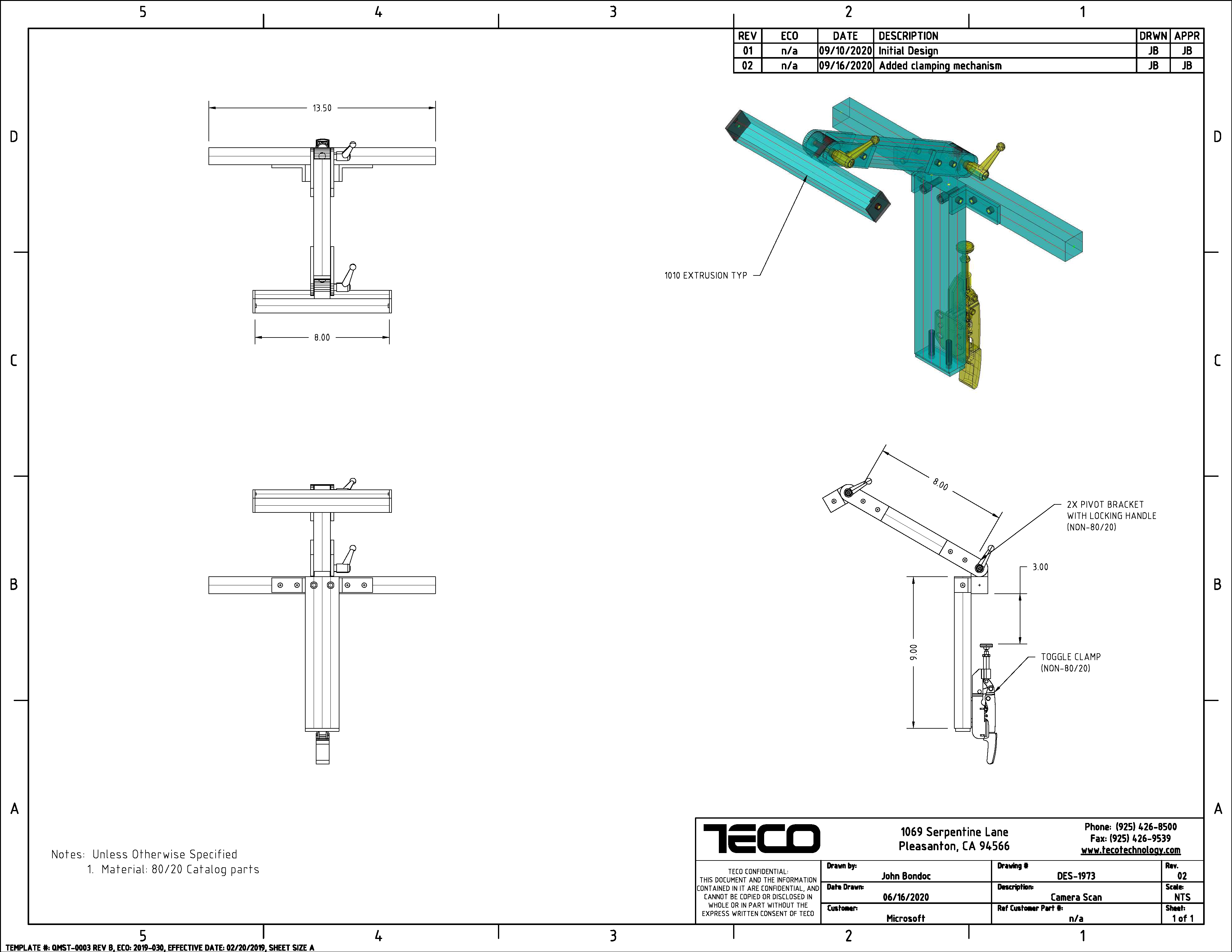

Arm Mounts Arm Mount Image Clamp Bracket Image
