Tutorial 12: Using TemplateFields in the GridView Control
Scott Mitchell
February 2007
Download code for this sample.
Contents of Tutorial 12 (Visual Basic)
Introduction
Step 1: Binding the Data to the GridView
Step 2: Displaying the First and Last Names in a Single Column
Step 3: Using the Calendar Control to Display the HireDate Field
Step 4: Showing the Number of Days the Employee Has Worked for the Company
Conclusion
About the Author
Special Thanks
Introduction
The GridView is composed of a set of fields that indicate what properties from the DataSource are to be included in the rendered output along with how the data will be displayed. The simplest field type is the BoundField, which displays a data value as text. Other field types display the data using alternate HTML elements. The CheckBoxField, for example, renders as a check box whose checked state depends on the value of a specified data field; the ImageField renders an image whose image source is based upon a specified data field. Hyperlinks and buttons whose state depends on an underlying data-field value can be rendered using the HyperLinkField and ButtonField field types, respectively.
While the CheckBoxField, ImageField, HyperLinkField, and ButtonField field types allow for an alternate view of the data, they still are fairly limited with respect to formatting. A CheckBoxField can only display a single check box, whereas an ImageField can display only a single image. What if a particular field must display some text, a check box, and an image, all based upon different data-field values? Or what if we wanted to display the data using a Web control other than the CheckBox, Image, HyperLink, or Button? Furthermore, the BoundField limits its display to a single data field. What if we wanted to show two or more data-field values in a single GridView column?
To accommodate this level of flexibility, the GridView offers the TemplateField, which renders using a template. A template can include a mix of static HTML, Web controls, and data-binding syntax. Furthermore, the TemplateField has a variety of templates that can be used to customize the rendering for different situations. For example, the ItemTemplate is used by default to render the cell for each row, but the EditItemTemplate template can be used to customize the interface when editing data.
In this tutorial, we'll examine how to use the TemplateField to achieve a greater degree of customization with the GridView control. In the preceding tutorial, we saw how to customize the formatting based on the underlying data using the DataBound and RowDataBound event handlers. Another way to customize the formatting based on the underlying data is by calling formatting methods from within a template. We'll look at this technique in this tutorial, too.
For this tutorial, we will use TemplateFields to customize the appearance of a list of employees. Specifically, we'll list all of the employees, but will display the employee's first and last names in one column, their hire date in a Calendar control, and a status column that indicates how many days they've been employed at the company.
Figure 1. Three TemplateFields are used to customize the display. (Click on the picture for a larger image.)
Step 1: Binding the Data to the GridView
In reporting scenarios in which you must use TemplateFields to customize the appearance, I find it easiest to start by creating a GridView control that contains just BoundFields first, and then to add new TemplateFields or convert the existing BoundFields to TemplateFields, as needed. Therefore, let's start this tutorial by adding a GridView to the page through the Designer and binding it to an ObjectDataSource that returns the list of employees. These steps will create a GridView with BoundFields for each of the employee fields.
Open the GridViewTemplateField.aspx page, and drag a GridView from the Toolbox onto the Designer. From the GridView's smart tag, choose to add a new ObjectDataSource control that invokes the GetEmployees() method of the EmployeesBLL class.
Figure 2. Add a new ObjectDataSource control that invokes the GetEmployees() method. (Click on the picture for a larger image.)
Binding the GridView in this manner will automatically add a BoundField for each of the employee properties: EmployeeID, LastName, FirstName, Title, HireDate, ReportsTo, and Country. For this report, let's not bother with displaying the EmployeeID, ReportsTo, or Country property. To remove these BoundFields, you can:
- Use the Fields dialog box. Click on the Edit Columns link from the GridView's smart tag to bring up this dialog box. Next, select the BoundFields from the lower-left list, and click the red X button to remove the BoundField.
- Edit the GridView's declarative syntax by hand. From the Source view, delete the
<asp:BoundField>
element for the BoundField you want to remove.
After you have removed the BoundFields named EmployeeID, ReportsTo, and Country, your GridView's markup should look like the following:
<asp:GridView ID="GridView1" runat="server" AutoGenerateColumns="False" DataKeyNames="EmployeeID" DataSourceID="ObjectDataSource1"> <Columns> <asp:BoundField DataField="LastName" HeaderText="LastName" SortExpression="LastName" /> <asp:BoundField DataField="FirstName" HeaderText="FirstName" SortExpression="FirstName" /> <asp:BoundField DataField="Title" HeaderText="Title" SortExpression="Title" /> <asp:BoundField DataField="HireDate" HeaderText="HireDate" SortExpression="HireDate" /> </Columns> </asp:GridView>
Take a moment to view our progress in a browser. At this point, you should see a table with a record for each employee and four columns: one each for the employee's last name, first name, title, and hire date.
Figure 3. The LastName, FirstName, Title, and HireDate fields are displayed for each employee. (Click on the picture for a larger image.)
Step 2: Displaying the First and Last Names in a Single Column
Currently, each employee's first and last names are displayed in a separate column. It might be nice to combine them into a single column, instead. To accomplish this we must use a TemplateField. We can either add a new TemplateField, add to it the needed markup and data-binding syntax, and then delete the BoundFields named FirstName and LastName, or we can convert the BoundFields named FirstName into a TemplateField, edit the TemplateField to include the LastName value, and then remove the BoundField named LastName.
Both approaches net the same result, but personally I like converting BoundFields to TemplateFields when possible, because the conversion automatically adds an ItemTemplate and EditItemTemplate with Web controls and data-binding syntax to mimic the appearance and functionality of the BoundField. The benefit is that we'll need to do less work with the TemplateField, as the conversion process will have performed some of the work for us.
To convert an existing BoundField into a TemplateField, click on the Edit Columns link from the GridView's smart tag, which brings up the Fields dialog box. Select the BoundField to convert from the list in the lower-left corner, and then click the Convert this field into a TemplateField link in the bottom-right corner.
Figure 4. Convert a BoundField into a TemplateField from the Fields dialog box. (Click on the picture for a larger image.)
Go ahead and convert the BoundField named FirstName into a TemplateField. After this change, there's no perceptive difference in the Designer. This is because converting the BoundField into a TemplateField creates a TemplateField that maintains the look and feel of the BoundField. Despite there being no visual difference at this point in the Designer, this conversion process has replaced the BoundField's declarative syntax—<asp:BoundField DataField="FirstName" HeaderText="FirstName" SortExpression="FirstName" />
—with the following TemplateField syntax:
<asp:TemplateField HeaderText="FirstName" SortExpression="FirstName"> <EditItemTemplate> <asp:TextBox ID="TextBox1" runat="server" Text='<%# Bind("FirstName") %>'></asp:TextBox> </EditItemTemplate> <ItemTemplate> <asp:Label ID="Label1" runat="server" Text='<%# Bind("FirstName") %>'></asp:Label> </ItemTemplate> </asp:TemplateField>
As you can see, the TemplateField consists of two templates: an ItemTemplate that has a Label whose Text property is set to the value of the FirstName data field, and an EditItemTemplate that has a TextBox control whose Text property also is set to the FirstName data field. The data-binding syntax—<%# Bind("fieldName") %>
—indicates that the fieldName data field is bound to the specified Web control property.
To add the LastName data-field value to this TemplateField, we must add another Label Web control in the ItemTemplate and bind its Text property to LastName. This can be accomplished either by hand or through the Designer. To do it by hand, just add the appropriate declarative syntax to the ItemTemplate:
<asp:TemplateField HeaderText="FirstName" SortExpression="FirstName"> <EditItemTemplate> <asp:TextBox ID="TextBox1" runat="server" Text='<%# Bind("FirstName") %>'></asp:TextBox> </EditItemTemplate> <ItemTemplate> <asp:Label ID="Label1" runat="server" Text='<%# Bind("FirstName") %>'></asp:Label> <asp:Label ID="Label2" runat="server" Text='<%# Bind("LastName") %>'></asp:Label> </ItemTemplate> </asp:TemplateField>
To add it through the Designer, click on the Edit Templates link from the GridView's smart tag. This will display the GridView's template-editing interface. In this interface's smart tag is a list of the templates in the GridView. Because we have only one TemplateField at this point, the only templates listed in the drop-down list are those templates for the FirstName TemplateField, along with the EmptyDataTemplate and PagerTemplate. The EmptyDataTemplate template, if specified, is used to render the GridView's output if there are no results in the data bound to the GridView; the PagerTemplate, if specified, is used to render the paging interface for a GridView that supports paging.
Figure 5. The GridView's templates can be edited through the Designer. (Click on the picture for a larger image.)
To display also the LastName in the FirstName TemplateField, drag the Label control from the Toolbox into the ItemTemplate of the FirstName TemplateField in the GridView's template-editing interface.
Figure 6. Add a Label Web control to the FirstName TemplateField's ItemTemplate. (Click on the picture for a larger image.)
At this point, the Label Web control added to the TemplateField has its Text property set to Label. We must change this, so that this property is bound to the value of the LastName data field, instead. To accomplish this, click on the Label control's smart tag and choose the Edit DataBindings option.
Figure 7. Choose the Edit DataBindings option from the Label's smart tag. (Click on the picture for a larger image.)
This will bring up the DataBindings dialog box. From here, you can select the property to participate in data binding from the list on the left and, from the drop-down list on the right, choose the field to which to bind the data. Choose the Text property from the left and the LastName field from the right, and click OK.

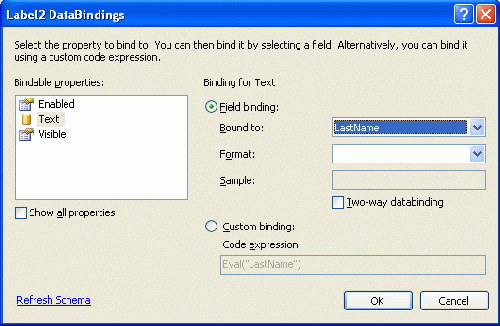

Figure 8. Bind the Text property to the LastName data field. (Click on the picture for a larger image.)
Note The DataBindings dialog box allows you to indicate whether to perform two-way data binding. If you leave this unchecked, the data-binding syntax
<%# Eval("LastName")%>
will be used, instead of<%# Bind("LastName")%>
. Either approach is fine for this tutorial. Two-way data binding becomes important when inserting and editing data. For just displaying data, however, either approach will work equally well. We'll discuss two-way data binding in detail, in future tutorials.
Take a moment to view this page through a browser. As you can see, the GridView still includes four columns; however, the FirstName column now lists both the FirstName and LastName data-field values.
Figure 9. Both the FirstName and LastName values are shown in a single column. (Click on the picture for a larger image.)
To complete this first step, remove the LastName BoundField, and rename the HeaderText property of the FirstName TemplateField to "Name". After these changes, the GridView's declarative markup should look like the following:
<asp:GridView ID="GridView1" runat="server" AutoGenerateColumns="False" DataKeyNames="EmployeeID" DataSourceID="ObjectDataSource1"> <Columns> <asp:TemplateField HeaderText="Name" SortExpression="FirstName"> <EditItemTemplate> <asp:TextBox ID="TextBox1" runat="server" Text='<%# Bind("FirstName") %>'></asp:TextBox> </EditItemTemplate> <ItemTemplate> <asp:Label ID="Label1" runat="server" Text='<%# Bind("FirstName") %>'></asp:Label> <asp:Label ID="Label2" runat="server" Text='<%# Eval("LastName") %>'></asp:Label> </ItemTemplate> </asp:TemplateField> <asp:BoundField DataField="Title" HeaderText="Title" SortExpression="Title" /> <asp:BoundField DataField="HireDate" HeaderText="HireDate" SortExpression="HireDate" /> </Columns> </asp:GridView>
Figure 10. Each employee's first and last names are displayed in one column. (Click on the picture for a larger image.)
Step 3: Using the Calendar Control to Display the HireDate Field
Displaying a data field value as text in a GridView is as easy as using a BoundField. For certain scenarios, however, the data is best expressed using a particular Web control instead of just text. Such customization of the display of data is possible with a TemplateField. For example, instead of displaying the employee's hire date as text, we could show a calendar (using the Calendar control) with the employee's hire date highlighted.
To accomplish this, start by converting the HireDate BoundField into a TemplateField. Just go to the GridView's smart tag and click the Edit Columns link, which brings up the Fields dialog box. Select the BoundField named HireDate, and click Convert this field into a TemplateField.
Figure 11. Convert the HireDate BoundField into a TemplateField. (Click on the picture for a larger image.)
As we saw in step 2, this will replace the BoundField with a TemplateField that contains an ItemTemplate and EditItemTemplate with a Label and TextBox whose Text properties are bound to the HireDate value using the data-binding syntax <%# Bind("HireDate")%>
.
To replace the text with a Calendar control, edit the template by removing the Label and adding a Calendar control. From the Designer, select Edit Templates from the GridView's smart tag and, from the drop-down list, choose the ItemTemplate of the HireDate TemplateField. Next, delete the Label control, and drag a Calendar control from the Toolbox into the template-editing interface.
Figure 12. Add a Calendar control to the HireDate TemplateField's ItemTemplate. (Click on the picture for a larger image.)
At this point, each row in the GridView will contain a Calendar control in its HireDate TemplateField. However, the employee's actual HireDate value is not set anywhere in the Calendar control, which causes each Calendar control to default to showing the current month and date. To remedy this, we must assign each employee's HireDate to the Calendar control's SelectedDate and VisibleDate properties.
From the Calendar control's smart tag, choose Edit DataBindings. Next, bind both the SelectedDate and VisibleDate properties to the HireDate data field.
Figure 13. Bind the SelectedDate and VisibleDate properties to the HireDate data field. (Click on the picture for a larger image.)
Note The Calendar control's selected date need not necessarily be visible. For example, a Calendar might have August 1, 1999, as the selected date, but be showing the current month and year. The selected date and visible date are specified by the Calendar control's SelectedDate and VisibleDate properties. Because we want to both select the employee's HireDate and make sure that it's shown, we must bind both of these properties to the HireDate data field.
When viewing the page in a browser, the Calendar now shows the month of the employee's hired date and selects that particular date.
Figure 14. The employee's HireDate is shown in the Calendar control. (Click on the picture for a larger image.)
Note Contrary to all the examples we've seen thus far, for this tutorial we did not set EnableViewState property to False for this GridView. The reason for this decision is that clicking the dates of the Calendar control causes a post-back, setting the Calendar's selected date to the date just clicked. If the GridView's view state is disabled, however, on each post-back, the GridView's data is rebound to its underlying data source, which causes the Calendar's selected date to be set back to the employee's HireDate, overwriting the date chosen by the user.
For this tutorial, this is a moot discussion, because the user is not able to update the employee's HireDate. It would probably be best to configure the Calendar control, so that its dates are not selectable. Regardless, this tutorial shows that in some circumstances, view state must be enabled in order to provide certain functionality.
Step 4: Showing the Number of Days the Employee Has Worked for the Company
So far, we have seen two applications of TemplateFields:
- Combining two or more data-field values into one column
- Expressing a data-field value using a Web control instead of text
A third use of TemplateFields is in displaying metadata about the GridView's underlying data. In addition to showing the employees' hire dates, for example, we might also want to have a column that displays how many total days they've been on the job.
Yet another use of TemplateFields arises in scenarios in which the underlying data must be displayed differently in the Web page report from the format in which it's stored in the database. Imagine that the Employees table had a Gender field that stored the character M or F to indicate the sex of the employee. When displaying this information in a web page we might want to show the gender as either "Male" or "Female", as opposed to just "M" or "F".
Both of these scenarios can be handled by creating a formatting method in the ASP.NET page's code-behind class (or in a separate class library, implemented as a Shared method) that is invoked from the template. Such a formatting method is invoked from the template using the same data-binding syntax seen earlier. The formatting method can take in any number of parameters, but must return a string. This returned string is the HTML that is injected into the template.
To illustrate this concept, let's augment our tutorial to show a column that lists the total number of days an employee has been on the job. This formatting method will take in a Northwind.EmployeesRow object and return the number of days the employee has been employed as a string. This method can be added to the ASP.NET page's code-behind class, but must be marked as Protected or Public in order to be accessible from the template.
Protected Function DisplayDaysOnJob(ByVal employee As Northwind.EmployeesRow) As String ' Make sure HireDate is not NULL... if so, return "Unknown" If employee.IsHireDateNull() Then Return "Unknown" Else ' Returns the number of days between the current ' date/time and HireDate Dim ts As TimeSpan = DateTime.Now.Subtract(employee.HireDate) Return ts.Days.ToString("#,##0") End If End Function
Because the HireDate field can contain NULL database values, we must first ensure that the value is not NULL before proceeding with the calculation. If the HireDate value is NULL, we just return the string "Unknown"; if it is not NULL, we compute the difference between the current time and the HireDate value, and return the number of days.
To utilize this method, we must invoke it from a TemplateField in the GridView using the data-binding syntax. Start by adding a new TemplateField to the GridView by clicking on the Edit Columns link in the GridView's smart tag and adding a new TemplateField.
Figure 15. Add a New TemplateField to the GridView. (Click on the picture for a larger image.)
Set the HeaderText property of this new TemplateField to Days on the Job and the HorizontalAlign property of its ItemStyle to Center. To call the DisplayDaysOnJob method from the template, add an ItemTemplate and use the following data-binding syntax:
<%# DisplayDaysOnJob(CType(CType(Container.DataItem, System.Data.DataRowView).Row, Northwind.EmployeesRow)) %>
Container.DataItem returns a DataRowView object that corresponds to the DataSource record bound to the GridViewRow. Its Row property returns the strongly typed Northwind.EmployeesRow, which is passed to the DisplayDaysOnJob method. This data-binding syntax can appear directly in the ItemTemplate (as shown in the declarative syntax that follows) or it can be assigned to the Text property of a Label Web control.
Note Alternatively, instead of passing in an EmployeesRow instance, we could just pass in the HireDate value using
<%# DisplayDaysOnJob(Eval("HireDate")) %>
. However, the Eval method returns an Object, so we'd have to change our DisplayDaysOnJob method signature to accept an input parameter of type Object, instead. We can't blindly cast the Eval("HireDate") call to a DateTime, because the HireDate column in the Employees table can contain NULL values. Therefore, we'd need to accept an Object as the input parameter for the DisplayDaysOnJob method, check to see if it had a database NULL value (which can be accomplished using Convert.IsDBNull(objectToCheck)), and then proceed accordingly.
Because of these subtleties, I've opted to pass in the entire EmployeesRow instance. In the next tutorial, we'll see a more fitting example for using the Eval("
columnName")
syntax for passing an input parameter into a formatting method.
The following shows the declarative syntax for our GridView after the TemplateField has been added and the DisplayDaysOnJob method called from the ItemTemplate:
<asp:GridView ID="GridView1" runat="server" AutoGenerateColumns="False" DataKeyNames="EmployeeID" DataSourceID="ObjectDataSource1"> <Columns> <asp:TemplateField HeaderText="Name" SortExpression="FirstName"> <EditItemTemplate> <asp:TextBox ID="TextBox1" runat="server" Text='<%# Bind("FirstName") %>'></asp:TextBox> </EditItemTemplate> <ItemTemplate> <asp:Label ID="Label1" runat="server" Text='<%# Bind("FirstName") %>'></asp:Label> <asp:Label ID="Label2" runat="server" Text='<%# Eval("LastName") %>'></asp:Label> </ItemTemplate> </asp:TemplateField> <asp:BoundField DataField="Title" HeaderText="Title" SortExpression="Title" /> <asp:TemplateField HeaderText="HireDate" SortExpression="HireDate"> <EditItemTemplate> <asp:TextBox ID="TextBox2" runat="server" Text='<%# Bind("HireDate") %>'></asp:TextBox> </EditItemTemplate> <ItemTemplate> <asp:Calendar ID="Calendar1" runat="server" SelectedDate='<%# Bind("HireDate") %>' VisibleDate='<%# Eval("HireDate") %>'> </asp:Calendar> </ItemTemplate> </asp:TemplateField> <asp:TemplateField HeaderText="Days On The Job"> <ItemTemplate> <%# DisplayDaysOnJob(CType(CType(Container.DataItem, System.Data.DataRowView).Row, Northwind.EmployeesRow)) %> </ItemTemplate> <ItemStyle HorizontalAlign="Center" /> </asp:TemplateField> </Columns> </asp:GridView>
Figure 16 shows the completed tutorial, when viewed through a browser.
Figure 16. Number of days employee has been on the job (Click on the picture for a larger image)
Conclusion
The TemplateField in the GridView control allows for a higher degree of flexibility in displaying data than is available with the other field controls. A TemplateField is ideal for situations in which:
- Multiple data fields must be displayed in one GridView column.
- The data is best expressed using a Web control, instead of plain text.
- The output depends on the underlying data, such as displaying metadata or in reformatting the data.
In addition to customizing the display of data, a TemplateField is used also for customizing the user interfaces used for editing and inserting data, as we'll see in future tutorials.
The next two tutorials continue exploring templates, starting with a look at using TemplateFields in a DetailsView. Following that, we'll turn to the FormView, which uses templates instead of fields to provide greater flexibility in the layout and structure of the data.
Happy programming!
