Important considerations for server-based SharePoint integration


Applies To: Dynamics 365 (online), Dynamics 365 (on-premises), Dynamics CRM 2016, Dynamics CRM Online


The information provided here is for versions of Dynamics 365 prior to Dynamics 365 (online), version 9.0. For the latest documentation, see Important considerations for server-based SharePoint integration.

Before you move to server-based SharePoint integration, review the following table to see some of the differences you’ll experience between client-based versus server-based SharePoint integration.


Client-based SharePoint integration

Server-based SharePoint integration

For those moving to Server-based SharePointintegration

Sign in

Must sign in to both Microsoft Dynamics 365 and SharePoint to be able to view the document grid.

Only need to sign in to Dynamics 365.

List component

Must download list component and upload directly to SharePoint site before connecting site to Dynamics 365.

No list component required.

Support lifecycle

This approach relies on the sandboxed solutions functionality on SharePoint. SharePoint plans to deprecate this functionality. If the sandboxed functionality isn’t available for a SharePoint site, this integration won’t work.

This approach relies on server-to-server authentication and won’t be affected by the deprecation of the sandboxed solutions functionality in SharePoint.

More information:  Deprecation of Custom Code in Sandboxed Solutions

SharePoint commands


  • Alert Me

  • Download a Copy

  • Copy Shortcut

  • Send Shortcut

  • View Properties

  • Version History

Does not include the SharePoint commands listed in the client-based integration column.

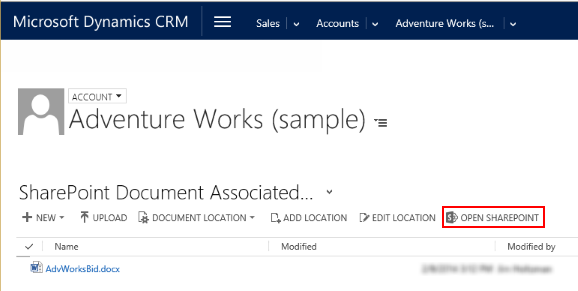

The client-based actions can be accessed directly in SharePoint with server-based integration. Select Open SharePoint to view the document location directly in SharePoint and access the actions.

Open SharePoint Team Site

Custom content types

Can create new custom content types.

Can’t create new custom content types.

Previously created custom content types can still be viewed and edited but to create a new custom content type you’ll need to create it directly in SharePoint using Open SharePoint.

Absolute URLs



Users moving from the client-based approach to the server-based approach need to convert their absolute URLs to relative URLs. This will only work if the absolute URL provided is in a SharePoint site valid for server-based SharePoint integration.

Folder navigation

Users can create SharePoint folders while in Dynamics 365. Folders are displayed in a grid that users can navigate through.

Users can’t create folders in Dynamics 365 and the folders aren’t displayed in Dynamics 365.

All documents under subfolders are displayed in the Dynamics 365 grid. Relative URLs are displayed to show users where the document is located relative to the parent folder. SharePoint document views can be customized so users see only documents in a specific folder or subfolder.

More information:  "Validation Error" when you try to configure server-based SharePoint integration for Microsoft Dynamics CRM Online and SharePoint Online

Online vs. on-premises support

Can connect:

  • Dynamics 365 (online) with SharePoint Online

  • Dynamics 365 (online) with SharePoint Server (on-premises)

  • Dynamics 365 on-premises with SharePoint Online

  • Dynamics 365 on-premises with SharePoint Server (on premises)

Can connect:

  • Dynamics 365 (online) with SharePoint Online if the SharePoint site is under the same Office 365 tenant as Dynamics 365 (online).

  • Dynamics 365 (online) with SharePoint on-premises.

  • Dynamics 365 on-premises with SharePoint Online

  • Dynamics 365 on-premises with SharePoint Server (on premises)

Resource Throttling

Doesn’t apply.

A document library with 5000 or more documents might experience resource throttling.

This resource throttling can affect other features. For example, Microsoft OneNote integration will not work when the SharePoint Server site has 5000 or more documents.

More information:  Resource throttles and limits

If you have more than 5000 documents in your document library, you can view the documents in the default grid view. However, if you sort on columns other than the default sorted column, you might see an error indicating that the throttling limit has been exceeded.

Known issues with server-based SharePoint integration

The Microsoft Dynamics CRM List Component builds the SharePoint library using the internal name of the document-enabled entity in Dynamics 365. Server-based SharePoint integration uses the entity display name. When you upgrade to server-based SharePoint integration, be sure to check that the display names in your document library on SharePoint match the entity display names in Dynamics 365.

SharePoint library name and entity display name


These names should match.

More information:  Error message when using the new server-based SharePoint integration for Microsoft Dynamics CRM Online and SharePoint Online: "List Does Not Support This Operation"

See Also

Installing on-premises Dynamics CRM
Set up SharePoint integration with Microsoft Dynamics 365
Permissions required for document management tasks
