Appendix B: Configuring RoundTable for the Software Update Service

Microsoft Office Communications Server 2007 and Microsoft Office Communications Server 2007 R2 will reach end of support on January 9, 2018. To stay supported, you will need to upgrade. For more information, see Resources to help you upgrade your Office 2007 servers and clients.

This appendix describes how to configure a Microsoft RoundTable device to use the Software Update Service.

Before starting, ensure that you have a supported version of Microsoft Office InfoPath installed: Office InfoPath 2003 or Office InfoPath 2007.

To apply new settings to a Microsoft RoundTable device

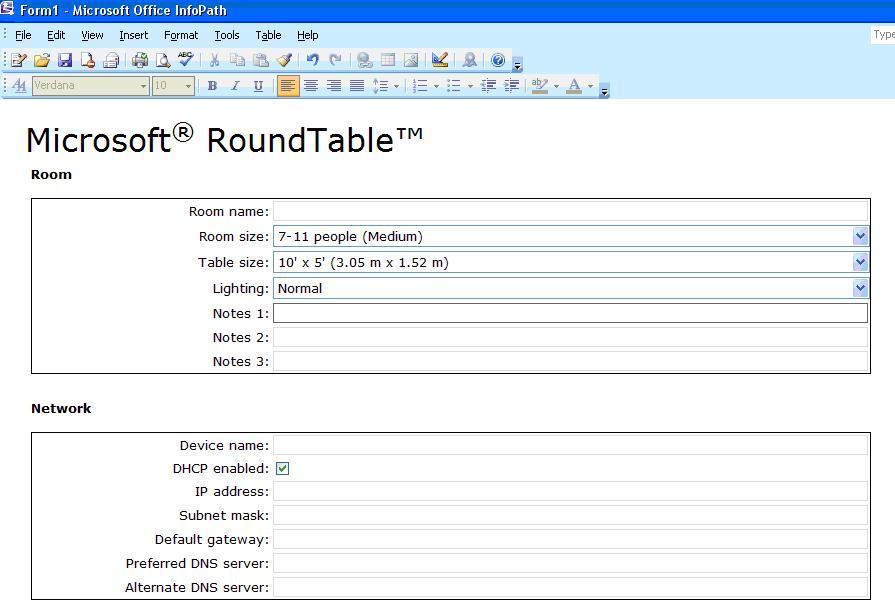

  1. In the %ProgramFiles%\Microsoft RoundTable\DeviceManagement\ directory, double-click DeviceConfig.xsn to start the InfoPath form. The following figure shows a portion of this form.


  2. After you change the settings to suit your particular installation, save the configuration (as RTConfig.xml, for example) to the same directory as Rtmanage.exe. The section following this procedure provides details of the InfoPath configuration form.

  3. Open a command prompt, change the directory to %ProgramFiles%\Microsoft RoundTable\DeviceManagement\, and then type the following command line.

    Rtmanage.exe -m:img -i:config -f:RTConfig.xml
  4. Check for any XML parsing errors by running this command.

    Rtmanage.exe -m:cfg -q:cfgparseresult
  5. If there are no errors, proceed to the next step. Otherwise fix the errors and repeat from step 3.

  6. Restart the device by running this command line.

    Rtmanage.exe -m:cfg -r

Software Update Settings for RoundTable

Table B-1. Software Updates Settings

Field Description Factory default

Automatically update using the image update server

Selected or cleared. If this check box is selected, automatic image updates are enabled.


Exclude configuration file from automatic update

Selected or cleared. If this check box is selected, the configuration file is excluded from automatic update.


Update time

The time of the day at half-hour intervals.

3:30 A.M. local time

Update interval

Every day

Every Sunday

Every Monday

Every Tuesday

Every Wednesday

Every Thursday

Every Friday

Every Saturday

Every day


The name of the update server.



The port for device-server communication.


Uniform resource identifier path

The URI path on the server with which to communicate.

(empty string)
