1/6/2010

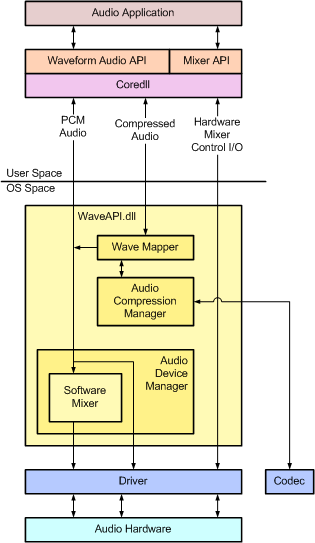

The following illustration shows the audio stack.
.gif "Ee487409.f5461a54-950c-47c6-b992-502bb7eec874(en-US,WinEmbedded.60).gif")
The Audio Device Manager is a common name for the OS code between applications using the waveform audio API and audio device drivers. It manages audio devices, includes the software-based mixer in the kernel, and handles various aspects of security, inter-process communication, application callbacks.
