Azure VM-to-VM multithreaded throughput meter

  • Code Sample
Browse code

Azure Public Test Date Azure Public Test Result

Azure US Gov Last Test Date Azure US Gov Last Test Result

Best Practice Check Cred Scan Check

Deploy To Azure Deploy To Azure US Gov Visualize

This template allows you to run a VM-to-VM network throughput test for the same VNet/subnet using NTttcp utility. See licence agreement.

The VM sizes selected should be available in chosen region. Please check availability here. See VM series/sizes description.

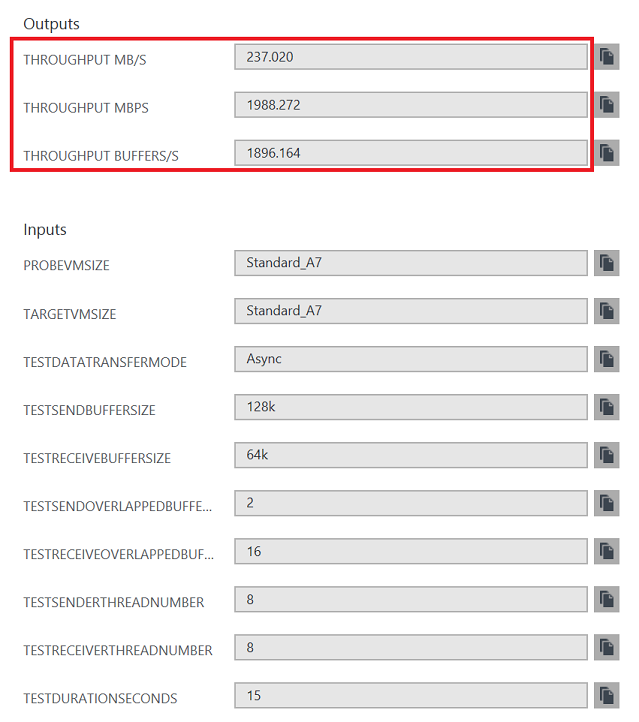

Upon template deployment you will have the network throughput between the VMs automatically measured. You can see the measurements:

OutputsString           :
                          Name             Type                       Value
                          ===============  =========================  ==========
                          throughput MB/s  String                     229.453
                          throughput mbps  String                     1924.787
                          throughput buffers/s  String                     1835.620

alt text

To re-measure the throughput you can login to the probe and target VMs with credentials you provided during deployment.

In case you don't need to re-measure, it is safe to delete the created resource group.

Tags: Microsoft.Storage/storageAccounts, Microsoft.Network/publicIPAddresses, Microsoft.Network/networkSecurityGroups, Microsoft.Network/virtualNetworks, Microsoft.Network/networkInterfaces, Microsoft.Compute/virtualMachines, extensions, CustomScriptExtension
