GridView Class
Definition
Important
Some information relates to prerelease product that may be substantially modified before it’s released. Microsoft makes no warranties, express or implied, with respect to the information provided here.
Represents a control that displays data items in rows and columns.
/// [Windows.Foundation.Metadata.ContractVersion(Windows.Foundation.UniversalApiContract, 65536)]
/// [Windows.Foundation.Metadata.MarshalingBehavior(Windows.Foundation.Metadata.MarshalingType.Agile)]
/// [Windows.Foundation.Metadata.Threading(Windows.Foundation.Metadata.ThreadingModel.Both)]
class GridView : ListViewBase
[Windows.Foundation.Metadata.ContractVersion(typeof(Windows.Foundation.UniversalApiContract), 65536)]
[Windows.Foundation.Metadata.MarshalingBehavior(Windows.Foundation.Metadata.MarshalingType.Agile)]
[Windows.Foundation.Metadata.Threading(Windows.Foundation.Metadata.ThreadingModel.Both)]
public class GridView : ListViewBase
Public Class GridView
Inherits ListViewBase
<GridView .../>
-or-
<GridView ...>
oneOrMoreItems
</GridView>
- Inheritance
-
Object IInspectable DependencyObject UIElement FrameworkElement Control ItemsControl Selector ListViewBase GridView
- Attributes
Windows requirements
Device family |
Windows 10 (introduced in 10.0.10240.0)
|
API contract |
Windows.Foundation.UniversalApiContract (introduced in v1.0)
|
Examples
Tip
For more info, design guidance, and code examples, see Grid view.
The WinUI 2 Gallery app includes interactive examples of most WinUI 2 controls, features, and functionality. Get the app from the Microsoft Store or get the source code on GitHub.
Here, a GridView is bound to a grouped CollectionViewSource named cvsProjects
. The appearance of individual items in each group is defined by the ItemTemplate. The ItemsPanel specifies how the groups are arranged in the GridView. The GroupStyle.Panel specifies how individual items are arranged within each group. The GroupStyle.ContainerStyle is used to add a border around each group, and set its minimum size and margins. The HidesIfEmpty property is set to true to hide any empty groups.
<Page
x:Class="GroupedGridViewApp.MainPage"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:local="using:GroupedGridViewApp"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
mc:Ignorable="d"
Background="{ThemeResource ApplicationPageBackgroundThemeBrush}">
<Page.Resources>
<CollectionViewSource x:Name="cvsProjects" IsSourceGrouped="True"
ItemsPath="Activities"/>
</Page.Resources>
<Grid Background="{ThemeResource ApplicationPageBackgroundThemeBrush}">
<GridView ItemsSource="{Binding Source={StaticResource cvsProjects}}" MaxHeight="500">
<GridView.ItemTemplate>
<DataTemplate>
<StackPanel Margin="20">
<TextBlock Text="{Binding Name}" FontWeight="Bold"
Style="{StaticResource BaseTextBlockStyle}"/>
<TextBlock Text="{Binding DueDate}" TextWrapping="NoWrap"
Style="{StaticResource BodyTextBlockStyle}" />
<CheckBox Content="Complete" IsChecked="{Binding Complete}"
IsEnabled="False"/>
</StackPanel>
</DataTemplate>
</GridView.ItemTemplate>
<GridView.ItemsPanel>
<ItemsPanelTemplate>
<ItemsWrapGrid MaximumRowsOrColumns="3"/>
</ItemsPanelTemplate>
</GridView.ItemsPanel>
<GridView.GroupStyle>
<GroupStyle HidesIfEmpty="True">
<GroupStyle.HeaderTemplate>
<DataTemplate>
<Grid Background="LightGray" Margin="0">
<TextBlock Text='{Binding Name}'
Foreground="Black" Margin="12"
Style="{StaticResource HeaderTextBlockStyle}"/>
</Grid>
</DataTemplate>
</GroupStyle.HeaderTemplate>
</GroupStyle>
</GridView.GroupStyle>
</GridView>
</Grid>
</Page>
using System;
using System.Collections.Generic;
using System.Collections.ObjectModel;
using Windows.UI.Xaml.Controls;
namespace GroupedGridViewApp
{
public sealed partial class MainPage : Page
{
DateTime startDate = DateTime.Now;
public MainPage()
{
this.InitializeComponent();
PopulateProjects();
}
private void PopulateProjects()
{
List<Project> Projects = new List<Project>();
Project newProject = new Project();
newProject.Name = "Project 1";
newProject.Activities.Add(new Activity()
{ Name = "Activity 1", Complete = true, DueDate = startDate.AddDays(4) });
newProject.Activities.Add(new Activity()
{ Name = "Activity 2", Complete = true, DueDate = startDate.AddDays(5) });
Projects.Add(newProject);
newProject = new Project();
newProject.Name = "Project 2";
newProject.Activities.Add(new Activity()
{ Name = "Activity A", Complete = true, DueDate = startDate.AddDays(2) });
newProject.Activities.Add(new Activity()
{ Name = "Activity B", Complete = false, DueDate = startDate.AddDays(3) });
Projects.Add(newProject);
newProject = new Project();
newProject.Name = "Project 3";
Projects.Add(newProject);
cvsProjects.Source = Projects;
}
}
public class Project
{
public Project()
{
Activities = new ObservableCollection<Activity>();
}
public string Name { get; set; }
public ObservableCollection<Activity> Activities { get; private set; }
}
public class Activity
{
public string Name { get; set; }
public DateTime DueDate { get; set; }
public bool Complete { get; set; }
public string Project { get; set; }
}
}
In the following example, the corners of items in every GridView throughout the app are rounded to 5px.
<Application.Resources>
<CornerRadius x:Key="GridViewItemCornerRadius">5</CornerRadius>
</Application.Resources>
Remarks
Tip
For more info, design guidance, and code examples, see List view and grid view.

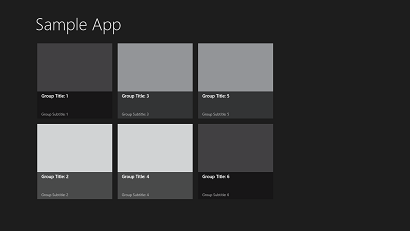

Use a GridView to display a collection of items in rows and columns that can scroll vertically. Data is stacked horizontally until it fills the columns, then continues with the next row. It's often used when you need to show a rich visualization of each item that takes more space, such as a photo gallery.
GridView is an ItemsControl, so it can contain a collection of items of any type. To populate the view, add items to the Items collection, or set the ItemsSource property to a data source.
By default, a data item is displayed in the GridView as the string representation of the data object it's bound to. To specify exactly how items in the GridView are displayed, you create a DataTemplate to define the layout of controls used to display an individual item. The controls in the layout can be bound to properties of a data object, or have content defined inline. You assign the DataTemplate to the ItemTemplate property of the GridView. For common templates you can use in your app, see Item templates for GridView.
If you populate the GridView by setting the ItemsSource property, the ItemTemplate is applied to every item. If you populate the Items collection directly, the ItemTemplate is applied only if the item is not a GridViewItem. In this example, the template is applied to the first item, but not the second item.
<GridView>
<GridView.ItemTemplate>
<DataTemplate>
<Grid>
<Border Background="LightGray" Height="200" Width="200">
<TextBlock Text="{Binding}"
FontSize="48" Foreground="Green"/>
</Border>
</Grid>
</DataTemplate>
</GridView.ItemTemplate>
<GridView.Items>
<x:String>One</x:String>
<GridViewItem>Two</GridViewItem>
</GridView.Items>
</GridView>
If you use the GridView to display large sets of data, see Optimize ListView and GridView for tips to maintain a smooth and responsive user experience.
Windows 10, version 1709 (SDK 16299) - Behavior changeBy default, instead of performing selection, an active pen now scrolls/pans a list in UWP apps (like touch, touchpad, and passive pen). If your app depends on the previous behavior, you can override pen scrolling and revert to the previous behavior. See
By default, a user can select a single item in a GridView. You can set the SelectionMode property to a ListViewSelectionMode enumeration value to allow multi-selection or to disable selection. You can also change the GridView interaction mode to make items respond to a user click like a button instead of being selected.
This table shows the ways a user can interact with a GridView, and how you can respond to the interaction.
To enable this interaction: | Use these settings: | Handle this event: | Use this property to get the selected item: |
---|---|---|---|
No interaction | SelectionMode = None, IsItemClickEnabled = False | N/A | N/A |
Single selection | SelectionMode = Single, IsItemClickEnabled = False | SelectionChanged | SelectedItem, SelectedIndex |
Contiguous multi-selection | SelectionMode = Multiple, IsItemClickEnabled = False | SelectionChanged | SelectedItems |
Non-contiguous multi-selection | SelectionMode = Extended, IsItemClickEnabled = False | SelectionChanged | SelectedItems |
Click | SelectionMode = None, IsItemClickEnabled = True | ItemClick | N/A |
Note
The PointerWheelChanged event does not bubble up from a GridView. This means that a control that has a GridView inside of it does not receive mouse wheel change messages if the pointer is over the GridView. For example, if you put a GridView inside of a ScrollViewer, you can't scroll the ScrollViewer with the mouse wheel when the pointer is over the GridView.
Note
When you set the Padding property on a GridView control, the value for right padding is ignored; only the values for left, top, and bottom padding are applied.
GridView supports data virtualization to improve performance with large data sets. Random access virtualization is supported when the data source implements the appropriate interfaces, which vary depending on the programming language:
- Visual C++ component extensions (C++/CX) apps should implement IObservableVector.
- C# or Visual Basic apps should implement INotifyCollectionChanged and System.Collections.IList (not IList<T>. Virtualization requires both of these interfaces. Incremental loading virtualization is supported when the data source implements the ISupportIncrementalLoading interface. When incremental loading is supported, you can use these members to control data loading: DataFetchSize, IncrementalLoadingThreshold, IncrementalLoadingTrigger, LoadMoreItemsAsync.
Windows 8 In Windows 8, when the data item in a selected GridViewItem is replaced, the SelectedIndex value is not cleared. In Windows 8.1 or later, the SelectedIndex value is cleared.
GridView implements the ISemanticZoomInformation interface, so it can be used as a view in a SemanticZoom control. When it's used in a SemanticZoom control, always set the ScrollViewer.IsHorizontalScrollChainingEnabled attached property to false on the ScrollViewer that's in the GridView's control template, like this: <GridView ScrollViewer.IsHorizontalScrollChainingEnabled="False">
. These members have an effect only when the GridView is hosted in a SemanticZoom control: IsActiveView, IsZoomedInView, SemanticZoomOwner, CompleteViewChange, CompleteViewChangeFrom, CompleteViewChangeTo, InitializeViewChange, MakeVisible, StartViewChangeFrom, StartViewChangeTo.
The default template for GridView includes existing transition animations. Specifically, the default ItemContainerTransitions value already contains values for AddDeleteThemeTransition, ContentThemeTransition, ReorderThemeTransition and EntranceThemeTransition (with IsStaggeringEnabled="False"
). If you are setting a new value for ItemContainerTransitions on GridView, consider reproducing these same theme animations as a starting point. If you are setting the property yourself, those defaults get overwritten unless you include them again in your definition.
If you need to handle pointer events for a UIElement in a scrollable view (such as a ScrollViewer), you must explicitly disable support for manipulation events on the element in the view by calling UIElement.CancelDirectmanipulation(). To re-enable manipulation events in the view, call UIElement.TryStartDirectManipulation().
Selection behavior and CollectionViewSource
List controls that derive from Selector have a default selection behavior that depends on what the items source is (the type that's used for ItemsSource). If the items source is a CollectionViewSource instance, then the behavior in the selection control is that the selection will default to the current item. When the list is first displayed, the selection defaults to the first item as current item. If you don't want the first item to be selected in this case, set IsSynchronizedWithCurrentItem to false in the GridView.
Visual updates in WinUI 2.6
In WinUI 2.6, new APIs and styles were added to update the visuals and design of GridView. These updated visuals include rounded corners, improved borders, rounded checkboxes in multiple selection mode, and more.
If you'd like to use these new styles, first ensure that you're using WinUI 2.6 in your app. To get set up with WinUI 2, see Getting started with the Windows UI 2.x Library.
You can always modify the look of a GridView by specifying Xaml resources in your app. A new resource that is available in WinUI 2.6 is GridViewItemCornerRadius
, which controls the level of rounding on GridViewItem corners. By default, this theme resource is set to 4px.
Constructors
GridView() |
Initializes a new instance of the GridView class. |
Properties
AccessKey |
Gets or sets the access key (mnemonic) for this element. (Inherited from UIElement) |
AccessKeyScopeOwner |
Gets or sets a source element that provides the access key scope for this element, even if it's not in the visual tree of the source element. (Inherited from UIElement) |
ActualHeight |
Gets the rendered height of a FrameworkElement. See Remarks. (Inherited from FrameworkElement) |
ActualOffset |
Gets the position of this UIElement, relative to its parent, computed during the arrange pass of the layout process. (Inherited from UIElement) |
ActualSize |
Gets the size that this UIElement computed during the arrange pass of the layout process. (Inherited from UIElement) |
ActualTheme |
Gets the UI theme that is currently used by the element, which might be different than the RequestedTheme. (Inherited from FrameworkElement) |
ActualWidth |
Gets the rendered width of a FrameworkElement. See Remarks. (Inherited from FrameworkElement) |
AllowDrop |
Gets or sets a value that determines whether this UIElement can be a drop target for purposes of drag-and-drop operations. (Inherited from UIElement) |
AllowFocusOnInteraction |
Gets or sets a value that indicates whether the element automatically gets focus when the user interacts with it. (Inherited from FrameworkElement) |
AllowFocusWhenDisabled |
Gets or sets whether a disabled control can receive focus. (Inherited from FrameworkElement) |
Background |
Gets or sets a brush that provides the background of the control. (Inherited from Control) |
BackgroundSizing |
Gets or sets a value that indicates how far the background extends in relation to this element's border. (Inherited from Control) |
BaseUri |
Gets a Uniform Resource Identifier (URI) that represents the base Uniform Resource Identifier (URI) for an XAML-constructed object at XAML load time. This property is useful for Uniform Resource Identifier (URI) resolution at run time. (Inherited from FrameworkElement) |
BorderBrush |
Gets or sets a brush that describes the border fill of a control. (Inherited from Control) |
BorderThickness |
Gets or sets the border thickness of a control. (Inherited from Control) |
CacheMode |
Gets or sets a value that indicates that rendered content should be cached as a composited bitmap when possible. (Inherited from UIElement) |
CanBeScrollAnchor |
Gets or sets a value that indicates whether the UIElement can be a candidate for scroll anchoring. (Inherited from UIElement) |
CanDrag |
Gets or sets a value that indicates whether the element can be dragged as data in a drag-and-drop operation. (Inherited from UIElement) |
CanDragItems |
Gets or sets a value that indicates whether items in the view can be dragged as data payload. (Inherited from ListViewBase) |
CanReorderItems |
Gets or sets a value that indicates whether items in the view can be reordered through user interaction. (Inherited from ListViewBase) |
CenterPoint |
Gets or sets the center point of the element, which is the point about which rotation or scaling occurs. Affects the rendering position of the element. (Inherited from UIElement) |
CharacterSpacing |
Gets or sets the uniform spacing between characters, in units of 1/1000 of an em. (Inherited from Control) |
Clip |
Gets or sets the RectangleGeometry used to define the outline of the contents of a UIElement. (Inherited from UIElement) |
CompositeMode |
Gets or sets a property that declares alternate composition and blending modes for the element in its parent layout and window. This is relevant for elements that are involved in a mixed XAML / Microsoft DirectX UI. (Inherited from UIElement) |
ContextFlyout |
Gets or sets the flyout associated with this element. (Inherited from UIElement) |
CornerRadius |
Gets or sets the radius for the corners of the control's border. (Inherited from Control) |
DataContext |
Gets or sets the data context for a FrameworkElement. A common use of a data context is when a FrameworkElement uses the {Binding} markup extension and participates in data binding. (Inherited from FrameworkElement) |
DataFetchSize |
Gets or sets the amount of data to fetch for virtualizing/prefetch operations. (Inherited from ListViewBase) |
DefaultStyleKey |
Gets or sets the key that references the default style for the control. Authors of custom controls use this property to change the default for the style that their control uses. (Inherited from Control) |
DefaultStyleResourceUri |
Gets or sets the path to the resource file that contains the default style for the control. (Inherited from Control) |
DesiredSize |
Gets the size that this UIElement computed during the measure pass of the layout process. (Inherited from UIElement) |
Dispatcher |
Gets the CoreDispatcher that this object is associated with. The CoreDispatcher represents a facility that can access the DependencyObject on the UI thread even if the code is initiated by a non-UI thread. (Inherited from DependencyObject) |
DisplayMemberPath |
Gets or sets the name or path of the property that is displayed for each data item. (Inherited from ItemsControl) |
ElementSoundMode |
Get or sets a value that specifies a control's preference for whether sounds are played. (Inherited from Control) |
ExitDisplayModeOnAccessKeyInvoked |
Gets or sets a value that specifies whether the access key display is dismissed when an access key is invoked. (Inherited from UIElement) |
FlowDirection |
Gets or sets the direction in which text and other UI elements flow within any parent element that controls their layout. This property can be set to either LeftToRight or RightToLeft. Setting FlowDirection to RightToLeft on any element sets the alignment to the right, the reading order to right-to-left and the layout of the control to flow from right to left. (Inherited from FrameworkElement) |
FocusState |
Gets a value that specifies whether this control has focus, and the mode by which focus was obtained. (Inherited from Control) |
FocusVisualMargin |
Gets or sets the outer margin of the focus visual for a FrameworkElement. (Inherited from FrameworkElement) |
FocusVisualPrimaryBrush |
Gets or sets the brush used to draw the outer border of a |
FocusVisualPrimaryThickness |
Gets or sets the thickness of the outer border of a |
FocusVisualSecondaryBrush |
Gets or sets the brush used to draw the inner border of a |
FocusVisualSecondaryThickness |
Gets or sets the thickness of the inner border of a |
FontFamily |
Gets or sets the font used to display text in the control. (Inherited from Control) |
FontSize |
Gets or sets the size of the text in this control. (Inherited from Control) |
FontStretch |
Gets or sets the degree to which a font is condensed or expanded on the screen. (Inherited from Control) |
FontStyle |
Gets or sets the style in which the text is rendered. (Inherited from Control) |
FontWeight |
Gets or sets the thickness of the specified font. (Inherited from Control) |
Footer |
Gets or sets the content for the list footer. (Inherited from ListViewBase) |
FooterTemplate |
Gets or sets the DataTemplate used to display the content of the view footer. (Inherited from ListViewBase) |
FooterTransitions |
Gets or sets the collection of Transition style elements that apply to the view footer. (Inherited from ListViewBase) |
Foreground |
Gets or sets a brush that describes the foreground color. (Inherited from Control) |
GroupStyle |
Gets a collection of GroupStyle objects that define the appearance of each level of groups. (Inherited from ItemsControl) |
GroupStyleSelector |
Gets or sets a reference to a custom GroupStyleSelector logic class. The GroupStyleSelector returns different GroupStyle values to use for content based on the characteristics of that content. (Inherited from ItemsControl) |
Header |
Gets or sets the content for the list header. (Inherited from ListViewBase) |
HeaderTemplate |
Gets or sets the DataTemplate used to display the content of the view header. (Inherited from ListViewBase) |
HeaderTransitions |
Gets or sets the collection of Transition style elements that apply to the view header. (Inherited from ListViewBase) |
Height |
Gets or sets the suggested height of a FrameworkElement. (Inherited from FrameworkElement) |
HighContrastAdjustment |
Gets or sets a value that indicates whether the framework automatically adjusts the element's visual properties when high contrast themes are enabled. (Inherited from UIElement) |
HorizontalAlignment |
Gets or sets the horizontal alignment characteristics that are applied to a FrameworkElement when it is composed in a layout parent, such as a panel or items control. (Inherited from FrameworkElement) |
HorizontalContentAlignment |
Gets or sets the horizontal alignment of the control's content. (Inherited from Control) |
IncrementalLoadingThreshold |
Gets or sets the threshold range that governs when the ListViewBase class will begin to prefetch more items. (Inherited from ListViewBase) |
IncrementalLoadingTrigger |
Gets or sets a value that indicates the conditions for prefetch operations by the ListViewBase class. (Inherited from ListViewBase) |
IsAccessKeyScope |
Gets or sets a value that indicates whether an element defines its own access key scope. (Inherited from UIElement) |
IsActiveView |
Gets or sets a value that indicates whether the ListViewBase instance is the active view in its owning SemanticZoom. (Inherited from ListViewBase) |
IsDoubleTapEnabled |
Gets or sets a value that determines whether the DoubleTapped event can originate from that element. (Inherited from UIElement) |
IsEnabled |
Gets or sets a value indicating whether the user can interact with the control. (Inherited from Control) |
IsFocusEngaged |
Get or sets a value that indicates whether focus is constrained within the control boundaries (for game pad/remote interaction). (Inherited from Control) |
IsFocusEngagementEnabled |
Get or sets a value that indicates whether focus can be constrained within the control boundaries (for game pad/remote interaction). (Inherited from Control) |
IsGrouping |
Gets a value that indicates whether the control is using grouping. (Inherited from ItemsControl) |
IsHitTestVisible |
Gets or sets whether the contained area of this UIElement can return true values for hit testing. (Inherited from UIElement) |
IsHoldingEnabled |
Gets or sets a value that determines whether the Holding event can originate from that element. (Inherited from UIElement) |
IsItemClickEnabled |
Gets or sets a value that indicates whether items in the view fire an ItemClick event in response to interaction. (Inherited from ListViewBase) |
IsLoaded |
Gets a value that indicates whether the element has been added to the element tree and is ready for interaction. (Inherited from FrameworkElement) |
IsMultiSelectCheckBoxEnabled |
Gets or sets a value that indicates whether a check box is shown to enable multi-selection. (Inherited from ListViewBase) |
IsRightTapEnabled |
Gets or sets a value that determines whether the RightTapped event can originate from that element. (Inherited from UIElement) |
IsSwipeEnabled |
Gets or sets a value that indicates whether the view supports discrete input processing for a swipe interaction. (Inherited from ListViewBase) |
IsSynchronizedWithCurrentItem |
Gets or sets a value that indicates whether a Selector should keep the SelectedItem synchronized with the current item in the Items property. (Inherited from Selector) |
IsTabStop |
Gets or sets a value that indicates whether a control is included in tab navigation. (Inherited from Control) |
IsTapEnabled |
Gets or sets a value that determines whether the Tapped event can originate from that element. (Inherited from UIElement) |
IsTextScaleFactorEnabled |
Gets or sets whether automatic text enlargement, to reflect the system text size setting, is enabled. (Inherited from Control) |
IsZoomedInView |
Gets or sets a value that indicates whether the ListViewBase instance is the zoomed-in view in its owning SemanticZoom. (Inherited from ListViewBase) |
ItemContainerGenerator |
Gets the ItemContainerGenerator associated with this ItemsControl. (Inherited from ItemsControl) |
ItemContainerStyle |
Gets or sets the style that is used when rendering the item containers for an ItemsControl. (Inherited from ItemsControl) |
ItemContainerStyleSelector |
Gets or sets a reference to a custom StyleSelector logic class. The StyleSelector returns different Style values to use for the item container based on characteristics of the object being displayed. (Inherited from ItemsControl) |
ItemContainerTransitions |
Gets or sets the collection of Transition style elements that apply to the item containers of an ItemsControl. (Inherited from ItemsControl) |
Items |
Gets the collection used to generate the content of the control. (Inherited from ItemsControl) |
ItemsPanel |
Gets or sets the template that defines the panel that controls the layout of items. (Inherited from ItemsControl) |
ItemsPanelRoot |
Gets the Panel specified by ItemsPanel. (Inherited from ItemsControl) |
ItemsSource |
Gets or sets an object source used to generate the content of the ItemsControl. (Inherited from ItemsControl) |
ItemTemplate |
Gets or sets the DataTemplate used to display each item. (Inherited from ItemsControl) |
ItemTemplateSelector |
Gets or sets a reference to a custom DataTemplateSelector logic class. The DataTemplateSelector referenced by this property returns a template to apply to items. (Inherited from ItemsControl) |
KeyboardAcceleratorPlacementMode |
Gets or sets a value that indicates whether the control tooltip displays the key combination for its associated keyboard accelerator. (Inherited from UIElement) |
KeyboardAcceleratorPlacementTarget |
Gets or sets a value that indicates the control tooltip that displays the accelerator key combination. (Inherited from UIElement) |
KeyboardAccelerators |
Gets the collection of key combinations that invoke an action using the keyboard. Accelerators are typically assigned to buttons or menu items.
|
KeyTipHorizontalOffset |
Gets or sets a value that indicates how far left or right the Key Tip is placed in relation to the UIElement. (Inherited from UIElement) |
KeyTipPlacementMode |
Gets or sets a value that indicates where the access key Key Tip is placed in relation to the boundary of the UIElement. (Inherited from UIElement) |
KeyTipTarget |
Gets or sets a value that indicates the element targeted by the access key Key Tip. (Inherited from UIElement) |
KeyTipVerticalOffset |
Gets or sets a value that indicates how far up or down the Key Tip is placed in relation to the UI element. (Inherited from UIElement) |
Language |
Gets or sets localization/globalization language information that applies to a FrameworkElement, and also to all child elements of the current FrameworkElement in the object representation and in UI. (Inherited from FrameworkElement) |
Lights |
Gets the collection of XamlLight objects attached to this element. (Inherited from UIElement) |
ManipulationMode |
Gets or sets the ManipulationModes value used for UIElement behavior and interaction with gestures. Setting this value enables handling the manipulation events from this element in app code. (Inherited from UIElement) |
Margin |
Gets or sets the outer margin of a FrameworkElement. (Inherited from FrameworkElement) |
MaxHeight |
Gets or sets the maximum height constraint of a FrameworkElement. (Inherited from FrameworkElement) |
MaxWidth |
Gets or sets the maximum width constraint of a FrameworkElement. (Inherited from FrameworkElement) |
MinHeight |
Gets or sets the minimum height constraint of a FrameworkElement. (Inherited from FrameworkElement) |
MinWidth |
Gets or sets the minimum width constraint of a FrameworkElement. (Inherited from FrameworkElement) |
Name |
Gets or sets the identifying name of the object. When a XAML processor creates the object tree from XAML markup, run-time code can refer to the XAML-declared object by this name. (Inherited from FrameworkElement) |
Opacity |
Gets or sets the degree of the object's opacity. (Inherited from UIElement) |
OpacityTransition |
Gets or sets the ScalarTransition that animates changes to the Opacity property. (Inherited from UIElement) |
Padding |
Gets or sets the padding inside a control. (Inherited from Control) |
Parent |
Gets the parent object of this FrameworkElement in the object tree. (Inherited from FrameworkElement) |
PointerCaptures |
Gets the set of all captured pointers, represented as Pointer values. (Inherited from UIElement) |
Projection |
Gets or sets the perspective projection (3-D effect) to apply when rendering this element. (Inherited from UIElement) |
RenderSize |
Gets the final render size of a UIElement. Use is not recommended, see Remarks. (Inherited from UIElement) |
RenderTransform |
Gets or sets transform information that affects the rendering position of a UIElement. (Inherited from UIElement) |
RenderTransformOrigin |
Gets or sets the origin point of any possible render transform declared by RenderTransform, relative to the bounds of the UIElement. (Inherited from UIElement) |
ReorderMode |
Gets or sets the reorder behavior for a ListViewBase instance. When Enabled, unsorted and ungrouped lists can be reordered by user manipulation. (Inherited from ListViewBase) |
RequestedTheme |
Gets or sets the UI theme that is used by the UIElement (and its child elements) for resource determination. The UI theme you specify with RequestedTheme can override the app-level RequestedTheme. (Inherited from FrameworkElement) |
RequiresPointer |
Gets or sets whether a UI element supports mouse mode, which emulates pointer interaction experiences with non-pointer input devices such as an game pad or remote control. (Inherited from Control) |
Resources |
Gets the locally defined resource dictionary. In XAML, you can establish resource items as child object elements of a |
Rotation |
Gets or sets the angle of clockwise rotation, in degrees. Rotates relative to the RotationAxis and the CenterPoint. Affects the rendering position of the element. (Inherited from UIElement) |
RotationAxis |
Gets or sets the axis to rotate the element around. (Inherited from UIElement) |
RotationTransition |
Gets or sets the ScalarTransition that animates changes to the Rotation property. (Inherited from UIElement) |
Scale |
Gets or sets the scale of the element. Scales relative to the element's CenterPoint. Affects the rendering position of the element. (Inherited from UIElement) |
ScaleTransition |
Gets or sets the Vector3Transition that animates changes to the Scale property. (Inherited from UIElement) |
SelectedIndex |
Gets or sets the index of the selected item. (Inherited from Selector) |
SelectedItem |
Gets or sets the selected item. (Inherited from Selector) |
SelectedItems |
Gets the currently selected items. (Inherited from ListViewBase) |
SelectedRanges |
Gets a collection of ItemIndexRange objects that describe the currently selected items in the list. (Inherited from ListViewBase) |
SelectedValue |
Gets or sets the value of the selected item, obtained by using the SelectedValuePath. (Inherited from Selector) |
SelectedValuePath |
Gets or sets the property path that is used to get the SelectedValue property of the SelectedItem property. (Inherited from Selector) |
SelectionMode |
Gets or sets the selection behavior for a ListViewBase instance. (Inherited from ListViewBase) |
SemanticZoomOwner |
Gets or sets the SemanticZoom instance that hosts the ListViewBase. (Inherited from ListViewBase) |
Shadow |
Gets or sets the shadow effect cast by the element. (Inherited from UIElement) |
ShowsScrollingPlaceholders |
Gets or sets a value that indicates whether the view shows placeholder UI for items during scrolling. (Inherited from ListViewBase) |
SingleSelectionFollowsFocus |
Gets or sets a value that indicates whether item selection changes when keyboard focus changes. (Inherited from ListViewBase) |
Style |
Gets or sets an instance Style that is applied for this object during layout and rendering. (Inherited from FrameworkElement) |
TabFocusNavigation |
Gets or sets a value that modifies how tabbing and TabIndex work for this control. (Inherited from UIElement) |
TabIndex |
Gets or sets a value that indicates the order in which elements receive focus when the user navigates through the app UI using the Tab key. (Inherited from Control) |
TabNavigation |
Gets or sets a value that modifies how tabbing and TabIndex work for this control. Note For Windows 10 Creators Update (build 10.0.15063) and newer, the TabFocusNavigation property is available on the UIElement base class to include objects in the tab sequence that do not use a ControlTemplate. |
Tag |
Gets or sets an arbitrary object value that can be used to store custom information about this object. (Inherited from FrameworkElement) |
Template |
Gets or sets a control template. The control template defines the visual appearance of a control in UI, and is defined in XAML markup. (Inherited from Control) |
Transform3D |
Gets or sets the 3-D transform effect to apply when rendering this element. (Inherited from UIElement) |
TransformMatrix |
Gets or sets the transformation matrix to apply to the element. (Inherited from UIElement) |
Transitions |
Gets or sets the collection of Transition style elements that apply to a UIElement. (Inherited from UIElement) |
Translation |
Gets or sets the x, y, and z rendering position of the element. (Inherited from UIElement) |
TranslationTransition |
Gets or sets the Vector3Transition that animates changes to the Translation property. (Inherited from UIElement) |
Triggers |
Gets the collection of triggers for animations that are defined for a FrameworkElement. Not commonly used. See Remarks. (Inherited from FrameworkElement) |
UIContext |
Gets the context identifier for the element. (Inherited from UIElement) |
UseLayoutRounding |
Gets or sets a value that determines whether rendering for the object and its visual subtree should use rounding behavior that aligns rendering to whole pixels. (Inherited from UIElement) |
UseSystemFocusVisuals |
Gets or sets a value that indicates whether the control uses focus visuals that are drawn by the system or those defined in the control template. (Inherited from Control) |
VerticalAlignment |
Gets or sets the vertical alignment characteristics that are applied to a FrameworkElement when it is composed in a parent object such as a panel or items control. (Inherited from FrameworkElement) |
VerticalContentAlignment |
Gets or sets the vertical alignment of the control's content. (Inherited from Control) |
Visibility |
Gets or sets the visibility of a UIElement. A UIElement that is not visible is not rendered and does not communicate its desired size to layout. (Inherited from UIElement) |
Width |
Gets or sets the width of a FrameworkElement. (Inherited from FrameworkElement) |
XamlRoot |
Gets or sets the |
XYFocusDown |
Gets or sets the object that gets focus when a user presses the Directional Pad (D-pad) down. (Inherited from Control) |
XYFocusDownNavigationStrategy |
Gets or sets a value that specifies the strategy used to determine the target element of a down navigation. (Inherited from UIElement) |
XYFocusKeyboardNavigation |
Gets or sets a value that enables or disables navigation using the keyboard directional arrows. (Inherited from UIElement) |
XYFocusLeft |
Gets or sets the object that gets focus when a user presses the Directional Pad (D-pad) left. (Inherited from Control) |
XYFocusLeftNavigationStrategy |
Gets or sets a value that specifies the strategy used to determine the target element of a left navigation. (Inherited from UIElement) |
XYFocusRight |
Gets or sets the object that gets focus when a user presses the Directional Pad (D-pad) right. (Inherited from Control) |
XYFocusRightNavigationStrategy |
Gets or sets a value that specifies the strategy used to determine the target element of a right navigation. (Inherited from UIElement) |
XYFocusUp |
Gets or sets the object that gets focus when a user presses the Directional Pad (D-pad) up. (Inherited from Control) |
XYFocusUpNavigationStrategy |
Gets or sets a value that specifies the strategy used to determine the target element of an up navigation. (Inherited from UIElement) |
Methods
AddHandler(RoutedEvent, Object, Boolean) |
Adds a routed event handler for a specified routed event, adding the handler to the handler collection on the current element. Specify handledEventsToo as true to have the provided handler be invoked even if the event is handled elsewhere. (Inherited from UIElement) |
ApplyTemplate() |
Loads the relevant control template so that its parts can be referenced. (Inherited from Control) |
Arrange(Rect) |
Positions child objects and determines a size for a UIElement. Parent objects that implement custom layout for their child elements should call this method from their layout override implementations to form a recursive layout update. (Inherited from UIElement) |
ArrangeOverride(Size) |
Provides the behavior for the "Arrange" pass of layout. Classes can override this method to define their own "Arrange" pass behavior. (Inherited from FrameworkElement) |
CancelDirectManipulations() |
Cancels ongoing direct manipulation processing (system-defined panning/zooming) on any ScrollViewer parent that contains the current UIElement. (Inherited from UIElement) |
CapturePointer(Pointer) |
Sets pointer capture to a UIElement. Once captured, only the element that has capture will fire pointer-related events. (Inherited from UIElement) |
ClearContainerForItemOverride(DependencyObject, Object) |
Undoes the effects of the PrepareContainerForItemOverride method. (Inherited from ItemsControl) |
ClearValue(DependencyProperty) |
Clears the local value of a dependency property. (Inherited from DependencyObject) |
CompleteViewChange() |
Changes related aspects of presentation when the overall view for a SemanticZoom changes. (Inherited from ListViewBase) |
CompleteViewChangeFrom(SemanticZoomLocation, SemanticZoomLocation) |
Completes item-wise operations that are related to a view change when the ListViewBase instance is the source view and the new view is a potentially different implementing view. (Inherited from ListViewBase) |
CompleteViewChangeTo(SemanticZoomLocation, SemanticZoomLocation) |
Completes item-wise operations that are related to a view change when the ListViewBase instance is the destination view and the source view is a potentially different implementing view. (Inherited from ListViewBase) |
ContainerFromIndex(Int32) |
Returns the container for the item at the specified index within the ItemCollection. (Inherited from ItemsControl) |
ContainerFromItem(Object) |
Returns the container corresponding to the specified item. (Inherited from ItemsControl) |
DeselectRange(ItemIndexRange) |
Deselects a block of items described by the ItemIndexRange. (Inherited from ListViewBase) |
FindName(String) |
Retrieves an object that has the specified identifier name. (Inherited from FrameworkElement) |
FindSubElementsForTouchTargeting(Point, Rect) |
Enables a UIElement subclass to expose child elements that assist with resolving touch targeting. (Inherited from UIElement) |
Focus(FocusState) |
Attempts to set the focus on the control. (Inherited from Control) |
GetAnimationBaseValue(DependencyProperty) |
Returns any base value established for a dependency property, which would apply in cases where an animation is not active. (Inherited from DependencyObject) |
GetBindingExpression(DependencyProperty) |
Returns the BindingExpression that represents the binding on the specified property. (Inherited from FrameworkElement) |
GetChildrenInTabFocusOrder() |
Enables a UIElement subclass to expose child elements that take part in Tab focus. (Inherited from UIElement) |
GetContainerForItemOverride() |
Creates or identifies the element that is used to display the given item. (Inherited from ItemsControl) |
GetTemplateChild(String) |
Retrieves the named element in the instantiated ControlTemplate visual tree. (Inherited from Control) |
GetValue(DependencyProperty) |
Returns the current effective value of a dependency property from a DependencyObject. (Inherited from DependencyObject) |
GoToElementStateCore(String, Boolean) |
When implemented in a derived class, enables per-state construction of a visual tree for a control template in code, rather than by loading XAML for all states at control startup. (Inherited from FrameworkElement) |
GroupHeaderContainerFromItemContainer(DependencyObject) |
Returns the group header container that corresponds to the specified container element. (Inherited from ItemsControl) |
IndexFromContainer(DependencyObject) |
Returns the index to the item that has the specified, generated container. (Inherited from ItemsControl) |
InitializeViewChange() |
Initializes the changes to related aspects of presentation (such as scrolling UI or state) when the overall view for a SemanticZoom is about to change. (Inherited from ListViewBase) |
InvalidateArrange() |
Invalidates the arrange state (layout) for a UIElement. After the invalidation, the UIElement will have its layout updated, which will occur asynchronously. (Inherited from UIElement) |
InvalidateMeasure() |
Invalidates the measurement state (layout) for a UIElement. (Inherited from UIElement) |
InvalidateViewport() |
Invalidates the viewport state for a UIElement that is used to calculate the effective viewport. (Inherited from FrameworkElement) |
IsDragSource() |
Returns a value that indicates whether the list view is both the drag source and drop target in a drag-and-drop operation. (Inherited from ListViewBase) |
IsItemItsOwnContainerOverride(Object) |
Determines whether the specified item is (or is eligible to be) its own container. (Inherited from ItemsControl) |
ItemFromContainer(DependencyObject) |
Returns the item that corresponds to the specified, generated container. (Inherited from ItemsControl) |
LoadMoreItemsAsync() |
Initiates the asynchronous request to load more data items, in accordance with the active incremental loading settings. (Inherited from ListViewBase) |
MakeVisible(SemanticZoomLocation) |
Forces content in the view to scroll until the item that's specified by SemanticZoomLocation is visible. Also focuses the item if it finds the item. (Inherited from ListViewBase) |
Measure(Size) |
Updates the DesiredSize of a UIElement. Typically, objects that implement custom layout for their layout children call this method from their own MeasureOverride implementations to form a recursive layout update. (Inherited from UIElement) |
MeasureOverride(Size) |
Provides the behavior for the "Measure" pass of the layout cycle. Classes can override this method to define their own "Measure" pass behavior. (Inherited from FrameworkElement) |
OnApplyTemplate() |
Invoked whenever application code or internal processes (such as a rebuilding layout pass) call ApplyTemplate. In simplest terms, this means the method is called just before a UI element displays in your app. Override this method to influence the default post-template logic of a class. (Inherited from FrameworkElement) |
OnBringIntoViewRequested(BringIntoViewRequestedEventArgs) |
Called before the BringIntoViewRequested event occurs. (Inherited from UIElement) |
OnCharacterReceived(CharacterReceivedRoutedEventArgs) |
Called before the CharacterReceived event occurs. (Inherited from Control) |
OnCreateAutomationPeer() |
When implemented in a derived class, returns class-specific AutomationPeer implementations for the Microsoft UI Automation infrastructure. (Inherited from UIElement) |
OnDisconnectVisualChildren() |
Override this method to implement how layout and logic should behave when items are removed from a class-specific content or children property. (Inherited from UIElement) |
OnDoubleTapped(DoubleTappedRoutedEventArgs) |
Called before the DoubleTapped event occurs. (Inherited from Control) |
OnDragEnter(DragEventArgs) |
Called before the DragEnter event occurs. (Inherited from Control) |
OnDragLeave(DragEventArgs) |
Called before the DragLeave event occurs. (Inherited from Control) |
OnDragOver(DragEventArgs) |
Called before the DragOver event occurs. (Inherited from Control) |
OnDrop(DragEventArgs) |
Called before the Drop event occurs. (Inherited from Control) |
OnGotFocus(RoutedEventArgs) |
Called before the GotFocus event occurs. (Inherited from Control) |
OnGroupStyleSelectorChanged(GroupStyleSelector, GroupStyleSelector) |
Invoked when the value of the GroupStyleSelector property changes. (Inherited from ItemsControl) |
OnHolding(HoldingRoutedEventArgs) |
Called before the Holding event occurs. (Inherited from Control) |
OnItemContainerStyleChanged(Style, Style) |
Invoked when the value of the ItemContainerStyle property changes. (Inherited from ItemsControl) |
OnItemContainerStyleSelectorChanged(StyleSelector, StyleSelector) |
Invoked when the value of the ItemContainerStyleSelector property changes. (Inherited from ItemsControl) |
OnItemsChanged(Object) |
Invoked when the value of the Items property changes. (Inherited from ItemsControl) |
OnItemTemplateChanged(DataTemplate, DataTemplate) |
Invoked when the value of the ItemTemplate property changes. (Inherited from ItemsControl) |
OnItemTemplateSelectorChanged(DataTemplateSelector, DataTemplateSelector) |
Invoked when the value of the ItemTemplateSelector property changes. (Inherited from ItemsControl) |
OnKeyboardAcceleratorInvoked(KeyboardAcceleratorInvokedEventArgs) |
Called when a keyboard shortcut (or accelerator) is processed in your app. Override this method to handle how your app responds when a keyboard accelerator is invoked. (Inherited from UIElement) |
OnKeyDown(KeyRoutedEventArgs) |
Called before the KeyDown event occurs. (Inherited from Control) |
OnKeyUp(KeyRoutedEventArgs) |
Called before the KeyUp event occurs. (Inherited from Control) |
OnLostFocus(RoutedEventArgs) |
Called before the LostFocus event occurs. (Inherited from Control) |
OnManipulationCompleted(ManipulationCompletedRoutedEventArgs) |
Called before the ManipulationCompleted event occurs. (Inherited from Control) |
OnManipulationDelta(ManipulationDeltaRoutedEventArgs) |
Called before the ManipulationDelta event occurs. (Inherited from Control) |
OnManipulationInertiaStarting(ManipulationInertiaStartingRoutedEventArgs) |
Called before the ManipulationInertiaStarting event occurs. (Inherited from Control) |
OnManipulationStarted(ManipulationStartedRoutedEventArgs) |
Called before the ManipulationStarted event occurs. (Inherited from Control) |
OnManipulationStarting(ManipulationStartingRoutedEventArgs) |
Called before the ManipulationStarting event occurs. (Inherited from Control) |
OnPointerCanceled(PointerRoutedEventArgs) |
Called before the PointerCanceled event occurs. (Inherited from Control) |
OnPointerCaptureLost(PointerRoutedEventArgs) |
Called before the PointerCaptureLost event occurs. (Inherited from Control) |
OnPointerEntered(PointerRoutedEventArgs) |
Called before the PointerEntered event occurs. (Inherited from Control) |
OnPointerExited(PointerRoutedEventArgs) |
Called before the PointerExited event occurs. (Inherited from Control) |
OnPointerMoved(PointerRoutedEventArgs) |
Called before the PointerMoved event occurs. (Inherited from Control) |
OnPointerPressed(PointerRoutedEventArgs) |
Called before the PointerPressed event occurs. (Inherited from Control) |
OnPointerReleased(PointerRoutedEventArgs) |
Called before the PointerReleased event occurs. (Inherited from Control) |
OnPointerWheelChanged(PointerRoutedEventArgs) |
Called before the PointerWheelChanged event occurs. (Inherited from Control) |
OnPreviewKeyDown(KeyRoutedEventArgs) |
Called before the PreviewKeyDown event occurs. (Inherited from Control) |
OnPreviewKeyUp(KeyRoutedEventArgs) |
Called before the PreviewKeyUp event occurs. (Inherited from Control) |
OnProcessKeyboardAccelerators(ProcessKeyboardAcceleratorEventArgs) |
Called just before a keyboard shortcut (or accelerator) is processed in your app. Invoked whenever application code or internal processes call ProcessKeyboardAccelerators. Override this method to influence the default accelerator handling. (Inherited from UIElement) |
OnRightTapped(RightTappedRoutedEventArgs) |
Called before the RightTapped event occurs. (Inherited from Control) |
OnTapped(TappedRoutedEventArgs) |
Called before the Tapped event occurs. (Inherited from Control) |
PopulatePropertyInfo(String, AnimationPropertyInfo) |
Defines a property that can be animated. (Inherited from UIElement) |
PopulatePropertyInfoOverride(String, AnimationPropertyInfo) |
When overridden in a derived class, defines a property that can be animated. (Inherited from UIElement) |
PrepareConnectedAnimation(String, Object, String) |
Returns a connected animation that's associated with the specified key, data item, and source element. (Inherited from ListViewBase) |
PrepareContainerForItemOverride(DependencyObject, Object) |
Prepares the specified element to display the specified item. (Inherited from ItemsControl) |
ReadLocalValue(DependencyProperty) |
Returns the local value of a dependency property, if a local value is set. (Inherited from DependencyObject) |
RegisterPropertyChangedCallback(DependencyProperty, DependencyPropertyChangedCallback) |
Registers a notification function for listening to changes to a specific DependencyProperty on this DependencyObject instance. (Inherited from DependencyObject) |
ReleasePointerCapture(Pointer) |
Releases pointer captures for capture of one specific pointer by this UIElement. (Inherited from UIElement) |
ReleasePointerCaptures() |
Releases all pointer captures held by this element. (Inherited from UIElement) |
RemoveFocusEngagement() |
Releases focus from the control boundaries for a control that has focus engagement (for game pad/remote interaction). (Inherited from Control) |
RemoveHandler(RoutedEvent, Object) |
Removes the specified routed event handler from this UIElement. Typically the handler in question was added by AddHandler. (Inherited from UIElement) |
ScrollIntoView(Object, ScrollIntoViewAlignment) |
Scrolls the list to bring the specified data item into view with the specified alignment. (Inherited from ListViewBase) |
ScrollIntoView(Object) |
Scrolls the list to bring the specified data item into view. (Inherited from ListViewBase) |
SelectAll() |
Selects all the items in a view. (Inherited from ListViewBase) |
SelectRange(ItemIndexRange) |
Selects a block of items described by the ItemIndexRange. (Inherited from ListViewBase) |
SetBinding(DependencyProperty, BindingBase) |
Attaches a binding to a FrameworkElement, using the provided binding object. (Inherited from FrameworkElement) |
SetDesiredContainerUpdateDuration(TimeSpan) |
Sets the maximum target time between two render passes when a ListViewBase is updating its UI with data items during initial load or scrolling. (Inherited from ListViewBase) |
SetValue(DependencyProperty, Object) |
Sets the local value of a dependency property on a DependencyObject. (Inherited from DependencyObject) |
StartAnimation(ICompositionAnimationBase) |
Begins the specified animation on the element. (Inherited from UIElement) |
StartBringIntoView() |
Initiates a request to the XAML framework to bring the element into view within any scrollable regions it is contained within. (Inherited from UIElement) |
StartBringIntoView(BringIntoViewOptions) |
Initiates a request to the XAML framework to bring the element into view using the specified options. (Inherited from UIElement) |
StartDragAsync(PointerPoint) |
Initiates a drag-and-drop operation. (Inherited from UIElement) |
StartViewChangeFrom(SemanticZoomLocation, SemanticZoomLocation) |
Initializes item-wise operations that are related to a view change when the ListViewBase instance is the source view and the pending destination view is a potentially different implementing view. (Inherited from ListViewBase) |
StartViewChangeTo(SemanticZoomLocation, SemanticZoomLocation) |
Initializes item-wise operations that are related to a view change when the source view is a different view and the pending destination view is the ListViewBase instance. (Inherited from ListViewBase) |
StopAnimation(ICompositionAnimationBase) |
Stops the specified animation on the element. (Inherited from UIElement) |
TransformToVisual(UIElement) |
Returns a transform object that can be used to transform coordinates from the UIElement to the specified object. (Inherited from UIElement) |
TryInvokeKeyboardAccelerator(ProcessKeyboardAcceleratorEventArgs) |
Attempts to invoke a keyboard shortcut (or accelerator) by searching the entire visual tree of the UIElement for the shortcut. (Inherited from UIElement) |
TryStartConnectedAnimationAsync(ConnectedAnimation, Object, String) |
Attempts to start the animation. (Inherited from ListViewBase) |
UnregisterPropertyChangedCallback(DependencyProperty, Int64) |
Cancels a change notification that was previously registered by calling RegisterPropertyChangedCallback. (Inherited from DependencyObject) |
UpdateLayout() |
Ensures that all positions of child objects of a UIElement are properly updated for layout. (Inherited from UIElement) |
Events
AccessKeyDisplayDismissed |
Occurs when access keys should no longer be displayed. (Inherited from UIElement) |
AccessKeyDisplayRequested |
Occurs when the user requests that access keys be displayed. (Inherited from UIElement) |
AccessKeyInvoked |
Occurs when a user completes an access key sequence. (Inherited from UIElement) |
ActualThemeChanged |
Occurs when the ActualTheme property value has changed. (Inherited from FrameworkElement) |
BringIntoViewRequested |
Occurs when StartBringIntoView is called on this element or one of its descendants. (Inherited from UIElement) |
CharacterReceived |
Occurs when a single, composed character is received by the input queue. (Inherited from UIElement) |
ChoosingGroupHeaderContainer |
Occurs when an item container is to be chosen for a data group. (Inherited from ListViewBase) |
ChoosingItemContainer |
Occurs when an item container is to be chosen for a data item. (Inherited from ListViewBase) |
ContainerContentChanging |
Occurs when the data item associated with a UI container changes. (Inherited from ListViewBase) |
ContextCanceled |
Occurs when a context input gesture continues into a manipulation gesture, to notify the element that the context flyout should not be opened. (Inherited from UIElement) |
ContextRequested |
Occurs when the user has completed a context input gesture, such as a right-click. (Inherited from UIElement) |
DataContextChanged |
Occurs when the value of the FrameworkElement.DataContext property changes. (Inherited from FrameworkElement) |
DoubleTapped |
Occurs when an otherwise unhandled DoubleTap interaction occurs over the hit test area of this element. (Inherited from UIElement) |
DragEnter |
Occurs when the input system reports an underlying drag event with this element as the target. (Inherited from UIElement) |
DragItemsCompleted |
Occurs when a drag operation that involves one of the items in the view is ended. (Inherited from ListViewBase) |
DragItemsStarting |
Occurs when a drag operation that involves one of the items in the view is initiated. (Inherited from ListViewBase) |
DragLeave |
Occurs when the input system reports an underlying drag event with this element as the origin. (Inherited from UIElement) |
DragOver |
Occurs when the input system reports an underlying drag event with this element as the potential drop target. (Inherited from UIElement) |
DragStarting |
Occurs when a drag operation is initiated. (Inherited from UIElement) |
Drop |
Occurs when the input system reports an underlying drop event with this element as the drop target. (Inherited from UIElement) |
DropCompleted |
Occurs when a drag-and-drop operation with this element as the source is ended. (Inherited from UIElement) |
EffectiveViewportChanged |
Occurs when the FrameworkElement's effective viewport changes. (Inherited from FrameworkElement) |
FocusDisengaged |
Occurs when focus is released from the control boundaries (for game pad/remote interaction). (Inherited from Control) |
FocusEngaged |
Occurs when focus is constrained within the control boundaries (for game pad/remote interaction). (Inherited from Control) |
GettingFocus |
Occurs before a UIElement receives focus. This event is raised synchronously to ensure focus isn't moved while the event is bubbling. (Inherited from UIElement) |
GotFocus |
Occurs when a UIElement receives focus. This event is raised asynchronously, so focus can move again before bubbling is complete. (Inherited from UIElement) |
Holding |
Occurs when an otherwise unhandled Hold interaction occurs over the hit test area of this element. (Inherited from UIElement) |
IsEnabledChanged |
Occurs when the IsEnabled property changes. (Inherited from Control) |
ItemClick |
Occurs when an item in the list view receives an interaction, and the IsItemClickEnabled property is true. (Inherited from ListViewBase) |
KeyDown |
Occurs when a keyboard key is pressed while the UIElement has focus. (Inherited from UIElement) |
KeyUp |
Occurs when a keyboard key is released while the UIElement has focus. (Inherited from UIElement) |
LayoutUpdated |
Occurs when the layout of the visual tree changes, due to layout-relevant properties changing value or some other action that refreshes the layout. (Inherited from FrameworkElement) |
Loaded |
Occurs when a FrameworkElement has been constructed and added to the object tree, and is ready for interaction. (Inherited from FrameworkElement) |
Loading |
Occurs when a FrameworkElement begins to load. (Inherited from FrameworkElement) |
LosingFocus |
Occurs before a UIElement loses focus. This event is raised synchronously to ensure focus isn't moved while the event is bubbling. (Inherited from UIElement) |
LostFocus |
Occurs when a UIElement loses focus. This event is raised asynchronously, so focus can move again before bubbling is complete. (Inherited from UIElement) |
ManipulationCompleted |
Occurs when a manipulation on the UIElement is complete. (Inherited from UIElement) |
ManipulationDelta |
Occurs when the input device changes position during a manipulation. (Inherited from UIElement) |
ManipulationInertiaStarting |
Occurs when the input device loses contact with the UIElement object during a manipulation and inertia begins. (Inherited from UIElement) |
ManipulationStarted |
Occurs when an input device begins a manipulation on the UIElement. (Inherited from UIElement) |
ManipulationStarting |
Occurs when the manipulation processor is first created. (Inherited from UIElement) |
NoFocusCandidateFound |
Occurs when a user attempts to move focus (via tab or directional arrows), but focus doesn't move because no focus candidate is found in the direction of movement. (Inherited from UIElement) |
PointerCanceled |
Occurs when a pointer that made contact abnormally loses contact. (Inherited from UIElement) |
PointerCaptureLost |
Occurs when pointer capture previously held by this element moves to another element or elsewhere. (Inherited from UIElement) |
PointerEntered |
Occurs when a pointer enters the hit test area of this element. (Inherited from UIElement) |
PointerExited |
Occurs when a pointer leaves the hit test area of this element. (Inherited from UIElement) |
PointerMoved |
Occurs when a pointer moves while the pointer remains within the hit test area of this element. (Inherited from UIElement) |
PointerPressed |
Occurs when the pointer device initiates a Press action within this element. (Inherited from UIElement) |
PointerReleased |
Occurs when the pointer device that previously initiated a Press action is released, while within this element. Note that the end of a Press action is not guaranteed to fire a PointerReleased event; other events may fire instead. For more info, see Remarks. (Inherited from UIElement) |
PointerWheelChanged |
Occurs when the delta value of a pointer wheel changes. (Inherited from UIElement) |
PreviewKeyDown |
Occurs when a keyboard key is pressed while the UIElement has focus. (Inherited from UIElement) |
PreviewKeyUp |
Occurs when a keyboard key is released while the UIElement has focus. (Inherited from UIElement) |
ProcessKeyboardAccelerators |
Occurs when a keyboard shortcut (or accelerator) is pressed. (Inherited from UIElement) |
RightTapped |
Occurs when a right-tap input stimulus happens while the pointer is over the element. (Inherited from UIElement) |
SelectionChanged |
Occurs when the currently selected item changes. (Inherited from Selector) |
SizeChanged |
Occurs when either the ActualHeight or the ActualWidth property changes value on a FrameworkElement. (Inherited from FrameworkElement) |
Tapped |
Occurs when an otherwise unhandled Tap interaction occurs over the hit test area of this element. (Inherited from UIElement) |
Unloaded |
Occurs when this object is no longer connected to the main object tree. (Inherited from FrameworkElement) |
