Common Control Patterns for Visual Studio
Common controls make up the majority of the user interface in Visual Studio. Most common controls used in the Visual Studio interface should follow the Windows Desktop interaction guidelines. This topic is specific to Visual Studio and covers special situations or details that augment those Windows guidelines.
The first thing to consider when styling controls is whether the controls will be used in themed UI. Controls in standard UI are non-themed UI and must follow normal Windows Desktop style, meaning that they are not re-templated and should appear in their default control appearance.
Standard (utility) dialogs: not themed. Don't re-template. Use basic control style defaults.
Tool windows, document editors, design surfaces and themed dialogs: Use specialized themed appearance using the color service.
Scroll bars should follow common interaction patterns for Windows scroll bars unless they're augmented with content information, like in the code editor.
For typical interaction behavior, follow the Windows Desktop guidelines for text boxes.
Input fields shouldn't be styled in utility dialogs. Use the basic style intrinsic to the control.
Themed input fields should only be used in themed dialogs and tool windows.
Read-only fields will have a gray (disabled) background but default (active) foreground.
Required fields should have <Required> as watermarks within them. You should not change the color of the background except in rare situations.
Error validation: See Notifications and Progress for Visual Studio
Input fields should be sized to fit the content, not to fit the width of the window in which they are shown, nor to arbitrarily match the length of a long field, like a path. Length might be an indication to the user of limitations as to how many characters are allowed in the field.
Incorrect input field length: it's unlikely that the name will be this long.
Correct input field length: the input field is a reasonable width for the expected content.
For typical interaction behavior, follow the Windows Desktop guidelines for drop-down lists and combo boxes.
In utility dialogs, don't re-template the control. Use the basic style intrinsic to the control.
In themed UI, combo boxes and drop-downs follow the standard theming for the controls.
Combo boxes and drop-downs should be sized to fit the content, not to fit the width of the window in which they are shown, nor to arbitrarily match the length of a long field, like a path.
Incorrect: the drop-down width is too long for the content that will be displayed.
Correct: the drop-down is sized to allow for translation growth, but not unnecessarily long.
For typical interaction behavior, follow the Windows Desktop guidelines for check boxes.
In utility dialogs, don't re-template the control. Use the basic style intrinsic to the control.
In themed UI, check boxes follow the standard theming for the controls.
Interaction with a check box must never pop a dialog or navigate to another area.
Align check boxes with the baseline of the first line of text.
Incorrect: the check box is centered on the text.
Correct: the check box is aligned with the first line of the text.
For typical interaction behavior, follow the Windows Desktop guidelines for radio buttons.
In utility dialogs, do not style radio buttons. Use the basic style intrinsic to the control.
It's not necessary to use a group frame to enclose radio choices, unless you need to maintain group distinction in a tight layout.
For typical interaction behavior, follow the Windows Desktop guidelines for group frames.
In utility dialogs, don't style group frames. Use the basic style intrinsic to the control.
It's not necessary to use a group frame to enclose radio choices, unless you need to maintain group distinction in a tight layout.
Never use a group frame for a single control.
It's sometimes acceptable to use a horizontal rule instead of a group frame container.
A static text field presents read-only information and cannot be selected by the user. Avoid using it for any text the user might want to copy to the clipboard. However, read-only static text can change to reflect a change in state. In the example below, the Output Name static text under the Information group changes to reflect any changes made to the Root Namespace text box above it.
There are two ways to display static text information.
Static text can be on its own in a dialog without any containment when there is no grouping conflict. Decide if the extra lines of a box are really necessary. An example is the display of a directory path under a section created by a group line, as shown below:
Static text info in text controls
In a dialog where other grouped areas exist and containment of the information would help readability, and when a section can be hidden or shown (as in the Properties window description pane) or you want to be consistent with similar UI, place the static text inside a box. This group box should be a single rule and colored with the ButtonShadow:

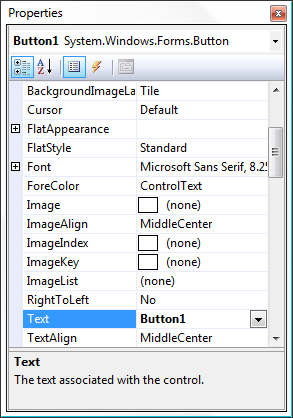

Static text in the Properties window
This allows the user to select the text inside the field but not edit it. These text boxes are bordered by the usual 3-D chisel with a ButtonShadow fill.
A text box can become active (editable) when a user alters an associated control, such as checking/unchecking a check box or selecting/deselecting a radio button. For example, in the Tools > Options page shown below, the Home Page text box becomes active when the Use Default check box is unchecked.

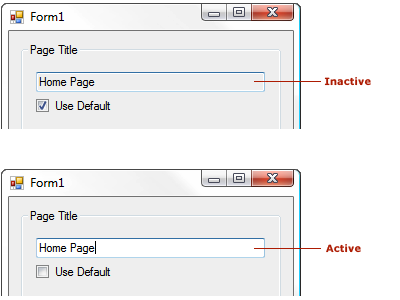

Read-only text box, showing inactive and active states
Key guidelines for text in dialogs:
Labels for text boxes, list boxes, and frames in unthemed dialogs start with a verb, have an initial capital on the first word only, and end with a colon.
Text controls in themed dialogs follow Windows desktop UX guidelines and do not take end punctuation, with the exception of question marks in Help links.
Labels for check boxes and option buttons start with a verb, an initial capital on the first word only, and have no ending punctuation.
Labels for buttons, menus, menu items, and tabs have initial capitals on each word (title case).
Label terminology should be consistent with similar labels in other dialogs.
If possible, have a writer/editor write or approve the text before it goes to the developer for implementation.
All controls should have labels except in special circumstances in which tabbing is sufficient. Use helper text when appropriate.
Included in dialogs to help the user understand the dialog's purpose or to indicate which action to take. Helper text should be used only when needed to avoid cluttering simple dialogs. The two variations of helper text are dialog and watermark.
Follow common locations for helper text and be selective in introducing new areas. Common scenarios for helper text are:
Helper text in dialogs, to give additional direction about how to interact with a complex dialog.
Watermark text in empty tool windows or dialogs, to explain why no content is visible.
A description pane, like at the bottom of the Properties window.
Watermark text in an empty editor, to explain what action the user should take to get started.
A user experience designer may help determine when helper text is appropriate. The designer can define where helper text appears as well as its general content. User assistance can write/edit the actual text.
Dialogs benefit from slightly different watermark guidelines. Because a dialog can appear busy with many UI elements (labels, hint text, buttons and other container controls with text), particularly when those appear in black, watermarks stand out better in dark gray (VSColor: ButtonShadow). Typically a watermark appears inside a control like a list box with a white background (VSColor: Window).
The text appears in dark gray (VSColor:
ButtonShadow). However, if the watermark appears on a medium gray or other-colored (VSColor:ButtonFace) background and there is concern about its readability, go with black text (VSColor:WindowText).Watermarks can be centered or flush left. Apply standard design rules when making alignment decisions. The watermark cannot be selected on the background.

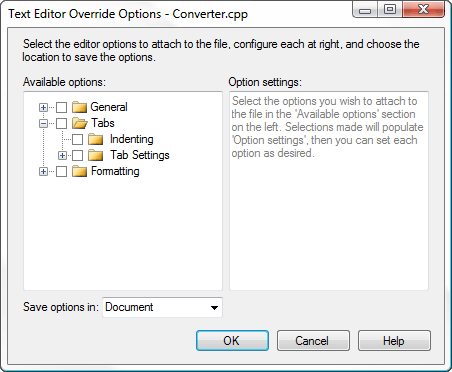

Watermark text example
Dynamic text can be used one of two ways in a dialog or modeless UI: either as a dynamic label or as dynamic content.
Dynamic label: a common use of dynamic text is in descriptive panels that offer more information for the selected item, such as in a dialog which contains a list of elements and properties for those elements displayed in a grid to the right. The label for the property grid may be dynamic so that when an item is selected on the left, the grid to the right shows information for that specific item.
Dynamic text: can be useful in instances where you need to display specific information and not general information in this way, but care should be taken to not overuse.
If you want users to have the ability to copy the info, dynamic text should be in a read-only text field.
Buttons and link controls (hyperlinks) should follow basic Windows Desktop guidance on hyperlinks for usage, wording, sizing, and spacing.
Traditionally, buttons have been used for actions and hyperlinks have been reserved for navigation. Buttons may be used in all cases, but the role of links has been expanded in Visual Studio so that buttons and links are more interchangeable in some conditions.
When to use command buttons:
Primary commands
Displaying windows used to gather input or making choices, even if they are secondary commands
Destructive or irreversible actions
Commitment buttons within wizards and page flows
Avoid command buttons in tool windows, or if you need more than two words for the label. Links can have longer labels.
When to use links:
Navigation to another window, document, or web page
Situations that require a longer label or short sentence to describe the intent of the action
Tight spaces where a button would overwhelm the UI, provided that the action is not destructive or irreversible
De-emphasizing secondary commands in situations where there are many commands

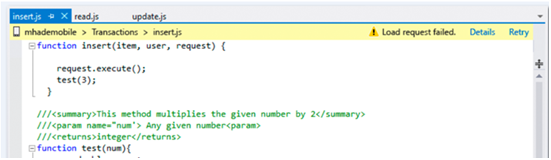

Command links used in the InfoBar following a status message

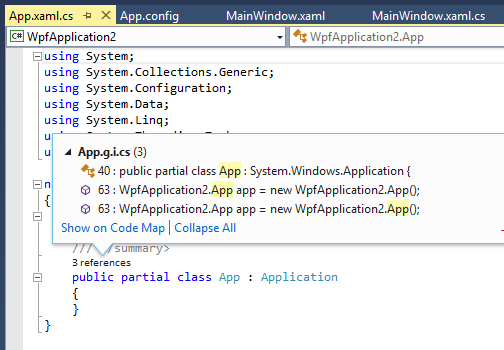

Links used in the CodeLens popup

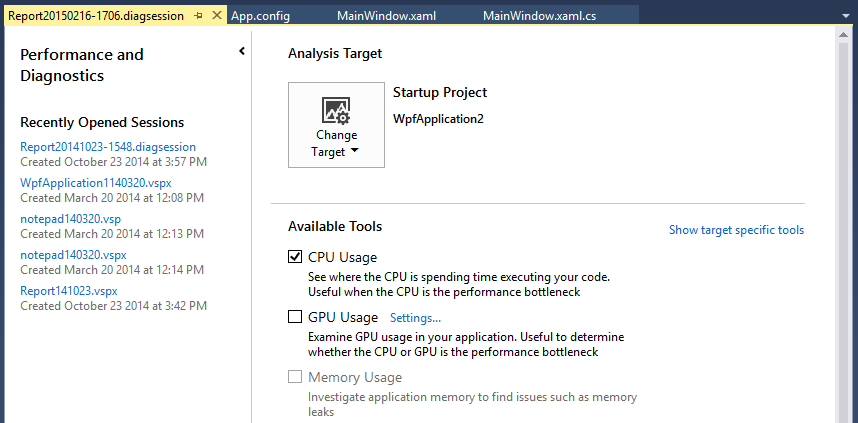

Links used for secondary commands where buttons would attract too much attention
Follow the writing guidelines in UI text and terminology.
Most buttons in Visual Studio will appear in utility dialogs and should not be styled. They should reflect the standard appearance of buttons as dictated by the operating system.
In some instances, buttons may be used within styled UI and these buttons must be styled appropriately. See Dialogs for information on themed controls.
[Browse...] buttons are used in grids, dialogs, and tool windows and other modeless UI elements. They display a picker that assists the user in filling a value into a control. There are two variations of this button, long and short.
![The long [Browse...] button](media/070703-04_browselong.gif?view=vs-2019 "070703-04_BrowseLong")
The long [Browse...] button
![The ellipsis-only short [...] button](media/070703-05_browseshort.gif?view=vs-2019 "070703-05_BrowseShort")
The ellipsis-only short [...] button
When to use the ellipsis-only short button:
If there is more than one long [Browse...] button in a dialog, like when several fields allow for browsing. Use the short [...] button for each to avoid the confusing access keys created by this situation (&Browse and B&rowse in the same dialog).
In a tight dialog, or when there is no reasonable place to put the long button.
If the button will appear in a grid control.
Guidelines for using the button:
Don't use an access key. To access it using the keyboard, the user must tab from the adjacent control. Ensure that the tab order is such that any browse button falls immediately after the field that it will fill. Never use an underscore below the first period.
Set the Microsoft Active Accessibility (MSAA) Name property to Browse... (including the ellipsis) so that screen readers will read it as "Browse" and not "dot-dot-dot" or "period-period-period." For managed controls, this means setting the AccessibleName property.
Never use an ellipsis [...] button for anything except a browse action. For example, if you need a [New...] button but don't have enough room for the text, then the dialog needs to be redesigned.
![Sizing [Browse...] buttons: standard version is 75x23 pixels, short version is 26x23 pixels](media/070703-06_browsesizing.png?view=vs-2019 "070703-06_BrowseSizing")
Sizing [Browse...] buttons
![Spacing [Browse...] buttons: spacing between related control and standard Browse button 7 pixels, spacing between related control and short Browse button 5 pixels](media/070703-07_browsespacing.png?view=vs-2019 "070703-07_BrowseSpacing")
Spacing [Browse...] buttons
Some buttons should always use a graphical image and never include text to conserve space and avoid localization problems. These are often used in field pickers and other sortable lists.
Note
Users have to tab to these buttons (there are no access keys), so place them in a sensible order. Map the name property of the button to the action that it takes so that screen readers correctly interpret the button action.
| Function | Button |
|---|---|
| Add |  |
| Remove |  |
| Add All |  |
| Remove All |  |
| Move Up |  |
| Move Down |  |
| Delete |  |
Sizing for graphical buttons is the same as for the short version of the [Browse...] button (26x23 pixels):
Appearance of a graphical image on button, with and without transparent color showing
Hyperlinks are well suited to navigation-based actions, like opening a Help topic, modal dialog, or wizard. If a hyperlink is used for a command, it should always display a visible and noticeable change to the UI. In general, actions that commit to an action (like Save, Cancel, and Delete) are better communicated using a button.
Follow the Windows Desktop guidance for user interface text. Don't use "Learn more about," "Tell me more about," or "Get help with this" phrasing. Instead, phrase Help link text in terms of the primary question answered by the Help content. For example, "How do I add a server to the Server Explorer?"
Hyperlinks should always use The VSColor Service. If a hyperlink is not styled correctly, it flashes red when active or shows a different color after being visited.
Don't include underlines at the control resting state unless the link is a sentence fragment within a full sentence, like in a watermark.
Underlines shouldn't appear on hover. Instead, the feedback to the user that the link is active is a slight color change and the appropriate link cursor.
Tree views provide a way to organize complex lists into parent-child groups. A user can expand or collapse parent groups to reveal or hide underlying child items. Each item within a tree view can be selected to provide further action.
Tree view controls should conform to the expander design used by Windows and Visual Studio. Each node uses an expander control to reveal or hide underlying items. Using an expander control provides consistency for users who might encounter different tree views within Windows and Visual Studio.
Correct: proper style of tree view node using an expander control
Incorrect: improper style of tree view node
When a node is selected within the tree view, the highlight should expand to the full width of the tree view control. This helps users clearly identify which item they have selected. Selection colors should reflect the current Visual Studio theme.
Correct: highlight of the selected node fits the entire width of the tree view control.
Incorrect: highlight of the selected node doesn't fit the entire width of the tree view control.
Icons should only be used in tree view controls if they assist in visually identifying differences between items. In general, icons should be used only in heterogeneous lists in which the Icons carry information to differentiate the types of elements. In a homogeneous list using icons can frequently be seen as noise and should be avoided. In that case the group icon (parent) can convey the type of items within it. The exception to this rule would be if the icon is dynamic and is used to indicate state.
Scroll bars should always be hidden if the content fits within the tree view control. It is acceptable for scrollbars to be hidden, or semi-transparent in a scrollable window and appear when the window containing the tree view has focus, or upon hover of the tree view itself.
Both vertical and horizontal scroll bars are displayed because the contents have exceeded the limits of the tree view control.
A tree view node can reveal submenu options in a context menu. Typically, this occurs when a user has right-clicked an item or pressed the Menu key on a Windows keyboard with the item selected. It's important that the node gains focus and is selected. This helps the user identify which item the submenu belongs to.
The item that has generate the context menu gains focus to notify the user which item has been selected.
The tree view should provide the ability to select items and expand/collapse nodes using the keyboard. This ensures that navigation meets our accessibility requirements.
Visual Studio tree controls should follow common keyboard navigation:
Up Arrow: Select items by moving up the tree
Down Arrow: Select items by moving down the tree
Right Arrow: Expand a node in the tree
Left Arrow: Collapse a node in the tree
Enter key: Initiate, load, execute selected item
A trid control is a complex control that contains a tree view within a grid. Expanding, collapsing, and navigating the tree should respect the same keyboard commands as a tree view, with the following additions:
Right Arrow: Expand a node. After the node is expanded, it should continue navigating to the nearest column on the right. Navigation should stop at the end of the row.
Tab: Navigates to the nearest cell on the right. At the end of the row, navigation continues to the next row.
Shift + Tab: Navigates to the nearest cell on the left. At the beginning of the row, navigation continues to the rightmost cell in the previous row.

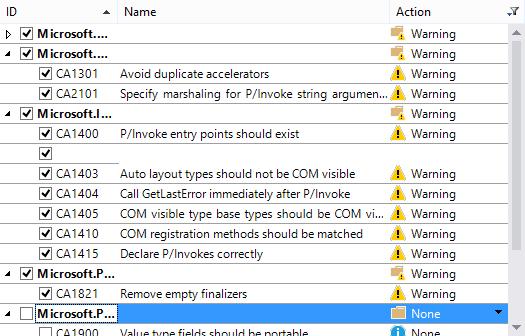

A trid control in Visual Studio
