UI_CONTROLDOCK enumeration (uiribbon.h)

Specifies values that identify the dock state of the Quick Access Toolbar (QAT).

Syntax

typedef enum UI_CONTROLDOCK {
  UI_CONTROLDOCK_TOP = 1,
  UI_CONTROLDOCK_BOTTOM = 3
} ;

Constants

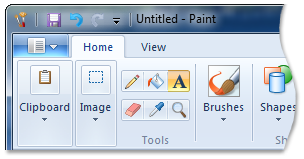

UI_CONTROLDOCK_TOP Value: 1 The QAT is docked in the nonclient area of the Ribbon host application, as shown in the following screen shot.
UI_CONTROLDOCK_BOTTOM Value: 3 The QAT is docked as a visually integral band below the Ribbon, as shown in the following screen shot.

Remarks

The QAT dock position is based on the UI_CONTROLDOCK value in UI_PKEY_QuickAccessToolbarDock.

Requirements

Requirement	Value
Minimum supported client	Windows 7, Windows Vista with SP2 and Platform Update for Windows Vista [desktop apps only]
Minimum supported server	Windows Server 2008 R2, Windows Server 2008 with SP2 and Platform Update for Windows Server 2008 [desktop apps only]
Header	uiribbon.h

See also

Constants and Enumerations

UI_PKEY_QuickAccessToolbarDock
