Working with the RealTimeStylus Class
The RealTimeStylus class is part of the StylusInput application programming interfaces (APIs). The following sections describe key elements of the RealTimeStylus class and the StylusInput APIs.
Instantiating the RealTimeStylus Class
When you create a RealTimeStylus object, you have the option of attaching it to a window handle or to a control. Attaching the RealTimeStylus object to a window handle requires additional permissions. For more information about these permissions, see Partial Trust Considerations for the StylusInput APIs.
Note
You cannot attach the RealTimeStylus object to a window or control in a different process.
If you use the default constructor, you create a RealTimeStylus object that can only accept input from another RealTimeStylus object. For more information about connecting two RealTimeStylus objects, see The Cascaded RealTimeStylus Model.
The RealTimeStylus object implements the IDisposable interface.
Extending the RealTimeStylus Class
To allow your plug-ins to interact with the data stream from the tablet pen, the RealTimeStylus object maintains two plug-in collections, which are accessible by the GetStylusSyncPlugin and the GetStylusAsyncPlugin methods in C++ and by the SyncPluginCollection and AsyncPluginCollection properties in managed code. You can add a plug-in by calling either the AddStylusSyncPlugin or the AddStylusAsyncPlugin method of the collection within the appropriate property. For more information about creating and using plug-ins, see Plug-ins and the RealTimeStylus Class. For information about deciding whether to create a synchronous or asynchronous plug-in for a particular task, see Threading Considerations for the StylusInput APIs and Performance Considerations for the StylusInput APIs.
Synchronous plug-ins must implement the IStylusSyncPlugin interface, and asynchronous plug-ins must implement the IStylusAsyncPlugin interface. Each plug-in has a IStylusSyncPlugin.DataInterest or IStylusAsyncPlugin.DataInterest property. The RealTimeStylus object calls only the notification methods of the plug-in for methods in which the plug-in has subscribed. For more information about the notification methods, see Plug-in Data and the RealTimeStylus Class.
The RealTimeStylus object implements the IStylusAsyncPlugin interface. The only way to instantiate a RealTimeStylus object that accepts input from another RealTimeStylus object is to use the default constructor and implement the cascaded RealTimeStylus model. For more information about connecting two RealTimeStylus objects see The Cascaded RealTimeStylus Model.
The RealTimeStylus object has two internal queues that carry the tablet pen data, the input queue and the output queue. The pen data is converted into instances of the classes in the Microsoft.StylusInput.PluginData namespace. The following list describes how the RealTimeStylus object handles the tablet pen data.
- The RealTimeStylus object checks for plug-in data objects first on its input queue and then from the tablet pen data stream.
- The RealTimeStylus object sends one plug-in data object to the objects in its synchronous plug-in collection. Each synchronous plug-in can add data to either the input or output queue.
- Once the plug-in data object has been sent to all members of the synchronous plug-in collection, the plug-in data object is placed on the RealTimeStylus object's output queue.
- The RealTimeStylus object then checks for the next plug-in data object to process.
- While the RealTimeStylus object's output queue contains data, the RealTimeStylus object sends one plug-in data object from its output queue to the objects in its asynchronous plug-in collection. Each asynchronous plug-in can add data to either the input or output queue, but since the asynchronous plug-ins run on the user interface (UI) thread, the data is added to the queue in relation to the current pen data the RealTimeStylus object is processing, and not in relation to the data that the asynchronous plug-in is processing.

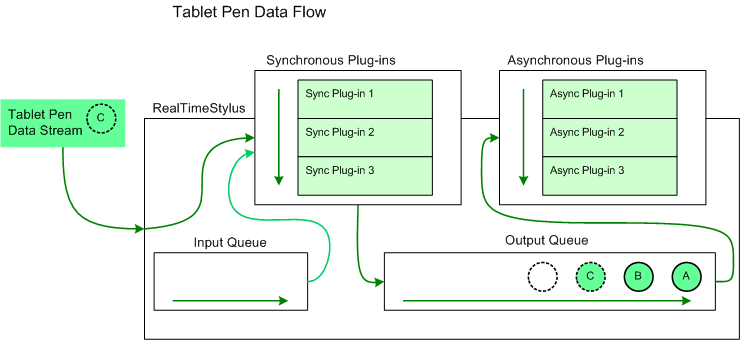

The following diagram illustrates the flow of tablet pen data through the RealTimeStylus object and its plug-in collections.
In this diagram the circles lettered "A" and "B" represent tablet pen data that has already been added to the RealTimeStylus object's output queue and that has not yet been sent to the asynchronous plug-in collection. The circle lettered "C" represents the tablet pen data that the RealTimeStylus object is currently processing. It is sent to the synchronous plug-in collection and placed on the output queue. The empty circle represents the position in the output queue where future tablet pen data is added.
For more information about how specific data is added to the queue and processed, see Plug-in Data and the RealTimeStylus Class.
The following is a minimal scenario for using the RealTimeStylus object on a form that collects ink.
- Create a form that implements the IStylusAsyncPlugin interface.
- Create a RealTimeStylus object attached to a control on the form.
- Set interest in the StylusDown, Packets, and StylusUp notifications in the form's IStylusAsyncPlugin.DataInterest property.
- In the form's StylusDown, Packets, and StylusUp methods, add code to handle the stylus down, packets, and stylus up notifications that are sent from the form's RealTimeStylus object.
For a sample of such an application, see the RealTimeStylus Ink Collection Sample.
Working with Tablet Objects
Each enabled RealTimeStylus object maintains a list of unique identifiers for the Tablet objects it can interact with. The RealTimeStylus object exposes two methods for translating between the unique identifier and the Tablet object: the GetTabletContextIdFromTablet and GetTabletFromTabletContextId methods.
The TabletPropertyDescription object (in managed code) contains a PacketPropertyId property and a TabletPropertyMetrics structure that describes the range, resolution, and units of the property for a specific Tablet object. The RealTimeStylus object's GetDesiredPacketDescription method returns an array of globally unique identifiers (GUIDs) for the packet properties that the RealTimeStylus object forwards to its plug-ins when those packet properties are available. To modify the set of packet properties the RealTimeStylus object passes to its plug-ins, call the RealTimeStylus object's SetDesiredPacketDescription method. The GetTabletPropertyDescriptionCollection method (in managed code) of the RealTimeStylus object takes a unique tablet identifier and returns a collection of TabletPropertyDescription objects. These packet properties represent the subset of properties supported by the tablet that are returned by the GetDesiredPacketDescription method.
For a list of the standard packet property GUIDs, see the PacketPropertyGuids Constants class.
Special Considerations
The following list describes other points to take into consideration when using the RealTimeStylus object with a Tablet object.
- The SetDesiredPacketDescription method can only be called while the Tablet object is disabled. The RealTimeStylus object may modify the list of desired packet properties; therefore, call the GetDesiredPacketDescription method after the call to the SetDesiredPacketDescription method to determine which packet properties the RealTimeStylus object can forward to its plug-ins. A tablet is only guaranteed to support the X, Y, and PacketStatus values for the PacketProperty. Therefore, your plug-in design may need to account for receiving fewer packet properties than desired.
- The GetTabletPropertyDescriptionCollection method (for managed code) can only be called while the RealTimeStylus object is enabled. Because notification can be sent to the async plug-ins after the RealTimeStylus object has been disabled, you may need to cache the information for each Tablet object. The GetTabletPropertyDescriptionCollection method returns a list of the desired packet properties that are supported by the specified tablet.
- When the RealTimeStylus object is enabled, each plug-in receives a call to its RealTimeStylusEnabled method. The RealTimeStylusEnabledData object passed in the notification contains a collection of the context identifiers for the available tablets at the time the RealTimeStylus object is enabled.
- When a tablet that the RealTimeStylus object can use is added to or removed from the Tablet PC while the RealTimeStylus object is enabled, the RealTimeStylus object notifies its plug-ins that a Tablet object has been added or removed. For more information, see Plug-in Data and the RealTimeStylus Class.
Working with Tablet Pens
The RealTimeStylus object passes information about the tablet pen to its plug-ins in a number of the notification methods. Information about the tablet pen is represented by a Stylus object, gotten through the GetStyluses method. This object is a representation of the tablet pen at the time the data was gathered. Because plug-ins receive the tablet pen data as part of the tablet pen data stream, the plug-ins should use the information in the Stylus object instead of checking for the current state of a particular tablet pen through the Cursor class. For information about how tablet pen and tablet pen button data is passed to plug-ins, see Plug-in Data and the RealTimeStylus Class.
To get an array of the Stylus objects that the RealTimeStylus object has encountered since it was last enabled, use the RealTimeStylus object's GetStyluses method.
