Migrating users to Microsoft Entra External ID

In this guide, you learn the fundamentals of how to migrate users and credentials from your current identity provider, including Azure AD B2C, to Microsoft Entra External ID. This guide covers different solutions you can use depending on your current configuration. With each of these approaches, you need to write an application or script that uses the Microsoft Graph API to create user accounts in External ID.

Important

Effective May 1, 2025, Azure AD B2C will no longer be available to purchase for new customers. To learn more, please see Is Azure AD B2C still available to purchase? in our FAQ.

Pre-requisites

Before you start migrating users to External ID, you need:

Preparation: Directory cleanup

Before starting your user migration process, you should take the time to clean up data in your legacy identity provider directory. Doing this helps ensure that you only migrate the data you need and makes the migration process smoother.

  • Identify the set of user attributes to be stored in External ID, and migrate only what you need. If necessary, you can create custom attributes within External ID to store more data about a user.
  • If you're migrating from an environment with multiple authentication sources (for example, each application has its own user directory), migrate to a unified account in External ID. You may need to apply your own business logic to merge and reconcile accounts for the same user from different sources.
  • Usernames need to be unique per account in External. If multiple applications use different usernames, you need to apply your own business logic to reconcile and merge accounts. For the password, let the user choose one and set it in the directory. Only the chosen password should be stored in the External ID account.
  • Remove unused user accounts, or don't migrate stale accounts.

Stage 1: User Data Migration

The first step in the migration process is to migrate user data from your legacy identity provider to External ID. This includes usernames and any other relevant attributes. To do this, you need to:

  1. Read the user accounts from your legacy identity provider.
  2. Create the corresponding user accounts in your External ID directory. For information about programmatically creating user accounts, see Manage Consumer user accounts with Microsoft Graph.
  3. If you have access to users' plaintext passwords, you can set them directly on the new accounts as you are migrating user data. If you don't have access to the plaintext passwords, you should set a random password for now that will be updated later as part of the password migration process.

Not all information in your legacy identity provider needs to be migrated to your External ID directory. The following recommendations can help you determine the appropriate set of user attributes to store in External ID.

DO store in External ID:

  • Username, password, email addresses, phone numbers, membership numbers/identifiers.
  • Consent markers for privacy policy and end-user license agreements.

DO NOT store in External ID:

  • Sensitive data like credit card numbers, social security numbers (SSN), medical records, or other data regulated by government or industry compliance bodies.
  • Marketing or communication preferences, user behaviors, and insights.

Stage 2: Password Migration

Once you have migrated user data, you need to migrate user passwords from the legacy identity provider to External ID. There are two recommended approaches for migrating user passwords: self-service password reset (SSPR) and seamless migration. If plaintext user passwords aren't accessible, you'll need to use one of these methods. For example, if:

  • The password is stored in Azure AD B2C.
  • The password is stored in a one-way encrypted format, such as with a hash function.
  • The password is stored by the legacy identity provider in a way that you can't access. For example, when the identity provider validates credentials by calling a web service.

Self Service Password Reset (SSPR)

Using the Self Service Password Reset (SSPR) feature in External ID, customers can manually set their password the first time they log in to the new system. This approach is simple to implement and doesn't require any custom code. However, it does require users to reset their passwords manually, which may be inconvenient for some users.

To use this approach, you first need to set up SSPR in your External ID tenant and configure the password reset policies. You then need to provide users with instructions on how to reset their passwords using SSPR when they log in for the first time. For example, you can send an email to users with instructions on how to reset their passwords or add instructions in your app before the user navigates to the sign in flow.

Seamless migration

If you have a large number of users, or if you want to provide a more seamless experience, you can use the seamless migration approach. This process allows users to continue using their existing passwords while migrating their accounts to External ID. To do this, you need to build a custom REST API to validate credentials entered by users against the legacy identity provider.

The seamless migration process consists of the following steps:

  1. Add an extension attribute to user accounts which flags their migration status.
  2. When a customer signs in, read the External ID user account corresponding to the email address entered.
  3. If a customer's account is already flagged as migrated, continue with the sign-in process.
  4. If the user's account is not flagged as already migrated, validate the password entered against the legacy identity provider.
    1. If the legacy IdP determines the password is incorrect, return a friendly error to the user.
    2. If the legacy IdP determines the password is correct, use the REST API to write the password to the External ID account and change the extension attribute to mark the account as migrated.

Seamless migration happens in two phases. First, legacy credentials are harvested and stored in External ID. Then, once credentials have been updated for a sufficient number of users, applications can be migrated to authenticate directly with External ID. At this point migrated users can continue to use their existing credentials. Any users who have not been migrated will need to reset their password when they log in for the first time.

The high-level design for the seamless migration process is shown in the following diagram:

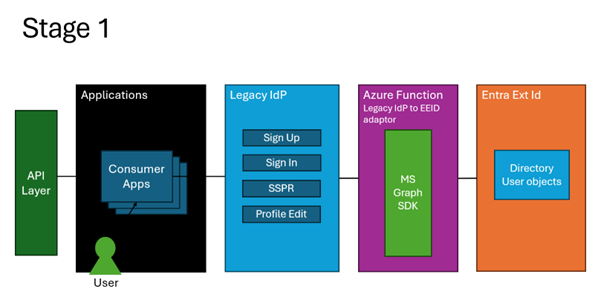

Harvest credentials from the legacy identity provider and update corresponding accounts in External ID.

A diagram showing the high-level design for the first phase of credential migration.

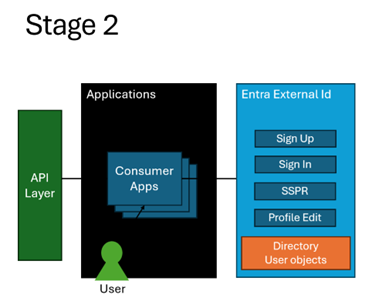

Stop harvesting credentials and migrate applications to authenticate with External ID. Decommission the legacy identity provider.

A diagram showing the high-level design for the second phase of credential migration.

Note

If you are using this approach it's important to protect your REST API against brute-force attacks. An attacker can submit several passwords in the hope of eventually guessing a user's credentials. To help defeat such attacks, stop serving requests to your REST API when the number of sign-in attempts passes a certain threshold.

Related content

If you are migrating from Azure AD B2C, the seamless user migration sample repository on GitHub contains a seamless migration custom policy example and REST API code sample.
