PenLineJoin Enum

  • Reference

Definition

Namespace:
System.Windows.Media
Assembly:
PresentationCore.dll

Describes the shape that joins two lines or segments.

C#
public enum PenLineJoin
Inheritance
Object
ValueType
Enum
PenLineJoin

Fields

Name Value Description
Miter 0

Regular angular vertices.
Bevel 1

Beveled vertices.
Round 2

Rounded vertices.

Examples

The following example shows several different joints used at the vertices of a shape.

XAML
<Canvas Height="400" Width="400">


  <Polyline
    Points="10,110 60,10 110,110"
    Stroke="Black"
    StrokeThickness="4" />

  <Polyline
    Points="10,110 110,110 110,10"
    Stroke="Black"
    StrokeThickness="4"
    Canvas.Left="150" />


  </Canvas>

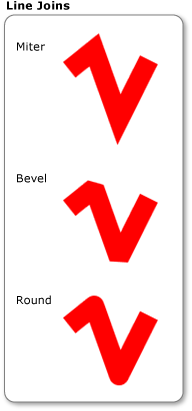

The following illustration shows the different line joins.

Example of line joins.

Applies to

Produkt Versiounen
.NET Framework 3.0, 3.5, 4.0, 4.5, 4.5.1, 4.5.2, 4.6, 4.6.1, 4.6.2, 4.7, 4.7.1, 4.7.2, 4.8, 4.8.1
Windows Desktop 3.0, 3.1, 5, 6, 7, 8, 9, 10

See also
