TextBlock Class

Definition

Provides a lightweight control for displaying small amounts of text.

public ref class TextBlock sealed : FrameworkElement
/// [Windows.Foundation.Metadata.Activatable(65536, Windows.Foundation.UniversalApiContract)]
/// [Windows.Foundation.Metadata.ContractVersion(Windows.Foundation.UniversalApiContract, 65536)]
/// [Windows.Foundation.Metadata.MarshalingBehavior(Windows.Foundation.Metadata.MarshalingType.Agile)]
/// [Windows.Foundation.Metadata.Threading(Windows.Foundation.Metadata.ThreadingModel.Both)]
/// [Windows.UI.Xaml.Markup.ContentProperty(Name="Inlines")]
class TextBlock final : FrameworkElement
/// [Windows.Foundation.Metadata.ContractVersion(Windows.Foundation.UniversalApiContract, 65536)]
/// [Windows.Foundation.Metadata.MarshalingBehavior(Windows.Foundation.Metadata.MarshalingType.Agile)]
/// [Windows.Foundation.Metadata.Threading(Windows.Foundation.Metadata.ThreadingModel.Both)]
/// [Windows.UI.Xaml.Markup.ContentProperty(Name="Inlines")]
/// [Windows.Foundation.Metadata.Activatable(65536, "Windows.Foundation.UniversalApiContract")]
class TextBlock final : FrameworkElement
[Windows.Foundation.Metadata.Activatable(65536, typeof(Windows.Foundation.UniversalApiContract))]
[Windows.Foundation.Metadata.ContractVersion(typeof(Windows.Foundation.UniversalApiContract), 65536)]
[Windows.Foundation.Metadata.MarshalingBehavior(Windows.Foundation.Metadata.MarshalingType.Agile)]
[Windows.Foundation.Metadata.Threading(Windows.Foundation.Metadata.ThreadingModel.Both)]
[Windows.UI.Xaml.Markup.ContentProperty(Name="Inlines")]
public sealed class TextBlock : FrameworkElement
[Windows.Foundation.Metadata.ContractVersion(typeof(Windows.Foundation.UniversalApiContract), 65536)]
[Windows.Foundation.Metadata.MarshalingBehavior(Windows.Foundation.Metadata.MarshalingType.Agile)]
[Windows.Foundation.Metadata.Threading(Windows.Foundation.Metadata.ThreadingModel.Both)]
[Windows.UI.Xaml.Markup.ContentProperty(Name="Inlines")]
[Windows.Foundation.Metadata.Activatable(65536, "Windows.Foundation.UniversalApiContract")]
public sealed class TextBlock : FrameworkElement
Public NotInheritable Class TextBlock
Inherits FrameworkElement
<TextBlock ...>text</TextBlock>
-or-
<TextBlock>
  oneOrMoreInlineElements
</TextBlock>
-or-
<TextBlock .../>
Inheritance
Object Platform::Object IInspectable DependencyObject UIElement FrameworkElement TextBlock
Attributes

Windows requirements

Device family
Windows 10 (introduced in 10.0.10240.0)
API contract
Windows.Foundation.UniversalApiContract (introduced in v1.0)

Examples

Tip

For more info, design guidance, and code examples, see Text block.

The WinUI 2 Gallery app includes interactive examples of most WinUI 2 controls, features, and functionality. Get the app from the Microsoft Store or get the source code on GitHub.

This example demonstrates a TextBlock with text selection enabled and text wrapping enabled.

Important

If using a keyboard for text selection within a TextBlock, the user must first activate Caret Browsing (with the app in the foreground, press F7).

The rendered text looks like this:

Text block with wrapped text
<TextBlock Text="This text demonstrates the wrapping behavior of a TextBlock." Width="240"
           IsTextSelectionEnabled="True" TextWrapping="Wrap"/>
TextBlock textBlock = new TextBlock();
textBlock.Text = "This text demonstrates the wrapping behavior of a TextBlock.";
textBlock.Width = 240;
textBlock.IsTextSelectionEnabled = true;
textBlock.TextWrapping = TextWrapping.Wrap;

// Add TextBlock to the visual tree.
rootPanel.Children.Add(textBlock);

This example shows how to customize the appearance of a TextBlock with a single Run of text. The FontWeight, FontFamily, FontStyle, Foreground color, and SelectionHighlightColor properties are customized.

The rendered text looks like this:

Text block with formatted text
<TextBlock Text="This text demonstrates some TextBlock properties."
           IsTextSelectionEnabled="True"
           SelectionHighlightColor="Green"
           Foreground="Blue"
           FontWeight="Light"
           FontFamily="Arial"
           FontStyle="Italic"/>
TextBlock textBlock = new TextBlock();
textBlock.Text = "This text demonstrates some TextBlock properties.";
textBlock.IsTextSelectionEnabled = true;
textBlock.SelectionHighlightColor = new SolidColorBrush(Windows.UI.Colors.Green);
textBlock.Foreground = new SolidColorBrush(Windows.UI.Colors.Blue);
textBlock.FontWeight = Windows.UI.Text.FontWeights.Light;
textBlock.FontFamily = new FontFamily("Arial");
textBlock.FontStyle = Windows.UI.Text.FontStyle.Italic;

// Add TextBlock to the visual tree.
rootPanel.Children.Add(textBlock);

This example demonstrates customizing different inline elements within a TextBlock.

The rendered text looks like this:

Text block with formatted inline elements
<TextBlock IsTextSelectionEnabled="True" SelectionHighlightColor="Green" FontFamily="Arial">
    <Run Foreground="Blue" FontWeight="Light" Text="This text demonstrates "></Run>
    <Span FontWeight="SemiBold">
        <Run FontStyle="Italic">the use of inlines </Run>
        <Run Foreground="Red">with formatting.</Run>
    </Span>
</TextBlock>
TextBlock textBlock = new TextBlock();
textBlock.IsTextSelectionEnabled = true;
textBlock.SelectionHighlightColor = new SolidColorBrush(Windows.UI.Colors.Green);
textBlock.FontFamily = new FontFamily("Arial");

// For Run and Span, add 'using Windows.UI.Xaml.Documents;'
Windows.UI.Xaml.Documents.Run run = new Run();
run.Foreground = new SolidColorBrush(Windows.UI.Colors.Blue);
run.FontWeight = Windows.UI.Text.FontWeights.Light;
run.Text = "This text demonstrates ";

Windows.UI.Xaml.Documents.Span span = new Span();
span.FontWeight = Windows.UI.Text.FontWeights.SemiBold;

Run run1 = new Run();
run1.FontStyle = Windows.UI.Text.FontStyle.Italic;
run1.Text = "the use of inlines ";

Run run2 = new Run();
run2.Foreground = new SolidColorBrush(Windows.UI.Colors.Red);
run2.Text = "with formatting.";

span.Inlines.Add(run1);
span.Inlines.Add(run2);
textBlock.Inlines.Add(run);
textBlock.Inlines.Add(span);

// Add TextBlock to the visual tree.
rootPanel.Children.Add(textBlock);

This example shows how to use an inline hyperlink. For more info, see Hyperlink.

<TextBlock><Hyperlink xml:space="preserve" NavigateUri="http://www.bing.com"> Hyperlink to Bing </Hyperlink></TextBlock>
// Create a TextBlock this is needed to put the hyperlink inside
TextBlock textBlock = new TextBlock();

// Create a Hyperlink and a Run.
// The Run is used as the visible content of the hyperlink.
Hyperlink hyperlink = new Hyperlink();
Run run = new Run();

// Set the Text property on the run.
// This is the visible text of the hyperlink.
run.Text = " Hyperlink to Bing ";

// Add the Run to the Hyperlink.
hyperlink.Inlines.Add(run);

// Set the URI for the Hyperlink.
hyperlink.NavigateUri = new Uri("http://www.bing.com");

// Add the Hyperlink to the TextBlock.
textBlock.Inlines.Add(hyperlink);

// Add TextBlock to the visual tree.
rootPanel.Children.Add(textBlock);

The following example shows how to use the LineStackingStrategy property to determine how the line boxes are created for text lines of a TextBlock. The first TextBlock has a LineStackingStrategy value of MaxHeight,the second TextBlock has a value of BlockLineHeight, and the third TextBlock has a value of BaselineToBaseline.

The rendered text looks like this:

Text block line stacking strategies
<StackPanel>

<!-- This TextBlock has a LineStackingStrategy set to "MaxHeight". -->
<TextBlock FontFamily="Verdana"
           LineStackingStrategy="MaxHeight"
           LineHeight="10"
           Width="500"
           TextWrapping="Wrap" >
    Use the <Run FontSize="30">LineStackingStrategy</Run> property to determine how a line box is
    created for each line. A value of <Run FontSize="20">MaxHeight</Run> specifies that the stack
    height is the smallest value that contains all the inline elements on that line when those
    elements are properly aligned. A value of <Run FontSize="20">BlockLineHeight</Run> specifies
    that the stack height is determined by the block element LineHeight property value. A value of
    <Run FontSize="20">BaselineToBaseline</Run> specifies that the stack height is determined by adding
    LineHeight to the baseline of the previous line.
</TextBlock>

<!-- With a margin pushing down 20 pixels, draw a line just above the second textblock. -->
<!-- The fonts will reach above the LineHeight size and over the line. -->
<StackPanel Margin="0,20,0,0" HorizontalAlignment="Center">
    <Line Stroke="Green"  X2="500" />
</StackPanel>

<!-- Here is the same TextBlock but the LineStackingStrategy is set to "BlockLineHeight". -->
<TextBlock FontFamily="Verdana"
           LineStackingStrategy="BlockLineHeight"
           LineHeight="10"
           Width="500"
           TextWrapping="Wrap">
    Use the <Run FontSize="30">LineStackingStrategy</Run> property to determine how a line box is
    created for each line. A value of <Run FontSize="20">MaxHeight</Run> specifies that the stack
    height is the smallest value that contains all the inline elements on that line when those
    elements are properly aligned. A value of <Run FontSize="20">BlockLineHeight</Run> specifies
    that the stack height is determined by the block element LineHeight property value. A value of
    <Run FontSize="20">BaselineToBaseline</Run> specifies that the stack height is determined by adding
    LineHeight to the baseline of the previous line.
</TextBlock>

<!-- With a margin pushing down 20 pixels, draw a line just above the third textblock. -->
<StackPanel Margin="0,20,0,0" HorizontalAlignment="Center">
    <Line Stroke="Green"  X2="500" />
</StackPanel>

<!-- Here is the same TextBlock but the LineStackingStrategy is set to "BaselineToBaseline". -->
<TextBlock FontFamily="Verdana"
           LineStackingStrategy="BaselineToBaseline"
           LineHeight="10"
           Width="500"
           TextWrapping="Wrap">
    Use the <Run FontSize="30">LineStackingStrategy</Run> property to determine how a line box is
    created for each line. A value of <Run FontSize="20">MaxHeight</Run> specifies that the stack
    height is the smallest value that contains all the inline elements on that line when those
    elements are properly aligned. A value of <Run FontSize="20">BlockLineHeight</Run> specifies
    that the stack height is determined by the block element LineHeight property value. A value of
    <Run FontSize="20">BaselineToBaseline</Run> specifies that the stack height is determined by adding
    LineHeight to the baseline of the previous line.
</TextBlock>

</StackPanel>

Remarks

Tip

For more info, design guidance, and code examples, see Text block.

TextBlock is the primary control for displaying read-only text in apps. You can use it to display single-line or multi-line text, inline hyperlinks, and text with formatting like bold, italic, or underlined.

Text block control

TextBlock is typically easier to use and provides better text rendering performance than RichTextBlock, so it's preferred for most app UI text. It also provides many of the same formatting options for customizing how your text is rendered. Although you can put line breaks in the text, TextBlock is designed to display a single paragraph and doesn’t support text indentation. Consider a RichTextBlock if you need support for multiple paragraphs, multi-column text, or inline UI elements like images.

Text performance

Starting in Windows 10, performance improvements were made to TextBlock that decrease overall memory use and greatly reduce the CPU time to do text measuring and arranging. To find out more about these performance improvements and how to make sure you are using them, see the Performance considerations section of the TextBlock control guide.

Built-in text styles

You can use Windows 10 text styles that ship with the platform to align the style of your text with the text used in the system. Here's how to use built-in styles to align with the Windows 10 type ramp. For more info, see XAML theme resources.

<TextBlock Text="Header" Style="{StaticResource HeaderTextBlockStyle}"/>
<TextBlock Text="SubHeader" Style="{StaticResource SubheaderTextBlockStyle}"/>
<TextBlock Text="Title" Style="{StaticResource TitleTextBlockStyle}"/>
<TextBlock Text="SubTitle" Style="{StaticResource SubtitleTextBlockStyle}"/>
<TextBlock Text="Base" Style="{StaticResource BaseTextBlockStyle}"/>
<TextBlock Text="Body" Style="{StaticResource BodyTextBlockStyle}"/>
<TextBlock Text="Caption" Style="{StaticResource CaptionTextBlockStyle}"/>

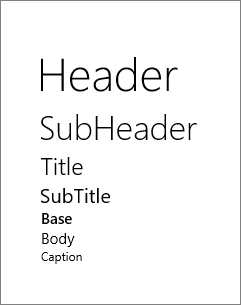

The rendered text looks like this:

Text block styles

Color fonts

By default TextBlock supports display color fonts. The default color font on the system is Segoe UI Emoji and the TextBlock will fall back to this font to display the glyphs in color. For more info, see the IsColorFontEnabled property.

<TextBlock FontSize="30">Hello ☺⛄☂♨⛅</TextBlock>

The rendered text looks like this:

Text block with color font

Version history

Windows version SDK version Value added
1607 14393 GetAlphaMask
1703 15063 TextDecorations
1709 16299 HorizontalTextAlignment
1709 16299 IsTextTrimmed
1709 16299 IsTextTrimmedChanged
1709 16299 TextHighlighters
1809 17763 CopySelectionToClipboard
1809 17763 SelectionFlyout

Constructors

TextBlock()

Initializes a new instance of the TextBlock class.

Properties

AccessKey

Gets or sets the access key (mnemonic) for this element.

(Inherited from UIElement)
AccessKeyScopeOwner

Gets or sets a source element that provides the access key scope for this element, even if it's not in the visual tree of the source element.

(Inherited from UIElement)
ActualHeight

Gets the rendered height of a FrameworkElement. See Remarks.

(Inherited from FrameworkElement)
ActualOffset

Gets the position of this UIElement, relative to its parent, computed during the arrange pass of the layout process.

(Inherited from UIElement)
ActualSize

Gets the size that this UIElement computed during the arrange pass of the layout process.

(Inherited from UIElement)
ActualTheme

Gets the UI theme that is currently used by the element, which might be different than the RequestedTheme.

(Inherited from FrameworkElement)
ActualWidth

Gets the rendered width of a FrameworkElement. See Remarks.

(Inherited from FrameworkElement)
AllowDrop

Gets or sets a value that determines whether this UIElement can be a drop target for purposes of drag-and-drop operations.

(Inherited from UIElement)
AllowFocusOnInteraction

Gets or sets a value that indicates whether the element automatically gets focus when the user interacts with it.

(Inherited from FrameworkElement)
AllowFocusWhenDisabled

Gets or sets whether a disabled control can receive focus.

(Inherited from FrameworkElement)
BaselineOffset

Returns a value by which each line of text is offset from a baseline.

BaseUri

Gets a Uniform Resource Identifier (URI) that represents the base Uniform Resource Identifier (URI) for an XAML-constructed object at XAML load time. This property is useful for Uniform Resource Identifier (URI) resolution at run time.

(Inherited from FrameworkElement)
CacheMode

Gets or sets a value that indicates that rendered content should be cached as a composited bitmap when possible.

(Inherited from UIElement)
CanBeScrollAnchor

Gets or sets a value that indicates whether the UIElement can be a candidate for scroll anchoring.

(Inherited from UIElement)
CanDrag

Gets or sets a value that indicates whether the element can be dragged as data in a drag-and-drop operation.

(Inherited from UIElement)
CenterPoint

Gets or sets the center point of the element, which is the point about which rotation or scaling occurs. Affects the rendering position of the element.

(Inherited from UIElement)
CharacterSpacing

Gets or sets the uniform spacing between characters, in units of 1/1000 of an em.

CharacterSpacingProperty

Identifies the CharacterSpacing dependency property.

Clip

Gets or sets the RectangleGeometry used to define the outline of the contents of a UIElement.

(Inherited from UIElement)
CompositeMode

Gets or sets a property that declares alternate composition and blending modes for the element in its parent layout and window. This is relevant for elements that are involved in a mixed XAML / Microsoft DirectX UI.

(Inherited from UIElement)
ContentEnd

Gets a TextPointer object for the end of text content in the TextBlock.

ContentStart

Gets a TextPointer object for the start of text content in the TextBlock.

ContextFlyout

Gets or sets the flyout associated with this element.

(Inherited from UIElement)
DataContext

Gets or sets the data context for a FrameworkElement. A common use of a data context is when a FrameworkElement uses the {Binding} markup extension and participates in data binding.

(Inherited from FrameworkElement)
DesiredSize

Gets the size that this UIElement computed during the measure pass of the layout process.

(Inherited from UIElement)
Dispatcher

Gets the CoreDispatcher that this object is associated with. The CoreDispatcher represents a facility that can access the DependencyObject on the UI thread even if the code is initiated by a non-UI thread.

(Inherited from DependencyObject)
ExitDisplayModeOnAccessKeyInvoked

Gets or sets a value that specifies whether the access key display is dismissed when an access key is invoked.

(Inherited from UIElement)
FlowDirection

Gets or sets the direction in which text and other UI elements flow within any parent element that controls their layout. This property can be set to either LeftToRight or RightToLeft. Setting FlowDirection to RightToLeft on any element sets the alignment to the right, the reading order to right-to-left and the layout of the control to flow from right to left.

(Inherited from FrameworkElement)
FocusVisualMargin

Gets or sets the outer margin of the focus visual for a FrameworkElement.

(Inherited from FrameworkElement)
FocusVisualPrimaryBrush

Gets or sets the brush used to draw the outer border of a HighVisibility or Reveal focus visual for a FrameworkElement.

(Inherited from FrameworkElement)
FocusVisualPrimaryThickness

Gets or sets the thickness of the outer border of a HighVisibility or Reveal focus visual for a FrameworkElement.

(Inherited from FrameworkElement)
FocusVisualSecondaryBrush

Gets or sets the brush used to draw the inner border of a HighVisibility or Reveal focus visual for a FrameworkElement.

(Inherited from FrameworkElement)
FocusVisualSecondaryThickness

Gets or sets the thickness of the inner border of a HighVisibility or Reveal focus visual for a FrameworkElement.

(Inherited from FrameworkElement)
FontFamily

Gets or sets the preferred top-level font family for the text content in this element.

FontFamilyProperty

Identifies the FontFamily  dependency property.

FontSize

Gets or sets the font size for the text content in this element.

FontSizeProperty

Identifies the FontSize  dependency property.

FontStretch

Gets or sets the font stretch for the text content in this element.

FontStretchProperty

Identifies the FontStretch  dependency property.

FontStyle

Gets or sets the font style for the content in this element.

FontStyleProperty

Identifies the FontStyle  dependency property.

FontWeight

Gets or sets the top-level font weight for the TextBlock.

FontWeightProperty

Identifies the FontWeight  dependency property.

Foreground

Gets or sets the Brush to apply to the text contents of the TextBlock.

ForegroundProperty

Identifies the Foreground  dependency property.

Height

Gets or sets the suggested height of a FrameworkElement.

(Inherited from FrameworkElement)
HighContrastAdjustment

Gets or sets a value that indicates whether the framework automatically adjusts the element's visual properties when high contrast themes are enabled.

(Inherited from UIElement)
HorizontalAlignment

Gets or sets the horizontal alignment characteristics that are applied to a FrameworkElement when it is composed in a layout parent, such as a panel or items control.

(Inherited from FrameworkElement)
HorizontalTextAlignment

Gets or sets a value that indicates how text is aligned in the TextBlock.

HorizontalTextAlignmentProperty

Identifies the HorizontalTextAlignment dependency property.

Inlines

Gets the collection of inline text elements within a TextBlock.

IsAccessKeyScope

Gets or sets a value that indicates whether an element defines its own access key scope.

(Inherited from UIElement)
IsColorFontEnabled

Gets or sets a value that determines whether font glyphs that contain color layers, such as Segoe UI Emoji, are rendered in color.

IsColorFontEnabledProperty

Identifies the IsColorFontEnabled dependency property.

IsDoubleTapEnabled

Gets or sets a value that determines whether the DoubleTapped event can originate from that element.

(Inherited from UIElement)
IsHitTestVisible

Gets or sets whether the contained area of this UIElement can return true values for hit testing.

(Inherited from UIElement)
IsHoldingEnabled

Gets or sets a value that determines whether the Holding event can originate from that element.

(Inherited from UIElement)
IsLoaded

Gets a value that indicates whether the element has been added to the element tree and is ready for interaction.

(Inherited from FrameworkElement)
IsRightTapEnabled

Gets or sets a value that determines whether the RightTapped event can originate from that element.

(Inherited from UIElement)
IsTapEnabled

Gets or sets a value that determines whether the Tapped event can originate from that element.

(Inherited from UIElement)
IsTextScaleFactorEnabled

Gets or sets whether automatic text enlargement, to reflect the system text size setting, is enabled.

IsTextScaleFactorEnabledProperty

Identifies the IsTextScaleFactorEnabled  dependency property.

IsTextSelectionEnabled

Gets or sets a value that indicates whether text selection is enabled in the TextBlock, either through user action or calling selection-related API.

IsTextSelectionEnabledProperty

Identifies the IsTextSelectionEnabled dependency property.

IsTextTrimmed

Gets a value that indicates whether the control has trimmed text that overflows the content area.

IsTextTrimmedProperty

Identifies the IsTextTrimmed dependency property.

KeyboardAcceleratorPlacementMode

Gets or sets a value that indicates whether the control tooltip displays the key combination for its associated keyboard accelerator.

(Inherited from UIElement)
KeyboardAcceleratorPlacementTarget

Gets or sets a value that indicates the control tooltip that displays the accelerator key combination.

(Inherited from UIElement)
KeyboardAccelerators

Gets the collection of key combinations that invoke an action using the keyboard.

Accelerators are typically assigned to buttons or menu items.

Example of a menu showing keyboard accelerators for various menu items
Example of a menu showing keyboard accelerators for various menu items

(Inherited from UIElement)
KeyTipHorizontalOffset

Gets or sets a value that indicates how far left or right the Key Tip is placed in relation to the UIElement.

(Inherited from UIElement)
KeyTipPlacementMode

Gets or sets a value that indicates where the access key Key Tip is placed in relation to the boundary of the UIElement.

(Inherited from UIElement)
KeyTipTarget

Gets or sets a value that indicates the element targeted by the access key Key Tip.

(Inherited from UIElement)
KeyTipVerticalOffset

Gets or sets a value that indicates how far up or down the Key Tip is placed in relation to the UI element.

(Inherited from UIElement)
Language

Gets or sets localization/globalization language information that applies to a FrameworkElement, and also to all child elements of the current FrameworkElement in the object representation and in UI.

(Inherited from FrameworkElement)
Lights

Gets the collection of XamlLight objects attached to this element.

(Inherited from UIElement)
LineHeight

Gets or sets the height of each line of content.

LineHeightProperty

Identifies the LineHeight  dependency property.

LineStackingStrategy

Gets or sets a value that indicates how a line box is determined for each line of text in the TextBlock.

LineStackingStrategyProperty

Identifies the LineStackingStrategy  dependency property.

ManipulationMode

Gets or sets the ManipulationModes value used for UIElement behavior and interaction with gestures. Setting this value enables handling the manipulation events from this element in app code.

(Inherited from UIElement)
Margin

Gets or sets the outer margin of a FrameworkElement.

(Inherited from FrameworkElement)
MaxHeight

Gets or sets the maximum height constraint of a FrameworkElement.

(Inherited from FrameworkElement)
MaxLines

Gets or sets the maximum number of lines of text shown in the TextBlock.

MaxLinesProperty

Identifies the MaxLines dependency property.

MaxWidth

Gets or sets the maximum width constraint of a FrameworkElement.

(Inherited from FrameworkElement)
MinHeight

Gets or sets the minimum height constraint of a FrameworkElement.

(Inherited from FrameworkElement)
MinWidth

Gets or sets the minimum width constraint of a FrameworkElement.

(Inherited from FrameworkElement)
Name

Gets or sets the identifying name of the object. When a XAML processor creates the object tree from XAML markup, run-time code can refer to the XAML-declared object by this name.

(Inherited from FrameworkElement)
Opacity

Gets or sets the degree of the object's opacity.

(Inherited from UIElement)
OpacityTransition

Gets or sets the ScalarTransition that animates changes to the Opacity property.

(Inherited from UIElement)
OpticalMarginAlignment

Get or sets a value that indicates how the font is modified to align with fonts of different sizes.

OpticalMarginAlignmentProperty

Identifies the OpticalMarginAlignment dependency property.

Padding

Gets or sets a value that indicates the thickness of padding space between the boundaries of the content area and the content displayed by a TextBlock.

PaddingProperty

Identifies the Padding  dependency property.

Parent

Gets the parent object of this FrameworkElement in the object tree.

(Inherited from FrameworkElement)
PointerCaptures

Gets the set of all captured pointers, represented as Pointer values.

(Inherited from UIElement)
Projection

Gets or sets the perspective projection (3-D effect) to apply when rendering this element.

(Inherited from UIElement)
RenderSize

Gets the final render size of a UIElement. Use is not recommended, see Remarks.

(Inherited from UIElement)
RenderTransform

Gets or sets transform information that affects the rendering position of a UIElement.

(Inherited from UIElement)
RenderTransformOrigin

Gets or sets the origin point of any possible render transform declared by RenderTransform, relative to the bounds of the UIElement.

(Inherited from UIElement)
RequestedTheme

Gets or sets the UI theme that is used by the UIElement (and its child elements) for resource determination. The UI theme you specify with RequestedTheme can override the app-level RequestedTheme.

(Inherited from FrameworkElement)
Resources

Gets the locally defined resource dictionary. In XAML, you can establish resource items as child object elements of a frameworkElement.Resources property element, through XAML implicit collection syntax.

(Inherited from FrameworkElement)
Rotation

Gets or sets the angle of clockwise rotation, in degrees. Rotates relative to the RotationAxis and the CenterPoint. Affects the rendering position of the element.

(Inherited from UIElement)
RotationAxis

Gets or sets the axis to rotate the element around.

(Inherited from UIElement)
RotationTransition

Gets or sets the ScalarTransition that animates changes to the Rotation property.

(Inherited from UIElement)
Scale

Gets or sets the scale of the element. Scales relative to the element's CenterPoint. Affects the rendering position of the element.

(Inherited from UIElement)
ScaleTransition

Gets or sets the Vector3Transition that animates changes to the Scale property.

(Inherited from UIElement)
SelectedText

Gets a text range of selected text.

SelectedTextProperty

Identifies the SelectedText dependency property.

SelectionEnd

Gets the end position of the text selected in the TextBlock.

SelectionFlyout

Gets or sets the flyout that is shown when text is selected using touch or pen, or null if no flyout is shown.

SelectionFlyoutProperty

Identifies the SelectionFlyout dependency property.

SelectionHighlightColor

Gets or sets the brush used to highlight the selected text.

SelectionHighlightColorProperty

Identifies the SelectionHighlightColor dependency property.

SelectionStart

Gets the starting position of the text selected in the TextBlock.

Shadow

Gets or sets the shadow effect cast by the element.

(Inherited from UIElement)
Style

Gets or sets an instance Style that is applied for this object during layout and rendering.

(Inherited from FrameworkElement)
TabFocusNavigation

Gets or sets a value that modifies how tabbing and TabIndex work for this control.

(Inherited from UIElement)
Tag

Gets or sets an arbitrary object value that can be used to store custom information about this object.

(Inherited from FrameworkElement)
Text

Gets or sets the text contents of a TextBlock.

TextAlignment

Gets or sets a value that indicates the horizontal alignment of text content.

TextAlignmentProperty

Identifies the TextAlignment  dependency property.

TextDecorations

Gets or sets a value that indicates what decorations are applied to the text.

TextDecorationsProperty

Identifies the TextDecorations dependency property.

TextHighlighters

Gets the collection of text highlights.

TextLineBounds

Gets or sets a value that indicates how the line box height is determined for each line of text in the TextBlock.

TextLineBoundsProperty

Identifies the TextLineBounds dependency property.

TextProperty

Identifies the Text  dependency property.

TextReadingOrder

Gets or sets a value that indicates how the reading order is determined for the TextBlock.

TextReadingOrderProperty

Identifies the TextReadingOrder dependency property.

TextTrimming

Gets or sets the text trimming behavior to employ when content overflows the content area.

TextTrimmingProperty

Identifies the TextTrimming dependency property.

TextWrapping

Gets or sets how the TextBlock wraps text.

TextWrappingProperty

Identifies the TextWrapping  dependency property.

Transform3D

Gets or sets the 3-D transform effect to apply when rendering this element.

(Inherited from UIElement)
TransformMatrix

Gets or sets the transformation matrix to apply to the element.

(Inherited from UIElement)
Transitions

Gets or sets the collection of Transition style elements that apply to a UIElement.

(Inherited from UIElement)
Translation

Gets or sets the x, y, and z rendering position of the element.

(Inherited from UIElement)
TranslationTransition

Gets or sets the Vector3Transition that animates changes to the Translation property.

(Inherited from UIElement)
Triggers

Gets the collection of triggers for animations that are defined for a FrameworkElement. Not commonly used. See Remarks.

(Inherited from FrameworkElement)
UIContext

Gets the context identifier for the element.

(Inherited from UIElement)
UseLayoutRounding

Gets or sets a value that determines whether rendering for the object and its visual subtree should use rounding behavior that aligns rendering to whole pixels.

(Inherited from UIElement)
VerticalAlignment

Gets or sets the vertical alignment characteristics that are applied to a FrameworkElement when it is composed in a parent object such as a panel or items control.

(Inherited from FrameworkElement)
Visibility

Gets or sets the visibility of a UIElement. A UIElement that is not visible is not rendered and does not communicate its desired size to layout.

(Inherited from UIElement)
Width

Gets or sets the width of a FrameworkElement.

(Inherited from FrameworkElement)
XamlRoot

Gets or sets the XamlRoot in which this element is being viewed.

(Inherited from UIElement)
XYFocusDownNavigationStrategy

Gets or sets a value that specifies the strategy used to determine the target element of a down navigation.

(Inherited from UIElement)
XYFocusKeyboardNavigation

Gets or sets a value that enables or disables navigation using the keyboard directional arrows.

(Inherited from UIElement)
XYFocusLeftNavigationStrategy

Gets or sets a value that specifies the strategy used to determine the target element of a left navigation.

(Inherited from UIElement)
XYFocusRightNavigationStrategy

Gets or sets a value that specifies the strategy used to determine the target element of a right navigation.

(Inherited from UIElement)
XYFocusUpNavigationStrategy

Gets or sets a value that specifies the strategy used to determine the target element of an up navigation.

(Inherited from UIElement)

Methods

AddHandler(RoutedEvent, Object, Boolean)

Adds a routed event handler for a specified routed event, adding the handler to the handler collection on the current element. Specify handledEventsToo as true to have the provided handler be invoked even if the event is handled elsewhere.

(Inherited from UIElement)
Arrange(Rect)

Positions child objects and determines a size for a UIElement. Parent objects that implement custom layout for their child elements should call this method from their layout override implementations to form a recursive layout update.

(Inherited from UIElement)
ArrangeOverride(Size)

Provides the behavior for the "Arrange" pass of layout. Classes can override this method to define their own "Arrange" pass behavior.

(Inherited from FrameworkElement)
CancelDirectManipulations()

Cancels ongoing direct manipulation processing (system-defined panning/zooming) on any ScrollViewer parent that contains the current UIElement.

(Inherited from UIElement)
CapturePointer(Pointer)

Sets pointer capture to a UIElement. Once captured, only the element that has capture will fire pointer-related events.

(Inherited from UIElement)
ClearValue(DependencyProperty)

Clears the local value of a dependency property.

(Inherited from DependencyObject)
CopySelectionToClipboard()

Copies the selected content to the Windows clipboard.

FindName(String)

Retrieves an object that has the specified identifier name.

(Inherited from FrameworkElement)
FindSubElementsForTouchTargeting(Point, Rect)

Enables a UIElement subclass to expose child elements that assist with resolving touch targeting.

(Inherited from UIElement)
Focus(FocusState)

Focuses the TextBlock, as if it were a conventionally focusable control.

GetAlphaMask()

Returns a mask that represents the alpha channel of the text as a CompositionBrush.

GetAnimationBaseValue(DependencyProperty)

Returns any base value established for a dependency property, which would apply in cases where an animation is not active.

(Inherited from DependencyObject)
GetBindingExpression(DependencyProperty)

Returns the BindingExpression that represents the binding on the specified property.

(Inherited from FrameworkElement)
GetChildrenInTabFocusOrder()

Enables a UIElement subclass to expose child elements that take part in Tab focus.

(Inherited from UIElement)
GetValue(DependencyProperty)

Returns the current effective value of a dependency property from a DependencyObject.

(Inherited from DependencyObject)
GoToElementStateCore(String, Boolean)

When implemented in a derived class, enables per-state construction of a visual tree for a control template in code, rather than by loading XAML for all states at control startup.

(Inherited from FrameworkElement)
InvalidateArrange()

Invalidates the arrange state (layout) for a UIElement. After the invalidation, the UIElement will have its layout updated, which will occur asynchronously.

(Inherited from UIElement)
InvalidateMeasure()

Invalidates the measurement state (layout) for a UIElement.

(Inherited from UIElement)
InvalidateViewport()

Invalidates the viewport state for a UIElement that is used to calculate the effective viewport.

(Inherited from FrameworkElement)
Measure(Size)

Updates the DesiredSize of a UIElement. Typically, objects that implement custom layout for their layout children call this method from their own MeasureOverride implementations to form a recursive layout update.

(Inherited from UIElement)
MeasureOverride(Size)

Provides the behavior for the "Measure" pass of the layout cycle. Classes can override this method to define their own "Measure" pass behavior.

(Inherited from FrameworkElement)
OnApplyTemplate()

Invoked whenever application code or internal processes (such as a rebuilding layout pass) call ApplyTemplate. In simplest terms, this means the method is called just before a UI element displays in your app. Override this method to influence the default post-template logic of a class.

(Inherited from FrameworkElement)
OnBringIntoViewRequested(BringIntoViewRequestedEventArgs)

Called before the BringIntoViewRequested event occurs.

(Inherited from UIElement)
OnCreateAutomationPeer()

When implemented in a derived class, returns class-specific AutomationPeer implementations for the Microsoft UI Automation infrastructure.

(Inherited from UIElement)
OnDisconnectVisualChildren()

Override this method to implement how layout and logic should behave when items are removed from a class-specific content or children property.

(Inherited from UIElement)
OnKeyboardAcceleratorInvoked(KeyboardAcceleratorInvokedEventArgs)

Called when a keyboard shortcut (or accelerator) is processed in your app. Override this method to handle how your app responds when a keyboard accelerator is invoked.

(Inherited from UIElement)
OnProcessKeyboardAccelerators(ProcessKeyboardAcceleratorEventArgs)

Called just before a keyboard shortcut (or accelerator) is processed in your app. Invoked whenever application code or internal processes call ProcessKeyboardAccelerators. Override this method to influence the default accelerator handling.

(Inherited from UIElement)
PopulatePropertyInfo(String, AnimationPropertyInfo)

Defines a property that can be animated.

(Inherited from UIElement)
PopulatePropertyInfoOverride(String, AnimationPropertyInfo)

When overridden in a derived class, defines a property that can be animated.

(Inherited from UIElement)
ReadLocalValue(DependencyProperty)

Returns the local value of a dependency property, if a local value is set.

(Inherited from DependencyObject)
RegisterPropertyChangedCallback(DependencyProperty, DependencyPropertyChangedCallback)

Registers a notification function for listening to changes to a specific DependencyProperty on this DependencyObject instance.

(Inherited from DependencyObject)
ReleasePointerCapture(Pointer)

Releases pointer captures for capture of one specific pointer by this UIElement.

(Inherited from UIElement)
ReleasePointerCaptures()

Releases all pointer captures held by this element.

(Inherited from UIElement)
RemoveHandler(RoutedEvent, Object)

Removes the specified routed event handler from this UIElement. Typically the handler in question was added by AddHandler.

(Inherited from UIElement)
Select(TextPointer, TextPointer)

Selects a range of text in the TextBlock.

SelectAll()

Selects the entire contents in the TextBlock.

SetBinding(DependencyProperty, BindingBase)

Attaches a binding to a FrameworkElement, using the provided binding object.

(Inherited from FrameworkElement)
SetValue(DependencyProperty, Object)

Sets the local value of a dependency property on a DependencyObject.

(Inherited from DependencyObject)
StartAnimation(ICompositionAnimationBase)

Begins the specified animation on the element.

(Inherited from UIElement)
StartBringIntoView()

Initiates a request to the XAML framework to bring the element into view within any scrollable regions it is contained within.

(Inherited from UIElement)
StartBringIntoView(BringIntoViewOptions)

Initiates a request to the XAML framework to bring the element into view using the specified options.

(Inherited from UIElement)
StartDragAsync(PointerPoint)

Initiates a drag-and-drop operation.

(Inherited from UIElement)
StopAnimation(ICompositionAnimationBase)

Stops the specified animation on the element.

(Inherited from UIElement)
TransformToVisual(UIElement)

Returns a transform object that can be used to transform coordinates from the UIElement to the specified object.

(Inherited from UIElement)
TryInvokeKeyboardAccelerator(ProcessKeyboardAcceleratorEventArgs)

Attempts to invoke a keyboard shortcut (or accelerator) by searching the entire visual tree of the UIElement for the shortcut.

(Inherited from UIElement)
UnregisterPropertyChangedCallback(DependencyProperty, Int64)

Cancels a change notification that was previously registered by calling RegisterPropertyChangedCallback.

(Inherited from DependencyObject)
UpdateLayout()

Ensures that all positions of child objects of a UIElement are properly updated for layout.

(Inherited from UIElement)

Events

AccessKeyDisplayDismissed

Occurs when access keys should no longer be displayed.

(Inherited from UIElement)
AccessKeyDisplayRequested

Occurs when the user requests that access keys be displayed.

(Inherited from UIElement)
AccessKeyInvoked

Occurs when a user completes an access key sequence.

(Inherited from UIElement)
ActualThemeChanged

Occurs when the ActualTheme property value has changed.

(Inherited from FrameworkElement)
BringIntoViewRequested

Occurs when StartBringIntoView is called on this element or one of its descendants.

(Inherited from UIElement)
CharacterReceived

Occurs when a single, composed character is received by the input queue.

(Inherited from UIElement)
ContextCanceled

Occurs when a context input gesture continues into a manipulation gesture, to notify the element that the context flyout should not be opened.

(Inherited from UIElement)
ContextMenuOpening

Occurs when the system processes an interaction that displays a context menu.

ContextRequested

Occurs when the user has completed a context input gesture, such as a right-click.

(Inherited from UIElement)
DataContextChanged

Occurs when the value of the FrameworkElement.DataContext property changes.

(Inherited from FrameworkElement)
DoubleTapped

Occurs when an otherwise unhandled DoubleTap interaction occurs over the hit test area of this element.

(Inherited from UIElement)
DragEnter

Occurs when the input system reports an underlying drag event with this element as the target.

(Inherited from UIElement)
DragLeave

Occurs when the input system reports an underlying drag event with this element as the origin.

(Inherited from UIElement)
DragOver

Occurs when the input system reports an underlying drag event with this element as the potential drop target.

(Inherited from UIElement)
DragStarting

Occurs when a drag operation is initiated.

(Inherited from UIElement)
Drop

Occurs when the input system reports an underlying drop event with this element as the drop target.

(Inherited from UIElement)
DropCompleted

Occurs when a drag-and-drop operation with this element as the source is ended.

(Inherited from UIElement)
EffectiveViewportChanged

Occurs when the FrameworkElement's effective viewport changes.

(Inherited from FrameworkElement)
GettingFocus

Occurs before a UIElement receives focus. This event is raised synchronously to ensure focus isn't moved while the event is bubbling.

(Inherited from UIElement)
GotFocus

Occurs when a UIElement receives focus. This event is raised asynchronously, so focus can move again before bubbling is complete.

(Inherited from UIElement)
Holding

Occurs when an otherwise unhandled Hold interaction occurs over the hit test area of this element.

(Inherited from UIElement)
IsTextTrimmedChanged

Occurs when the IsTextTrimmed property value has changed.

KeyDown

Occurs when a keyboard key is pressed while the UIElement has focus.

(Inherited from UIElement)
KeyUp

Occurs when a keyboard key is released while the UIElement has focus.

(Inherited from UIElement)
LayoutUpdated

Occurs when the layout of the visual tree changes, due to layout-relevant properties changing value or some other action that refreshes the layout.

(Inherited from FrameworkElement)
Loaded

Occurs when a FrameworkElement has been constructed and added to the object tree, and is ready for interaction.

(Inherited from FrameworkElement)
Loading

Occurs when a FrameworkElement begins to load.

(Inherited from FrameworkElement)
LosingFocus

Occurs before a UIElement loses focus. This event is raised synchronously to ensure focus isn't moved while the event is bubbling.

(Inherited from UIElement)
LostFocus

Occurs when a UIElement loses focus. This event is raised asynchronously, so focus can move again before bubbling is complete.

(Inherited from UIElement)
ManipulationCompleted

Occurs when a manipulation on the UIElement is complete.

(Inherited from UIElement)
ManipulationDelta

Occurs when the input device changes position during a manipulation.

(Inherited from UIElement)
ManipulationInertiaStarting

Occurs when the input device loses contact with the UIElement object during a manipulation and inertia begins.

(Inherited from UIElement)
ManipulationStarted

Occurs when an input device begins a manipulation on the UIElement.

(Inherited from UIElement)
ManipulationStarting

Occurs when the manipulation processor is first created.

(Inherited from UIElement)
NoFocusCandidateFound

Occurs when a user attempts to move focus (via tab or directional arrows), but focus doesn't move because no focus candidate is found in the direction of movement.

(Inherited from UIElement)
PointerCanceled

Occurs when a pointer that made contact abnormally loses contact.

(Inherited from UIElement)
PointerCaptureLost

Occurs when pointer capture previously held by this element moves to another element or elsewhere.

(Inherited from UIElement)
PointerEntered

Occurs when a pointer enters the hit test area of this element.

(Inherited from UIElement)
PointerExited

Occurs when a pointer leaves the hit test area of this element.

(Inherited from UIElement)
PointerMoved

Occurs when a pointer moves while the pointer remains within the hit test area of this element.

(Inherited from UIElement)
PointerPressed

Occurs when the pointer device initiates a Press action within this element.

(Inherited from UIElement)
PointerReleased

Occurs when the pointer device that previously initiated a Press action is released, while within this element. Note that the end of a Press action is not guaranteed to fire a PointerReleased event; other events may fire instead. For more info, see Remarks.

(Inherited from UIElement)
PointerWheelChanged

Occurs when the delta value of a pointer wheel changes.

(Inherited from UIElement)
PreviewKeyDown

Occurs when a keyboard key is pressed while the UIElement has focus.

(Inherited from UIElement)
PreviewKeyUp

Occurs when a keyboard key is released while the UIElement has focus.

(Inherited from UIElement)
ProcessKeyboardAccelerators

Occurs when a keyboard shortcut (or accelerator) is pressed.

(Inherited from UIElement)
RightTapped

Occurs when a right-tap input stimulus happens while the pointer is over the element.

(Inherited from UIElement)
SelectionChanged

Occurs when the text selection has changed.

SizeChanged

Occurs when either the ActualHeight or the ActualWidth property changes value on a FrameworkElement.

(Inherited from FrameworkElement)
Tapped

Occurs when an otherwise unhandled Tap interaction occurs over the hit test area of this element.

(Inherited from UIElement)
Unloaded

Occurs when this object is no longer connected to the main object tree.

(Inherited from FrameworkElement)

Applies to

See also
