[Word Bug] Multilevel List Centered on Screen but Left-Aligned in Print/PDF (Cloud Sync Conflict?)

Question

[Environment]

• Issue: Level 1 Heading (Chapter Ⅰ) is Centered in Edit View but Left-Aligned in Print Preview/PDF.
• Version: Word for Microsoft 365 MSO (Version 2601 Build 16.0.19628.20204) 64-bit.
• Context: Using a standard university template.

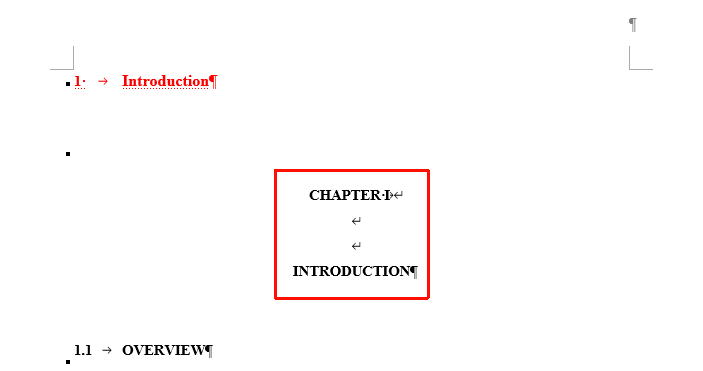

• Word Page Display:

Print Preview (and exported PDF):

[Troubleshooting Done]

Export Test: "Save as PDF", "Export", and "Microsoft Print to PDF" all result in Left Alignment.

Format Check: Paragraph alignment is set to Center. Indents are 0.

List Settings: Checked Multilevel List settings. "Aligned at" and "Text indent" are both 0cm.

Structure Fix: Replaced Soft Return (Shift+Enter) with Hard Return (Enter). The body text centers correctly, but the List Heading (Chapter Ⅰ) stays left-aligned in print.

Template Reset: Renamed Normal.dotm. No change.

6. [CRITICAL FINDING] User Profile Configuration Conflict

Test: I performed a clean reset of Word's local configuration to test the default factory behavior.

Observation A (Default Factory Settings): Before my user profile and cloud preferences were loaded, Print Preview worked correctly (Centered).

Observation B (After Syncing Profile): As soon as Word loaded my user profile settings (Cloud Sync), the Print Preview reverted to Left Alignment.

Conclusion: There seems to be a specific, hidden preference setting (possibly related to "Printer Metrics" or "Layout Options") stored in the cloud profile that overrides the local document formatting.

[Question] Does anyone know which specific Registry Key or Advanced Option controls the discrepancy between "Screen Layout" and "Print Layout" for Multilevel Lists? I need to disable this specific sync behavior or correct the underlying setting without creating a new account.

Answer 1

(Please note that this is Chinese Q&A Forum, any threads should be posted in Chinese. However, I will still provide an answer on English based on your initial response.)

Hi, Hary Dan

Welcome to Microsoft Q&A forum.

Sorry for this unwanted experience that you're facing. What you are seeing is almost always caused by Word using different layout rules for “printing output” than for on-screen layout, typically driven by a compatibility option that makes Word consult printer metrics, so the same paragraph can reflow or “snap” alignment differently when rendered for Print Preview or PDF.

Here are some suggestions you can try:

Turn off “Use printer metrics to lay out document” (document-specific)

In Word, go to File > Options > Advanced, then scroll to the bottom to Compatibility options for: pick your current document, expand Layout Options, and clear “Use printer metrics to lay out document”. This matters because when it is enabled Word bases layout on the active printer driver, which can change how list paragraphs are positioned in Print Preview and PDF.

If you cannot find that checkbox in your .docx, expose it via a .doc round-trip

Some builds only surface that option when the file is in older Word format. Save a copy as Word 97-2003 Document (.doc), adjust the compatibility setting there, then save back to .docx. This works because the printer-metrics behavior is controlled by a compatibility flag, not by normal paragraph alignment settings.

Disable print-time scaling that can subtly shift layout

File > Options > Advanced, under Print, uncheck “Scale content for A4 or 8.5”x11” paper sizes”. Scaling is intended to help mixed paper environments, but it can introduce tiny reflow differences that show up most in headings and list formats when printing to PDF.

Force a consistent “printer context” and rule out driver effects

Set Microsoft Print to PDF as the default printer, restart Word, and ensure you are not switching printers between views. Word’s print layout can change with different drivers, and that change is visible in Print Preview and the final output.

Confirm it is not a synced Office profile behavior by testing signed-out mode

Since you already observed the issue appears after your profile loads, do a quick isolation test by signing out of the Office account in Word (the subscription remains valid). If the behavior stops, it strongly points to a roaming, connected-services preference being reapplied rather than a document formatting problem.

Hope this helps. Feel free to get back if you need further assistance.

---
