教程：使用 GeoJSON 作为使用 REST API 的数据层创建地图

结构映射由 公共定义 （map.json 文件）定义，描述了底图、数据源、层源和层渲染设置。自动创建地图的最可靠方法是使用 公共定义内联创建地图，以便地图准备好在创建后立即呈现层。 Map 定义结构记录在 Map 项定义一文中。

在本教程中，你将从头开始构建一个 Python 应用，该应用：

使用 Lakehouse REST API 在 Fabric 工作区中创建 Lakehouse （支持 LRO）。
通过 OneLake DFS API（GUID 寻址）将 GeoJSON 文件上传到 Lakehouse 文件/区域。
将 自定义 SVG 标记 上传到相同的 Lakehouse，然后从地图定义（iconSources）中引用它。
使用创建地图 API（支持使用公共定义创建并支持 LRO），创建一个带有 map.json 内联定义的 Map。

使用 Fabric REST API 创建 Lakehouse
将 GeoJSON 文件上传到 OneLake
将自定义 SVG 标记图标上传到 OneLake
生成引用 Lakehouse 数据的 map.json 定义
使用提供的行内定义创建Fabric Map

先决条件

Python 3.9 或更高版本
Azure cli
Fabric 工作区 ID
Microsoft Entra 访问令牌，其中包含：
- Item.ReadWrite.All

Authentication

本教程使用 DefaultAzureCredential，可以使用多个本地/开发凭据源进行身份验证。对于首次读取者，最简单的方法是 Azure CLI 登录。

在本地进行身份验证（建议首次运行）

打开终端。
Run:

az login

DefaultAzureCredential 可以使用登录标识获取以下项的访问令牌：

面料REST API（资源：https://api.fabric.microsoft.com/.default）
OneLake 通过与 ADLS 兼容的终结点进行访问（OneLake 支持现有的 ADLS/Blob 工具和 SDK）。 OneLake 支持使用 ADLS Gen2 API 和 SDK 浏览和读取/写入数据，包括工作区和项的基于 GUID 的寻址。

小窍门

关于 https://api.fabric.microsoft.com/.default 此值是 令牌请求范围，而不是一个可以直接调用的 URL。它告诉Microsoft Entra，应为 Microsoft Fabric REST API 颁发访问令牌，并应包括 已授予身份验证标识的所有 Fabric 权限 （如 Item.ReadWrite.All 或 Workspace.ReadWrite.All）。

范围 .default 仅在令牌获取期间使用，永远不会发送到 Fabric REST API 终结点。

有关 .default 作用域在微软身份平台中的工作原理的详细信息，请参阅微软身份平台中的作用域和权限。

在运行本教程之前，建议至少登录到 Microsoft Fabric 一次：

https://app.fabric.microsoft.com

登录可确保在以编程方式获取 Microsoft Entra 访问令牌之前完全预配 Fabric 标识、工作区角色成员身份和容量分配。

如果执行以下步骤，则此步骤特别有用：

您是 Microsoft Fabric 的新用户
最近创建了工作区
您的角色分配最近已添加

注释

本教程通过 DefaultAzureCredential 使用 Microsoft Entra ID 进行身份验证。 Fabric REST API 不需要浏览器会话，但登录到 Fabric Web 体验可以防止因角色预配延迟而导致的首次运行授权问题。

创建 GeoJSON 文件

GeoJSON 文件用于创建地图项数据层。创建文件后，更新 local_geojson_path 变量以反映正确的路径。

复制以下 GeoJSON 并将其粘贴到空白文本文件中，并将其另存为 starbucks-seattle.geojson：

{
  "type": "FeatureCollection",
  "features": [
    {
      "type": "Feature",
      "properties": { "name": "Starbucks - 999 3rd Ave" },
      "geometry": { "type": "Point", "coordinates": [-122.334389, 47.605278] }
    },
    {
      "type": "Feature",
      "properties": { "name": "Starbucks - 1201 3rd Ave" },
      "geometry": { "type": "Point", "coordinates": [-122.335167, 47.608040] }
    },
    {
      "type": "Feature",
      "properties": { "name": "Starbucks - 221 Pike St" },
      "geometry": { "type": "Point", "coordinates": [-122.340057, 47.609450] }
    },
    {
      "type": "Feature",
      "properties": { "name": "Starbucks - 800 5th Ave" },
      "geometry": { "type": "Point", "coordinates": [-122.330048, 47.604550] }
    },
    {
      "type": "Feature",
      "properties": { "name": "Starbucks - 1420 5th Ave" },
      "geometry": { "type": "Point", "coordinates": [-122.334091, 47.610041] }
    },
    {
      "type": "Feature",
      "properties": { "name": "Starbucks - 1524 7th Ave" },
      "geometry": { "type": "Point", "coordinates": [-122.334915, 47.614498] }
    },
    {
      "type": "Feature",
      "properties": { "name": "Starbucks - 2011 7th Ave" },
      "geometry": { "type": "Point", "coordinates": [-122.338165, 47.616341] }
    },
    {
      "type": "Feature",
      "properties": { "name": "Starbucks - 2001 8th Ave" },
      "geometry": { "type": "Point", "coordinates": [-122.338806, 47.616848] }
    },
    {
      "type": "Feature",
      "properties": { "name": "Starbucks - 4147 University Way NE" },
      "geometry": { "type": "Point", "coordinates": [-122.313873, 47.658298] }
    },
    {
      "type": "Feature",
      "properties": { "name": "Starbucks - 2200 NW Market St" },
      "geometry": { "type": "Point", "coordinates": [-122.384056, 47.668581] }
    },
    {
      "type": "Feature",
      "properties": { "name": "Starbucks - 101 Broadway E" },
      "geometry": { "type": "Point", "coordinates": [-122.320457, 47.620480] }
    },
    {
      "type": "Feature",
      "properties": { "name": "Starbucks - 824 E Pike St" },
      "geometry": { "type": "Point", "coordinates": [-122.320282, 47.614212] }
    },
    {
      "type": "Feature",
      "properties": { "name": "Starbucks - 6501 California Ave SW" },
      "geometry": { "type": "Point", "coordinates": [-122.387016, 47.545376] }
    },
    {
      "type": "Feature",
      "properties": { "name": "Starbucks - 1501 4th Ave" },
      "geometry": { "type": "Point", "coordinates": [-122.336212, 47.610325] }
    },
    {
      "type": "Feature",
      "properties": { "name": "Starbucks - 701 5th Ave" },
      "geometry": { "type": "Point", "coordinates": [-122.330704, 47.604298] }
    },
    {
      "type": "Feature",
      "properties": { "name": "Starbucks - 2344 Eastlake Ave E" },
      "geometry": { "type": "Point", "coordinates": [-122.325874, 47.640884] }
    },
    {
      "type": "Feature",
      "properties": { "name": "Starbucks - 5221 15th Ave NW" },
      "geometry": { "type": "Point", "coordinates": [-122.376595, 47.668210] }
    },
    {
      "type": "Feature",
      "properties": { "name": "Starbucks - 4408 Fauntleroy Way SW" },
      "geometry": { "type": "Point", "coordinates": [-122.377693, 47.564991] }
    },
    {
      "type": "Feature",
      "properties": { "name": "Starbucks - 7303 35th Ave NE" },
      "geometry": { "type": "Point", "coordinates": [-122.290611, 47.682518] }
    },
    {
      "type": "Feature",
      "properties": { "name": "Starbucks - 2742 Alki Ave SW" },
      "geometry": { "type": "Point", "coordinates": [-122.408028, 47.579311] }
    }
  ]
}

步骤 1 - 创建新的 Python 项目文件

在此步骤中，您将创建一个空白的 Python 文件，并逐步对其进行构建。

创建名为：的新文件：

create_map_from_geojson.py

在编辑器中打开该文件。

步骤 2 - 安装所需的库并添加所需的导入语句

在此步骤中，安装依赖项并添加脚本使用的导入。

安装所需的库

Run:

pip install httpx azure-identity azure-storage-file-datalake

每个库的用途

httpx：向构造 REST API 发出 HTTP 请求。
azure-identity：为 Microsoft Entra 身份验证提供 DefaultAzureCredential。
azure-storage-file-datalake：使用 ADLS Gen2 兼容 API 将文件上传到 OneLake（OneLake 支持这些 API）。

将 import 语句添加到.py文件

在 create_map_from_geojson.py顶部，添加：

import base64
import json
import time
import uuid
from pathlib import Path

import httpx
from azure.identity import DefaultAzureCredential
from azure.storage.filedatalake import DataLakeServiceClient

步骤 3 - 添加配置部分

在此步骤中，定义应用程序使用的变量，包括工作区 ID、文件路径和功能切换。

在导入语句下方添加以下内容：

# ---------------------------------------------------------
# Configuration
# ---------------------------------------------------------

# Your Fabric workspace ID (GUID)
workspace_id = "YOUR-WORKSPACE-ID"

# Local GeoJSON file to upload to OneLake. Update as needed.
local_geojson_path = Path(
    r"C:\starbucks-seattle.geojson"
)

# Where the GeoJSON file will be stored inside the Lakehouse Files area
geojson_relative_path = "Files/vector/starbucks-seattle.geojson"

# Where the custom SVG icon will be stored inside the Lakehouse Files area
svg_relative_path = "Files/icons/starbucks-marker.svg"

# Toggle whether to use a custom SVG marker (recommended) or a built-in icon name (fallback)
USE_CUSTOM_SVG_MARKER = True

# If you disable custom SVG markers, the map will try to use this built-in icon name.
# Built-in icon names are environment/UI dependent, so consider this a fallback only.
BUILTIN_ICON_NAME_FALLBACK = "Coffee"

添加 SVG 标记符号常量

在同一部分中，添加：

# A small SVG marker icon (kept < 1 MB) that can scale cleanly.
STARBUCKS_MARKER_SVG = """\
<svg xmlns="http://www.w3.org/2000/svg" width="64" height="64" viewBox="0 0 64 64">
  <path d="M32 2C20.4 2 11 11.4 11 23c0 15.6 18.7 36.6 19.5 37.5a2 2 0 0 0 3 0C34.3 59.6 53 38.6 53 23 53 11.4 43.6 2 32 2z"
        fill="#006241" stroke="#ffffff" stroke-width="2"/>
  <circle cx="32" cy="23" r="13" fill="#ffffff" opacity="0.95"/>
  <path d="M26 20h12v10c0 3-2.5 5-6 5s-6-2-6-5V20z" fill="#006241"/>
</svg>
"""

小窍门

SVG 通常是标志的一个最佳选择，因为它可以在不同的缩放级别和屏幕 DPI 上清晰地缩放。

步骤 4 - 添加帮助程序函数

此步骤添加可重用的帮助程序函数，使“端到端流”保持可读性：

身份验证帮助程序：生成 Fabric REST 调用的标头
LRO 处理程序：使用 Location 和 Retry-After 轮询 202 接受的操作
定义载荷助手：用于内联定义的 base64 编码 map.json
OneLake 上传帮助程序：通过 OneLake 将 GeoJSON/SVG 上传到 Lakehouse 文件

创建身份验证帮助程序函数

Fabric REST 调用需要承载令牌。创建地图和 Lakehouse API 需要委托的范围，例如Item.ReadWrite.All、/、Lakehouse.ReadWrite.All（具体取决于 API），并通过 Microsoft Entra 进行身份验证。

在配置部分下方添加此块：

# ---------------------------------------------------------------------------
# Auth helpers
#
# Authentication utilities built on DefaultAzureCredential that acquire and
# construct Authorization headers for calling Fabric REST APIs.
# ---------------------------------------------------------------------------

class TokenProvider:
    """Thin wrapper around DefaultAzureCredential that acquires Entra tokens."""
    def __init__(self):
        self._cred = DefaultAzureCredential()

    def get(self, scope: str) -> str:
        return self._cred.get_token(scope).token


_tokens = TokenProvider()


def _fabric_headers() -> dict[str, str]:
    """Auth headers for Fabric REST API calls."""
    return {
        "Authorization": f"Bearer {_tokens.get('https://api.fabric.microsoft.com/.default')}",
        "Content-Type": "application/json"
    }

创建 LRO 助手函数

Create Lakehouse 和 Create Map 都支持 长时间运行的操作 ，并且可以返回 202 Accepted 和 LocationRetry-After。

添加此块：

# ---------------------------------------------------------
# LRO HANDLER
# ---------------------------------------------------------

def _handle_lro(
    client: httpx.Client,
    initial_response: httpx.Response,
    *,
    list_url: str | None = None,
    match_display_name: str | None = None,
    id_field: str = "id",
) -> str:
    """
    Poll a Fabric long-running operation (LRO) until completion and return the created resource id.

    Why this function exists:
    - Many Fabric create APIs return HTTP 202 + Location header for async creation.
    - Some LRO completion payloads are status-only and do NOT include the created resource id.
      When that happens, we resolve the created resource by listing resources and matching displayName.

    Parameters:
    - list_url: The endpoint to list resources of the same type (e.g. .../maps).
    - match_display_name: The displayName used in the create call; used to locate the created item.

    Returns:
    - The created resource id as a string.
    """
    op_url = initial_response.headers.get("Location")
    if not op_url:
        raise RuntimeError("Missing LRO Location header.")

    retry_after = int(initial_response.headers.get("Retry-After", "5"))

    while True:
        time.sleep(retry_after)
        poll = client.get(op_url)

        # Still running
        if poll.status_code == 202:
            retry_after = int(poll.headers.get("Retry-After", "5"))
            continue

        poll.raise_for_status()
        body = poll.json() if poll.content else {}

        # Case A: Operation returns the created resource id directly.
        if isinstance(body, dict) and id_field in body and body[id_field]:
            return body[id_field]

        # Case B: Status-only completion payload; resolve by listing.
        status = (body.get("status") if isinstance(body, dict) else None)
        if status == "Succeeded" and list_url and match_display_name:
            r = client.get(list_url)
            r.raise_for_status()

            items = r.json().get("value", [])
            match = next((i for i in items if i.get("displayName") == match_display_name), None)
            if match and match.get(id_field):
                return match[id_field]

            raise RuntimeError(
                f"LRO succeeded but could not resolve created resource by name. "
                f"match_display_name={match_display_name!r}"
            )

        # Anything else is unexpected
        raise RuntimeError(f"LRO completed but no resource id was returned. Body: {body}")

定义负载助手

使用 公共定义创建映射时，将 map.json 作为 payloadType 发送： InlineBase64。创建 Map API 示例展示如何在 definition.parts 中使用 InlineBase64。

添加：

# ---------------------------------------------------------
# DEFINITION PAYLOAD HELPER
# - Create Map can include a public definition inline (map.json as InlineBase64).
# ---------------------------------------------------------

def _json_to_b64(obj: dict) -> str:
    """Encode a JSON object as base64 string (InlineBase64 payload)."""
    return base64.b64encode(json.dumps(obj).encode("utf-8")).decode("utf-8")

OneLake 上传助手

OneLake 支持 ADLS/Blob API，并允许基于 GUID 的工作区和项寻址：

https://onelake.dfs.fabric.microsoft.com/<workspaceGUID>/<itemGUID>/<path>/<fileName>

添加：

# -----------------------------------------------------------------------------------------------
# ONE LAKE UPLOAD HELPERS
# OneLake supports GUID-based addressing:
#   https://onelake.dfs.fabric.microsoft.com/<workspaceGUID>/<itemGUID>/<path>/<fileName>
# We use the ADLS Gen2 SDK (DataLakeServiceClient) to upload files into the Lakehouse Files area.
# -----------------------------------------------------------------------------------------------

def _onelake_client() -> DataLakeServiceClient:
    return DataLakeServiceClient(
        account_url="https://onelake.dfs.fabric.microsoft.com",
        credential=DefaultAzureCredential()
    )


def _upload_with_retry(
    workspace_guid: str,
    item_guid: str,
    dest_relative_path: str,
    content: bytes,
    attempts: int = 6
) -> None:
    """
    Upload bytes into OneLake under the Lakehouse item.
    New Lakehouses can take a short time before the Files folder is ready, so retry.
    """
    service = _onelake_client()
    fs = service.get_file_system_client(file_system=workspace_guid)

    # GUID-based addressing: item GUID is the first path segment
    dest_path = f"{item_guid}/{dest_relative_path}".replace("\\", "/")

    last_exc = None
    for i in range(attempts):
        try:
            fs.get_file_client(dest_path).upload_data(content, overwrite=True)
            return
        except Exception as exc:
            last_exc = exc
            time.sleep(2 + i)

    raise RuntimeError(f"Upload failed after {attempts} attempts: {last_exc}")

创建辅助函数以便创建后立即检索映射 ID

使用 Fabric REST API 创建地图时，请求可以返回“202 已接受”状态的响应。这表示映射是被异步预配为长时间运行的操作（LRO），而不是立即创建。在这种情况下，响应不包含映射 ID，LRO 完成终结点可能不会返回可用结果。此外，即使在操作完成后，由于后端传播而调用列表映射 API 时，新创建的地图可能不会立即显示。

若要可靠地获取地图 ID，必须查询地图列表，然后重试，直到新地图可见。以下帮助函数实现了这一重试模式，确保您的自动化流程能够应对异步预配延迟，只有在需要映射 ID 时才必需。

接下来添加以下代码：

# ---------------------------------------------------------
# Get Map ID
# ---------------------------------------------------------

def resolve_map_id(client, list_url, headers, map_name, max_attempts=10, delay=5):
    """
    Resolve the ID of a newly created Fabric map.

    Why this function is needed:
    - Creating a map may return HTTP 202 (Accepted), indicating an asynchronous
      long-running operation (LRO) rather than immediate creation.
    - LRO responses for map creation don't always return a resource ID.
    - Even after the operation completes, the new map may not be immediately
      visible in the List Maps API due to backend propagation delays.

    What this function does:
    - Repeatedly calls the List Maps API.
    - Searches for a map matching the provided display name.
    - Retries for a configurable number of attempts with a delay between calls.

    Parameters:
        client        : Authenticated HTTP client
        list_url      : Maps list endpoint
        headers       : Authorization headers for Fabric API
        map_name      : Display name of the map to locate
        max_attempts  : Maximum number of retry attempts
        delay         : Delay (seconds) between retries

    Returns:
        The map ID (string) once the map becomes visible.

    Raises:
        RuntimeError if the map is not found after all retry attempts.
    """

    for attempt in range(max_attempts):
        print(f"Resolving map (attempt {attempt + 1}/{max_attempts})...")

        resp = client.get(list_url, headers=headers)
        resp.raise_for_status()

        items = resp.json().get("value", [])

        match = next(
            (m for m in items if m.get("displayName") == map_name),
            None
        )

        if match:
            print("✅ Map found!")
            return match["id"]

        print("⏳ Map not visible yet. Retrying...")
        time.sleep(delay)

    raise RuntimeError("Map created but still not visible after retries")

创建端到端流

在此步骤中，添加运行工作流端到端的应用程序逻辑。您可以分步骤地构建它：

创建 Lakehouse
上传 GeoJSON
上传自定义 SVG （可选）
生成 map.json
使用内联定义来创建地图

在文件底部添加此块：

# ---------------------------------------------------------
# END-TO-END FLOW
# ---------------------------------------------------------
with httpx.Client(timeout=60) as client:
    # Code will be added in the following sections

    pass

在下一部分中，你将替换pass。

创建 Lakehouse

Lakehouse 被用作持久存储层（OneLake 文件）。 Lakehouse 创建 API 支持 LRO 响应。

替换为 pass ：

# 1) Create Lakehouse (201 or 202/LRO)
    lakehouse_url = f"https://api.fabric.microsoft.com/v1/workspaces/{workspace_id}/lakehouses"
    lakehouse_payload = {
        "displayName": "lh_starbucks_seattle",
        "description": "Stores Starbucks Seattle GeoJSON + marker icon for a Fabric Maps tutorial"
    }

    lh_resp = client.post(lakehouse_url, headers=_fabric_headers(), json=lakehouse_payload)

    if lh_resp.status_code == 201:
        lakehouse_id = lh_resp.json()["id"]
    elif lh_resp.status_code == 202:
        lakehouse_id = _handle_lro(client, lh_resp)
    else:
        raise RuntimeError(f"Failed to create lakehouse: {lh_resp.status_code} {lh_resp.text}")

    print("Lakehouse created. Lakehouse ID:", lakehouse_id)

将 GeoJSON 上传到 Lakehouse 文件区域（OneLake）

Fabric Maps 可以通过数据源中的 Lakehouse 数据源和layerSources中的基于文件的层源（例如 geojson）引用存储在 OneLake 中的文件。

在创建 Lakehouse 的模块之后立即添加此代码：

# 2) Upload GeoJSON into the Lakehouse Files area (OneLake)
    _upload_with_retry(
        workspace_guid=workspace_id,
        item_guid=lakehouse_id,
        dest_relative_path=geojson_relative_path,
        content=local_geojson_path.read_bytes()
    )
    print("Uploaded GeoJSON to:", geojson_relative_path)

如果启用，则上传自定义 SVG 标记图标（OneLake）

标记层可以使用自定义图标。地图定义架构包括指向 IconSource 文件的对象（iconSources）。

添加：

# 3) Upload custom SVG marker icon (OneLake) if enabled
    if USE_CUSTOM_SVG_MARKER:
        _upload_with_retry(
            workspace_guid=workspace_id,
            item_guid=lakehouse_id,
            dest_relative_path=svg_relative_path,
            content=STARBUCKS_MARKER_SVG.encode("utf-8")
        )
        print("Uploaded custom SVG marker to:", svg_relative_path)

生成 map.json

map.json 是 映射公共定义的必需部分。它包含 dataSources、iconSources、layerSources 和 layerSettings 的数组。

接下来添加以下代码：

# 4) Build map.json with:
    #    - dataSources includes the lakehouse
    #    - iconSources references the SVG (custom marker icon source)
    #    - layerSources references the GeoJSON file in the lakehouse
    #    - layerSettings renders points as markers via pointLayerType + markerOptions
    layer_source_id = str(uuid.uuid4())
    layer_setting_id = str(uuid.uuid4())
    icon_source_id = str(uuid.uuid4())
    custom_svg_marker = f"{layer_setting_id}:{icon_source_id}"
    icon_source_name = "Starbucks Marker"

    map_json = {
        "$schema": "https://developer.microsoft.com/json-schemas/fabric/item/map/definition/2.0.0/schema.json",
        "basemap": {},

        "dataSources": [
            {"itemType": "Lakehouse", "workspaceId": workspace_id, "itemId": lakehouse_id}
        ],

        "iconSources": (
            [
                {
                    "id": icon_source_id,
                    "name": icon_source_name,
                    "type": "svg",
                    "itemId": lakehouse_id,
                    "relativePath": svg_relative_path
                }
            ] if USE_CUSTOM_SVG_MARKER else []
        ),

        "layerSources": [
            {
                "id": layer_source_id,
                "name": "starbucks_seattle_geojson",
                "type": "geojson",
                "itemId": lakehouse_id,
                "relativePath": geojson_relative_path,
                "refreshIntervalMs": 0
            }
        ],

        "layerSettings": [
            {
                "id": layer_setting_id,
                "name": "Starbucks (Seattle)",
                "sourceId": layer_source_id,
                "options": {
                    "type": "vector",
                    "visible": True,
                    "tooltipKeys": ["name"],

                    # Render as marker layer
                    "pointLayerType": "marker",

                    "markerOptions": (
                        # Custom SVG marker path:
                        {
                            "iconOptions": {
                                "image": custom_svg_marker,
                                "anchor": "bottom",
                                "opacity": 1.0,
                                "rotation": 0,
                                "allowOverlap": False,
                                "rotationAlignment": "viewport",
                                "pitchAlignment": "viewport"
                            },
                                "icon": icon_source_id
                        }
                        if USE_CUSTOM_SVG_MARKER
                        # Built-in fallback path:
                        else
                        {
                            "size": 22,
                            "fillColor": "#006241",
                            "strokeColor": "#FFFFFF",
                            "strokeWidth": 2,
                            "icon": BUILTIN_ICON_NAME_FALLBACK,
                            "iconOptions": {
                                "anchor": "bottom",
                                "opacity": 1.0,
                                "rotation": 0,
                                "allowOverlap": False,
                                "rotationAlignment": "viewport",
                                "pitchAlignment": "viewport"
                            }
                        }
                    )
                }
            }
        ]
    }

注释

地图定义模式描述IconSource、LayerSource和LayerSettingOptions（包括标记层设置），作为map.json结构的一部分。

在线创建包含定义的Map

创建地图 API 支持内联发送公共定义（definition.parts），并返回 201 或 202（LRO）。

添加：

    # 5) Create the Map WITH definition inline (so no getDefinition/updateDefinition needed)
    map_name = "My Fabric Map"
    create_map_url = f"https://api.fabric.microsoft.com/v1/workspaces/{workspace_id}/maps"
    create_map_payload = {
        "displayName": map_name,
        "description": "Created using Fabric Maps REST API",
        "definition": {
            "parts": [
                {
                    "path": "map.json",
                    "payload": _json_to_b64(map_json),
                    "payloadType": "InlineBase64"
                }
            ]
        }
    }

    map_resp = client.post(create_map_url, headers=_fabric_headers(), json=create_map_payload)

    if map_resp.status_code == 201:
        map_id = map_resp.json()["id"]
    elif map_resp.status_code == 202:
        print("LRO completed via 202. Resolving map by name...")
        map_id = resolve_map_id(
            client,
            create_map_url,
            _fabric_headers(),
            map_name
        )
    else:
        raise RuntimeError(f"Create map failed: {map_resp.status_code} {map_resp.text}")

    print("Map created successfully. Map ID:", map_id)
    print("GeoJSON layer path:", geojson_relative_path)
    if USE_CUSTOM_SVG_MARKER:
        print("Custom SVG marker path:", svg_relative_path)

运行应用程序

运行脚本：

python create_map_from_geojson.py

如果成功，您会看到输出类似如下：

Lakehouse 已创建。 Lakehouse ID： <Lakehouse ID>
已将 GeoJSON 上传到：Files/vector/starbucks-seattle.geojson
已将自定义 SVG 标记上传到：文件/图标/starbucks-marker.svg
地图已成功创建。地图 ID： <Map ID>
GeoJSON 层路径：文件/矢量/星巴克-西雅图.geojson
自定义 SVG 标记路径：文件/图标/starbucks-marker.svg

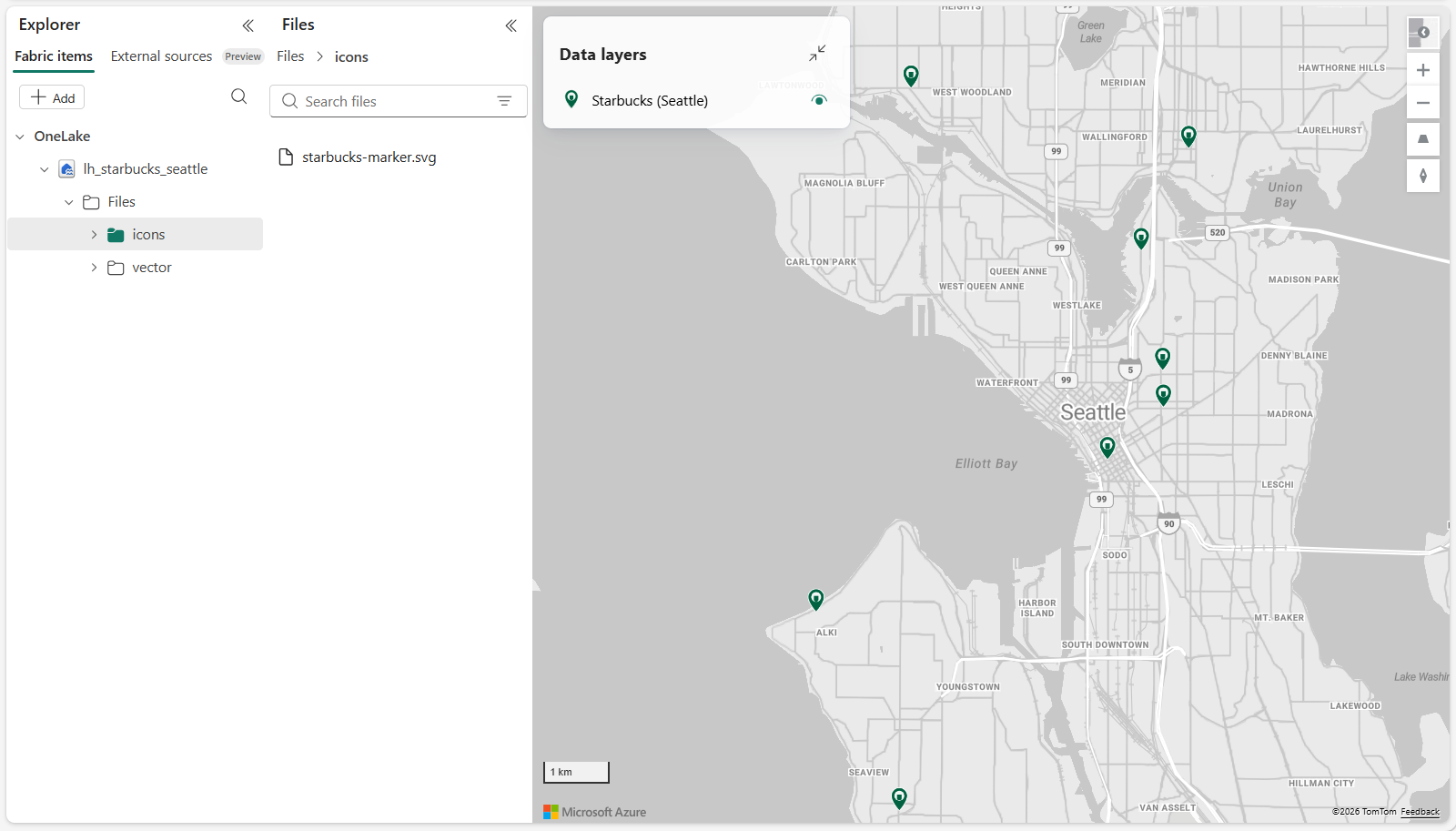

在 Microsoft Fabric 中，地图应如下所示：

后续步骤

了解 Map 公共定义的结构（map.json、可选的 .platform 和可选的查询部分）。

创建地图

更改地图设置

反馈

此页面是否有帮助？

Last updated on 2026-04-24
