Diagnose connection issues for Azure Arc-enabled Kubernetes clusters

Article
09/19/2024

If you are experiencing issues connecting a cluster to Azure Arc, it's probably due to one of the issues listed here. We provide two flowcharts with guided help: one if you're not using a proxy server, and one that applies if your network connection uses a proxy server.

Tip

The steps in this flowchart apply whether you're using Azure CLI or Azure PowerShell to connect your cluster. However, some of the steps require the use of Azure CLI. If you haven't already installed Azure CLI, be sure to do so before you begin.

Connections without a proxy

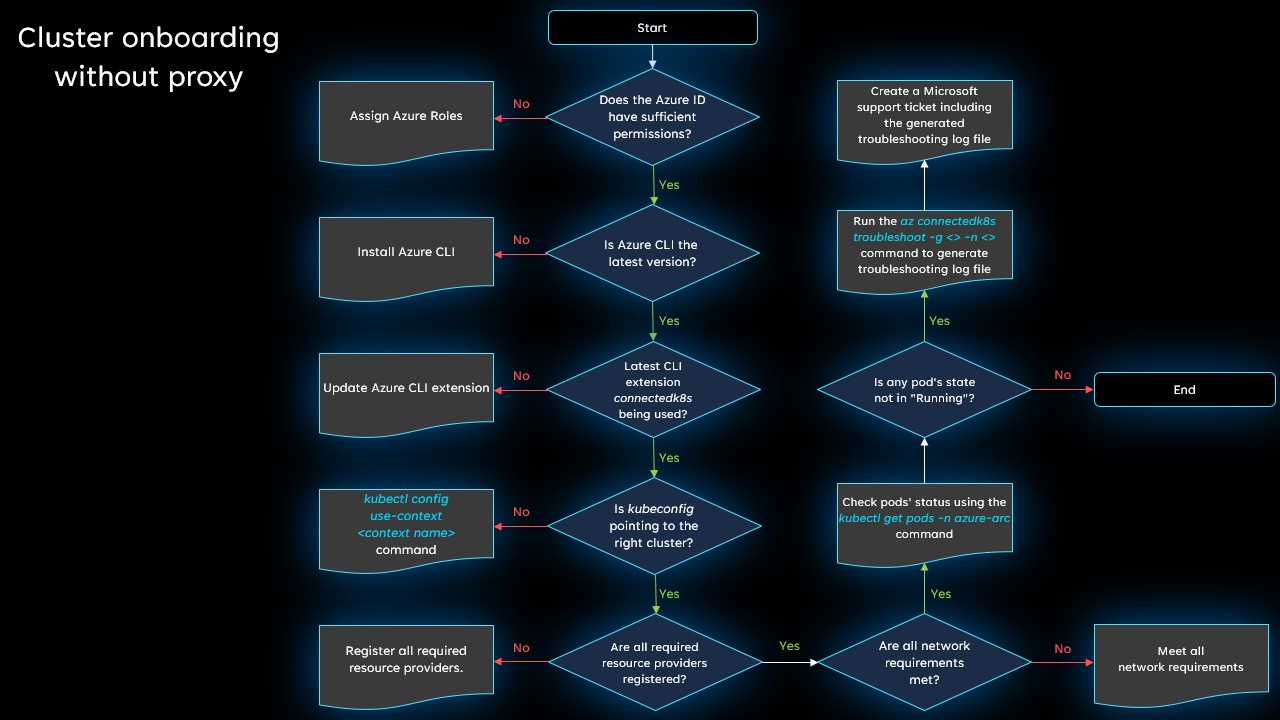

Review this flowchart in order to diagnose your issue when attempting to connect a cluster to Azure Arc without a proxy server. More details about each step are provided below.

Does the Azure identity have sufficient permissions?

Review the prerequisites for connecting a cluster and make sure that the identity you're using to connect the cluster has the necessary permissions.

Are you running the latest version of Azure CLI?

Make sure you have the latest version installed.

If you connected your cluster by using Azure PowerShell, make sure you are running the latest version.

Is the `connectedk8s` extension the latest version?

Update the Azure CLI connectedk8s extension to the latest version by running this command:

az extension update --name connectedk8s

If you haven't installed the extension yet, you can do so by running the following command:

az extension add --name connectedk8s

Is kubeconfig pointing to the right cluster?

Run kubectl config get-contexts to confirm the target context name. Then set the default context to the right cluster by running kubectl config use-context <target-cluster-name>.

Are all required resource providers registered?

Be sure that the Microsoft.Kubernetes, Microsoft.KubernetesConfiguration, and Microsoft.ExtendedLocation resource providers are registered.

Are all network requirements met?

Review the network requirements and ensure that no required endpoints are blocked.

Are all pods in the `azure-arc` namespace running?

If everything is working correctly, your pods should all be in the Running state. Run kubectl get pods -n azure-arc to confirm whether any pod's state is not Running.

Still having problems?

The steps above will resolve many common connection issues, but if you're still unable to connect successfully, generate a troubleshooting log file and then open a support request so we can investigate the problem further.

To generate the troubleshooting log file, run the following command:

az connectedk8s troubleshoot -g <myResourceGroup> -n <myK8sCluster>

When you create your support request, in the Additional details section, use the File upload option to upload the generated log file.

Connections with a proxy server

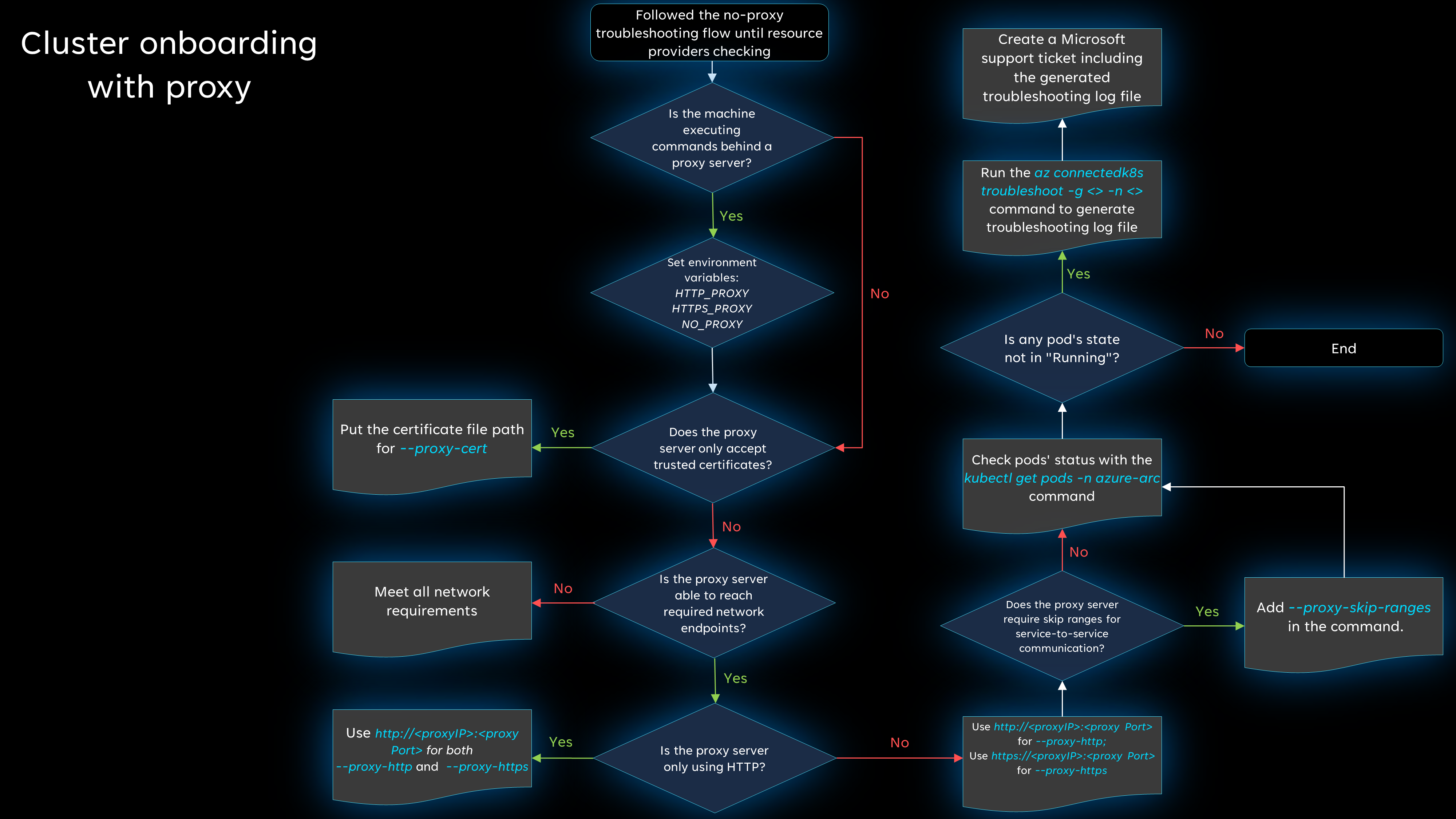

If you are using a proxy server on at least one machine, complete the first five steps of the non-proxy flowchart (through resource provider registration) for basic troubleshooting steps. Then, if you are still encountering issues, review the next flowchart for additional troubleshooting steps. More details about each step are provided below.

Is the machine executing commands behind a proxy server?

If the machine is executing commands behind a proxy server, you'll need to set all of the necessary environment variables. For more information, see Connect using an outbound proxy server.

For example:

export HTTP_PROXY="http://<proxyIP>:<proxyPort>"
export HTTPS_PROXY="https://<proxyIP>:<proxyPort>"
export NO_PROXY="<cluster-apiserver-ip-address>:<proxyPort>"

Does the proxy server only accept trusted certificates?

Be sure to include the certificate file path by including --proxy-cert <path-to-cert-file> when running the az connectedk8s connect command.

az connectedk8s connect --name <cluster-name> --resource-group <resource-group> --proxy-cert <path-to-cert-file>

Is the proxy server able to reach required network endpoints?

Review the network requirements and ensure that no required endpoints are blocked.

Is the proxy server only using HTTP?

If your proxy server only uses HTTP, you can use proxy-http for both parameters.

If your proxy server is set up with both HTTP and HTTPS, run the az connectedk8s connect command with the --proxy-https and --proxy-http parameters specified. Be sure you are using --proxy-http for the HTTP proxy and --proxy-https for the HTTPS proxy.

az connectedk8s connect --name <cluster-name> --resource-group <resource-group> --proxy-https https://<proxy-server-ip-address>:<port> --proxy-http http://<proxy-server-ip-address>:<port>

Does the proxy server require skip ranges for service-to-service communication?

If you require skip ranges, use --proxy-skip-range <excludedIP>,<excludedCIDR> in your az connectedk8s connect command.

az connectedk8s connect --name <cluster-name> --resource-group <resource-group> --proxy-https https://<proxy-server-ip-address>:<port> --proxy-http http://<proxy-server-ip-address>:<port> --proxy-skip-range <excludedIP>,<excludedCIDR>

Are all pods in the `azure-arc` namespace running?

If everything is working correctly, your pods should all be in the Running state. Run kubectl get pods -n azure-arc to confirm whether any pod's state is not Running.

Check whether the DNS resolution is successful for the endpoint

From within the pod, you can run a DNS lookup to the endpoint.

What if you can't run the kubectl exec command to connect to the pod and install the DNS Utils package? In this situation, you can start a test pod in the same namespace as the problematic pod, and then run the tests.

Note

If the DNS resolution or egress traffic doesn't let you install the necessary network packages, you can use the rishasi/ubuntu-netutil:1.0 docker image. In this image, the required packages are already installed.

Here's an example procedure for checking DNS resolution:

Start a test pod in the same namespace as the problematic pod:
```
kubectl run -it --rm test-pod --namespace <namespace> --image=debian:stable
```
After the test pod is running, you'll gain access to the pod.

Run the following apt-get commands to install other tool packages:

apt-get update -y
apt-get install dnsutils -y
apt-get install curl -y
apt-get install netcat -y

After the packages are installed, run the nslookup command to test the DNS resolution to the endpoint:

$ nslookup microsoft.com
Server:         10.0.0.10
Address:        10.0.0.10#53
...
...
Name:   microsoft.com
Address: 20.53.203.50

Try the DNS resolution from the upstream DNS server directly. This example uses Azure DNS:

$ nslookup microsoft.com 168.63.129.16
Server:         168.63.129.16
Address:        168.63.129.16#53
...
...
Address: 20.81.111.85

Run the host command to check whether the DNS requests are routed to the upstream server:

$ host -a microsoft.com
Trying "microsoft.com.default.svc.cluster.local"
Trying "microsoft.com.svc.cluster.local"
Trying "microsoft.com.cluster.local"
Trying "microsoft.com.00idcnmrrm4edot5s2or1onxsc.bx.internal.cloudapp.net"
Trying "microsoft.com"
Trying "microsoft.com"
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 62884
;; flags: qr rd ra; QUERY: 1, ANSWER: 27, AUTHORITY: 0, ADDITIONAL: 5

;; QUESTION SECTION:
;microsoft.com.                 IN      ANY

;; ANSWER SECTION:
microsoft.com.          30      IN      NS      ns1-39.azure-dns.com.
...
...
ns4-39.azure-dns.info.  30      IN      A       13.107.206.39

Received 2121 bytes from 10.0.0.10#53 in 232 ms

Run a test pod in the Windows node pool:

# For a Windows environment, use the Resolve-DnsName cmdlet.
kubectl run dnsutil-win --image='mcr.microsoft.com/windows/servercore:1809' --overrides='{"spec": { "nodeSelector": {"kubernetes.io/os": "windows"}}}' -- powershell "Start-Sleep -s 3600"

Run the kubectl exec command to connect to the pod by using PowerShell:
```
kubectl exec -it dnsutil-win -- powershell
```

Run the Resolve-DnsName cmdlet in PowerShell to check whether the DNS resolution is working for the endpoint:

PS C:\> Resolve-DnsName www.microsoft.com

Name                           Type   TTL   Section    NameHost
----                           ----   ---   -------    --------
www.microsoft.com              CNAME  20    Answer     www.microsoft.com-c-3.edgekey.net
www.microsoft.com-c-3.edgekey. CNAME  20    Answer     www.microsoft.com-c-3.edgekey.net.globalredir.akadns.net
net
www.microsoft.com-c-3.edgekey. CNAME  20    Answer     e13678.dscb.akamaiedge.net
net.globalredir.akadns.net

Name       : e13678.dscb.akamaiedge.net
QueryType  : AAAA
TTL        : 20
Section    : Answer
IP6Address : 2600:1408:c400:484::356e


Name       : e13678.dscb.akamaiedge.net
QueryType  : AAAA
TTL        : 20
Section    : Answer
IP6Address : 2600:1408:c400:496::356e


Name       : e13678.dscb.akamaiedge.net
QueryType  : A
TTL        : 12
Section    : Answer
IP4Address : 23.200.197.152

If the DNS resolution is not successful, verify the DNS configuration for the cluster.

Still having problems?

To generate the troubleshooting log file, run the following command:

az connectedk8s troubleshoot -g <myResourceGroup> -n <myK8sCluster>

When you create your support request, in the Additional details section, use the File upload option to upload the generated log file.

Next steps

View more troubleshooting tips for using Azure Arc-enabled Kubernetes.
Review the process to connect an existing Kubernetes cluster to Azure Arc.
