About virtual hub routing

  • Article

The routing capabilities in a virtual hub are provided by a router that manages all routing between gateways using Border Gateway Protocol (BGP). A virtual hub can contain multiple gateways such as a Site-to-site VPN gateway, ExpressRoute gateway, Point-to-site gateway, Azure Firewall. This router also provides transit connectivity between virtual networks that connect to a virtual hub and can support up to an aggregate throughput of 50 Gbps. These routing capabilities apply to Standard Virtual WAN customers.

To configure routing, see How to configure virtual hub routing.

Routing concepts

The following sections describe the key concepts in virtual hub routing.

Hub route table

A virtual hub route table can contain one or more routes. A route includes its name, a label, a destination type, a list of destination prefixes, and next hop information for a packet to be routed. A Connection typically has a routing configuration that associates or propagates to a route table.

Hub routing intent and policies

Routing Intent and Routing policies allow you to configure your Virtual WAN hub to send Internet-bound and Private (Point-to-site, Site-to-site, ExpressRoute, Network Virtual Appliances inside the Virtual WAN Hub and virtual network) Traffic via an Azure Firewall, Next-Generation Firewall NVA or software-as-a-service solution deployed in the Virtual WAN hub. There are two types of Routing Policies: Internet Traffic and Private Traffic Routing Policies. Each Virtual WAN hub can have, at most, one Internet Traffic Routing Policy and one Private Traffic Routing Policy, each with a Next Hop resource.

While Private Traffic includes both branch and virtual network address prefixes, Routing Policies considers them as one entity within the Routing Intent concepts.

  • Internet Traffic Routing Policy: When an Internet Traffic Routing Policy is configured on a Virtual WAN hub, all branch (User VPN (Point-to-site VPN), Site-to-site VPN and ExpressRoute), and virtual network connections to that Virtual WAN hub will forward Internet-bound traffic to the Azure Firewall resource or a third-party security provider specified as part of the routing policy.

  • Private Traffic Routing Policy: When a Private Traffic Routing Policy is configured on a Virtual WAN hub, all branch and virtual network traffic in and out of the Virtual WAN hub including inter-hub traffic will be forwarded to the Next Hop Azure Firewall resource that was specified in the Private Traffic Routing Policy.

For more information, see How to configure Virtual WAN hub routing intent and routing policies.

Connections

Connections are Resource Manager resources that have a routing configuration. The four types of connections are:

  • VPN connection: Connects a VPN site to a virtual hub VPN gateway.
  • ExpressRoute connection: Connects an ExpressRoute circuit to a virtual hub ExpressRoute gateway.
  • P2S configuration connection: Connects a User VPN (Point-to-site) configuration to a virtual hub User VPN (Point-to-site) gateway.
  • Hub virtual network connection: Connects virtual networks to a virtual hub.

You can set up the routing configuration for a virtual network connection during setup. By default, all connections associate and propagate to the Default route table.

Association

Each connection is associated to one route table. Associating a connection to a route table allows the traffic (from that connection) to be sent to the destination indicated as routes in the route table. The routing configuration of the connection shows the associated route table. Multiple connections can be associated to the same route table. All VPN, ExpressRoute, and User VPN connections are associated to the same (default) route table.

By default, all connections are associated to a Default route table in a virtual hub. Each virtual hub has its own Default route table, which can be edited to add a static route or routes. Routes added statically take precedence over dynamically learned routes for the same prefixes.

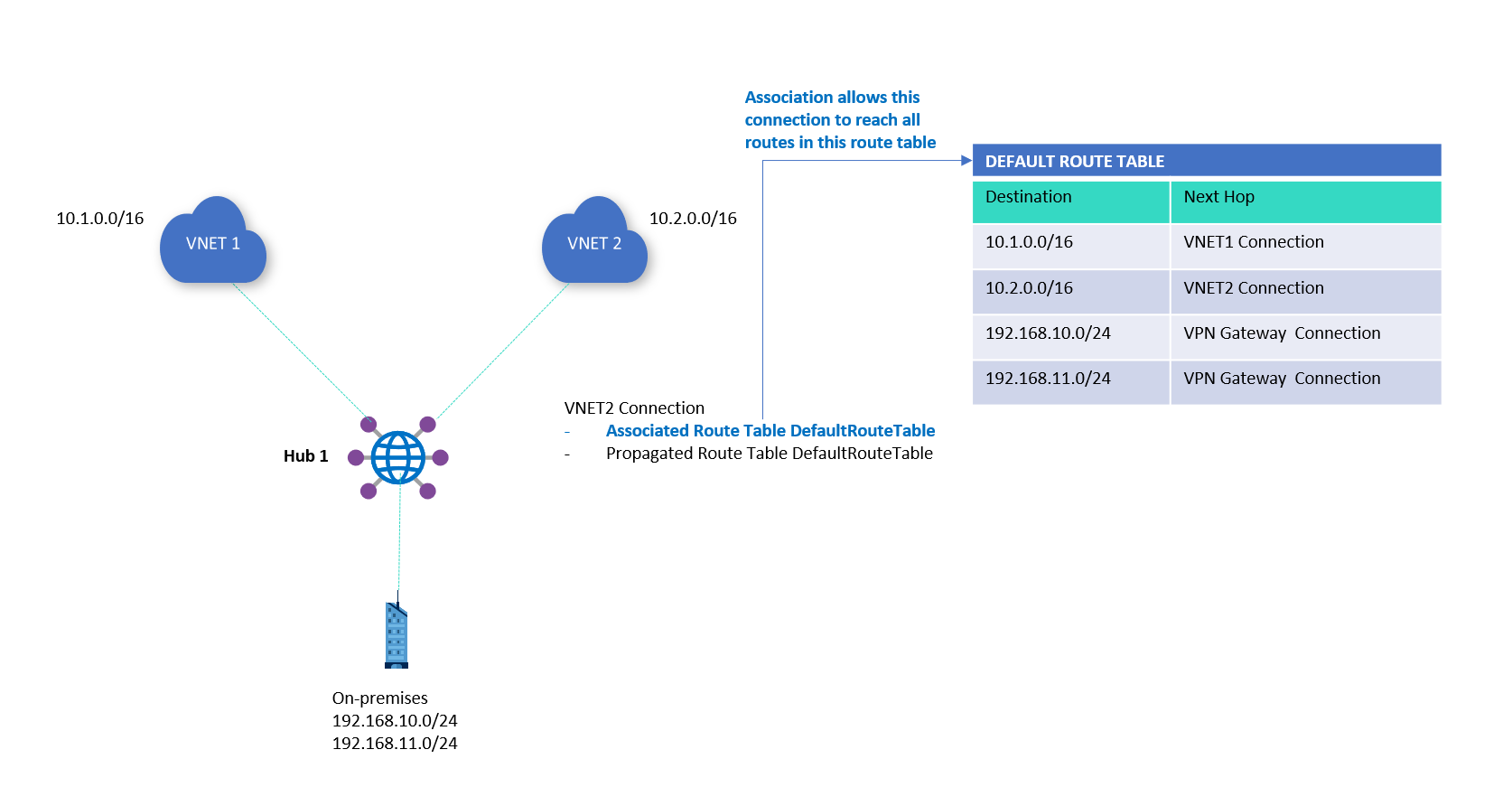

Diagram shows Association.

Propagation

Connections dynamically propagate routes to a route table. With a VPN connection, ExpressRoute connection, or P2S configuration connection, routes are propagated from the virtual hub to the on-premises router using BGP. Routes can be propagated to one or multiple route tables.

A None route table is also available for each virtual hub. Propagating to the None route table implies that no routes are required to be propagated from the connection. VPN, ExpressRoute, and User VPN connections propagate routes to the same set of route tables.

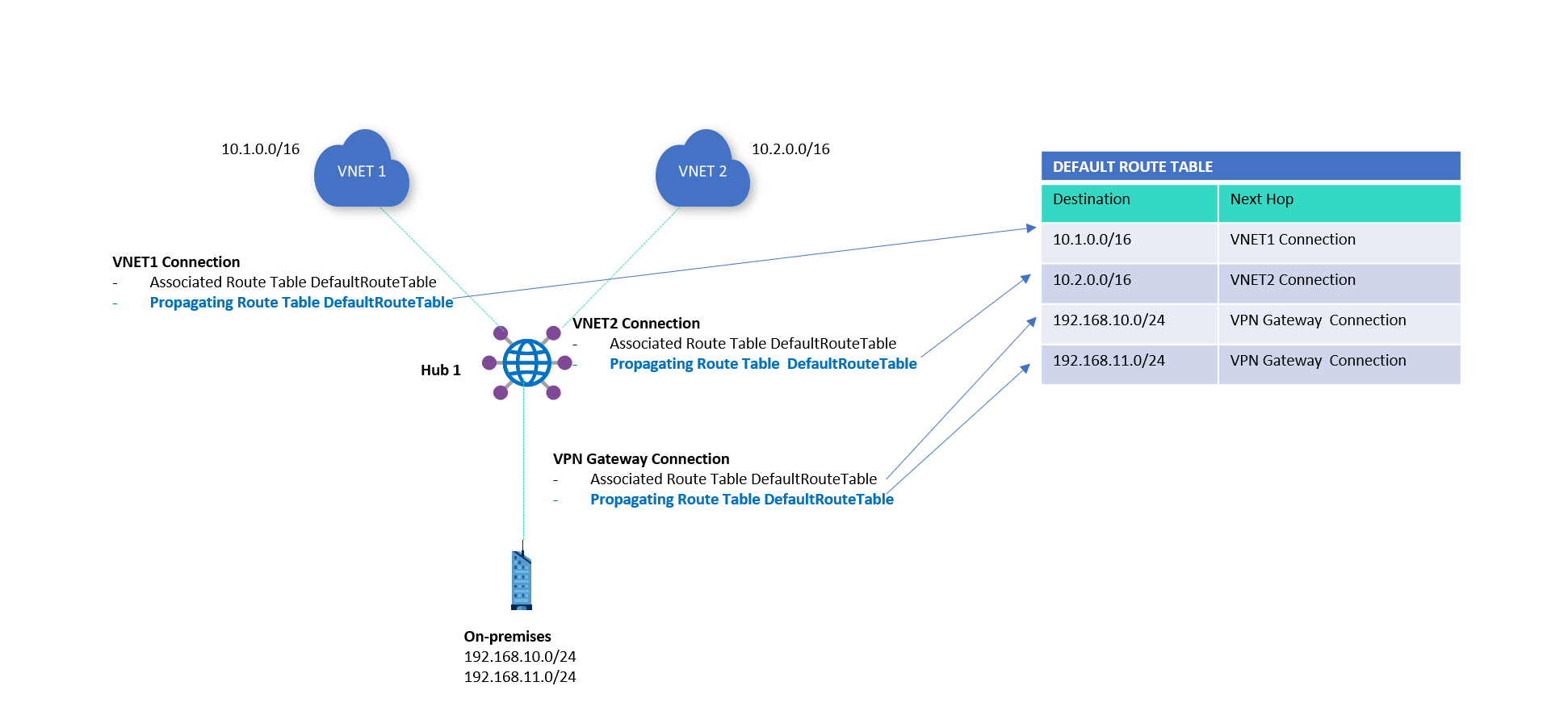

Diagram shows propagation.

Labels

Labels provide a mechanism to logically group route tables. This is especially helpful during propagation of routes from connections to multiple route tables. For example, the Default Route Table has a built-in label called 'Default'. When users propagate connection routes to 'Default' label, it automatically applies to all the Default Route Tables across every hub in the virtual WAN.

If no label is specified in the list of labels that a virtual network connection is propagating to, then the virtual network connection will automatically propagate to the 'Default' label.

Configuring static routes in a virtual network connection

Configuring static routes provides a mechanism to steer traffic from the hub through a next hop IP, which could be of a Network Virtual Appliance (NVA) provisioned in a Spoke virtual network attached to a virtual hub. The static route is composed of a route name, list of destination prefixes, and a next hop IP.

Deleting static routes

To delete a static route, the route must be deleted from the route table that it's placed in. See Delete a route for steps.

Route tables for pre-existing routes

Route tables now have features for association and propagation. A pre-existing route table is a route table that doesn't have these features. If you have pre-existing routes in hub routing and would like to use the new capabilities, consider the following items:

  • Standard virtual WAN with pre-existing routes in a virtual hub:

    If you have pre-existing routes in Routing section for the hub in the Azure portal, you need to first delete them, and then attempt to create new route tables (available in the Route Tables section for the hub in Azure portal).

  • Basic virtual WAN with pre-existing routes in a virtual hub:

    If you have pre-existing routes in Routing section for the hub in Azure portal, you need to first delete them, then upgrade your Basic virtual WAN to a Standard virtual WAN. See Upgrade a virtual WAN from Basic to Standard.

Hub reset

Virtual hub Reset is available only in the Azure portal. Resetting provides you with a way to bring any failed resources such as route tables, hub router, or the virtual hub resource itself back to its rightful provisioning state. Consider resetting the hub before contacting Microsoft for support. This operation doesn't reset any of the gateways in a virtual hub.

Additional considerations

Consider the following items when configuring Virtual WAN routing:

  • All branch connections (Point-to-site, Site-to-site, and ExpressRoute) need to be associated to the Default route table. That way, all branches learn the same prefixes.
  • All branch connections need to propagate their routes to the same set of route tables. For example, if you decide that branches should propagate to the Default route table, this configuration should be consistent across all branches. As a result, all connections associated to the Default route table will be able to reach all of the branches.
  • When you use Azure Firewall in multiple regions, all spoke virtual networks must be associated to the same route table. For example, having a subset of the VNets going through the Azure Firewall while other VNets bypass the Azure Firewall in the same virtual hub isn't possible.
  • You can specify multiple next hop IP addresses on a single virtual network connection. However, a virtual network connection doesn't support ‘multiple/unique’ next hop IP to the ‘same’ network virtual appliance in a spoke virtual network 'if' one of the routes with next hop IP is indicated to be public IP address or 0.0.0.0/0 (internet)
  • All information pertaining to 0.0.0.0/0 route is confined to a local hub's route table. This route doesn't propagate across hubs.
  • You can only use Virtual WAN to program routes in a spoke if the prefix is shorter (less specific) than the virtual network prefix. For example, in the diagram above the spoke VNET1 has the prefix 10.1.0.0/16: in this case, Virtual WAN wouldn't be able to inject a route that matches the virtual network prefix (10.1.0.0/16) or any of the subnets (10.1.0.0/24, 10.1.1.0/24). In other words, Virtual WAN can't attract traffic between two subnets that are in the same virtual network.
  • While it's true that two hubs on the same virtual WAN announce routes to each other (as long as the propagation is enabled to the same labels), this only applies to dynamic routing. Once you define a static route, this isn't the case.
  • When configuring static routes, don't use the hub router IPs as the next hop.
  • If you plan to remove Azure BGP communities from VNet and UDR routes, do not advertise these routes back into your virtual WAN. Doing so will create routing issues and outages.
