Updating Related Data with the Entity Framework in an ASP.NET MVC Application (6 of 10)

  • مقالة

by Tom Dykstra

The Contoso University sample web application demonstrates how to create ASP.NET MVC 4 applications using the Entity Framework 5 Code First and Visual Studio 2012. For information about the tutorial series, see the first tutorial in the series.

Note

If you run into a problem you can't resolve, download the completed chapter and try to reproduce your problem. You can generally find the solution to the problem by comparing your code to the completed code. For some common errors and how to solve them, see Errors and Workarounds.

In the previous tutorial you displayed related data; in this tutorial you'll update related data. For most relationships, this can be done by updating the appropriate foreign key fields. For many-to-many relationships, the Entity Framework doesn't expose the join table directly, so you must explicitly add and remove entities to and from the appropriate navigation properties.

The following illustrations show the pages that you'll work with.

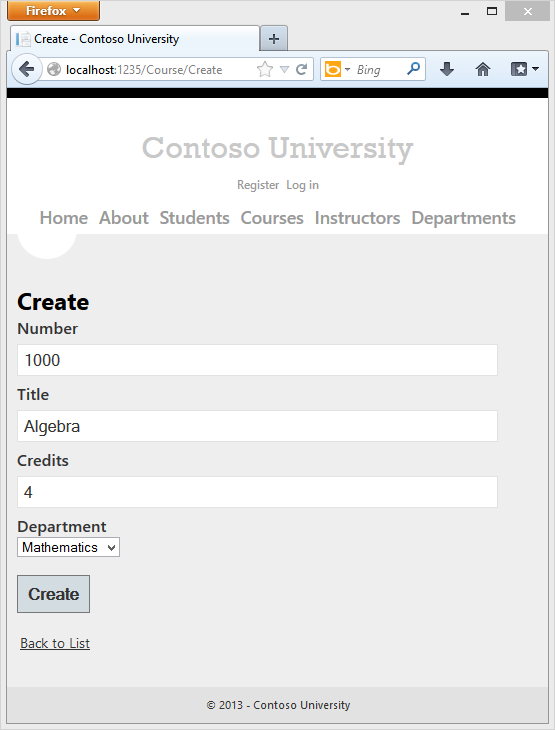

Screenshot that shows the Create Course page.

Screenshot that displays the Instructor Edit page.

Customize the Create and Edit Pages for Courses

When a new course entity is created, it must have a relationship to an existing department. To facilitate this, the scaffolded code includes controller methods and Create and Edit views that include a drop-down list for selecting the department. The drop-down list sets the Course.DepartmentID foreign key property, and that's all the Entity Framework needs in order to load the Department navigation property with the appropriate Department entity. You'll use the scaffolded code, but change it slightly to add error handling and sort the drop-down list.

In CourseController.cs, delete the four Edit and Create methods and replace them with the following code:

public ActionResult Create()
{
   PopulateDepartmentsDropDownList();
   return View();
}

[HttpPost]
[ValidateAntiForgeryToken]
public ActionResult Create(
   [Bind(Include = "CourseID,Title,Credits,DepartmentID")]
   Course course)
{
   try
   {
      if (ModelState.IsValid)
      {
         db.Courses.Add(course);
         db.SaveChanges();
         return RedirectToAction("Index");
      }
   }
   catch (DataException /* dex */)
   {
      //Log the error (uncomment dex variable name after DataException and add a line here to write a log.)
      ModelState.AddModelError("", "Unable to save changes. Try again, and if the problem persists, see your system administrator.");
   }
   PopulateDepartmentsDropDownList(course.DepartmentID);
   return View(course);
}

public ActionResult Edit(int id)
{
   Course course = db.Courses.Find(id);
   PopulateDepartmentsDropDownList(course.DepartmentID);
   return View(course);
}

[HttpPost]
[ValidateAntiForgeryToken]
public ActionResult Edit(
    [Bind(Include = "CourseID,Title,Credits,DepartmentID")]
    Course course)
{
   try
   {
      if (ModelState.IsValid)
      {
         db.Entry(course).State = EntityState.Modified;
         db.SaveChanges();
         return RedirectToAction("Index");
      }
   }
   catch (DataException /* dex */)
   {
      //Log the error (uncomment dex variable name after DataException and add a line here to write a log.)
      ModelState.AddModelError("", "Unable to save changes. Try again, and if the problem persists, see your system administrator.");
   }
   PopulateDepartmentsDropDownList(course.DepartmentID);
   return View(course);
}

private void PopulateDepartmentsDropDownList(object selectedDepartment = null)
{
   var departmentsQuery = from d in db.Departments
                          orderby d.Name
                          select d;
   ViewBag.DepartmentID = new SelectList(departmentsQuery, "DepartmentID", "Name", selectedDepartment);
}

The PopulateDepartmentsDropDownList method gets a list of all departments sorted by name, creates a SelectList collection for a drop-down list, and passes the collection to the view in a ViewBag property. The method accepts the optional selectedDepartment parameter that allows the calling code to specify the item that will be selected when the drop-down list is rendered. The view will pass the name DepartmentID to the DropDownList helper, and the helper then knows to look in the ViewBag object for a SelectList named DepartmentID.

The HttpGet Create method calls the PopulateDepartmentsDropDownList method without setting the selected item, because for a new course the department is not established yet:

public ActionResult Create()
{
    PopulateDepartmentsDropDownList();
    return View();
}

The HttpGet Edit method sets the selected item, based on the ID of the department that is already assigned to the course being edited:

public ActionResult Edit(int id)
{
    Course course = db.Courses.Find(id);
    PopulateDepartmentsDropDownList(course.DepartmentID);
    return View(course);
}

The HttpPost methods for both Create and Edit also include code that sets the selected item when they redisplay the page after an error:

catch (DataException /* dex */)
{
    //Log the error (uncomment dex variable name after DataException and add a line here to write a log.)
    ModelState.AddModelError("", "Unable to save changes. Try again, and if the problem persists, see your system administrator.");
}
PopulateDepartmentsDropDownList(course.DepartmentID);
return View(course);

This code ensures that when the page is redisplayed to show the error message, whatever department was selected stays selected.

In Views\Course\Create.cshtml, add the highlighted code to create a new course number field before the Title field. As explained in an earlier tutorial, primary key fields aren't scaffolded by default, but this primary key is meaningful, so you want the user to be able to enter the key value.

@model ContosoUniversity.Models.Course

@{
    ViewBag.Title = "Create";
}

<h2>Create</h2>

@using (Html.BeginForm())
{
    @Html.AntiForgeryToken()
    @Html.ValidationSummary(true)

    <fieldset>
        <legend>Course</legend>

        <div class="editor-label">
            @Html.LabelFor(model => model.CourseID)
        </div>
        <div class="editor-field">
            @Html.EditorFor(model => model.CourseID)
            @Html.ValidationMessageFor(model => model.CourseID)
        </div>

        <div class="editor-label">
            @Html.LabelFor(model => model.Title)
        </div>
        <div class="editor-field">
            @Html.EditorFor(model => model.Title)
            @Html.ValidationMessageFor(model => model.Title)
        </div>

        <div class="editor-label">
            @Html.LabelFor(model => model.Credits)
        </div>
        <div class="editor-field">
            @Html.EditorFor(model => model.Credits)
            @Html.ValidationMessageFor(model => model.Credits)
        </div>

        <div class="editor-label">
            @Html.LabelFor(model => model.DepartmentID, "Department")
        </div>
        <div class="editor-field">
            @Html.DropDownList("DepartmentID", String.Empty)
            @Html.ValidationMessageFor(model => model.DepartmentID)
        </div>

        <p>
            <input type="submit" value="Create" />
        </p>
    </fieldset>
}

<div>
    @Html.ActionLink("Back to List", "Index")
</div>

@section Scripts {
    @Scripts.Render("~/bundles/jqueryval")
}

In Views\Course\Edit.cshtml, Views\Course\Delete.cshtml, and Views\Course\Details.cshtml, add a course number field before the Title field. Because it's the primary key, it's displayed, but it can't be changed.

<div class="editor-label">
    @Html.LabelFor(model => model.CourseID)
</div>
<div class="editor-field">
    @Html.DisplayFor(model => model.CourseID)
</div>

Run the Create page (display the Course Index page and click Create New) and enter data for a new course:

Course_create_page

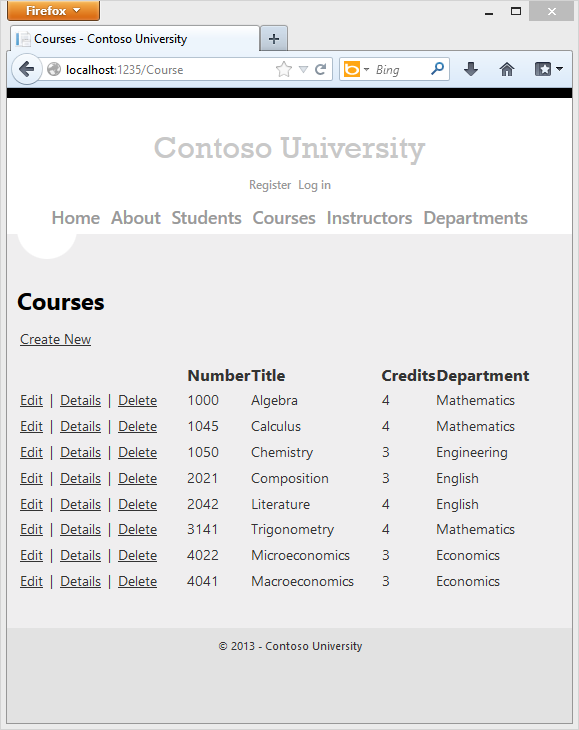

Click Create. The Course Index page is displayed with the new course added to the list. The department name in the Index page list comes from the navigation property, showing that the relationship was established correctly.

Course_Index_page_showing_new_course

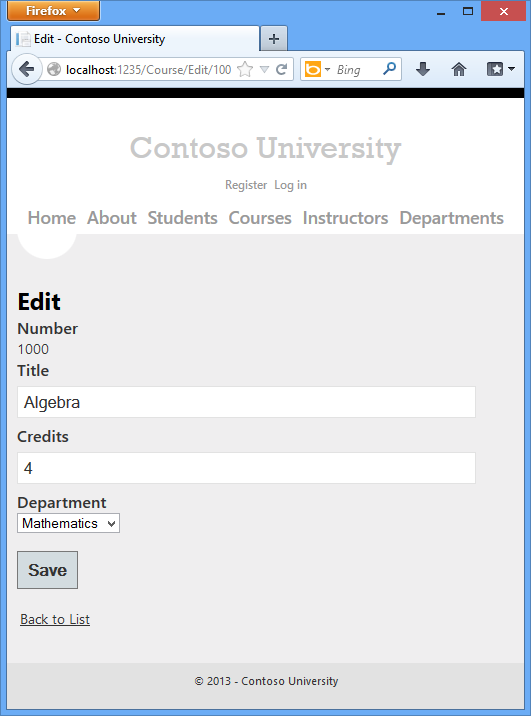

Run the Edit page (display the Course Index page and click Edit on a course).

Course_edit_page

Change data on the page and click Save. The Course Index page is displayed with the updated course data.

Adding an Edit Page for Instructors

When you edit an instructor record, you want to be able to update the instructor's office assignment. The Instructor entity has a one-to-zero-or-one relationship with the OfficeAssignment entity, which means you must handle the following situations:

  • If the user clears the office assignment and it originally had a value, you must remove and delete the OfficeAssignment entity.
  • If the user enters an office assignment value and it originally was empty, you must create a new OfficeAssignment entity.
  • If the user changes the value of an office assignment, you must change the value in an existing OfficeAssignment entity.

Open InstructorController.cs and look at the HttpGet Edit method:

public ActionResult Edit(int id = 0)
{
    Instructor instructor = db.Instructors.Find(id);
    if (instructor == null)
    {
        return HttpNotFound();
    }
    ViewBag.InstructorID = new SelectList(db.OfficeAssignments, "InstructorID", "Location", instructor.InstructorID);
    return View(instructor);
}

The scaffolded code here isn't what you want. It's setting up data for a drop-down list, but you what you need is a text box. Replace this method with the following code:

public ActionResult Edit(int id)
{
    Instructor instructor = db.Instructors
        .Include(i => i.OfficeAssignment)
        .Where(i => i.InstructorID == id)
        .Single();
    return View(instructor);
}

This code drops the ViewBag statement and adds eager loading for the associated OfficeAssignment entity. You can't perform eager loading with the Find method, so the Where and Single methods are used instead to select the instructor.

Replace the HttpPost Edit method with the following code. which handles office assignment updates:

[HttpPost]
[ValidateAntiForgeryToken]
public ActionResult Edit(int id, FormCollection formCollection)
{
   var instructorToUpdate = db.Instructors
       .Include(i => i.OfficeAssignment)
       .Where(i => i.InstructorID == id)
       .Single();

   if (TryUpdateModel(instructorToUpdate, "",
      new string[] { "LastName", "FirstMidName", "HireDate", "OfficeAssignment" }))
   {
      try
      {
         if (String.IsNullOrWhiteSpace(instructorToUpdate.OfficeAssignment.Location))
         {
            instructorToUpdate.OfficeAssignment = null;
         }

         db.Entry(instructorToUpdate).State = EntityState.Modified;
         db.SaveChanges();

         return RedirectToAction("Index");
      }
      catch (DataException /* dex */)
      {
         //Log the error (uncomment dex variable name after DataException and add a line here to write a log.
         ModelState.AddModelError("", "Unable to save changes. Try again, and if the problem persists, see your system administrator.");
      }
   }
   ViewBag.InstructorID = new SelectList(db.OfficeAssignments, "InstructorID", "Location", id);
   return View(instructorToUpdate);
}

The code does the following:

  • Gets the current Instructor entity from the database using eager loading for the OfficeAssignment navigation property. This is the same as what you did in the HttpGet Edit method.

  • Updates the retrieved Instructor entity with values from the model binder. The TryUpdateModel overload used enables you to safelist the properties you want to include. This prevents over-posting, as explained in the second tutorial.

    if (TryUpdateModel(instructorToUpdate, "",
      new string[] { "LastName", "FirstMidName", "HireDate", "OfficeAssignment" }))

  • If the office location is blank, sets the Instructor.OfficeAssignment property to null so that the related row in the OfficeAssignment table will be deleted.

    if (String.IsNullOrWhiteSpace(instructorToUpdate.OfficeAssignment.Location))
{
    instructorToUpdate.OfficeAssignment = null;
}

  • Saves the changes to the database.

In Views\Instructor\Edit.cshtml, after the div elements for the Hire Date field, add a new field for editing the office location:

<div class="editor-label">
    @Html.LabelFor(model => model.OfficeAssignment.Location)
</div>
<div class="editor-field">
    @Html.EditorFor(model => model.OfficeAssignment.Location)
    @Html.ValidationMessageFor(model => model.OfficeAssignment.Location)
</div>

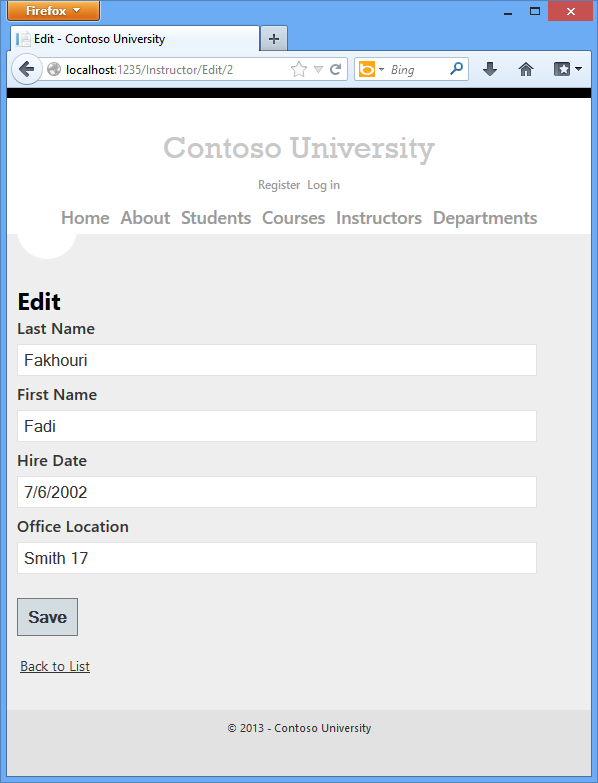

Run the page (select the Instructors tab and then click Edit on an instructor). Change the Office Location and click Save.

Changing_the_office_location

Adding Course Assignments to the Instructor Edit Page

Instructors may teach any number of courses. Now you'll enhance the Instructor Edit page by adding the ability to change course assignments using a group of check boxes, as shown in the following screen shot:

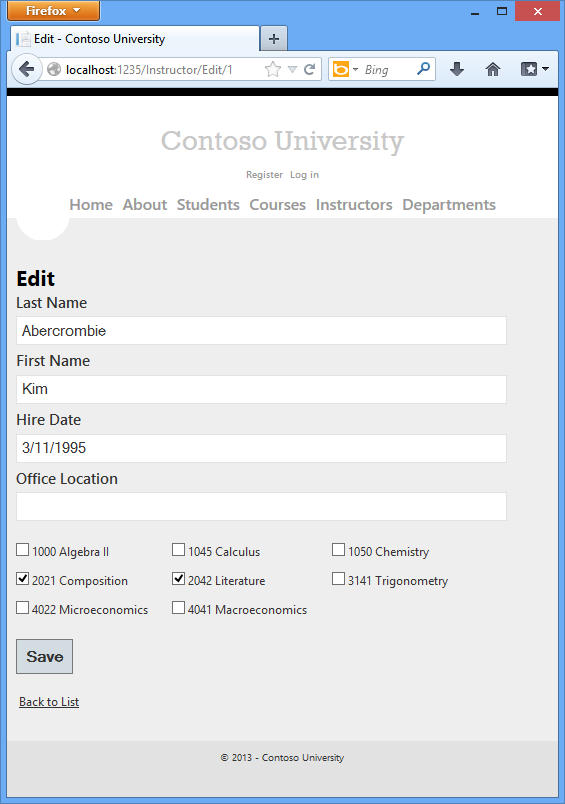

Screenshot that shows the Instructor Edit page with courses.

The relationship between the Course and Instructor entities is many-to-many, which means you do not have direct access to the join table. Instead, you will add and remove entities to and from the Instructor.Courses navigation property.

The UI that enables you to change which courses an instructor is assigned to is a group of check boxes. A check box for every course in the database is displayed, and the ones that the instructor is currently assigned to are selected. The user can select or clear check boxes to change course assignments. If the number of courses were much greater, you would probably want to use a different method of presenting the data in the view, but you'd use the same method of manipulating navigation properties in order to create or delete relationships.

To provide data to the view for the list of check boxes, you'll use a view model class. Create AssignedCourseData.cs in the ViewModels folder and replace the existing code with the following code:

namespace ContosoUniversity.ViewModels
{
    public class AssignedCourseData
    {
        public int CourseID { get; set; }
        public string Title { get; set; }
        public bool Assigned { get; set; }
    }
}

In InstructorController.cs, replace the HttpGet Edit method with the following code. The changes are highlighted.

public ActionResult Edit(int id)
{
    Instructor instructor = db.Instructors
        .Include(i => i.OfficeAssignment)
        .Include(i => i.Courses)
        .Where(i => i.InstructorID == id)
        .Single();
    PopulateAssignedCourseData(instructor);
    return View(instructor);
}

private void PopulateAssignedCourseData(Instructor instructor)
{
    var allCourses = db.Courses;
    var instructorCourses = new HashSet<int>(instructor.Courses.Select(c => c.CourseID));
    var viewModel = new List<AssignedCourseData>();
    foreach (var course in allCourses)
    {
        viewModel.Add(new AssignedCourseData
        {
            CourseID = course.CourseID,
            Title = course.Title,
            Assigned = instructorCourses.Contains(course.CourseID)
        });
    }
    ViewBag.Courses = viewModel;
}

The code adds eager loading for the Courses navigation property and calls the new PopulateAssignedCourseData method to provide information for the check box array using the AssignedCourseData view model class.

The code in the PopulateAssignedCourseData method reads through all Course entities in order to load a list of courses using the view model class. For each course, the code checks whether the course exists in the instructor's Courses navigation property. To create efficient lookup when checking whether a course is assigned to the instructor, the courses assigned to the instructor are put into a HashSet collection. The Assigned property is set to true for courses the instructor is assigned. The view will use this property to determine which check boxes must be displayed as selected. Finally, the list is passed to the view in a ViewBag property.

Next, add the code that's executed when the user clicks Save. Replace the HttpPost Edit method with the following code, which calls a new method that updates the Courses navigation property of the Instructor entity. The changes are highlighted.

[HttpPost]
[ValidateAntiForgeryToken]
public ActionResult Edit(int id, FormCollection formCollection, string[] selectedCourses)
{
   var instructorToUpdate = db.Instructors
       .Include(i => i.OfficeAssignment)
       .Include(i => i.Courses)
       .Where(i => i.InstructorID == id)
       .Single();
   if (TryUpdateModel(instructorToUpdate, "",
      new string[] { "LastName", "FirstMidName", "HireDate", "OfficeAssignment" }))
   {
      try
      {
         if (String.IsNullOrWhiteSpace(instructorToUpdate.OfficeAssignment.Location))
         {
            instructorToUpdate.OfficeAssignment = null;
         }

         UpdateInstructorCourses(selectedCourses, instructorToUpdate);

         db.Entry(instructorToUpdate).State = EntityState.Modified;
         db.SaveChanges();

         return RedirectToAction("Index");
      }
      catch (DataException /* dex */)
      {
         //Log the error (uncomment dex variable name after DataException and add a line here to write a log.
         ModelState.AddModelError("", "Unable to save changes. Try again, and if the problem persists see your system administrator.");
      }
   }
   PopulateAssignedCourseData(instructorToUpdate);
   return View(instructorToUpdate);
}

private void UpdateInstructorCourses(string[] selectedCourses, Instructor instructorToUpdate)
{
   if (selectedCourses == null)
   {
      instructorToUpdate.Courses = new List<Course>();
      return;
   }

   var selectedCoursesHS = new HashSet<string>(selectedCourses);
   var instructorCourses = new HashSet<int>
       (instructorToUpdate.Courses.Select(c => c.CourseID));
   foreach (var course in db.Courses)
   {
      if (selectedCoursesHS.Contains(course.CourseID.ToString()))
      {
         if (!instructorCourses.Contains(course.CourseID))
         {
            instructorToUpdate.Courses.Add(course);
         }
      }
      else
      {
         if (instructorCourses.Contains(course.CourseID))
         {
            instructorToUpdate.Courses.Remove(course);
         }
      }
   }
}

Since the view doesn't have a collection of Course entities, the model binder can't automatically update the Courses navigation property. Instead of using the model binder to update the Courses navigation property, you'll do that in the new UpdateInstructorCourses method. Therefore you need to exclude the Courses property from model binding. This doesn't require any change to the code that calls TryUpdateModel because you're using the safelisting overload and Courses isn't in the include list.

If no check boxes were selected, the code in UpdateInstructorCourses initializes the Courses navigation property with an empty collection:

if (selectedCourses == null)
{
    instructorToUpdate.Courses = new List<Course>();
    return;
}

The code then loops through all courses in the database and checks each course against the ones currently assigned to the instructor versus the ones that were selected in the view. To facilitate efficient lookups, the latter two collections are stored in HashSet objects.

If the check box for a course was selected but the course isn't in the Instructor.Courses navigation property, the course is added to the collection in the navigation property.

if (selectedCoursesHS.Contains(course.CourseID.ToString()))
{
    if (!instructorCourses.Contains(course.CourseID))
    {
        instructorToUpdate.Courses.Add(course);
    }
}

If the check box for a course wasn't selected, but the course is in the Instructor.Courses navigation property, the course is removed from the navigation property.

else
{
    if (instructorCourses.Contains(course.CourseID))
    {
        instructorToUpdate.Courses.Remove(course);
    }
}

In Views\Instructor\Edit.cshtml, add a Courses field with an array of check boxes by adding the following highlighted code immediately after the div elements for the OfficeAssignment field:

@model ContosoUniversity.Models.Instructor

@{
    ViewBag.Title = "Edit";
}

<h2>Edit</h2>

@using (Html.BeginForm())
{
    @Html.AntiForgeryToken()
    @Html.ValidationSummary(true)

    <fieldset>
        <legend>Instructor</legend>

        @Html.HiddenFor(model => model.InstructorID)

        <div class="editor-label">
            @Html.LabelFor(model => model.LastName)
        </div>
        <div class="editor-field">
            @Html.EditorFor(model => model.LastName)
            @Html.ValidationMessageFor(model => model.LastName)
        </div>

        <div class="editor-label">
            @Html.LabelFor(model => model.FirstMidName)
        </div>
        <div class="editor-field">
            @Html.EditorFor(model => model.FirstMidName)
            @Html.ValidationMessageFor(model => model.FirstMidName)
        </div>

        <div class="editor-label">
            @Html.LabelFor(model => model.HireDate)
        </div>
        <div class="editor-field">
            @Html.EditorFor(model => model.HireDate)
            @Html.ValidationMessageFor(model => model.HireDate)
        </div>

        <div class="editor-label">
            @Html.LabelFor(model => model.OfficeAssignment.Location)
        </div>
        <div class="editor-field">
            @Html.EditorFor(model => model.OfficeAssignment.Location)
            @Html.ValidationMessageFor(model => model.OfficeAssignment.Location)
        </div>

        <div class="editor-field">
    <table>
        <tr>
            @{
                int cnt = 0;
                List<ContosoUniversity.ViewModels.AssignedCourseData> courses = ViewBag.Courses;

                foreach (var course in courses) {
                    if (cnt++ % 3 == 0) {
                        @:  </tr> <tr>
                    }
                    @: <td>
                        <input type="checkbox"
                               name="selectedCourses"
                               value="@course.CourseID"
                               @(Html.Raw(course.Assigned ? "checked=\"checked\"" : "")) />
                        @course.CourseID @:  @course.Title
                    @:</td>
                }
                @: </tr>
            }
    </table>
</div>
        <p>
            <input type="submit" value="Save" />
        </p>
    </fieldset>
}

<div>
    @Html.ActionLink("Back to List", "Index")
</div>

@section Scripts {
    @Scripts.Render("~/bundles/jqueryval")
}

This code creates an HTML table that has three columns. In each column is a check box followed by a caption that consists of the course number and title. The check boxes all have the same name ("selectedCourses"), which informs the model binder that they are to be treated as a group. The value attribute of each check box is set to the value of CourseID. When the page is posted, the model binder passes an array to the controller that consists of the CourseID values for only the check boxes which are selected.

When the check boxes are initially rendered, those that are for courses assigned to the instructor have checked attributes, which selects them (displays them checked).

After changing course assignments, you'll want to be able to verify the changes when the site returns to the Index page. Therefore, you need to add a column to the table in that page. In this case you don't need to use the ViewBag object, because the information you want to display is already in the Courses navigation property of the Instructor entity that you're passing to the page as the model.

In Views\Instructor\Index.cshtml, add a Courses heading immediately following the Office heading, as shown in the following example:

<tr>
    <th></th>
    <th>Last Name</th>
    <th>First Name</th>
    <th>Hire Date</th>
    <th>Office</th>
    <th>Courses</th>
</tr>

Then add a new detail cell immediately following the office location detail cell:

@model ContosoUniversity.ViewModels.InstructorIndexData

@{
    ViewBag.Title = "Instructors";
}

<h2>Instructors</h2>

<p>
    @Html.ActionLink("Create New", "Create")
</p>
<table>
    <tr>
        <th></th>
        <th>Last Name</th>
        <th>First Name</th>
        <th>Hire Date</th>
        <th>Office</th>
        <th>Courses</th>
    </tr>
    @foreach (var item in Model.Instructors)
    {
        string selectedRow = "";
        if (item.InstructorID == ViewBag.InstructorID)
        {
            selectedRow = "selectedrow";
        }
        <tr class="@selectedRow" valign="top">
            <td>
                @Html.ActionLink("Select", "Index", new { id = item.InstructorID }) |
                @Html.ActionLink("Edit", "Edit", new { id = item.InstructorID }) |
                @Html.ActionLink("Details", "Details", new { id = item.InstructorID }) |
                @Html.ActionLink("Delete", "Delete", new { id = item.InstructorID })
            </td>
            <td>
                @item.LastName
            </td>
            <td>
                @item.FirstMidName
            </td>
            <td>
                @String.Format("{0:d}", item.HireDate)
            </td>
            <td>
                @if (item.OfficeAssignment != null)
                {
                    @item.OfficeAssignment.Location
                }
            </td>
            <td>
                @{
                foreach (var course in item.Courses)
                {
                    @course.CourseID @:  @course.Title <br />
                }
                }
            </td>
        </tr>
    }
</table>

@if (Model.Courses != null)
{
    <h3>Courses Taught by Selected Instructor</h3>
    <table>
        <tr>
            <th></th>
            <th>ID</th>
            <th>Title</th>
            <th>Department</th>
        </tr>

        @foreach (var item in Model.Courses)
        {
            string selectedRow = "";
            if (item.CourseID == ViewBag.CourseID)
            {
                selectedRow = "selectedrow";
            }

            <tr class="@selectedRow">

                <td>
                    @Html.ActionLink("Select", "Index", new { courseID = item.CourseID })
                </td>
                <td>
                    @item.CourseID
                </td>
                <td>
                    @item.Title
                </td>
                <td>
                    @item.Department.Name
                </td>
            </tr>
        }

    </table>
}
@if (Model.Enrollments != null)
{
    <h3>Students Enrolled in Selected Course</h3>
    <table>
        <tr>
            <th>Name</th>
            <th>Grade</th>
        </tr>
        @foreach (var item in Model.Enrollments)
        {
            <tr>
                <td>
                    @item.Student.FullName
                </td>
                <td>
                    @Html.DisplayFor(modelItem => item.Grade)
                </td>
            </tr>
        }
    </table>
}

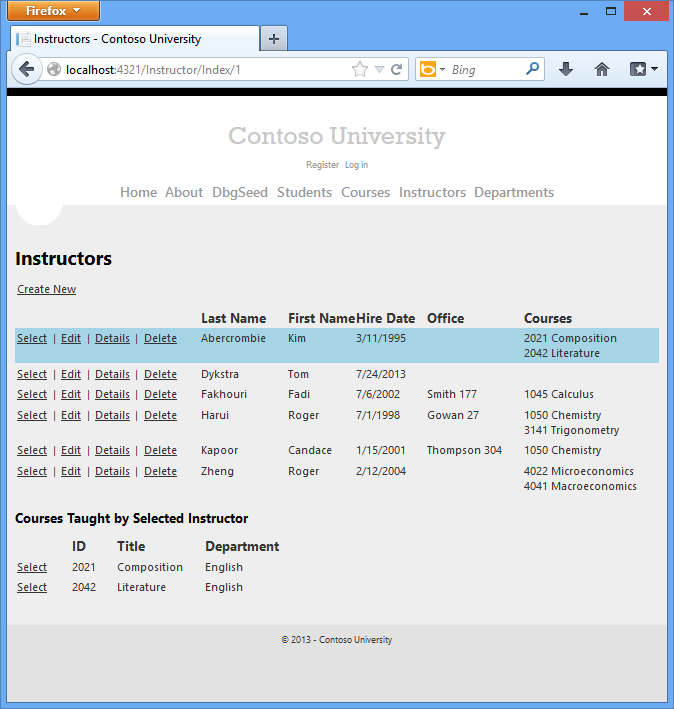

Run the Instructor Index page to see the courses assigned to each instructor:

Instructor_index_page

Click Edit on an instructor to see the Edit page.

Instructor_edit_page_with_courses

Change some course assignments and click Save. The changes you make are reflected on the Index page.

Note: The approach taken to edit instructor course data works well when there is a limited number of courses. For collections that are much larger, a different UI and a different updating method would be required.

Update the Delete Method

Change the code in the HttpPost Delete method so the office assignment record (if any) is deleted when the instructor is deleted:

[HttpPost, ActionName("Delete")]
[ValidateAntiForgeryToken]
public ActionResult DeleteConfirmed(int id)
{
   Instructor instructor = db.Instructors
     .Include(i => i.OfficeAssignment)
     .Where(i => i.InstructorID == id)
     .Single();

   instructor.OfficeAssignment = null;
   db.Instructors.Remove(instructor);
   db.SaveChanges();
   return RedirectToAction("Index");
}

If you try to delete an instructor who is assigned to a department as administrator, you'll get a referential integrity error. See the current version of this tutorial for additional code that will automatically remove the instructor from any department where the instructor is assigned as an administrator.

Summary

You have now completed this introduction to working with related data. So far in these tutorials you've done a full range of CRUD operations, but you haven't dealt with concurrency issues. The next tutorial will introduce the topic of concurrency, explain options for handling it, and add concurrency handling to the CRUD code you've already written for one entity type.

Links to other Entity Framework resources, can be found at the end of the last tutorial in this series.

Previous Next
