Cancellation in Managed Threads
Starting with .NET Framework 4, .NET uses a unified model for cooperative cancellation of asynchronous or long-running synchronous operations. This model is based on a lightweight object called a cancellation token. The object that invokes one or more cancelable operations, for example by creating new threads or tasks, passes the token to each operation. Individual operations can in turn pass copies of the token to other operations. At some later time, the object that created the token can use it to request that the operations stop what they are doing. Only the requesting object can issue the cancellation request, and each listener is responsible for noticing the request and responding to it in an appropriate and timely manner.
The general pattern for implementing the cooperative cancellation model is:
Instantiate a CancellationTokenSource object, which manages and sends cancellation notification to the individual cancellation tokens.
Pass the token returned by the CancellationTokenSource.Token property to each task or thread that listens for cancellation.
Provide a mechanism for each task or thread to respond to cancellation.
Call the CancellationTokenSource.Cancel method to provide notification of cancellation.
Important
The CancellationTokenSource class implements the IDisposable interface. You should be sure to call the CancellationTokenSource.Dispose method when you have finished using the cancellation token source to free any unmanaged resources it holds.

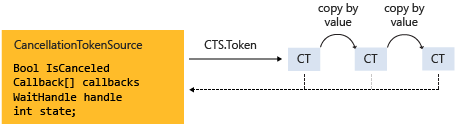

The following illustration shows the relationship between a token source and all the copies of its token.
The cooperative cancellation model makes it easier to create cancellation-aware applications and libraries, and it supports the following features:
Cancellation is cooperative and is not forced on the listener. The listener determines how to gracefully terminate in response to a cancellation request.
Requesting is distinct from listening. An object that invokes a cancelable operation can control when (if ever) cancellation is requested.
The requesting object issues the cancellation request to all copies of the token by using just one method call.
A listener can listen to multiple tokens simultaneously by joining them into one linked token.
User code can notice and respond to cancellation requests from library code, and library code can notice and respond to cancellation requests from user code.
Listeners can be notified of cancellation requests by polling, callback registration, or waiting on wait handles.
Cancellation Types
The cancellation framework is implemented as a set of related types, which are listed in the following table.
| Type name | Description |
|---|---|
| CancellationTokenSource | Object that creates a cancellation token, and also issues the cancellation request for all copies of that token. |
| CancellationToken | Lightweight value type passed to one or more listeners, typically as a method parameter. Listeners monitor the value of the IsCancellationRequested property of the token by polling, callback, or wait handle. |
| OperationCanceledException | Overloads of this exception's constructor accept a CancellationToken as a parameter. Listeners can optionally throw this exception to verify the source of the cancellation and notify others that it has responded to a cancellation request. |
The cancellation model is integrated into .NET in several types. The most important ones are System.Threading.Tasks.Parallel, System.Threading.Tasks.Task, System.Threading.Tasks.Task<TResult> and System.Linq.ParallelEnumerable. We recommend that you use this cooperative cancellation model for all new library and application code.
Code Example
In the following example, the requesting object creates a CancellationTokenSource object, and then passes its Token property to the cancelable operation. The operation that receives the request monitors the value of the IsCancellationRequested property of the token by polling. When the value becomes true, the listener can terminate in whatever manner is appropriate. In this example, the method just exits, which is all that is required in many cases.
Note
The example uses the QueueUserWorkItem method to demonstrate that the cooperative cancellation framework is compatible with legacy APIs. For an example that uses the preferred System.Threading.Tasks.Task type, see How to: Cancel a Task and Its Children.
using System;
using System.Threading;
public class Example
{
public static void Main()
{
// Create the token source.
CancellationTokenSource cts = new CancellationTokenSource();
// Pass the token to the cancelable operation.
ThreadPool.QueueUserWorkItem(new WaitCallback(DoSomeWork), cts.Token);
Thread.Sleep(2500);
// Request cancellation.
cts.Cancel();
Console.WriteLine("Cancellation set in token source...");
Thread.Sleep(2500);
// Cancellation should have happened, so call Dispose.
cts.Dispose();
}
// Thread 2: The listener
static void DoSomeWork(object? obj)
{
if (obj is null)
return;
CancellationToken token = (CancellationToken)obj;
for (int i = 0; i < 100000; i++)
{
if (token.IsCancellationRequested)
{
Console.WriteLine("In iteration {0}, cancellation has been requested...",
i + 1);
// Perform cleanup if necessary.
//...
// Terminate the operation.
break;
}
// Simulate some work.
Thread.SpinWait(500000);
}
}
}
// The example displays output like the following:
// Cancellation set in token source...
// In iteration 1430, cancellation has been requested...
Imports System.Threading
Module Example
Public Sub Main()
' Create the token source.
Dim cts As New CancellationTokenSource()
' Pass the token to the cancelable operation.
ThreadPool.QueueUserWorkItem(New WaitCallback(AddressOf DoSomeWork), cts.Token)
Thread.Sleep(2500)
' Request cancellation by setting a flag on the token.
cts.Cancel()
Console.WriteLine("Cancellation set in token source...")
Thread.Sleep(2500)
' Cancellation should have happened, so call Dispose.
cts.Dispose()
End Sub
' Thread 2: The listener
Sub DoSomeWork(ByVal obj As Object)
Dim token As CancellationToken = CType(obj, CancellationToken)
For i As Integer = 0 To 1000000
If token.IsCancellationRequested Then
Console.WriteLine("In iteration {0}, cancellation has been requested...",
i + 1)
' Perform cleanup if necessary.
'...
' Terminate the operation.
Exit For
End If
' Simulate some work.
Thread.SpinWait(500000)
Next
End Sub
End Module
' The example displays output like the following:
' Cancellation set in token source...
' In iteration 1430, cancellation has been requested...
Operation Cancellation Versus Object Cancellation
In the cooperative cancellation framework, cancellation refers to operations, not objects. The cancellation request means that the operation should stop as soon as possible after any required cleanup is performed. One cancellation token should refer to one "cancelable operation," however that operation may be implemented in your program. After the IsCancellationRequested property of the token has been set to true, it cannot be reset to false. Therefore, cancellation tokens cannot be reused after they have been canceled.
If you require an object cancellation mechanism, you can base it on the operation cancellation mechanism by calling the CancellationToken.Register method, as shown in the following example.
using System;
using System.Threading;
class CancelableObject
{
public string id;
public CancelableObject(string id)
{
this.id = id;
}
public void Cancel()
{
Console.WriteLine("Object {0} Cancel callback", id);
// Perform object cancellation here.
}
}
public class Example1
{
public static void Main()
{
CancellationTokenSource cts = new CancellationTokenSource();
CancellationToken token = cts.Token;
// User defined Class with its own method for cancellation
var obj1 = new CancelableObject("1");
var obj2 = new CancelableObject("2");
var obj3 = new CancelableObject("3");
// Register the object's cancel method with the token's
// cancellation request.
token.Register(() => obj1.Cancel());
token.Register(() => obj2.Cancel());
token.Register(() => obj3.Cancel());
// Request cancellation on the token.
cts.Cancel();
// Call Dispose when we're done with the CancellationTokenSource.
cts.Dispose();
}
}
// The example displays the following output:
// Object 3 Cancel callback
// Object 2 Cancel callback
// Object 1 Cancel callback
Imports System.Threading
Class CancelableObject
Public id As String
Public Sub New(id As String)
Me.id = id
End Sub
Public Sub Cancel()
Console.WriteLine("Object {0} Cancel callback", id)
' Perform object cancellation here.
End Sub
End Class
Module Example
Public Sub Main()
Dim cts As New CancellationTokenSource()
Dim token As CancellationToken = cts.Token
' User defined Class with its own method for cancellation
Dim obj1 As New CancelableObject("1")
Dim obj2 As New CancelableObject("2")
Dim obj3 As New CancelableObject("3")
' Register the object's cancel method with the token's
' cancellation request.
token.Register(Sub() obj1.Cancel())
token.Register(Sub() obj2.Cancel())
token.Register(Sub() obj3.Cancel())
' Request cancellation on the token.
cts.Cancel()
' Call Dispose when we're done with the CancellationTokenSource.
cts.Dispose()
End Sub
End Module
' The example displays output like the following:
' Object 3 Cancel callback
' Object 2 Cancel callback
' Object 1 Cancel callback
If an object supports more than one concurrent cancelable operation, pass a separate token as input to each distinct cancelable operation. That way, one operation can be cancelled without affecting the others.
Listening and Responding to Cancellation Requests
In the user delegate, the implementer of a cancelable operation determines how to terminate the operation in response to a cancellation request. In many cases, the user delegate can just perform any required cleanup and then return immediately.
However, in more complex cases, it might be necessary for the user delegate to notify library code that cancellation has occurred. In such cases, the correct way to terminate the operation is for the delegate to call the ThrowIfCancellationRequested, method, which will cause an OperationCanceledException to be thrown. Library code can catch this exception on the user delegate thread and examine the exception's token to determine whether the exception indicates cooperative cancellation or some other exceptional situation.
The Task class handles OperationCanceledException in this way. For more information, see Task Cancellation.
Listening by Polling
For long-running computations that loop or recurse, you can listen for a cancellation request by periodically polling the value of the CancellationToken.IsCancellationRequested property. If its value is true, the method should clean up and terminate as quickly as possible. The optimal frequency of polling depends on the type of application. It is up to the developer to determine the best polling frequency for any given program. Polling itself does not significantly impact performance. The following example shows one possible way to poll.
static void NestedLoops(Rectangle rect, CancellationToken token)
{
for (int col = 0; col < rect.columns && !token.IsCancellationRequested; col++) {
// Assume that we know that the inner loop is very fast.
// Therefore, polling once per column in the outer loop condition
// is sufficient.
for (int row = 0; row < rect.rows; row++) {
// Simulating work.
Thread.SpinWait(5_000);
Console.Write("{0},{1} ", col, row);
}
}
if (token.IsCancellationRequested) {
// Cleanup or undo here if necessary...
Console.WriteLine("\r\nOperation canceled");
Console.WriteLine("Press any key to exit.");
// If using Task:
// token.ThrowIfCancellationRequested();
}
}
Shared Sub NestedLoops(ByVal rect As Rectangle, ByVal token As CancellationToken)
Dim col As Integer
For col = 0 To rect.columns - 1
' Assume that we know that the inner loop is very fast.
' Therefore, polling once per column in the outer loop condition
' is sufficient.
For col As Integer = 0 To rect.rows - 1
' Simulating work.
Thread.SpinWait(5000)
Console.Write("0',1' ", x, y)
Next
Next
If token.IsCancellationRequested = True Then
' Cleanup or undo here if necessary...
Console.WriteLine(vbCrLf + "Operation canceled")
Console.WriteLine("Press any key to exit.")
' If using Task:
' token.ThrowIfCancellationRequested()
End If
End Sub
For a more complete example, see How to: Listen for Cancellation Requests by Polling.
Listening by Registering a Callback
Some operations can become blocked in such a way that they cannot check the value of the cancellation token in a timely manner. For these cases, you can register a callback method that unblocks the method when a cancellation request is received.
The Register method returns a CancellationTokenRegistration object that is used specifically for this purpose. The following example shows how to use the Register method to cancel an asynchronous Web request.
using System;
using System.Net;
using System.Threading;
class Example4
{
static void Main()
{
CancellationTokenSource cts = new CancellationTokenSource();
StartWebRequest(cts.Token);
// cancellation will cause the web
// request to be cancelled
cts.Cancel();
}
static void StartWebRequest(CancellationToken token)
{
WebClient wc = new WebClient();
wc.DownloadStringCompleted += (s, e) => Console.WriteLine("Request completed.");
// Cancellation on the token will
// call CancelAsync on the WebClient.
token.Register(() =>
{
wc.CancelAsync();
Console.WriteLine("Request cancelled!");
});
Console.WriteLine("Starting request.");
wc.DownloadStringAsync(new Uri("http://www.contoso.com"));
}
}
Imports System.Net
Imports System.Threading
Class Example
Private Shared Sub Main()
Dim cts As New CancellationTokenSource()
StartWebRequest(cts.Token)
' cancellation will cause the web
' request to be cancelled
cts.Cancel()
End Sub
Private Shared Sub StartWebRequest(token As CancellationToken)
Dim wc As New WebClient()
wc.DownloadStringCompleted += Function(s, e) Console.WriteLine("Request completed.")
' Cancellation on the token will
' call CancelAsync on the WebClient.
token.Register(Function()
wc.CancelAsync()
Console.WriteLine("Request cancelled!")
End Function)
Console.WriteLine("Starting request.")
wc.DownloadStringAsync(New Uri("http://www.contoso.com"))
End Sub
End Class
The CancellationTokenRegistration object manages thread synchronization and ensures that the callback will stop executing at a precise point in time.
In order to ensure system responsiveness and to avoid deadlocks, the following guidelines must be followed when registering callbacks:
The callback method should be fast because it is called synchronously and therefore the call to Cancel does not return until the callback returns.
If you call Dispose while the callback is running, and you hold a lock that the callback is waiting on, your program can deadlock. After
Disposereturns, you can free any resources required by the callback.Callbacks should not perform any manual thread or SynchronizationContext usage in a callback. If a callback must run on a particular thread, use the System.Threading.CancellationTokenRegistration constructor that enables you to specify that the target syncContext is the active SynchronizationContext.Current. Performing manual threading in a callback can cause deadlock.
For a more complete example, see How to: Register Callbacks for Cancellation Requests.
Listening by Using a Wait Handle
When a cancelable operation can block while it waits on a synchronization primitive such as a System.Threading.ManualResetEvent or System.Threading.Semaphore, you can use the CancellationToken.WaitHandle property to enable the operation to wait on both the event and the cancellation request. The wait handle of the cancellation token will become signaled in response to a cancellation request, and the method can use the return value of the WaitAny method to determine whether it was the cancellation token that signaled. The operation can then just exit, or throw an OperationCanceledException, as appropriate.
// Wait on the event if it is not signaled.
int eventThatSignaledIndex =
WaitHandle.WaitAny(new WaitHandle[] { mre, token.WaitHandle },
new TimeSpan(0, 0, 20));
' Wait on the event if it is not signaled.
Dim waitHandles() As WaitHandle = {mre, token.WaitHandle}
Dim eventThatSignaledIndex =
WaitHandle.WaitAny(waitHandles, _
New TimeSpan(0, 0, 20))
System.Threading.ManualResetEventSlim and System.Threading.SemaphoreSlim both support the cancellation framework in their Wait methods. You can pass the CancellationToken to the method, and when the cancellation is requested, the event wakes up and throws an OperationCanceledException.
try
{
// mres is a ManualResetEventSlim
mres.Wait(token);
}
catch (OperationCanceledException)
{
// Throw immediately to be responsive. The
// alternative is to do one more item of work,
// and throw on next iteration, because
// IsCancellationRequested will be true.
Console.WriteLine("The wait operation was canceled.");
throw;
}
Console.Write("Working...");
// Simulating work.
Thread.SpinWait(500000);
Try
' mres is a ManualResetEventSlim
mres.Wait(token)
Catch e As OperationCanceledException
' Throw immediately to be responsive. The
' alternative is to do one more item of work,
' and throw on next iteration, because
' IsCancellationRequested will be true.
Console.WriteLine("Canceled while waiting.")
Throw
End Try
' Simulating work.
Console.Write("Working...")
Thread.SpinWait(500000)
For a more complete example, see How to: Listen for Cancellation Requests That Have Wait Handles.
Listening to Multiple Tokens Simultaneously
In some cases, a listener may have to listen to multiple cancellation tokens simultaneously. For example, a cancelable operation may have to monitor an internal cancellation token in addition to a token passed in externally as an argument to a method parameter. To accomplish this, create a linked token source that can join two or more tokens into one token, as shown in the following example.
public void DoWork(CancellationToken externalToken)
{
// Create a new token that combines the internal and external tokens.
this.internalToken = internalTokenSource.Token;
this.externalToken = externalToken;
using (CancellationTokenSource linkedCts =
CancellationTokenSource.CreateLinkedTokenSource(internalToken, externalToken))
{
try
{
DoWorkInternal(linkedCts.Token);
}
catch (OperationCanceledException)
{
if (internalToken.IsCancellationRequested)
{
Console.WriteLine("Operation timed out.");
}
else if (externalToken.IsCancellationRequested)
{
Console.WriteLine("Cancelling per user request.");
externalToken.ThrowIfCancellationRequested();
}
}
}
}
Public Sub DoWork(ByVal externalToken As CancellationToken)
' Create a new token that combines the internal and external tokens.
Dim internalToken As CancellationToken = internalTokenSource.Token
Dim linkedCts As CancellationTokenSource =
CancellationTokenSource.CreateLinkedTokenSource(internalToken, externalToken)
Using (linkedCts)
Try
DoWorkInternal(linkedCts.Token)
Catch e As OperationCanceledException
If e.CancellationToken = internalToken Then
Console.WriteLine("Operation timed out.")
ElseIf e.CancellationToken = externalToken Then
Console.WriteLine("Canceled by external token.")
externalToken.ThrowIfCancellationRequested()
End If
End Try
End Using
End Sub
Notice that you must call Dispose on the linked token source when you are done with it. For a more complete example, see How to: Listen for Multiple Cancellation Requests.
Cooperation Between Library Code and User Code
The unified cancellation framework makes it possible for library code to cancel user code, and for user code to cancel library code in a cooperative manner. Smooth cooperation depends on each side following these guidelines:
If library code provides cancelable operations, it should also provide public methods that accept an external cancellation token so that user code can request cancellation.
If library code calls into user code, the library code should interpret an OperationCanceledException(externalToken) as cooperative cancellation, and not necessarily as a failure exception.
User-delegates should attempt to respond to cancellation requests from library code in a timely manner.
System.Threading.Tasks.Task and System.Linq.ParallelEnumerable are examples of classes that follow these guidelines. For more information, see Task Cancellation and How to: Cancel a PLINQ Query.
