Enhanced data model

  • مقالة

The standard data model was built by using custom tables, and it was optimized for the configuration of each website component that is stored as a record in a dedicated table in Microsoft Dataverse. The standard model requires more time to load the different solutions, tables, and metadata when a new site is provisioned. Updates to website tables in the standard model require manual and time-consuming application of package updates.

Note

  • All new sites will be created by default using the enhanced data model.
  • To create a site on the standard data model, disable the enhanced data model in the Power Platform admin center.
  • The Power Pages Management app is installed by default on all instances of Microsoft Dataverse in supported regions, including environments where there are no Power Pages sites.

The enhanced data model is a combination of system tables, nonconfiguration tables, and virtual tables.

The enhanced data model for Power Pages provides the following benefits:

  • Website provisioning is faster.
  • Design studio experiences are faster.
  • Website configurations can be contained in solutions to provide smoother application lifecycle management (ALM) experiences.
  • Updates of Power Pages enhancements and bug fixes are improved.

Determine whether your site is using the standard or enhanced data model

There are several ways to determine which data model your site is using:

  • Open Power Platform admin center, go to Resources > Power Pages sites, select your site, and then select Manage. The Data Model field in the Site Details section indicates which data model is being used.

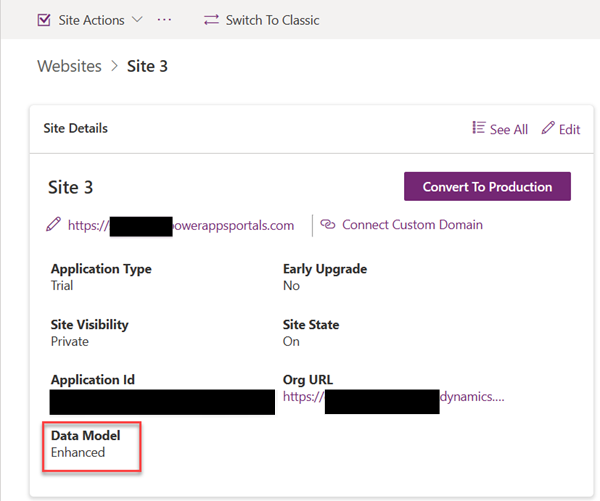

    Screenshot that shows the Data Model field set to Enhanced in the Site Details section for a site.

  • The Setup workspace in the Power Pages design studio shows which data model is being used.

  • Open the Portal Management app. If the standard data model is being used, the application name is shown as Portal Management. If the enhanced data model is being used, the name is shown as Power Pages Management.

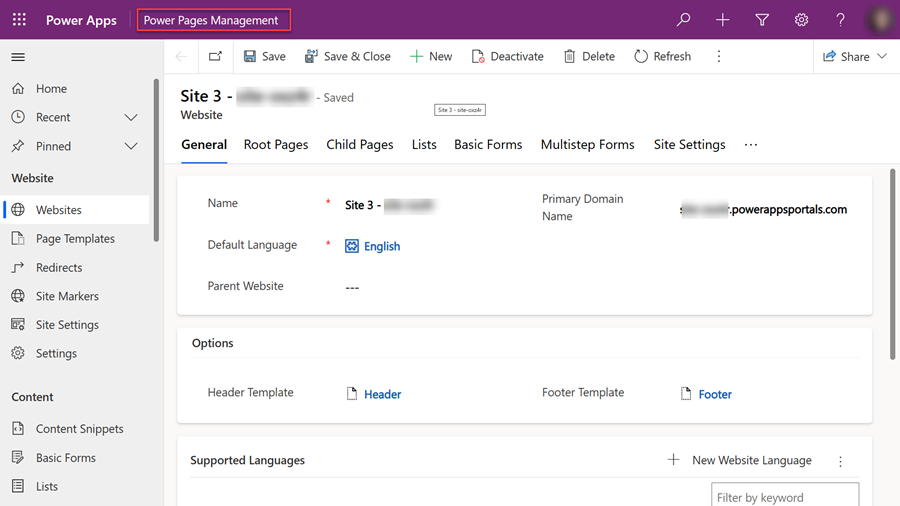

    Screenshot of the Power Pages Management app.

  • If you're using the Power Platform CLI, run the following command to view which data model is being used.

    pac powerpages list -v

    Note

    This parameter is supported in Power Platform CLI version 1.22.4 and later.

Disable the enhanced data model

You can opt out of using the enhanced data model for site creation by disabling the Switch to enhanced data model option. Disabling enhanced data model doesn't remove solution packages, or delete any websites.

Existing websites that were created by using the enhanced data model continue to operate. Any new websites that are created use the standard data model.

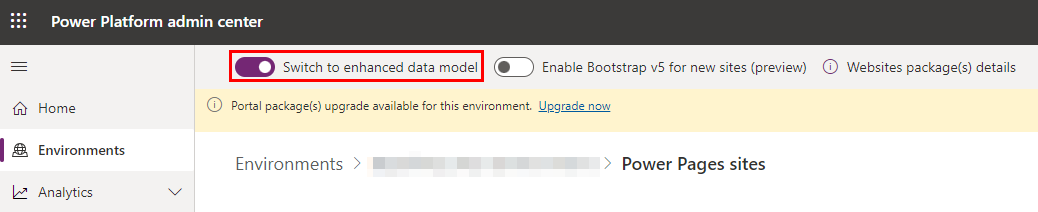

A screenshot of the Power Platform admin center with the Switch to enhanced data model toggle emphasized.

System tables

The system tables are Power Pages–specific solution-aware tables that are present in all Dataverse environments.

Note

These tables can't be modified.

  • Site
  • Site Component
  • Site Language

Nonconfiguration tables

Nonconfiguration tables are feature-specific tables that contain transactional business data. Data in these tables doesn't participate in ALM processes.

  • Ad
  • Poll
  • Poll Option
  • Poll Submission
  • External Identity
  • Portal comment
  • Invitation
  • Invitation Redemption
  • Setting
  • WebFormSession

Note

These tables have been removed from the enhanced data model and will not be available in the Power Pages Management app:

  • Ad
  • Poll
  • Poll Option
  • Poll Submission

Virtual tables

The Power Pages virtual tables represent and contain the metadata of the specific website components. They point to the system tables that contain the website metadata in JavaScript Object Notation (JSON) format. You can update and configure the content of the virtual tables by using the Power Pages Management app. This app has the same look and feel as the older Portal Management app.

Note

  • If you've developed any custom code or tools that use any of the standard data model tables, you must update the code so that it uses the enhanced data model tables.
  • These tables can't be modified.
  • Because these tables aren't modifiable, they don't appear in the list of tables that can be used to create a relationship with the other tables. For example, Web Role (mspp_webrole), Table Permission (mspp_entitypermission), and other tables don't appear in the list of tables that can be used to create a relationship.
System table Enhanced data model virtual table Standard data model table
powerpagesite mspp_website adx_website
powerpagesitelanguage mspp_websitelanguage adx_websitelanguage
powerpagecomponent mspp_columnpermission
mspp_columnpermissionprofile
mspp_contentsnippet
mspp_entityform
mspp_entityformmetadata
mspp_entitylist
mspp_entitypermission
mspp_pagetemplate
mspp_pollplacement
mspp_publishingstate
mspp_publishingstatetransitionrule
mspp_redirect
mspp_shortcut
mspp_sitemarker
mspp_sitesetting
mspp_webfile
mspp_webform
mspp_webformmetadata
mspp_webformstep
mspp_weblink
mspp_weblinkset
mspp_webpage
mspp_webpageaccesscontrolrule
mspp_webrole
mspp_websiteaccess
mspp_websitelanguage
mspp_webtemplate
 adx_columnpermission
adx_columnpermissionprofile
adx_contentsnippet
adx_entityform
adx_entityformmetadata
adx_entitylist
adx_entitypermission
adx_pagetemplate
adx_pollplacement
adx_publishingstate
adx_publishingstatetransitionrule
adx_redirect
adx_shortcut
adx_sitemarker
adx_sitesetting
adx_webfile
adx_webform
adx_webformmetadata
adx_webformstep
adx_weblink
adx_weblinkset
adx_webpage
adx_webpageaccesscontrolrule
adx_webrole
adx_websiteaccess
adx_websitelanguage
adx_webtemplate

Supported templates

The enhanced data model is enabled by default in your Microsoft Power Platform environment.

Any new website that you provision using one of the following templates uses the enhanced data model:

  • Starter layout 1-5
  • Application processing
  • Blank page
  • Program registration
  • Schedule meetings

The following templates use the standard data model even if the enhanced data model is enabled in the environment:

  • FAQ
  • Community (Dynamics 365)
  • Customer Portal (Dynamics 365)
  • Customer Self Service Portal (Dynamics 365)
  • Employee Self Service Portal (Dynamics 365)
  • Field Service (Dynamics 365)
  • Modern Community (Dynamics 365)
  • Order Returns (Dynamics 365)
  • Partner Portal (Dynamics 365)

Create a website by using the enhanced data model

After the enhanced data model is enabled in an environment, you can create a new site from the Power Pages home page.

Note

The enhanced data model is used to create the new site only if the selected template supports the enhanced data model.

Follow these steps to create a site by using a template that uses the enhanced data model:

  1. Open the Power Pages home page.
  2. Select Create a site.
  3. Select a template, and then select Choose this template to create the site.
  4. Fill in the required information, and then select Done.

You're redirected to the Power Pages home page, where the new site appears in the My sites list. When the new site is ready, you can edit it by using the Power Pages design studio.

View the list of enhanced data model sites

You can view newly created sites from the Power Pages home page.

Sites that use the enhanced data model have functional parity with sites that use the standard data model. To determine which data model your website is using, go to the Determine whether your site is using the standard or enhanced data model section.

The Active sites section of the Power Pages home page lists all the available sites. The list shows both sites that use the standard data model and sites that use the enhanced data model, regardless of whether the enhanced data model is enabled for the environment.

Edit a new site that uses the enhanced data model

Sites that use the enhanced data model have functional parity with sites that use the standard data model. You can use either the Power Pages design studio or the Power Pages management app for customization.

Edit a site by using the Power Pages design studio

On the Power Pages home page, on the site card, select Edit to open the Power Pages design studio and edit the site.

Note

The editing process in the Power Pages design studio works the same, regardless of whether the site uses the enhanced data model or the standard data model. There are no functionality gaps.

Edit a site by using the Power Pages Management app

On the Power Pages home page, on the site card, select the ellipsis (…), and then select Power Pages Management to open the Power Pages Management app.

Note

  • Power Pages core packages related to enhanced data model will by default be preinstalled on all Dataverse environments irrespective of whether the environments have a Power Pages site or not.
  • The enhanced data model includes a new model-driven app named Power Pages Management. You must use this app for advanced customizations that aren't available through the Power Pages design studio.

You can also open the Power Pages Management app from the Power Pages design studio. Select the ellipsis (…), and then select Power Pages Management.

You can use the Power Pages Management app to perform advanced customizations that are unavailable in the design studio.

Screenshot that shows a website being edited in the Power Pages Management app.

Data model Power Platform CLI parameters

When you use the Power Platform CLI to upload or download configuration data for a website that uses the enhanced data model, you must use the modelVersion parameter. A value of 2 indicates that the enhanced data model should be used.

Download

pac powerpages download --path <path> --webSiteId <siteId> --modelVersion 2

Upload

pac powerpages upload --path <path> --modelVersion 2

Note

This parameter is supported in Power Platform CLI version 1.22.4 and later.

For more information, go to Power Platform CLI parameters.

Frequently asked questions

How can I update a website from the standard data model to the enhanced data model?

For guidance and tooling support to help you update from the standard data model to the enhanced data model, go to Migrate standard data model sites to enhanced data mode.

Can I edit new sites that are based on enhanced data model configurations in the Portal Management app?

You can use the new Power Pages Management app to edit new websites that are created by using the enhanced data model.

Known issues

Limitation of deployment profiles in enhanced data model sites deployed using a solution

Currently, Power Pages application lifecycle management (ALM) doesn’t provide a way to assign different site setting values for different environments when you deploy site data using solutions. The standard data model supports ALM using the deployment profiles. The ability to use environment variables for site settings is under consideration for a future update. To work around this limitation in the meantime, you can deploy enhanced data model sites with one of the following options:

Note

The following methods deploy site objects in an unmanaged state.
