Jobs system table reference

  • Article

Important

This system table is in Public Preview. To access the table, the schema must be enabled in your system catalog. For more information, see Enable system table schemas.

Note

The lakeflow schema was previously known as workflow. The content of both schemas is identical. To make the lakeflow schema visible, you must enable it separately.

This article provides a reference for how to use the lakeflow system tables to monitor jobs in your account. These tables include records from all workspaces in your account deployed in the same cloud region. To see records from another region, you need to view the tables from a workspace deployed in that region.

system.lakeflow must be enabled by an account admin. You can enable it using the SystemSchemas API.

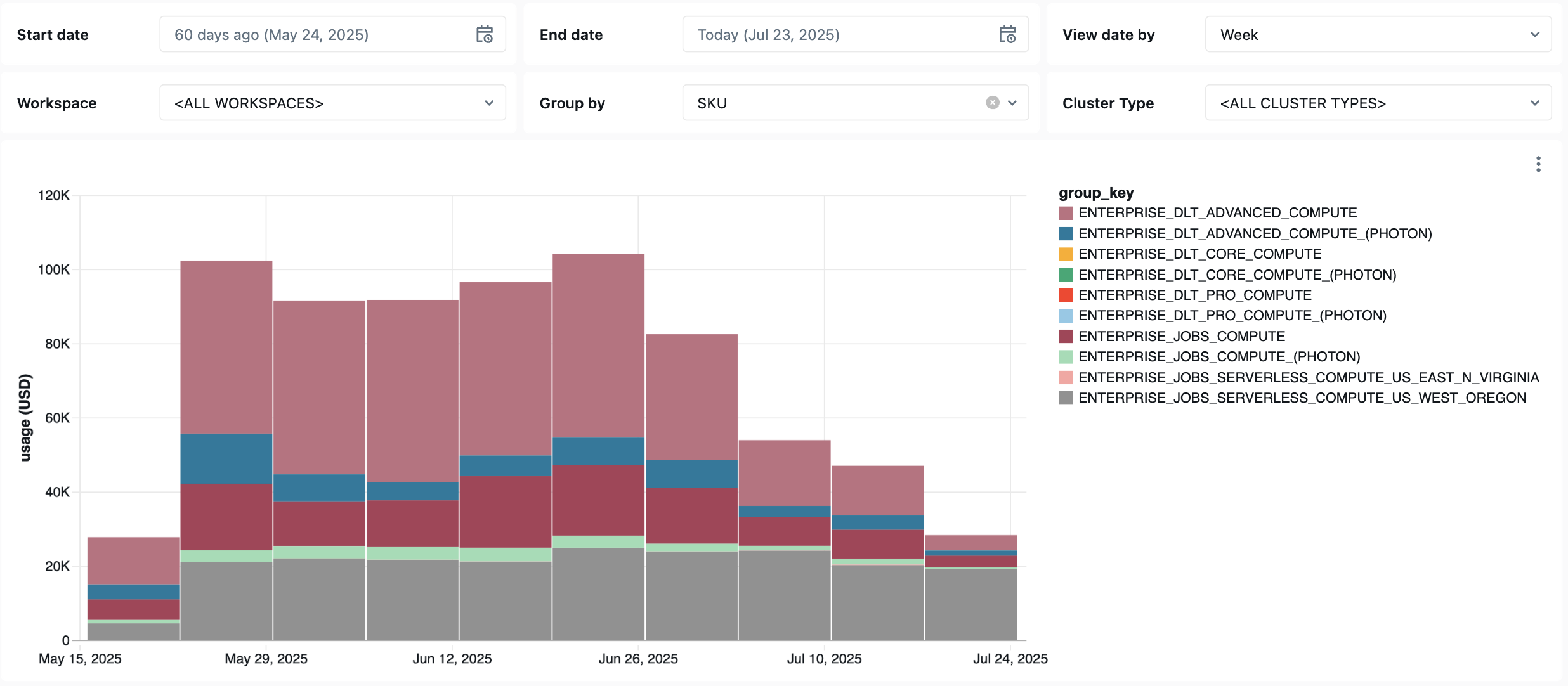

For examples of using these tables for job cost and health observability, see Monitor job costs with system tables.

Available job tables

All jobs-related system tables live in the system.lakeflow schema. Currently, the schema hosts four tables:

  • jobs: Tracks creation, deletion, and basic information of jobs.
  • job_tasks: Tracks creation, deletion, and basic information of job tasks.
  • job_run_timeline: Records the start, end, and resulting state of job runs.
  • job_task_run_timeline: Records the start, end, and resulting state of job tasks.

Job table schema

The jobs table is a slowly changing dimension table. When a row changes, a new row is emitted, logically replacing the previous one.

Table path: This system table is located at system.lakeflow.jobs.

Column name Data type Description
account_id string The ID of the account this job belongs to.
workspace_id string The ID of the workspace this job belongs to.
job_id string The ID of the job. This key is only unique within a single workspace.
name string The user-supplied name of the job.
description string The user-supplied description of the job. Not populated for rows emitted before late August 2024.
creator_id string The ID of the principal who created the job.
tags string The user-supplied custom tags associated with this job.
change_time timestamp The time when the job was last modified. Timezone information is recorded at the end of the value with +00:00 representing UTC.
delete_time timestamp The time when the job was deleted by the user. Timezone information is recorded at the end of the value with +00:00 representing UTC.
run_as string The ID of the user or service principal whose permissions are used for the job run.

Job task table schema

The job tasks table is a slowly changing dimension table. When a row changes, a new row is emitted, logically replacing the previous one.

Table path: This system table is located at system.lakeflow.job_tasks.

Column name Data type Description
account_id string The ID of the account this job belongs to.
workspace_id string The ID of the workspace this job belongs to.
job_id string The ID of the job. This key is only unique within a single workspace.
task_key string The reference key for a task in a job. This key is only unique within a single job.
depends_on_keys array The task keys of all upstream dependencies of this task.
change_time timestamp The time when the task was last modified. Timezone information is recorded at the end of the value with +00:00 representing UTC.
delete_time timestamp The time when a task was deleted by the user. Timezone information is recorded at the end of the value with +00:00 representing UTC.

Job run timeline table schema

The job run timeline table is immutable and complete at the time it is produced.

Table path: This system table is located at system.lakeflow.job_run_timeline.

Column name Data type Description
account_id string The ID of the account this job belongs to.
workspace_id string The ID of the workspace this job belongs to.
job_id string The ID of the job. This key is only unique within a single workspace.
run_id string The ID of the job run.
period_start_time timestamp The start time for the run or for the time period. Timezone information is recorded at the end of the value with +00:00 representing UTC.
period_end_time timestamp The end time for the run or for the time period. Timezone information is recorded at the end of the value with +00:00 representing UTC.
trigger_type string The type of trigger that can fire a run. For possible values, see Trigger type values
run_type string The type of job run. For possible values, see Run type values.
run_name string The user-supplied run name assosiated with this job run.
compute_ids array Array containing the compute IDs for the parent job run. Use for identifying cluster used by SUBMIT_RUN and WORKFLOW_RUN run types. For other compute information, refer to the job_task_run_timeline table. Not populated for rows emitted before late August 2024.
result_state string The outcome of the job run. For possible values, see Result state values.
termination_code string The termination code of the job run. For possible values, see Termination code values. Not populated for rows emitted before late August 2024.
job_parameters map The job-level parameters used in the job run. Not populated for rows emitted before late August 2024.

Trigger type values

The possible values for the trigger_type column are:

  • CONTINUOUS
  • CRON
  • FILE_ARRIVAL
  • ONETIME
  • ONETIME_RETRY

Run type values

The possible values for the run_type column are:

Result state values

The possible values for the result_state column are:

  • SUCCEEDED
  • FAILED
  • SKIPPED
  • CANCELLED
  • TIMED_OUT
  • ERROR
  • BLOCKED

Termination code values

The possible values for the termination_code column are:

  • SUCCESS
  • CANCELLED
  • SKIPPED
  • DRIVER_ERROR
  • CLUSTER_ERROR
  • REPOSITORY_CHECKOUT_FAILED
  • INVALID_CLUSTER_REQUEST
  • WORKSPACE_RUN_LIMIT_EXCEEDED
  • FEATURE_DISABLED
  • CLUSTER_REQUEST_LIMIT_EXCEEDED
  • STORAGE_ACCESS_ERROR
  • RUN_EXECUTION_ERROR
  • UNAUTHORIZED_ERROR
  • LIBRARY_INSTALLATION_ERROR
  • MAX_CONCURRENT_RUNS_EXCEEDED
  • MAX_SPARK_CONTEXTS_EXCEEDED
  • RESOURCE_NOT_FOUND
  • INVALID_RUN_CONFIGURATION
  • CLOUD_FAILURE
  • MAX_JOB_QUEUE_SIZE_EXCEEDED

Job task run timeline table schema

The job task run timeline table is immutable and complete at the time it is produced.

Table path: This system table is located at system.lakeflow.job_task_run_timeline.

Column name Data type Description
account_id string The ID of the account this job belongs to.
workspace_id string The ID of the workspace this job belongs to.
job_id string The ID of the job. This key is only unique within a single workspace.
run_id string The ID of the task run.
job_run_id string The ID of the job run. Not populated for rows emitted before late August 2024.
parent_run_id string The ID of the parent run. Not populated for rows emitted before late August 2024.
period_start_time timestamp The start time for the task or for the time period. Timezone information is recorded at the end of the value with +00:00 representing UTC.
period_end_time timestamp The end time for the task or for the time period. Timezone information is recorded at the end of the value with +00:00 representing UTC.
task_key string The reference key for a task in a job. This key is only unique within a single job.
compute_ids array Array containing the IDs of compute used by the job task.
result_state string The outcome of the job task run.
termination_code string The termination code of the task run. See the possible values below this table. Not populated for rows emitted before late August 2024.

The possible values for the result_state column are:

  • SUCCEEDED
  • FAILED
  • SKIPPED
  • CANCELLED
  • TIMED_OUT
  • ERROR
  • BLOCKED

The possible values for the termination_code column are:

  • SUCCESS
  • CANCELLED
  • SKIPPED
  • DRIVER_ERROR
  • CLUSTER_ERROR
  • REPOSITORY_CHECKOUT_FAILED
  • INVALID_CLUSTER_REQUEST
  • WORKSPACE_RUN_LIMIT_EXCEEDED
  • FEATURE_DISABLED
  • CLUSTER_REQUEST_LIMIT_EXCEEDED
  • STORAGE_ACCESS_ERROR
  • RUN_EXECUTION_ERROR
  • UNAUTHORIZED_ERROR
  • LIBRARY_INSTALLATION_ERROR
  • MAX_CONCURRENT_RUNS_EXCEEDED
  • MAX_SPARK_CONTEXTS_EXCEEDED
  • RESOURCE_NOT_FOUND
  • INVALID_RUN_CONFIGURATION
  • CLOUD_FAILURE
  • MAX_JOB_QUEUE_SIZE_EXCEEDED

Example queries

This section includes sample queries you can use to get the most out of the lakeflow tables.

Get the most recent version of jobs

Because the jobs and job_tasks tables are slowly changing dimension tables, a new record is created every time a change is made. To get the most recent version of a job, you can order by the change_time column.

SELECT
  *,
  ROW_NUMBER() OVER(PARTITION BY workspace_id, job_id ORDER BY change_time DESC) as rn
FROM
  system.lakeflow.jobs QUALIFY rn=1

Daily job count by workspace

This query gets the daily job count by workspace for the last 7 days:

SELECT
  workspace_id,
  COUNT(DISTINCT run_id) as job_count,
  to_date(period_start_time) as date
FROM system.lakeflow.job_run_timeline
WHERE
  period_start_time > CURRENT_TIMESTAMP() - INTERVAL 7 DAYS
GROUP BY ALL

Daily job status distribution by workspace

This query returns the daily job count by workspace for the last 7 days, distributed by the outcome of the job run. The query removes any records where the jobs are in a pending or running state.

SELECT
  workspace_id,
  COUNT(DISTINCT run_id) as job_count,
  result_state,
  to_date(period_start_time) as date
FROM system.lakeflow.job_run_timeline
WHERE
  period_start_time > CURRENT_TIMESTAMP() - INTERVAL 7 DAYS
  AND result_state IS NOT NULL
GROUP BY ALL

Longest running jobs overview

This query returns the average time of job runs, measured in seconds. The records are organized by job. A top 90 and a 95 percentile column show the average lengths of the job’s longest runs.

with job_run_duration as (
    SELECT
        workspace_id,
        job_id,
        run_id,
        CAST(SUM(period_end_time - period_start_time) AS LONG) as duration
    FROM
        system.lakeflow.job_run_timeline
    WHERE
      period_start_time > CURRENT_TIMESTAMP() - INTERVAL 7 DAYS
    GROUP BY ALL
),
most_recent_jobs as (
  SELECT
    *,
    ROW_NUMBER() OVER(PARTITION BY workspace_id, job_id ORDER BY change_time DESC) as rn
  FROM
    system.lakeflow.jobs QUALIFY rn=1
)
SELECT
    t1.workspace_id,
    t1.job_id,
    first(t2.name, TRUE) as name,
    COUNT(DISTINCT t1.run_id) as runs,
    MEAN(t1.duration) as mean_seconds,
    AVG(t1.duration) as avg_seconds,
    PERCENTILE(t1.duration, 0.9) as p90_seconds,
    PERCENTILE(t1.duration, 0.95) as p95_seconds
FROM
    job_run_duration t1
    LEFT OUTER JOIN most_recent_jobs t2 USING (workspace_id, job_id)
GROUP BY ALL
ORDER BY mean_seconds DESC
LIMIT 100

Job run time for jobs executed via runSubmit (ie. Airflow)

This query provides a historical runtime for a specific job based on the run_name parameter. For the query to work, you must set the run_name.

You can also edit the length of time for analysis by updating the number of days in the INTERVAL 60 DAYS section.

SELECT
  workspace_id,
  run_id,
  SUM(period_end_time - period_start_time) as run_time
FROM system.lakeflow.job_run_timeline
WHERE
  run_type="SUBMIT_RUN"
  AND run_name={run_name}
  AND period_start_time > CURRENT_TIMESTAMP() - INTERVAL 60 DAYS
GROUP BY ALL

Job run analysis

This query provides a historical runtime for a specific job. For the query to work, you must set a workspace_id and job_id.

You can also edit the length of time for analysis by updating the number of days in the INTERVAL 60 DAYS section.

with job_run_duration as (
    SELECT
        workspace_id,
        job_id,
        run_id,
        min(period_start_time) as run_start,
        max(period_start_time) as run_end,
        CAST(SUM(period_end_time - period_start_time) AS LONG) as duration,
        FIRST(result_state, TRUE) as result_state
    FROM
        system.lakeflow.job_run_timeline
    WHERE
      period_start_time > CURRENT_TIMESTAMP() - INTERVAL 60 DAYS
      AND workspace_id={workspace_id}
      AND job_id={job_id}
    GROUP BY ALL
    ORDER BY run_start DESC
),
most_recent_jobs as (
  SELECT
    *,
    ROW_NUMBER() OVER(PARTITION BY workspace_id, job_id ORDER BY change_time DESC) as rn
  FROM
    system.lakeflow.jobs QUALIFY rn=1
)
SELECT
    t1.workspace_id,
    t1.job_id,
    t2.name,
    t1.run_id,
    t1.run_start,
    t1.run_end,
    t1.duration,
    t1.result_state
FROM job_run_duration t1
    LEFT OUTER JOIN most_recent_jobs t2 USING (workspace_id, job_id)

Jobs running on all-purpose compute

This query joins with the compute.clusters system table to return recent jobs that are running on all-purpose compute instead of jobs compute.

with clusters AS (
  SELECT
    *,
    ROW_NUMBER() OVER(PARTITION BY workspace_id, cluster_id ORDER BY change_time DESC) as rn
  FROM system.compute.clusters
  WHERE cluster_source="UI" OR cluster_source="API"
  QUALIFY rn=1
),
job_tasks_exploded AS (
  SELECT
    workspace_id,
    job_id,
    EXPLODE(compute_ids) as cluster_id
  FROM system.lakeflow.job_task_run_timeline
  WHERE period_start_time >= CURRENT_DATE() - INTERVAL 30 DAY
),
all_purpose_cluster_jobs AS (
  SELECT
    t1.*,
    t2.cluster_name,
    t2.owned_by,
    t2.dbr_version
  FROM job_tasks_exploded t1
    INNER JOIN clusters t2 USING (workspace_id, cluster_id)
)
SELECT * FROM all_purpose_cluster_jobs LIMIT 10;

Retried job runs

This query collects a list of retried job runs with the number of retries for each run.

with repaired_runs as (
  SELECT
    workspace_id, job_id, run_id, COUNT(*) - 1 as retries_count
  FROM system.lakeflow.job_run_timeline
  WHERE result_state IS NOT NULL
  GROUP BY ALL
  HAVING retries_count > 0
)
SELECT
  *
FROM repaired_runs
ORDER BY retries_count DESC
LIMIT 10;
