Tutorial: Distributed Training with Horovod Estimator and PyTorch (Preview)

  • Article

Horovod is a distributed training framework for libraries like TensorFlow and PyTorch. With Horovod, users can scale up an existing training script to run on hundreds of GPUs in just a few lines of code.

Within Azure Synapse Analytics, users can quickly get started with Horovod using the default Apache Spark 3 runtime. For Spark ML pipeline applications using PyTorch, users can use the horovod.spark estimator API. This notebook uses an Apache Spark dataframe to perform distributed training of a distributed neural network (DNN) model on MNIST dataset. This tutorial uses PyTorch and the Horovod Estimator to run the training process.

Prerequisites

  • Azure Synapse Analytics workspace with an Azure Data Lake Storage Gen2 storage account configured as the default storage. You need to be the Storage Blob Data Contributor of the Data Lake Storage Gen2 file system that you work with.
  • Create a GPU-enabled Apache Spark pool in your Azure Synapse Analytics workspace. For details, see Create a GPU-enabled Apache Spark pool in Azure Synapse. For this tutorial, we suggest using the GPU-Large cluster size with 3 nodes.

Warning

  • The GPU accelerated preview is limited to the Apache Spark 3.2 (End of Support announced) runtime. End of Support announced for Azure Synapse Runtime for Apache Spark 3.2 has been announced July 8, 2023. End of Support announced runtimes will not have bug and feature fixes. Security fixes will be backported based on risk assessment. This runtime and the corresponding GPU accelerated preview on Spark 3.2 will be retired and disabled as of July 8, 2024.
  • The GPU accelerated preview is now unsupported on the Azure Synapse 3.1 (unsupported) runtime. Azure Synapse Runtime for Apache Spark 3.1 has reached its End of Support as of January 26, 2023, with official support discontinued effective January 26, 2024, and no further addressing of support tickets, bug fixes, or security updates beyond this date.

Configure the Apache Spark session

At the start of the session, we need to configure a few Apache Spark settings. In most cases, we only need to set the numExecutors and spark.rapids.memory.gpu.reserve. For large models, users may also need to configure the spark.kryoserializer.buffer.max setting. For Tensorflow models, users need to set the spark.executorEnv.TF_FORCE_GPU_ALLOW_GROWTH to be true.

In the example, you can see how the Spark configurations can be passed with the %%configure command. The detailed meaning of each parameter is explained in the Apache Spark configuration documentation. The values provided are the suggested, best practice values for Azure Synapse GPU-large pools.


%%configure -f
{
    "driverMemory": "30g",
    "driverCores": 4,
    "executorMemory": "60g",
    "executorCores": 12,
    "numExecutors": 3,
    "conf":{
        "spark.rapids.memory.gpu.reserve": "10g",
        "spark.executorEnv.TF_FORCE_GPU_ALLOW_GROWTH": "true",
        "spark.kryoserializer.buffer.max": "2000m"
   }
}

For this tutorial, we will use the following configurations:


%%configure -f
{
    "numExecutors": 3,
    "conf":{
        "spark.rapids.memory.gpu.reserve": "10g"
   }
}

Note

When training with Horovod, users should set the Spark configuration for numExecutors to be less or equal to the number of nodes.

Import dependencies

In this tutorial, we use PySpark to read and process the dataset. Then, we use PyTorch and Horovod to build the distributed neural network (DNN) model and run the training process. To get started, we need to import the following dependencies:

# base libs
import sys
import uuid

# numpy
import numpy as np

# pyspark related
import pyspark
import pyspark.sql.types as T
from pyspark.ml.evaluation import MulticlassClassificationEvaluator
from pyspark.sql import SparkSession
from pyspark.sql.functions import udf

# pytorch related
import torch.nn as nn
import torch.nn.functional as F
import torch.optim as optim

# horovod related
import horovod.spark.torch as hvd
from horovod.spark.common.backend import SparkBackend
from horovod.spark.common.store import Store

# azure related
from azure.synapse.ml.horovodutils import AdlsStore

Connect to alternative storage account

We need the Azure Data Lake Storage (ADLS) account for storing intermediate and model data. If you are using an alternative storage account, be sure to set up the linked service to automatically authenticate and read from the account. In addition, you need to modify the following properties: remote_url, account_name, and linked_service_name.

num_proc = 3  # equal to numExecutors
batch_size = 128
epochs = 3
lr_single_node = 0.01  # learning rate for single node code

uuid_str = str(uuid.uuid4())  # with uuid, each run will use a new directory
work_dir = '/tmp/' + uuid_str

# create adls store for model training, use your own adls account info
remote_url = "<<ABFS path to storage account>>"
account_name = "<<name of storage account>>"
linked_service_name = "<<name of linked service>>"
sas_token = TokenLibrary.getConnectionString(linked_service_name)
adls_store_path = remote_url + work_dir

store = AdlsStore.create(adls_store_path,
                         storage_options={
                             'account_name': account_name,
                             'sas_token': sas_token
                         },
                         save_runs=True)

print(adls_store_path)

Prepare dataset

Next, we will prepare the dataset for training. In this tutorial, we will use the MNIST dataset from Azure Open Datasets.

# Initialize SparkSession
spark = SparkSession.builder.getOrCreate()

# Download MNIST dataset from Azure Open Datasets
from azureml.opendatasets import MNIST

mnist = MNIST.get_tabular_dataset()
mnist_df = mnist.to_pandas_dataframe()
mnist_df.info()

# Preprocess dataset
mnist_df['features'] = mnist_df.iloc[:, :784].values.tolist()
mnist_df.drop(mnist_df.iloc[:, :784], inplace=True, axis=1)
mnist_df.head()

Process data with Apache Spark

Now, we will create an Apache Spark dataframe. This dataframe will be used with the HorovodEstimator for training.

# Create Spark DataFrame for training
df = spark.createDataFrame(mnist_df)

# repartition DataFrame for training
train_df = df.repartition(num_proc)

# Train/test split
train_df, test_df = train_df.randomSplit([0.9, 0.1])

# show the dataset
train_df.show()
train_df.count()

Define DNN model

Once we are finished processing our dataset, we can now define our PyTorch model. The same code could also be used to train a single-node PyTorch model.

# Define the PyTorch model without any Horovod-specific parameters
class Net(nn.Module):

    def __init__(self):
        super(Net, self).__init__()
        self.conv1 = nn.Conv2d(1, 10, kernel_size=5)
        self.conv2 = nn.Conv2d(10, 20, kernel_size=5)
        self.conv2_drop = nn.Dropout2d()
        self.fc1 = nn.Linear(320, 50)
        self.fc2 = nn.Linear(50, 10)

    def forward(self, x):
        x = x.float()
        x = F.relu(F.max_pool2d(self.conv1(x), 2))
        x = F.relu(F.max_pool2d(self.conv2_drop(self.conv2(x)), 2))
        x = x.view(-1, 320)
        x = F.relu(self.fc1(x))
        x = F.dropout(x, training=self.training)
        x = self.fc2(x)
        return F.log_softmax(x)


model = Net()
optimizer = optim.SGD(model.parameters(),
                      lr=lr_single_node * num_proc,
                      momentum=0.5)  # notice the lr is scaled up
loss = nn.NLLLoss()

Train model

Now, we can train a Horovod Spark estimator on top of our Apache Spark dataframe.

# Train a Horovod Spark Estimator on the DataFrame
backend = SparkBackend(num_proc=num_proc,
                       stdout=sys.stdout,
                       stderr=sys.stderr,
                       prefix_output_with_timestamp=True)

torch_estimator = hvd.TorchEstimator(
    backend=backend,
    store=store,
    partitions_per_process=1,  # important for GPU training
    model=model,
    optimizer=optimizer,
    loss=lambda input, target: loss(input, target.long()),
    input_shapes=[[-1, 1, 28, 28]],
    feature_cols=['features'],
    label_cols=['label'],
    batch_size=batch_size,
    epochs=epochs,
    validation=0.1,
    verbose=2)

torch_model = torch_estimator.fit(train_df).setOutputCols(['label_prob'])

Evaluate trained model

Once the training process completes, we can then evaluate the model on the test dataset.

# Evaluate the model on the held-out test DataFrame
pred_df = torch_model.transform(test_df)

argmax = udf(lambda v: float(np.argmax(v)), returnType=T.DoubleType())
pred_df = pred_df.withColumn('label_pred', argmax(pred_df.label_prob))
evaluator = MulticlassClassificationEvaluator(predictionCol='label_pred',
                                              labelCol='label',
                                              metricName='accuracy')

print('Test accuracy:', evaluator.evaluate(pred_df))

Clean up resources

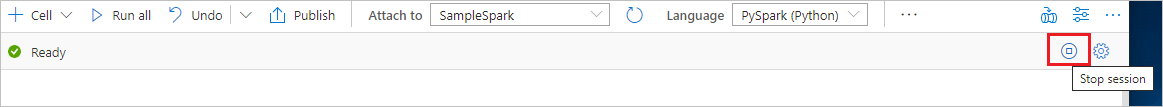

To ensure the Spark instance is shut down, end any connected sessions(notebooks). The pool shuts down when the idle time specified in the Apache Spark pool is reached. You can also select stop session from the status bar at the upper right of the notebook.

Screenshot showing the Stop session button on the status bar.
