Profile Python apps memory usage in Azure Functions

During development or after deploying your local Python function app project to Azure, it's a good practice to analyze for potential memory bottlenecks in your functions. Such bottlenecks can decrease the performance of your functions and lead to errors. The following instructions show you how to use the memory-profiler Python package, which provides line-by-line memory consumption analysis of your functions as they execute.

Note

Memory profiling is intended only for memory footprint analysis in development environments. Please do not apply the memory profiler on production function apps.

Prerequisites

Before you start developing a Python function app, you must meet these requirements:

• Python 3.7 or above. To check the full list of supported Python versions in Azure Functions, see the Python developer guide.

• The Azure Functions Core Tools, version 4.x or greater. Check your version with func --version. To learn about updating, see Azure Functions Core Tools on GitHub.

• Visual Studio Code installed on one of the supported platforms.

• An active Azure subscription.

If you don't have an Azure subscription, create an Azure free account before you begin.

Memory profiling process

1. In your requirements.txt, add memory-profiler to ensure the package is bundled with your deployment. If you're developing on your local machine, you may want to activate a Python virtual environment and do a package resolution by pip install -r requirements.txt.

2. In your function script (for example, __init__.py for the Python v1 programming model and function_app.py for the v2 model), add the following lines above the main() function. These lines ensure the root logger reports the child logger names, so that the memory profiling logs are distinguishable by the prefix memory_profiler_logs.

   import logging
   import memory_profiler
   root_logger = logging.getLogger()
   root_logger.handlers[0].setFormatter(logging.Formatter("%(name)s: %(message)s"))
   profiler_logstream = memory_profiler.LogFile('memory_profiler_logs', True)


3. Apply the following decorator above any functions that need memory profiling. The decorator doesn't work directly on the trigger entrypoint main() method. You need to create subfunctions and decorate them. Also, due to a memory-profiler known issue, when applying to an async coroutine, the coroutine return value is always None.

   @memory_profiler.profile(stream=profiler_logstream)


4. Test the memory profiler on your local machine by using Azure Functions Core Tools command func host start. When you invoke the functions, they should generate a memory usage report. The report contains file name, line of code, memory usage, memory increment, and the line content in it.

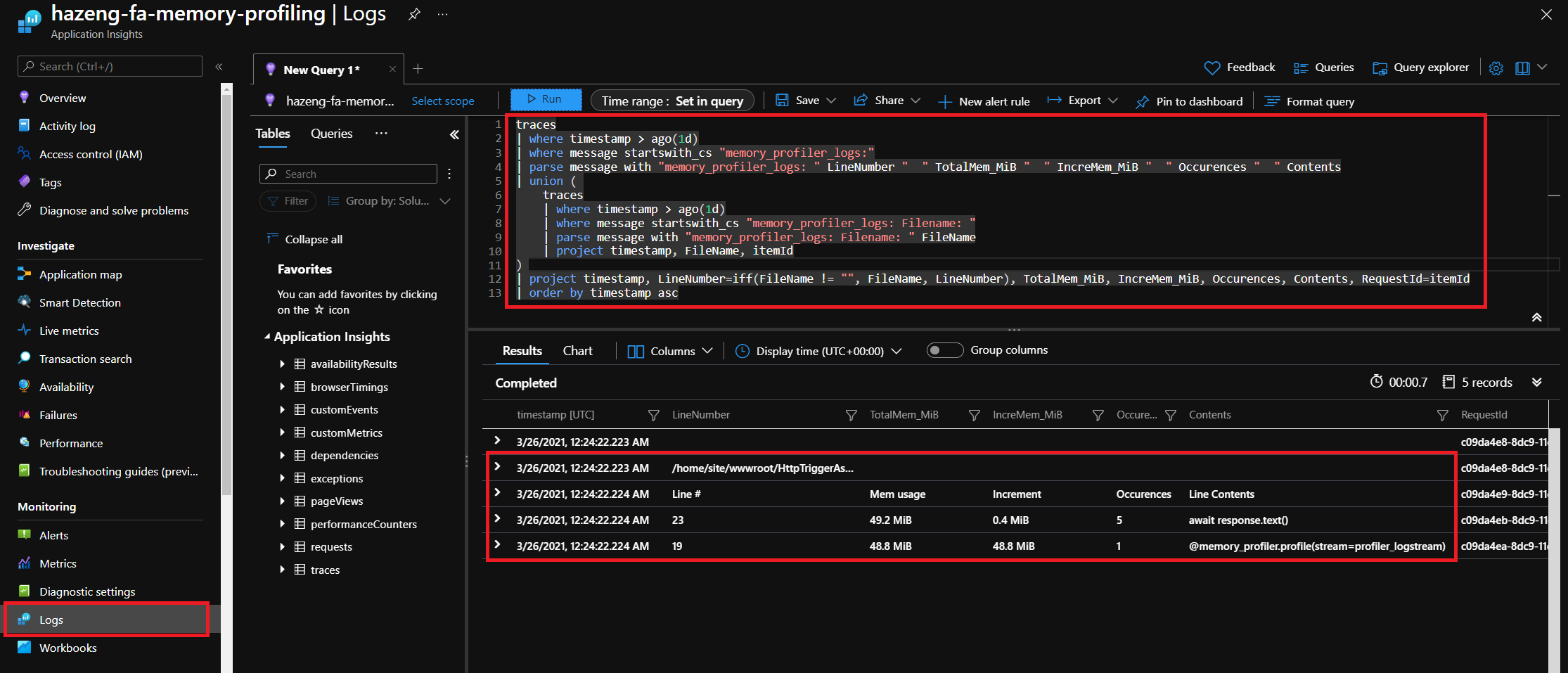

5. To check the memory profiling logs on an existing function app instance in Azure, you can query the memory profiling logs for recent invocations with Kusto queries in Application Insights, Logs.



   traces
   | where timestamp > ago(1d)
   | where message startswith_cs "memory_profiler_logs:"
   | parse message with "memory_profiler_logs: " LineNumber "  " TotalMem_MiB "  " IncreMem_MiB "  " Occurrences "  " Contents
   | union (
       traces
       | where timestamp > ago(1d)
       | where message startswith_cs "memory_profiler_logs: Filename: "
       | parse message with "memory_profiler_logs: Filename: " FileName
       | project timestamp, FileName, itemId
   )
   | project timestamp, LineNumber=iff(FileName != "", FileName, LineNumber), TotalMem_MiB, IncreMem_MiB, Occurrences, Contents, RequestId=itemId
   | order by timestamp asc


Example

Here's an example of performing memory profiling on an asynchronous and a synchronous HTTP trigger, named "HttpTriggerAsync" and "HttpTriggerSync" respectively. We'll build a Python function app that simply sends out GET requests to the Microsoft's home page.

Create a Python function app

A Python function app should follow Azure Functions specified folder structure. To scaffold the project, we recommend using the Azure Functions Core Tools by running the following commands:

v1

func init PythonMemoryProfilingDemo --python
cd PythonMemoryProfilingDemo
func new -l python -t HttpTrigger -n HttpTriggerAsync -a anonymous
func new -l python -t HttpTrigger -n HttpTriggerSync -a anonymous

v2

func init PythonMemoryProfilingDemov2 --python -m v2
cd PythonMemoryProfilingDemov2

For the Python V2 programming model, triggers and bindings are created as decorators within the Python file itself, the function_app.py file. For information on how to create a new function with the new programming model, see the Azure Functions Python developer guide. func new isn't supported for the preview of the V2 Python programming model.

Update file contents

The requirements.txt defines the packages that are used in our project. Besides the Azure Functions SDK and memory-profiler, we introduce aiohttp for asynchronous HTTP requests and requests for synchronous HTTP calls.

# requirements.txt

azure-functions
memory-profiler
aiohttp
requests

Create the asynchronous HTTP trigger.

v1

Replace the code in the asynchronous HTTP trigger HttpTriggerAsync/__init__.py with the following code, which configures the memory profiler, root logger format, and logger streaming binding.

# HttpTriggerAsync/__init__.py

import azure.functions as func
import aiohttp
import logging
import memory_profiler

# Update root logger's format to include the logger name. Ensure logs generated
# from memory profiler can be filtered by "memory_profiler_logs" prefix.
root_logger = logging.getLogger()
root_logger.handlers[0].setFormatter(logging.Formatter("%(name)s: %(message)s"))
profiler_logstream = memory_profiler.LogFile('memory_profiler_logs', True)

async def main(req: func.HttpRequest) -> func.HttpResponse:
    await get_microsoft_page_async('https://microsoft.com')
    return func.HttpResponse(
        f"Microsoft page loaded.",
        status_code=200
    )

@memory_profiler.profile(stream=profiler_logstream)
async def get_microsoft_page_async(url: str):
    async with aiohttp.ClientSession() as client:
        async with client.get(url) as response:
            await response.text()
    # @memory_profiler.profile does not support return for coroutines.
    # All returns become None in the parent functions.
    # GitHub Issue: https://github.com/pythonprofilers/memory_profiler/issues/289

v2

Replace the code in the function_app.py file with the following code, which configures the memory profiler, root logger format, and logger streaming binding.

# function_app.py
import azure.functions as func
import logging
import aiohttp
import requests
import memory_profiler

app = func.FunctionApp()

# Update root logger's format to include the logger name. Ensure logs generated
# from memory profiler can be filtered by "memory_profiler_logs" prefix.
root_logger = logging.getLogger()
root_logger.handlers[0].setFormatter(logging.Formatter("%(name)s: %(message)s"))
profiler_logstream = memory_profiler.LogFile('memory_profiler_logs', True)

@app.function_name(name="HttpTriggerAsync")
@app.route(route="HttpTriggerAsync", auth_level=func.AuthLevel.ANONYMOUS)
async def test_function(req: func.HttpRequest) -> func.HttpResponse:
    await get_microsoft_page_async('https://microsoft.com')
    return func.HttpResponse(f"Microsoft page loaded.")

@memory_profiler.profile(stream=profiler_logstream)
async def get_microsoft_page_async(url: str):
    async with aiohttp.ClientSession() as client:
        async with client.get(url) as response:
            await response.text()
    # @memory_profiler.profile does not support return for coroutines.
    # All returns become None in the parent functions.
    # GitHub Issue: https://github.com/pythonprofilers/memory_profiler/issues/289

Create the synchronous HTTP trigger.

v1

Replace the code in the asynchronous HTTP trigger HttpTriggerSync/__init__.py with the following code.

# HttpTriggerSync/__init__.py

import azure.functions as func
import requests
import logging
import memory_profiler

# Update root logger's format to include the logger name. Ensure logs generated
# from memory profiler can be filtered by "memory_profiler_logs" prefix.
root_logger = logging.getLogger()
root_logger.handlers[0].setFormatter(logging.Formatter("%(name)s: %(message)s"))
profiler_logstream = memory_profiler.LogFile('memory_profiler_logs', True)

def main(req: func.HttpRequest) -> func.HttpResponse:
    content = profile_get_request('https://microsoft.com')
    return func.HttpResponse(
        f"Microsoft page response size: {len(content)}",
        status_code=200
    )

@memory_profiler.profile(stream=profiler_logstream)
def profile_get_request(url: str):
    response = requests.get(url)
    return response.content

v2

Add this code to the bottom of the existing function_app.py file.

@app.function_name(name="HttpTriggerSync")
@app.route(route="HttpTriggerSync", auth_level=func.AuthLevel.ANONYMOUS)
def test_function(req: func.HttpRequest) -> func.HttpResponse:
    content = profile_get_request('https://microsoft.com')
    return func.HttpResponse(f"Microsoft Page Response Size: {len(content)}")

@memory_profiler.profile(stream=profiler_logstream)
def profile_get_request(url: str):
    response = requests.get(url)
    return response.content

Profile Python function app in local development environment

After you make the above changes, there are a few more steps to initialize a Python virtual environment for Azure Functions runtime.

1. Open a Windows PowerShell or any Linux shell as you prefer.

2. Create a Python virtual environment by py -m venv .venv in Windows, or python3 -m venv .venv in Linux.

3. Activate the Python virtual environment with .venv\Scripts\Activate.ps1 in Windows PowerShell or source .venv/bin/activate in Linux shell.

4. Restore the Python dependencies with pip install -r requirements.txt

5. Start the Azure Functions runtime locally with Azure Functions Core Tools func host start

6. Send a GET request to https://localhost:7071/api/HttpTriggerAsync or https://localhost:7071/api/HttpTriggerSync.

7. It should show a memory profiling report similar to the following section in Azure Functions Core Tools.

   Filename: <ProjectRoot>\HttpTriggerAsync\__init__.py
   Line #    Mem usage    Increment  Occurrences   Line Contents
   ============================================================
       19     45.1 MiB     45.1 MiB           1   @memory_profiler.profile
       20                                         async def get_microsoft_page_async(url: str):
       21     45.1 MiB      0.0 MiB           1       async with aiohttp.ClientSession() as client:
       22     46.6 MiB      1.5 MiB          10           async with client.get(url) as response:
       23     47.6 MiB      1.0 MiB           4               await response.text()
