Transform data in Google Sheets (Preview) using Azure Data Factory or Synapse Analytics

APPLIES TO: Azure Data Factory Azure Synapse Analytics

Tip

Try out Data Factory in Microsoft Fabric, an all-in-one analytics solution for enterprises. Microsoft Fabric covers everything from data movement to data science, real-time analytics, business intelligence, and reporting. Learn how to start a new trial for free!

This article outlines how to use Data Flow to transform data in Google Sheets (Preview). To learn more, read the introductory article for Azure Data Factory or Azure Synapse Analytics.

Important

This connector is currently in preview. You can try it out and give us feedback. If you want to take a dependency on preview connectors in your solution, please contact Azure support.

Supported capabilities

This Google Sheets connector is supported for the following capabilities:

Supported capabilities IR
Mapping data flow (source/-)

① Azure integration runtime ② Self-hosted integration runtime

For a list of data stores that are supported as sources/sinks, see the Supported data stores table.

Create a Google Sheets linked service using UI

Use the following steps to create a Google Sheets linked service in the Azure portal UI.

  1. Browse to the Manage tab in your Azure Data Factory or Synapse workspace and select Linked Services, then select New:

  2. Search for Google Sheets (Preview) and select the Google Sheets (Preview) connector.

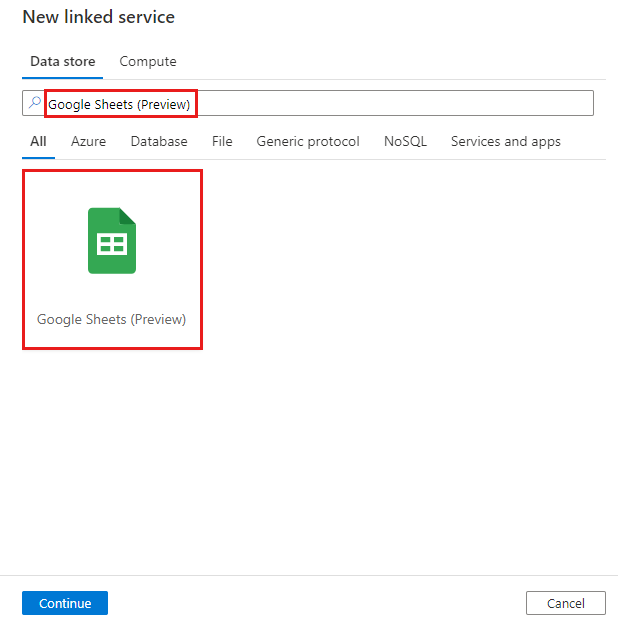

    Screenshot showing selecting Google Sheets connector.

  3. Configure the service details, test the connection, and create the new linked service.

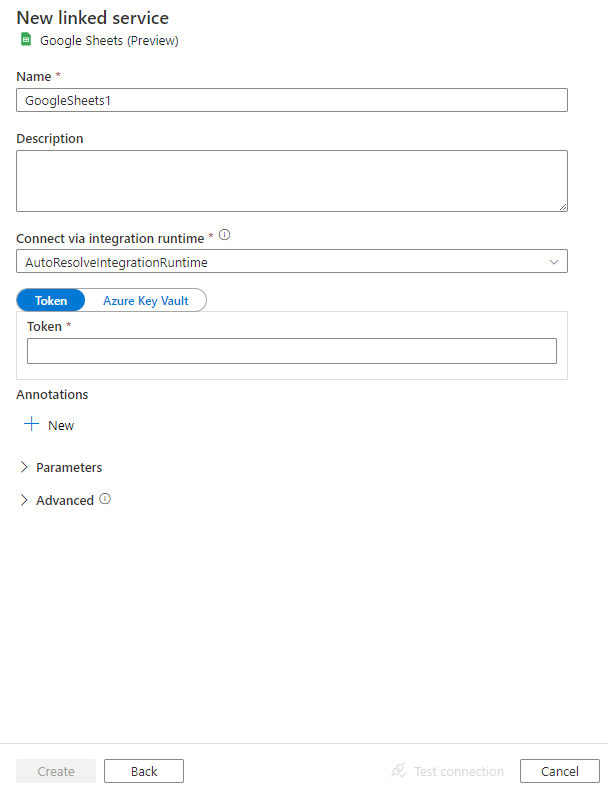

    Screenshot of configuration for Google Sheets linked service.

Connector configuration details

The following sections provide information about properties that are used to define Data Factory and Synapse pipeline entities specific to Google Sheets.

Linked service properties

The following properties are supported for the Google Sheets linked service:

Property Description Required
type The type property must be set to GoogleSheets. Yes
apiToken Specify an API token for the Google Sheets. Mark this field as SecureString to store it securely. Or, you can reference a secret stored in Azure Key Vault. Yes

Example:

{
    "name": "GoogleSheetsLinkedService",
    "properties": {
        "type": "GoogleSheets",
        "typeProperties": {
            "apiToken": {
                "type": "SecureString",
                "value": "<API token>"
            }
        }
    }
}

Mapping data flow properties

When transforming data in mapping data flow, you can read resources from Google Sheets. For more information, see the source transformation in mapping data flows. You can only use an inline dataset as source type.

Source transformation

The below table lists the properties supported by Google Sheets source. You can edit these properties in the Source options tab.

Name Description Required Allowed values Data flow script property
SpreadSheet ID The spreadsheet ID in your Google Sheets. Make sure the general access of the spreadsheet is set as Anyone with the link. Yes String spreadSheetId
Sheet name The name of the sheet in the spreadsheet. Yes String sheetName
Start cell The start cell of the sheet from where the data is required, for example A2, B4. Yes String startCell
End cell The end cell of the sheet till where the data is required, for example F10, S600. Yes String endCell

Google Sheets source script example

When you use Google Sheets as source type, the associated data flow script is:

source(allowSchemaDrift: true,
	validateSchema: false,
	store: 'googlesheets',
	format: 'rest',
	spreadSheetId: $spreadSheetId,
	startCell: 'A2',
	endCell: 'F10',
	sheetName: 'Sheet1') ~> GoogleSheetsSource

For a list of data stores supported as sources and sinks by the copy activity, see Supported data stores.
