Create snapshot cloud discovery reports

  • Статия

It's important to upload a log manually and let Microsoft Defender for Cloud Apps parse it before trying to use the automatic log collector. For information on how the log collector works and the expected log format, see Using traffic logs for cloud discovery.

If you don't have a log yet and you want to see an example of what your log should look like, download a sample log file. Follow the procedure below to see what your log should look like.

To create a snapshot report:

  1. Collect log files from your firewall and proxy, through which users in your organization access the Internet. Make sure to gather logs during times of peak traffic that are representative of all user activity in your organization.

  2. In the Microsoft Defender Portal, under Cloud Apps, select Cloud discovery.

  3. In the top-right corner, pull down Actions, and select Create Cloud Discovery snapshot report.

    Create new snapshot report.

  4. Select Next.

  5. Enter a Report name and a Description

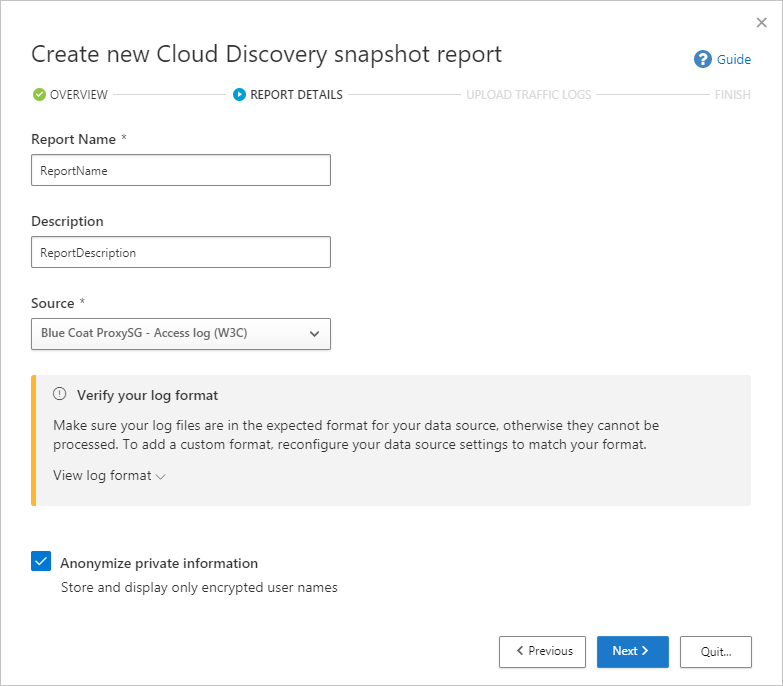

    New snapshot report.

  6. Select the Source from which you want to upload the log files. If your source isn't supported (see Supported firewalls and proxies for the full list), you can create a custom parser. For more information, see Use a custom log parser.

  7. Verify your log format to make sure that it's formatted properly according to the sample log you can download. Under Verify your log format, select View log format then select Download sample log. Compare your log with the sample provided to make sure it's compatible.

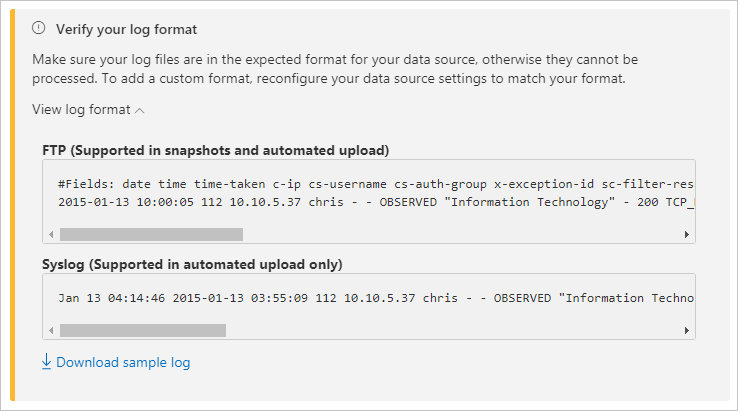

    Verify your log format.

    Note

    The FTP sample format is supported in snapshots and automated upload while syslog is supported in automated upload only. Downloading a sample log will download a sample FTP log.

  8. Upload traffic logs that you want to upload. You can upload up to 20 files at once. Compressed and zipped files are also supported.

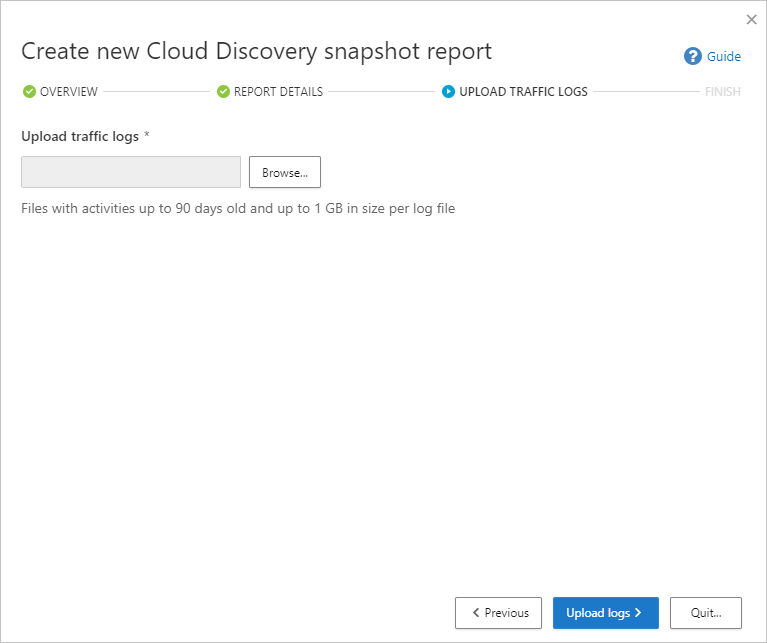

    Upload traffic logs.

  9. Select Upload logs.

  10. After upload completes, the status message will appear at the top-right corner of your screen letting you know that your log was successfully uploaded.

  11. After you upload your log files, it will take some time for them to be parsed and analyzed. After processing of your log files completes, you'll receive an email to notify you that it's done.

  12. A notification banner will appear in the status bar at the top of the Cloud Discovery dashboard. The banner updates you with the processing status of your log files. processing log file menu bar.

  13. After the logs are uploaded successfully, you should see a notification letting you know that the log file processing completed successfully. At this point, you can view the report by selecting the link in the status bar. Or, in the Microsoft Defender Portal, select Settings.

  14. Then under Cloud Discovery, select Snapshot reports, and select your snapshot report.

    snapshot report management.

Using traffic logs for cloud discovery

Cloud discovery uses the data in your traffic logs. The more detailed your log, the better visibility you get. Cloud discovery requires web-traffic data with the following attributes:

  • Date of the transaction
  • Source IP
  • Source user - highly recommended
  • Destination IP address
  • Destination URL recommended (URLs provide higher accuracy for cloud app detection than IP addresses)
  • Total amount of data (data information is highly valuable)
  • Amount of uploaded or downloaded data (provides insights about the usage patterns of the cloud apps)
  • Action taken (allowed/blocked)

Cloud discovery can't show or analyze attributes that aren't included in your logs. For example, Cisco ASA Firewall standard log format doesn't have the number of uploaded bytes per transaction, Username, and Target URL (only target IP). Therefore, these attributes won't be shown in cloud discovery data for these logs, and the visibility into the cloud apps will be limited. For Cisco ASA firewalls, it's necessary to set the information level to 6.

To successfully generate a cloud discovery report, your traffic logs must meet the following conditions:

  1. Data source is supported.
  2. Log format matches the expected standard format (format checked upon upload by the Log tool).
  3. Events aren't more than 90 days old.
  4. The log file is valid and includes outbound traffic information.

Next steps

Control cloud apps with policies

If you run into any problems, we're here to help. To get assistance or support for your product issue, please open a support ticket.
