Tutorial: Microsoft Entra SSO integration with Appaegis Isolation Access Cloud

  • Статия

In this tutorial, you'll learn how to integrate Appaegis Isolation Access Cloud with Microsoft Entra ID. When you integrate Appaegis Isolation Access Cloud with Microsoft Entra ID, you can:

  • Control in Microsoft Entra ID who has access to Appaegis Isolation Access Cloud.
  • Enable your users to be automatically signed-in to Appaegis Isolation Access Cloud with their Microsoft Entra accounts.
  • Manage your accounts in one central location.

Prerequisites

To get started, you need the following items:

  • A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
  • Appaegis Isolation Access Cloud single sign-on (SSO) enabled subscription.

Scenario description

In this tutorial, you configure and test Microsoft Entra SSO in a test environment.

  • Appaegis Isolation Access Cloud supports SP and IDP initiated SSO.
  • Appaegis Isolation Access Cloud supports Just In Time user provisioning.

To configure the integration of Appaegis Isolation Access Cloud into Microsoft Entra ID, you need to add Appaegis Isolation Access Cloud from the gallery to your list of managed SaaS apps.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > New application.
  3. In the Add from the gallery section, type Appaegis Isolation Access Cloud in the search box.
  4. Select Appaegis Isolation Access Cloud from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Microsoft Entra SSO for Appaegis Isolation Access Cloud

Configure and test Microsoft Entra SSO with Appaegis Isolation Access Cloud using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in Appaegis Isolation Access Cloud.

To configure and test Microsoft Entra SSO with Appaegis Isolation Access Cloud, perform the following steps:

  1. Configure Microsoft Entra SSO - to enable your users to use this feature.
    1. Create a Microsoft Entra test user - to test Microsoft Entra single sign-on with B.Simon.
    2. Assign the Microsoft Entra test user - to enable B.Simon to use Microsoft Entra single sign-on.
  2. Configure Appaegis Isolation Access Cloud SSO - to configure the single sign-on settings on application side.
    1. Create Appaegis Isolation Access Cloud test user - to have a counterpart of B.Simon in Appaegis Isolation Access Cloud that is linked to the Microsoft Entra representation of user.
  3. Test SSO - to verify whether the configuration works.

Configure Microsoft Entra SSO

Follow these steps to enable Microsoft Entra SSO.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

  2. Browse to Identity > Applications > Enterprise applications > Appaegis Isolation Access Cloud > Single sign-on.

  3. On the Select a single sign-on method page, select SAML.

  4. On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.

    Edit Basic SAML Configuration

  5. On the Basic SAML Configuration section, the user does not have to perform any step as the app is already pre-integrated with Azure.

  6. Click Set additional URLs and perform the following steps if you wish to configure the application in SP initiated mode:

    a. In the Sign-on URL text box, type a URL using the following pattern: https://<SUBDOMAIN>.appaegis.net

    b. In the Relay State text box, type a value using the following pattern: <RelayState>

    Note

    These values are not real. Update these values with the actual Sign-on URL and Relay State. Contact Appaegis Isolation Access Cloud Client support team to get these values. You can also refer to the patterns shown in the Basic SAML Configuration section.

  7. Appaegis Isolation Access Cloud application expects the SAML assertions in a specific format, which requires you to add custom attribute mappings to your SAML token attributes configuration. The following screenshot shows the list of default attributes.


  8. In addition to above, Appaegis Isolation Access Cloud application expects few more attributes to be passed back in SAML response which are shown below. These attributes are also pre-populated but you can review them as per your requirements.

    Name Source Attribute
    email user.userprincipalname

  9. On the Set up single sign-on with SAML page, in the SAML Signing Certificate section, find Federation Metadata XML and select Download to download the certificate and save it on your computer.

    The Certificate download link

  10. On the Set up Appaegis Isolation Access Cloud section, copy the appropriate URL(s) based on your requirement.

    Copy configuration URLs

Create a Microsoft Entra test user

In this section, you'll create a test user called B.Simon.

  1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
  2. Browse to Identity > Users > All users.
  3. Select New user > Create new user, at the top of the screen.
  4. In the User properties, follow these steps:
    1. In the Display name field, enter B.Simon.
    2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
    3. Select the Show password check box, and then write down the value that's displayed in the Password box.
    4. Select Review + create.
  5. Select Create.

Assign the Microsoft Entra test user

In this section, you'll enable B.Simon to use single sign-on by granting access to Appaegis Isolation Access Cloud.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > Appaegis Isolation Access Cloud.
  3. In the app's overview page, select Users and groups.
  4. Select Add user/group, then select Users and groups in the Add Assignment dialog.
    1. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
    2. If you are expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been set up for this app, you see "Default Access" role selected.
    3. In the Add Assignment dialog, click the Assign button.

Configure Appaegis Isolation Access Cloud SSO

  1. Log in to your Appaegis Isolation Access Cloud company site as an administrator.

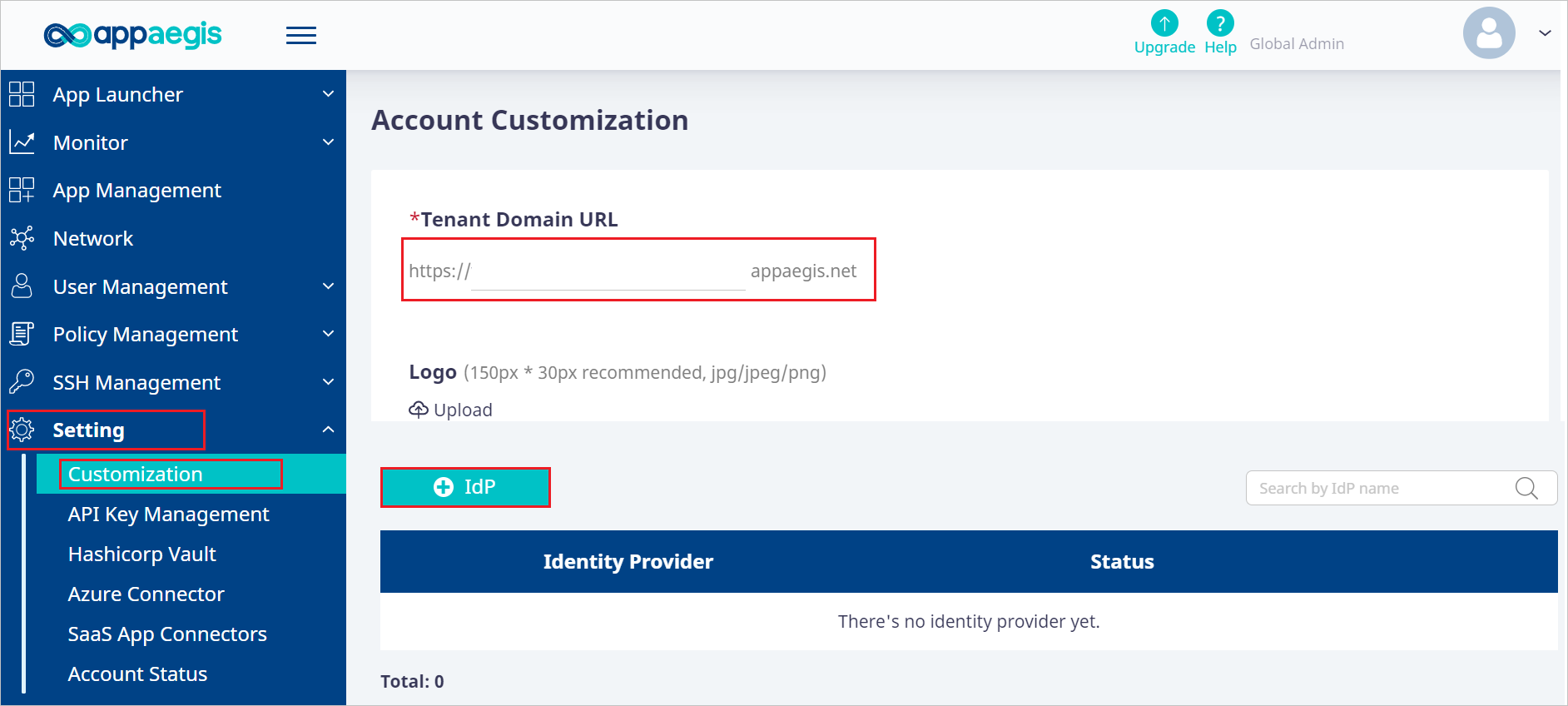

  2. Go to Setting > Customization, type a Tenant Domain URL in the textbox and click +IdP button.

    Screenshot shows the Account Customization.

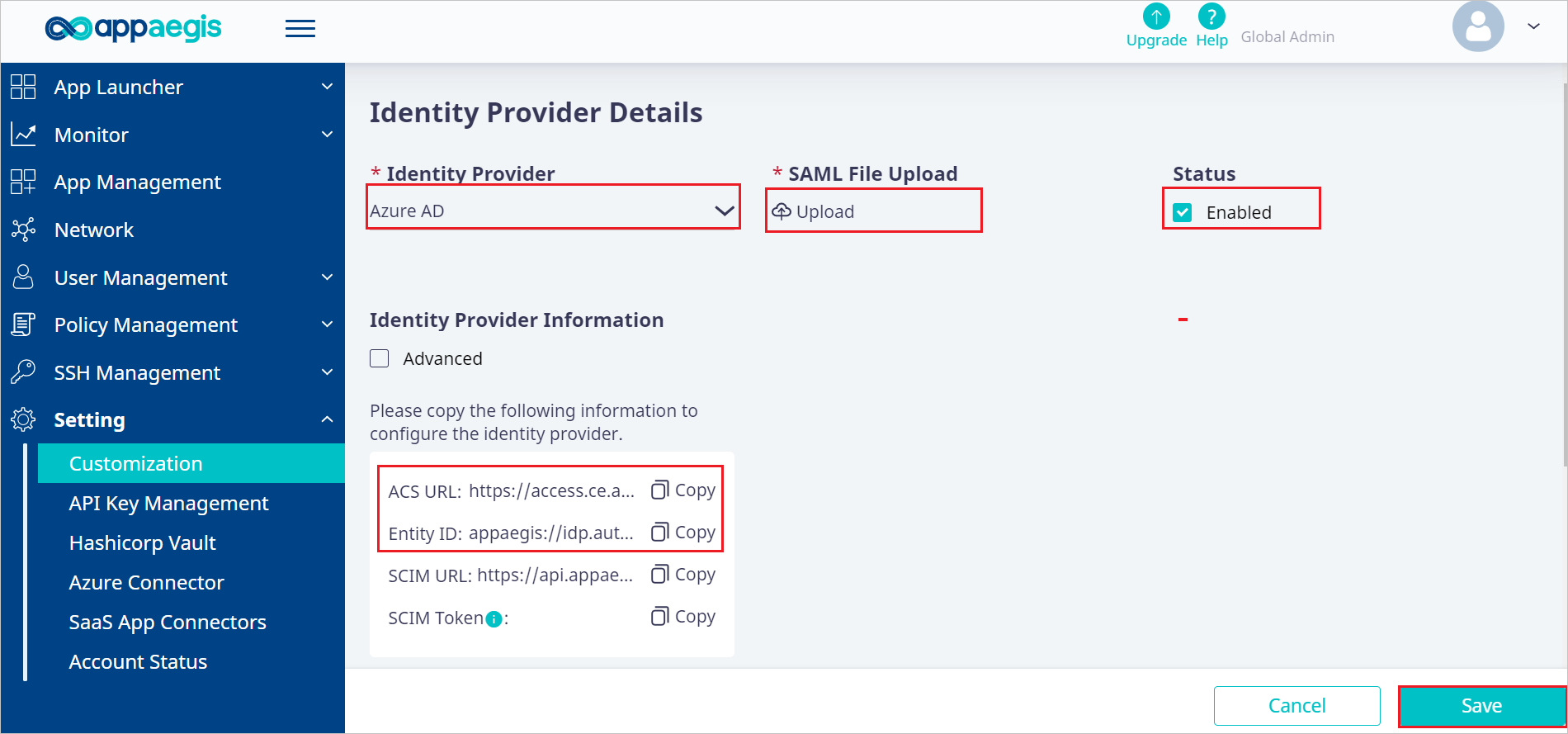

  3. In the Identity Provider Details page, perform the following steps.

    Screenshot shows the details of Identity Provider.

    1. Select Microsoft Entra ID from the dropdown in the Identity Provider.

    2. Copy ACS URL value, paste this value into the Reply URL text box in the Basic SAML Configuration section.

    3. Copy Entity ID value, paste this value into the Identifier text box in the Basic SAML Configuration section.

    4. Open the downloaded Federation Metadata XML into Notepad and upload the file into the SAML File Upload.

    5. Enabled the Status checkbox and click Save.

Create Appaegis Isolation Access Cloud test user

In this section, a user called Britta Simon is created in Appaegis Isolation Access Cloud. Appaegis Isolation Access Cloud supports just-in-time user provisioning, which is enabled by default. There is no action item for you in this section. If a user doesn't already exist in Appaegis Isolation Access Cloud, a new one is created after authentication.

Test SSO

In this section, you test your Microsoft Entra single sign-on configuration with following options.

SP initiated:

  • Click on Test this application, this will redirect to Appaegis Isolation Access Cloud Sign on URL where you can initiate the login flow.

  • Go to Appaegis Isolation Access Cloud Sign-on URL directly and initiate the login flow from there.

IDP initiated:

  • Click on Test this application, and you should be automatically signed in to the Appaegis Isolation Access Cloud for which you set up the SSO.

You can also use Microsoft My Apps to test the application in any mode. When you click the Appaegis Isolation Access Cloud tile in the My Apps, if configured in SP mode you would be redirected to the application sign on page for initiating the login flow and if configured in IDP mode, you should be automatically signed in to the Appaegis Isolation Access Cloud for which you set up the SSO. For more information, see Microsoft Entra My Apps.

Next steps

Once you configure Appaegis Isolation Access Cloud you can enforce session control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
