Tutorial: Microsoft Entra SSO integration with embed signage

In this tutorial, you'll learn how to integrate embed signage with Microsoft Entra ID. When you integrate embed signage with Microsoft Entra ID, you can:

• Control in Microsoft Entra ID who has access to embed signage.
• Enable your users to be automatically signed-in to embed signage with their Microsoft Entra accounts.
• Manage your accounts in one central location.

Prerequisites

To get started, you need the following items:

• A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
• embed signage single sign-on (SSO) enabled subscription.

Scenario description

In this tutorial, you configure and test Microsoft Entra SSO in a test environment.

• embed signage supports IDP initiated SSO.

Add embed signage from the gallery

To configure the integration of embed signage into Microsoft Entra ID, you need to add embed signage from the gallery to your list of managed SaaS apps.

1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
2. Browse to Identity > Applications > Enterprise applications > New application.
3. In the Add from the gallery section, type embed signage in the search box.
4. Select embed signage from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Microsoft Entra SSO for embed signage

Configure and test Microsoft Entra SSO with embed signage using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in embed signage.

To configure and test Microsoft Entra SSO with embed signage, perform the following steps:

1. Configure Microsoft Entra SSO - to enable your users to use this feature.
   1. Create a Microsoft Entra test user - to test Microsoft Entra single sign-on with B.Simon.
   2. Assign the Microsoft Entra test user - to enable B.Simon to use Microsoft Entra single sign-on.
2. Configure embed signage SSO - to configure the single sign-on settings on application side.
   1. Create embed signage test user - to have a counterpart of B.Simon in embed signage that is linked to the Microsoft Entra representation of user.
3. Test SSO - to verify whether the configuration works.

Configure Microsoft Entra SSO

Follow these steps to enable Microsoft Entra SSO.

1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

2. Browse to Identity > Applications > Enterprise applications > embed signage > Single sign-on.

3. On the Select a single sign-on method page, select SAML.

4. On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.



5. On the Basic SAML Configuration page, perform the following steps:

   a. In the Identifier text box, type a URL using the following pattern: https://app.embedsignage.com/auth/saml/<ID>

   b. In the Reply URL text box, type a URL using the following pattern: https://app.embedsignage.com/auth/saml/login/<ID>

   Note

   These values are not real. Update these values with the actual Identifier and Reply URL. Contact embed signage Client support team to get these values. You can also refer to the patterns shown in the Basic SAML Configuration section.

6. On the Set up single sign-on with SAML page, in the SAML Signing Certificate section, find Federation Metadata XML and select Download to download the certificate and save it on your computer.



7. On the Set up embed signage section, copy the appropriate URL(s) based on your requirement.



Create a Microsoft Entra test user

In this section, you'll create a test user called B.Simon.

1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
2. Browse to Identity > Users > All users.
3. Select New user > Create new user, at the top of the screen.
4. In the User properties, follow these steps:
   1. In the Display name field, enter B.Simon.
   2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
   3. Select the Show password check box, and then write down the value that's displayed in the Password box.
   4. Select Review + create.
5. Select Create.

Assign the Microsoft Entra test user

In this section, you'll enable B.Simon to use single sign-on by granting access to embed signage.

1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
2. Browse to Identity > Applications > Enterprise applications > embed signage.
3. In the app's overview page, select Users and groups.
4. Select Add user/group, then select Users and groups in the Add Assignment dialog.
   1. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
   2. If you are expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been set up for this app, you see "Default Access" role selected.
   3. In the Add Assignment dialog, click the Assign button.

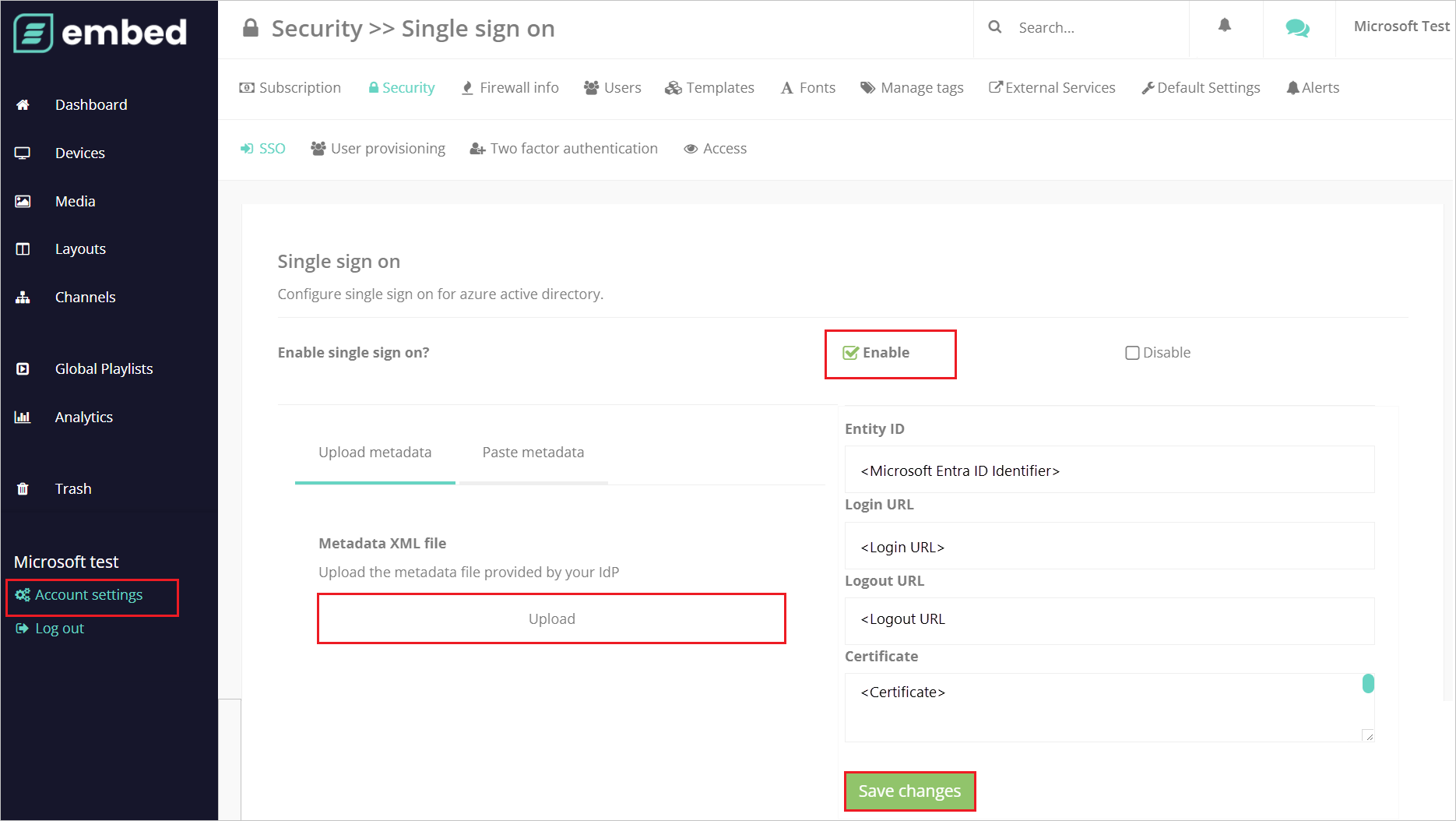

Configure embed signage SSO

1. In a different web browser window, sign in to your up Embed Signage company site as an administrator

2. Go to Account settings and click Security > Single sign on.

3. In the Single sign on section, perform the following steps:



   1. Enable single sign on checkbox.

   2. Open the downloaded Federation Metadata XML and upload the file into Metadata XML file.

   3. Click Save Changes.

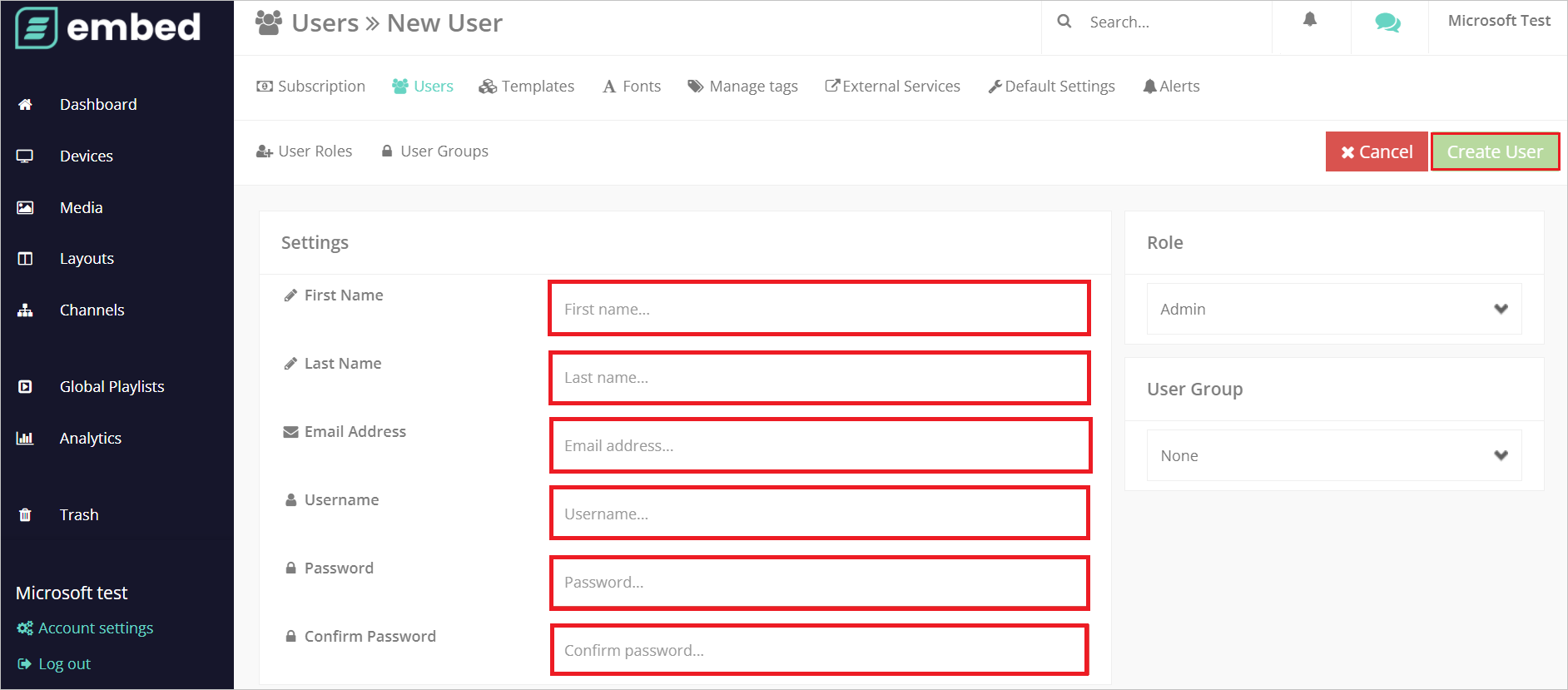

Create embed signage test user

1. In a different web browser window, sign in to your embed signage company site as an administrator.

2. Go to Account settings and click Users > New User.

3. In the Settings section, fill the required fields manually in the following page and click Create User.



Test SSO

In this section, you test your Microsoft Entra single sign-on configuration with following options.

• Click on Test this application, and you should be automatically signed in to the embed signage for which you set up the SSO.

• You can use Microsoft My Apps. When you click the embed signage tile in the My Apps, you should be automatically signed in to the embed signage for which you set up the SSO. For more information, see Microsoft Entra My Apps.

Next steps

Once you configure embed signage you can enforce session control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
