Integrate Power Automate with websites and apps

Embed Power Automate into your app or website using flow widgets to give your users a simple way to automate their personal or professional tasks.

Flow widgets are iframes located in a host document. This document points to a page in the Power Automate designer. These widgets integrate specific Power Automate functionality into the third-party application.

Widgets can be simple. For example, a widget that renders a list of templates with no communication between the host and iframe. Widgets can also be complex. For example, a widget that provisions a cloud flow from a template and then triggers the flow via two-way communication between the host and the widget.

Prerequisites

• A Microsoft Account or
• A work or school account

Use the unauthenticated widget

To use the unauthenticated templates widget, embed it directly into the host application using an iframe. You don't need the JS SDK or an access token.

Show templates for your scenarios

To start, add this code to show the Power Automate templates on your website:

<iframe src="https://make.powerautomate.com/{locale}/widgets/templates/?q={search term}
&pagesize={number of templates}&destination={destination}&category={category}"></iframe>

Parameter	Description
locale	The four-letter language and region code for the template view. For example, en-us represents US English, and de-de represents German.
search term	The search term for the templates that you want to show in the view. For example, search SharePoint to show templates for SharePoint.
number of templates	The number of templates that you want to show in the view.
destination	The page that opens when users select the template. Enter details to show the details about the template, or enter new to open the Power Automate designer.
category	Filters to the given template category.
parameters.{name}	Additional context to pass into the flow.

If the destination parameter is new, the Power Automate designer opens when users select a template. Users can then create a cloud flow in the designer. See the next section if you want to have the full experience from the widget.

Passing additional parameters to the flow template

If the user is in a specific context in your website or app, you might want to pass that context to the flow. For example, a user might open a template for When an item is created while looking at a certain list in SharePoint. Follow these steps to pass in the list ID as a parameter to the flow:

1. Define the parameter in the flow template before you publish it. A parameter looks like @{parameters('parameter_name')}.
2. Pass the parameter in the query string of the iframe src. For example, add &parameters.listName={the name of the list} if you have a parameter called listName.

Full sample

To show the top four SharePoint templates in German and to start the user with myCoolList, use this code:

<iframe src="https://make.powerautomate.com/de-de/widgets/templates/?q=sharepoint%20&pagesize=4&destination=details&parameters.listName=myCoolList"></iframe>

Use the authenticated flow widgets

The following table shows the list of Power Automate widgets that support the full experience within the widget using user authentication access token. You will need to use Power Automate's JavaScript Software Developer Kit (JS SDK) to embed the widgets and provide the required user access token.

Widget type	Supported feature
flows	Shows a list of flows in a tab for personal and shared flows. Edit an existing flow or create a new flow from a template or blank.
flowCreation	Creates a cloud flow from a template Id that the host application provides.
runtime	Triggers a manual or hybrid-trigger flow that the host application provides.
approvalCenter	Embeds approval requests and sent approvals.
templates	Shows a list of templates. The user chooses one to create a new flow.

Use the authenticated Flow SDK to allow users to create and manage flows directly from your website or app (instead of navigating to Power Automate). You'll need to sign the user in with their Microsoft Account or Microsoft Entra to use the authenticated SDK.

Note

There is no way to hide the Power Automate branding when you use widgets.

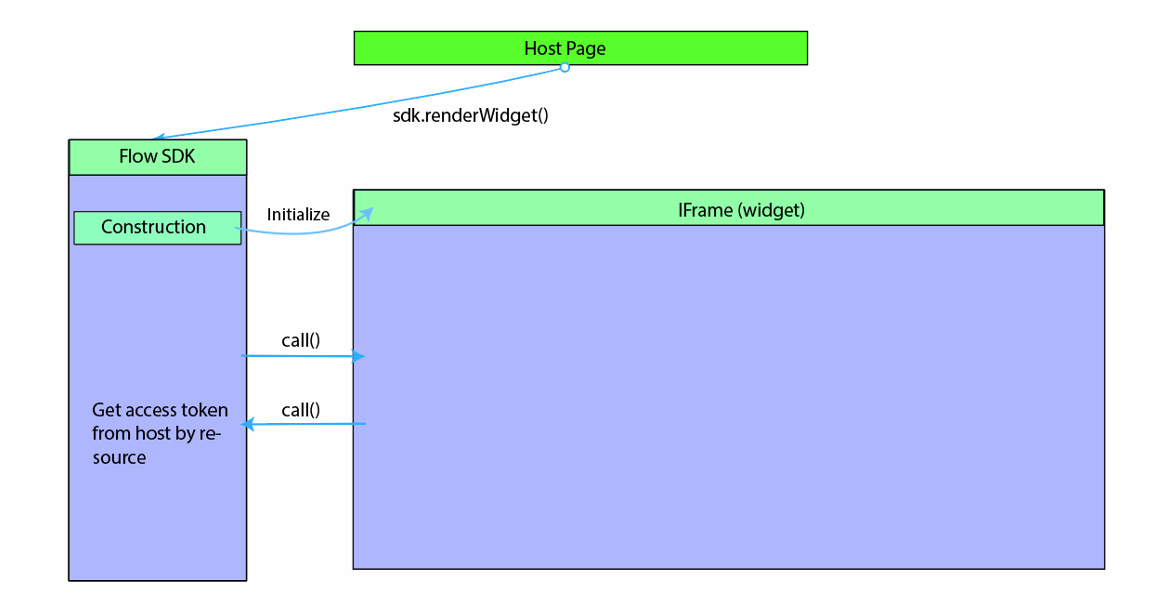

Widget architecture

Power Automate widgets work by embedding an iframe that references Power Automate into a host application. The host provides the access token that's required by the Power Automate widget. Power Automate's JS SDK enables the host application to initialize and manage the widget life cycle.

JS SDK details

The Power Automate team provides the JS SDK to facilitate integrating Flow widgets in third-party applications. The Flow JS SDK is available as a public link in the Flow service and lets the host application handle events from the widget and interact with the Flow application by sending actions to the widget. Widget events and actions are specific to the widget type.

Widget initialization

The Flow JS SDK reference needs to be added to the host application before initializing the widget.

<script src="https://flow.microsoft.com/Content/msflowsdk-1.1.js"></script>

Note

• The recommended way to include the Flow JS SDK in your application is using the above reference. Adding a local copy of the Flow JS SDK to your application or web page can result in you using an older unsupported version of the SDK over time causing breaks in functionality.
• Power Automate stores some data such as user identity and preferences locally leveraging your browsers capabilities. Problems occur if the browser blocks storage of such local data, or third-party cookies set by Power Automate. Users need to enable third party cookies in their browser in order for the widget to load correctly.

Create a JS SDK instance by passing optional hostName and locale values in a JSON object.

var sdk = new MsFlowSdk({
    hostName:'https://make.powerautomate.com',
    locale:'en-US'
});

Name	Required/Optional	Description
hostName	Optional	Power Automate host name, for example, https://make.powerautomate.com
locale	Optional	Client locale for the widget (defaults to en-Us if not specified)

Once the JS SDK instance is created you can initialize and embed a Power Automate widget in a parent element in the host application. To do so, add an HTML div:

<div id="flowDiv" class="flowContainer"></div>

Then, initialize the Power Automate widget with the JS SDK renderWidget() method. Be sure to provide the widget type and corresponding settings.

var widget = sdk.renderWidget('<widgettype>', {
        container: 'flowDiv',
        flowsSettings: {},
        templatesSettings: {},
        approvalCenterSettings: {},
        widgetStyleSettings: {}
});

Here's a sample style for the container that you can modify to match with the host application's dimensions.

<head>
    <style>
        .flowContainer iframe {
            width: 400px;
            height: 1000px;
            border: none;
            overflow: hidden;
    }
    </style>
</head>

These are the parameters for renderWidget():

Parameter	Required/Optional	Description
container	Required	Id of a DIV element on the host page where the widget will be embedded.
environmentId	Optional	Widgets need an environment Id. If you don't provide an Id, a default environment is used.
flowsSettings	Optional	Power Automate settings object
templatesSettings	Optional	Template settings object
approvalCenterSettings	Optional	Approval settings object

Access tokens

After the JS SDK renderWidget() runs, the JS SDK initializes an iframe which points to the Power Automate widget URL. This URL contains all the settings in the query string parameters. The host application needs to get a Power Automate access token for the user (Microsoft Entra ID JWT token with audience https://service.flow.microsoft.com) before it initializes the widget. The widget raises a GET_ACCESS_TOKEN event to request an access token from the host. The host needs to handle the event and pass the token to the widget:

widget.listen("GET_ACCESS_TOKEN", function(requestParam, widgetDoneCallback) {
    widgetDoneCallback(null, {
        token:  '<accesstokenFromHost>'
    });
});

The host application is responsible for maintaining the token and passing it with a valid expiry date to the widget when requested. If the widget is open for longer periods, the host should check if the token is expired and refresh the token if it's needed before passing it to the widget.

Detecting if the widget is ready

After successful initialization, the widget raises an event to notify that the widget is ready. The host can listen to the WIDGET_READY event and execute any additional host code.

widget.listen("WIDGET_READY", function() {
    console.log("The flow widget is now ready.");
    // other host code on widget ready
});

Widget settings

FlowsSettings

FlowsSettings can be used to customize the functionality of the Power Automate widget.

flowsSettings?: {
    createFromBlankTemplateId?: string;
    flowsFilter?: string;sc
    tab?: string;
};

Parameter	Required/Optional	Description
createFromBlankTemplateId	Required	Use the template's GUID when the user selects the Create from blank button on the Flow widget
flowsFilter	Optional	The Power Automate widget applies the provided filter when listing flows. For example, show flows that reference a specific SharePoint site. flowsFilter: "operations/any(operation: operation/sharepoint.site eq 'https://microsoft.sharepoint.com/teams/ProcessSimple' )"
tab	Optional	Defaults the active tab to show in the Power Automate widget. For example, tab:'sharedFlows' displays the Team tab and tab:'myFlows' Displays the My flows tab.

TemplatesSettings

This applies to all widgets that enable you to create flows from a template, including Flows, FlowCreation, and Templates widgets.

templatesSettings?: {
    defaultParams?: any;
    destination?: string;
    pageSize?: number;
    searchTerm?: string;
    templateCategory?: string;
    useServerSideProvisioning?: boolean;
    enableDietDesigner?: boolean;
};

Parameter	Required/Optional	Description
defaultParams	Optional	Design time parameters to use when creating a cloud flow from a template, for example: defaultParams: {'parameters.sharepoint.site': 'https://microsoft.sharepoint.com/teams/ProcessSimple', 'parameters.sharepoint.list': 'b3a5baa8-fe94-44ca-a6f0-270d9f821668' }
destination	Optional	Valid values are 'new' or 'details'. When set to 'details', a detail page is shown when creating a cloud flow from a template.
pageSize	Optional	Number of templates to display. Default size = 6
searchTerm	Optional	Display templates that match the provided search term
templateCategory	Optional	Display templates in a specific category

ApprovalCenterSettings

Applies to ApprovalCenter widgets.

approvalCenterSettings?: {
   approvalsFilter?: string;
   tab?: string;but
   showSimpleEmptyPage? boolean;
   hideLink?: boolean
};

Parameter	Required/Optional	Description
hideLink	Optional	When set to true, the widget hides the received and the sent approval links
approvalsFilter	Optional	The approval widget will apply the specified approval filter when listing the approvals, for example: The approval widget will apply the specified approval filter when listing the approvals, for example: approvalsFilter: 'properties/itemlink eq \'https://microsoft.sharepoint.com/teams/ProcessSimple/_layouts/15/listform.aspx?PageType=4&ListId=737e30a6-5bc4-4e9c-bcdc-d34c5c57d938&ID=3&ContentTypeID=0x010010B708969A9C16408696FD23801531C6\'' approvalsFilter: 'properties/itemlinkencoded eq \'{Your base64 encoded item link url} \''
tab	Optional	Default active tab to show in the Flow widget. Valid values : 'receivedApprovals', 'sentApprovals'
showSimpleEmptyPage	Optional	Shows an empty page when there are no approvals
hideInfoPaneCloseButton	Optional	Hides the info-pane Close button (or the host already has a Close button)

Widget events

The Power Automate widget supports events that let the host listen to widget life-cycle events. The Power Automate widget supports two types of events: one-way notification events (for example, Widget_Ready) and events raised from the widget to fetch data from the host (Get_Access_Token). The host needs to use the widget.listen() method to listen to specific events raised from the widget.

Usage

widget.listen("<WIDGET_EVENT>", function() {
    console.log("The flow widget raised event");
});

Supported events by widget type

Widget event	Details
WIDGET_READY	Widget loaded successfully
WIDGET_RENDERED	Widget loaded and UI rendering is complete
GET_ACCESS_TOKEN	Widget request for embed user-access token
GET_STRINGS	Allows host to override a set of UI strings shown in the widget

Runtime widget

Widget event	Details	Data
RUN_FLOW_STARTED	Triggered and the flow run was started
RUN_FLOW_COMPLETED	Flow run triggered successfully
RUN_FLOW_DONE_BUTTON_CLICKED	User selected Done button on flow run
RUN_FLOW_CANCEL_BUTTON_CLICKED	User selected Cancel button on flow run
FLOW_CREATION_SUCCEEDED	The flow was created successfully	{ flowUrl: string, flowId: string, fromTemplate: string }
WIDGET_CLOSE	Fired when the host should close the widget

Flow Creation widget

Widget event	Details	Data
FLOW_CREATION_FAILED	Flow creation failed
WIDGET_CLOSE	Fired when host should close the widget
TEMPLATE_LOAD_FAILED	The template failed to load
FLOW_CREATION_SUCCEEDED	The flow was created successfully	{ flowUrl: string, flowId: string,fromTemplate?: string }

Approval widget

Widget event	Details
RECEIVED_APPROVAL_STATUS_CHANGED	Received approval status changed
SENT_APPROVAL_STATUS_CHANGED	Sent approval status changed

GET_STRINGS event lets you customize text for some of the UI elements shown in the widget. The following strings can be customized:

String key	Use in the widget
FLOW_CREATION_CREATE_BUTTON	Text displayed on the create flow button in both flow creation and runtime widget
FLOW_CREATION_CUSTOM_FLOW_NAME	The initial value to use for the flow name in the flow creation widget. Only used when the allowCustomFlowName setting is enabled.
FLOW_CREATION_HEADER	Header to use when creating a cloud flow in both the flow creation and runtime widget
INVOKE_FLOW_HEADER	Header to use when invoking a cloud flow in the runtime widget
INVOKE_FLOW_RUN_FLOW_BUTTON	Text displayed on the button used to invoke/run a cloud flow in the runtime widget

Example

Call widgetDoneCallback passing a JSON object with key-value pairs of string key and text to override the default value.

widget.listen("GET_STRINGS", function(requestParam, widgetDoneCallback) {
    widgetDoneCallback(null, {
         "FLOW_CREATION_HEADER": "<string override would go here>",
        "INVOKE_FLOW_RUN_FLOW_BUTTON":  "<string override would go here>"
    });
});

Widget actions

The host uses widget actions to send a specific action or message to the widget. Widget JS SDK provides the notify() method to send a message or a JSON payload to the widget. Each widget action supports a specific payload signature.

Usage

widget.notify('<WIDGET_ACTION>', parameterMatchingParameterInterface)
    .then(result => console.log(result))
    .catch(error => console.log(error))

Example

Invoke a cloud flow by sending the following command to a runtime widget

widget.notify('triggerFlow', { flowName: flowName, implicitData:implicitData });

Runtime widget

Widget action	Details	Parameter interface
triggerFlow	Triggers a cloud flow run	{ flowName: string, implicitData?: string }
triggerFlowByTemplate	Triggers a cloud flow run by template	{ templateId: string, implicitData?: string, designTimeParameters?: Record<string, any> }
getTriggerSchema	Gets trigger schema for a cloud flow	{ flowName: string, }
closeWidget	Cancels any pending activity and raises a WIDGET_CLOSE event

Flow Creation widget

Widget action	Details	Parameter interface
createFlowFromTemplate	Creates a cloud flow for the selected template	{ templateName: string, designTimeParameters?: Record<string, any> }
createFlowFromTemplateDefinition	Creates a cloud flow for the selected template definition	{ templateDefinition: string }
closeWidget	Cancels any pending activity and raises a WIDGET_CLOSE event

Approval widget

Widget action	Details	Parameter interface
closeInfoPane	Closes the info-pane displaying approval details	N/A

Configuring your client application

You will need to configure your client application with Flow Service Scopes (Delegated Permissions). If the Microsoft Entra (Microsoft Entra ID) app used for the widget integration uses a 'code grant' authorization flow, the Microsoft Entra app needs to be preconfigured with delegated permissions that are supported by Power Automate. This provides delegated permissions that let the application:

• Manage approvals
• Read approvals
• Read activities
• Manage flows
• Read flows

Follow these steps to select one or more delegated permissions:

1. Go to https://portal.azure.com
2. Select Microsoft Entra ID.
3. Select App registrations under Manage.
4. Enter the third-party application to be configured for Flow service scopes.
5. Select Settings.
6. Select Required permissions under API access/
7. Select Add.
8. Choose Select an API.
9. Search for Power Automate service and select it. Note: Before you can see Power Automate service, your tenant needs to have at least one Microsoft Entra user signed into the Flow portal (https://make.powerautomate.com)
10. Choose the required Flow scopes for your application then select Save.

Your application will now get a Flow Service token that contains delegated permissions in the 'scp' claim in the JWT token.

Sample application embedding flow widgets

A sample JavaScript Single Page Application (SPA) is provided in the resources section so you can experiment with embedding flow widgets in a host page. Using the sample application requires registering a Microsoft Entra application with implicit grant flow enabled.

Registering a Microsoft Entra app

1. Sign in to the Azure portal.
2. In the left navigation pane, select Microsoft Entra, then select App registrations (Preview) > New registration.
3. When the Register an application page appears, enter a name for your application.
4. Under Supported account types, select Accounts in any organizational directory.
5. Under the Redirect URL section, select the web platform and set the value to the application's URL based on your web server. Configure this value to http://localhost:30662/ to run the sample app.
6. Select Register.
7. On the app Overview page, note the application (client) ID value.
8. The sample requires implicit grant flow to be enabled. In the left navigation pane of the registered application, select Authentication.
9. In Advanced settings, under Implicit grant, enable both ID tokens and Access tokens checkboxes. ID tokens and access tokens are required since this app needs to sign in users and call Flow API.
10. Select Save.

Running the sample

1. Download the sample and copy it to a local folder on your device.
2. Open the index.html file under the FlowSDKSample folder and modify the applicationConfig to update the clientID to the application ID you registered earlier.
3. The sample app is configured to use Flow scopes Flows.Read.All and Flow.Manage.All. You can configure additional scopes by updating the flowScopes property in applicationConfig object.
4. Run these commands to install the dependency and run the sample app:

   > npm install > node server.js

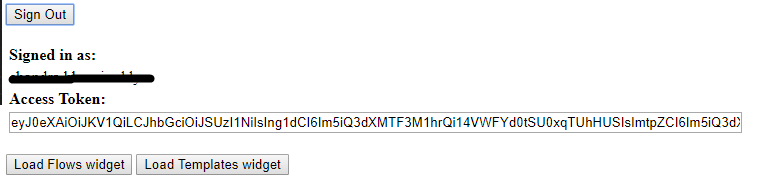

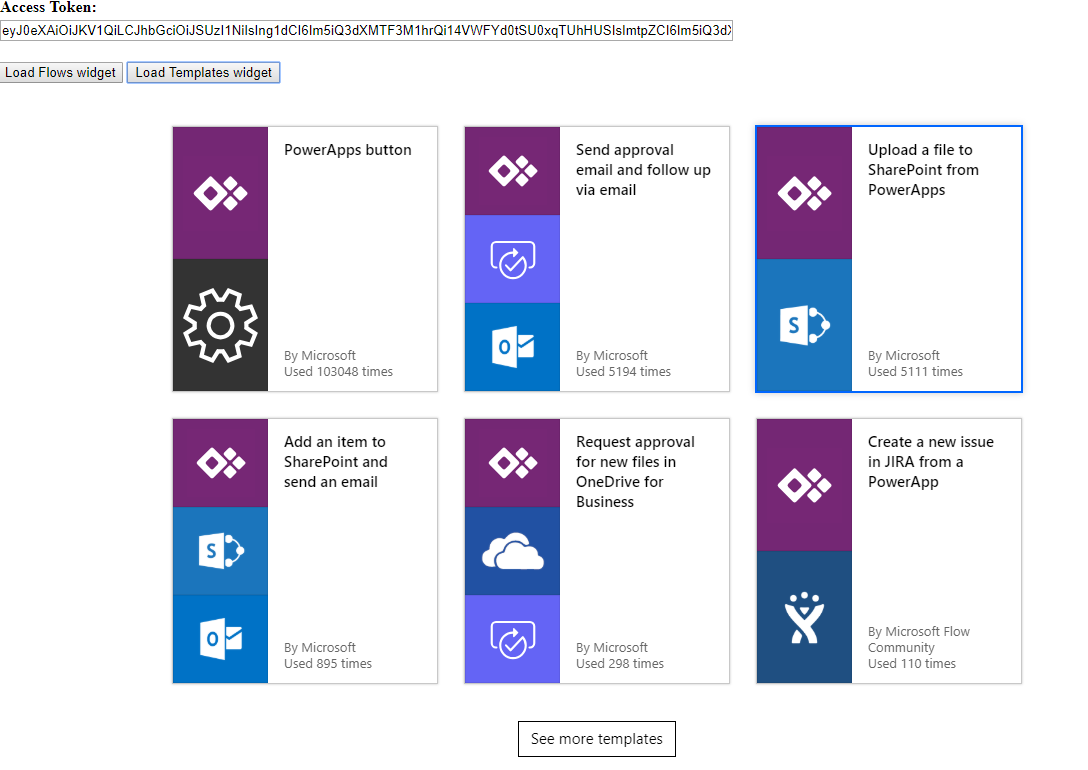

5. Open the browser and then enter http://localhost:30662
6. Select the Sign in button to authenticate to Microsoft Entra and acquire a cloud flow access token.
7. The Access Token text box contains the access token.
8. Select Load Flows widget or Load Templates widget to embed the corresponding widgets.

Resources

Widget test pages

Find out more about widget integration and settings:

• Templates widget: <https://make.powerautomate.com/test/templateswidget/>
• FlowCreation widget: <https://make.powerautomate.com/test/flowcreationwidget/>
• Runtime widget: <https://make.powerautomate.com/test/runtimewidget/>
• Approvals center widget: <https://make.powerautomate.com/test/approvalcenterwidget/>
• Flows widget: <https://make.powerautomate.com/test/managewidget/>

Supported widget locales

If the initialized locale isn't listed, Flow will default to the closest supported locale.

Locale	Language
bg-bg	Bulgarian (Bulgaria)
ca-es	Catalan (Catalan)
cs-cz	Czech (Czech Republic)
da-dk	Danish (Denmark)
de-de	German (Germany)
el-gr	Greek (Greece)
en-Us	English (United States)
es-es	Spanish (Castilian)
et-ee	Estonian (Estonia)
eu-es	Basque (Basque)
fi-fi	Finnish (Finland)
fr-fr	French (France)
gl-es	Galician (Galician)
hi-HU	Hungarian (Hungary)
hi-in	Hindi (India)
hr-hr	Croatian (Croatia)
id-Id	Indonesian (Indonesia)
it-It	Italian (Italy)
jp-Jp	Japanese (Japan)
kk-kz	Kazakh (Kazakhstan)
ko-kr	Korean (Korea)
lt-LT	Lithuanian (Lithuania)
lv-lv	Latvian (Latvia)
ms-my	Malay (Malaysia)
nb-no	Norwegian (Bokmål)
nl-nl	Dutch (Netherlands)
pl-pl	Polish (Poland)
pt-br	Portuguese (Brazil)
pt-pt	Portuguese (Portugal)
ro-ro	Romanian (Romania)
ru-ru	Russian (Russia)
sk-sk	Slovak (Slovakia)
sl-si	Slovenian (Slovenia)
sr-cyrl-rs	Serbian (Cyrillic, Serbia)
sr-latn-rs	Serbian (Latin, Serbia)
sv-se	Swedish (Sweden)
th-th	Thai (Thailand)
tr-tr	Turkish (Türkiye)
uk-ua	Ukrainian (Ukraine)
vi-vn	Vietnamese (Viet Nam)

Use of the Power Automate Embed SDK is covered under the Microsoft Software License Terms.
