Summary

Item Description
Release State General Availability
Products Excel
Power BI (Semantic models)
Power BI (Dataflows)
Fabric (Dataflow Gen2)
Power Apps (Dataflows)
Dynamics 365 Customer Insights
Authentication Types Supported Anonymous (online)
Basic (online)
Organizational account (online)
Windows (online)
Function Reference Documentation Pdf.Tables

Note

Some capabilities may be present in one product but not others due to deployment schedules and host-specific capabilities.

Note

PDF isn't supported in Power BI Premium.

Prerequisites

None.

Capabilities Supported

  • Import

Connect to a PDF file from Power Query Desktop

To make the connection from Power Query Desktop:

  1. Select the PDF option in the connector selection.

  2. Browse for and select the PDF file you want to load. Then select Open.

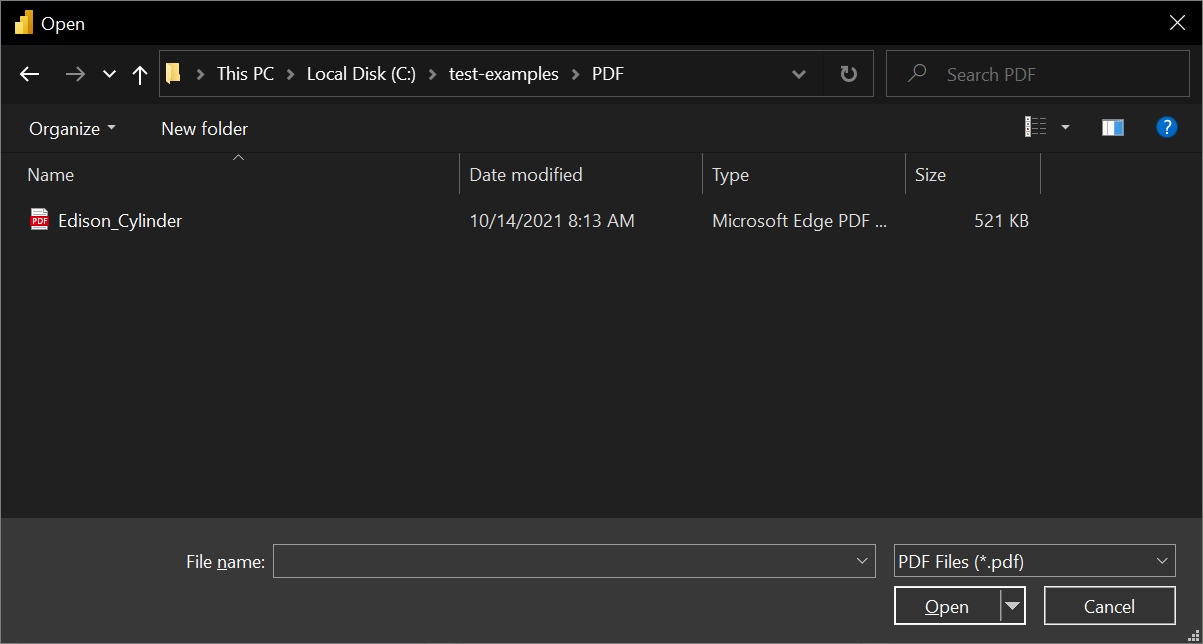

    Select the PDF file from File Explorer.

    If the PDF file is online, use the Web connector to connect to the file.

  3. In Navigator, select the file information you want, then either select Load to load the data or Transform Data to continue transforming the data in Power Query Editor.

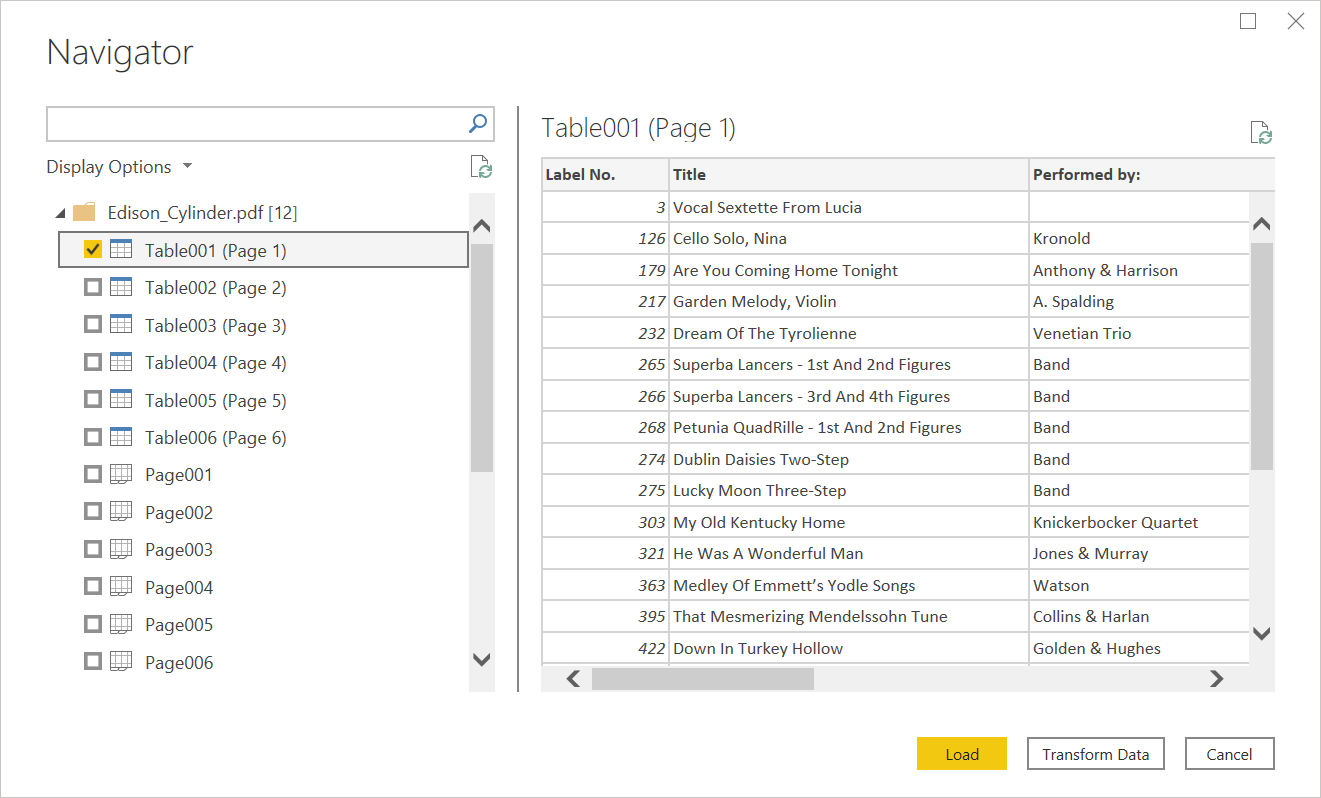

    PDF file imported into Power Query Desktop Navigator.

Connect to a PDF file from Power Query Online

To make the connection from Power Query Online:

  1. Select the PDF option in the connector selection.

  2. In the PDF dialog box that appears, either provide the file path or the URL to the location of the PDF file. If you're loading a local file, you can also select Upload file (Preview) to browse to the local file or drag and drop the file.

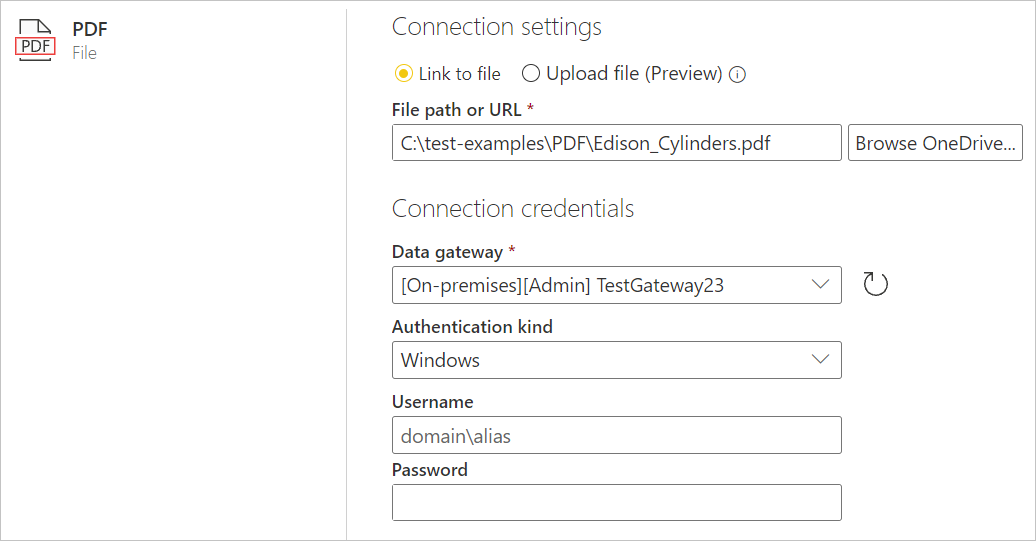

    Connection information to access the PDF file.

  3. If necessary, select an on-premises data gateway to access the PDF file.

  4. If this is the first time you've accessed this PDF file, select the authentication kind and sign in to your account (if needed).

  5. In Navigator, select the file information you want, and then select Transform Data to continue transforming the data in Power Query Editor.

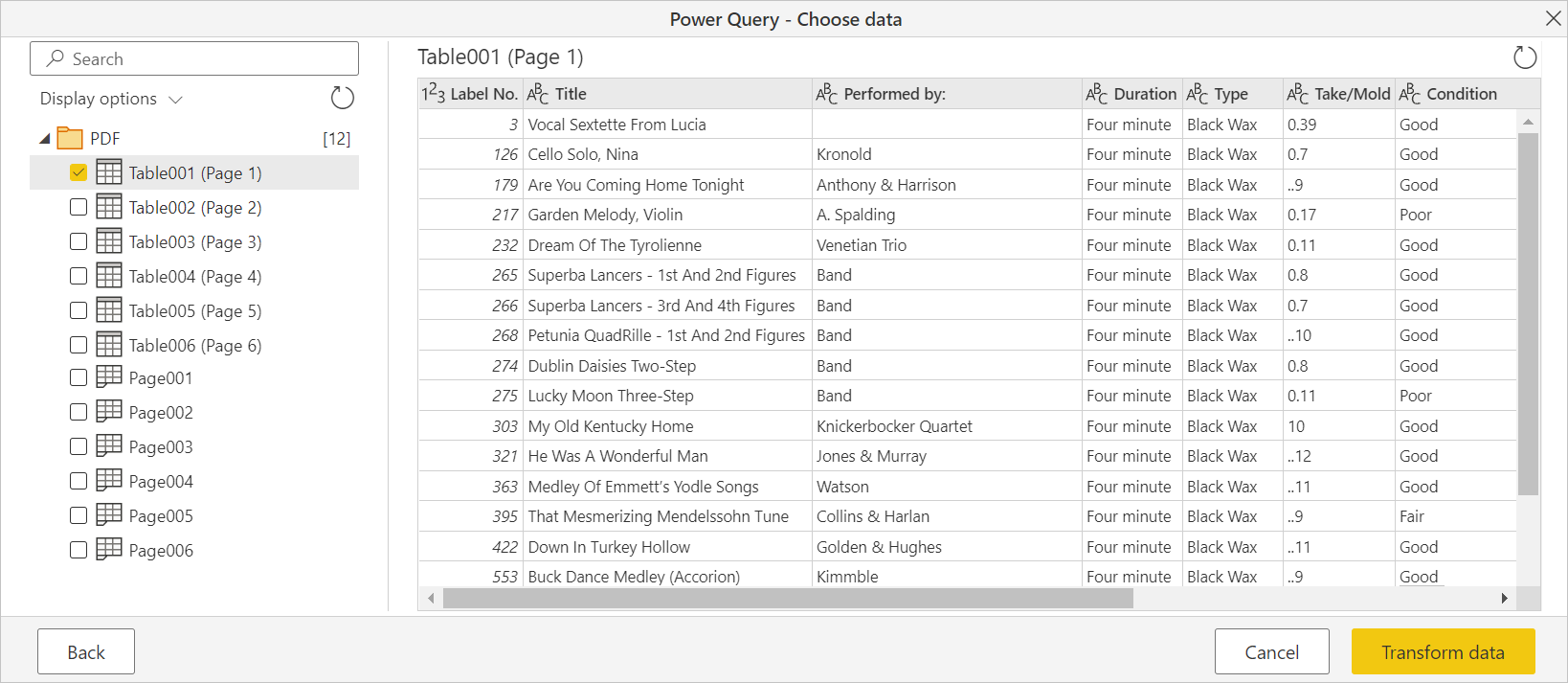

    PDF file imported into Power Query online Navigator.

Limitations and considerations

Accessing large PDF files

You can use the following strategies to improve performance and reduce timeouts when you access large PDF files. These strategies require that you edit your usage of the Pdf.Tables function in either the formula bar or advanced editor.

  • Try selecting pages one at a time or one small range at a time using the StartPage or EndPage options, iterating over the entire document as needed.
  • If the PDF document is one single, huge table, the MultiPageTables option can be collecting very large intermediate values, so disabling it might help.

A full list of available options can be found in Pdf.Tables.

Handling multi-line rows

In cases where multi-line rows aren't properly identified, you might be able to clean up the data using UI operations or custom M code. For example, you could copy misaligned data to adjacent rows using Table.FillDown, or group and combine adjacent rows using Table.Group.

Power BI dataflows in a Premium capacity

When working with the PDF connector on dataflows in a Premium capacity, the PDF connector doesn't properly make the connection. To enable the PDF connector to work on dataflows in a Premium capacity, configure that dataflow to use a gateway, and confirm the connection to that dataflow goes through the gateway.
