TIBCO(R) Data Virtualization

  • Статия

Note

The following connector article is provided by TIBCO, the owner of this connector and a member of the Microsoft Power Query Connector Certification Program. If you have questions regarding the content of this article or have changes you would like to see made to this article, visit the TIBCO website and use the support channels there.

Summary

Item Description
Release State General Availability
Products Power BI (Semantic models)
Power BI (Dataflows)
Fabric (Dataflow Gen2)
Authentication Types Supported Database (Username/Password)
Windows Authentication (NTLM/Kerberos)
Function Reference Documentation —

Prerequisites

To access the TIBCO eDelivery site, you must have purchased TIBCO software. There's no TIBCO license required for the TIBCO(R) Data Virtualization (TDV) software—a TIBCO customer only needs to have a valid contract in place. If you don't have access, then you'll need to contact the TIBCO admin in your organization.

The Power BI Connector for TIBCO(R) Data Virtualization must first be downloaded from https://edelivery.tibco.com and installed on the machine running Power BI Desktop. The eDelivery site downloads a ZIP file (for example, TIB_tdv_drivers_<VERSION>_all.zip*.zip where <VERSION>=TDV Version) that contains an installer program that installs all TDV client drivers, including the Power BI Connector.

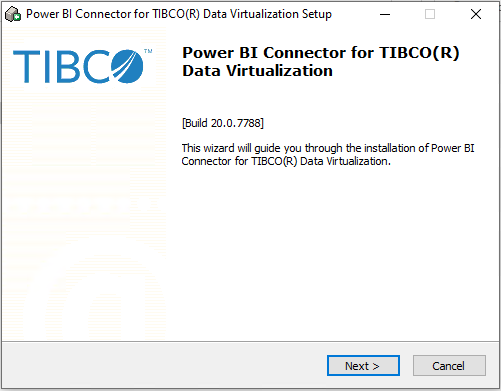

TDV Setup.

Once the connector is installed, configure a data source name (DSN) to specify the connection properties needed to connect to the TIBCO(R) Data Virtualization server.

Note

The DSN architecture (32-bit or 64-bit) needs to match the architecture of the product where you intend to use the connector.

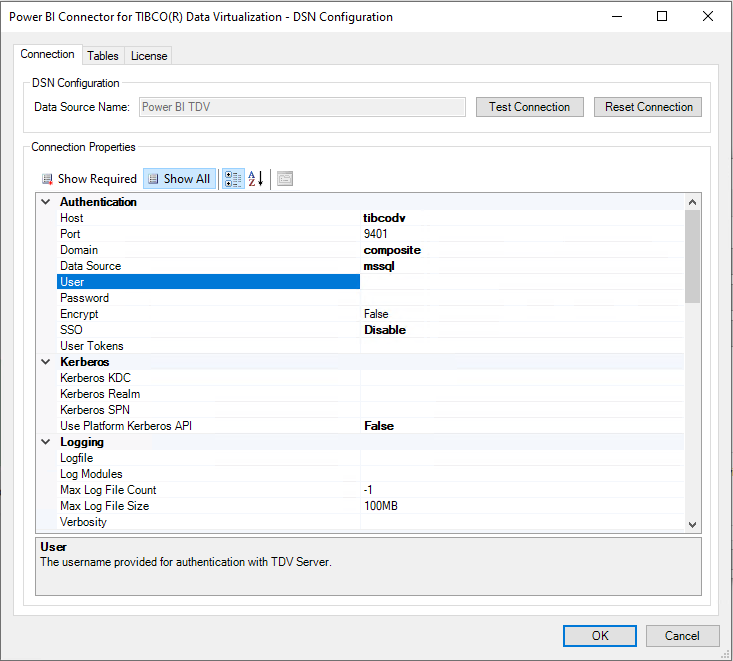

TDV DSN Configuration.

Note

Power BI Connector for TIBCO(R) Data Virtualization is the driver used by the TIBCO(R) Data Virtualization connector to connect Power BI Desktop to TDV.

Capabilities Supported

  • Import
  • DirectQuery (Power BI semantic models)
  • Advanced Connection Properties
  • Advanced
    • Native SQL statement

Connect to a TIBCO(R) Data Virtualization server from Power Query Desktop

Once the matching connector is installed and a DSN is configured, you can connect to a TIBCO(R) Data Virtualization server. To make the connection, take the following steps:

  1. Select the TIBCO(R) Data Virtualization option in the connector selection.

  2. In the Power BI Connector for TIBCO(R) Data Virtualization dialog that appears, provide the Data Source Name.

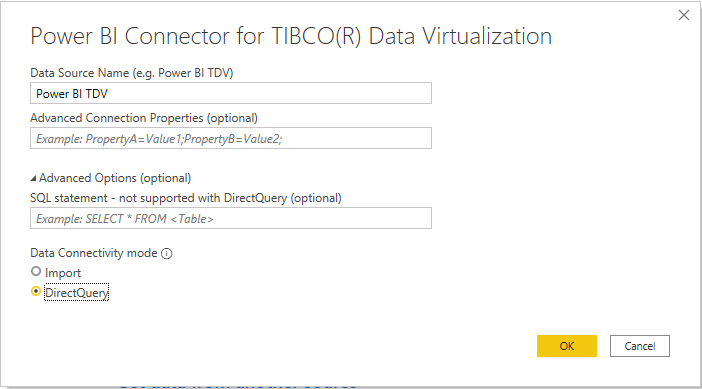

    TDV connection builder in Power BI.

  3. Select either the Import or DirectQuery data connectivity mode.

  4. If this is the first time you're connecting to this database, select the authentication type. If applicable, enter the needed credentials. Then select Connect.

    • Anonymous: Uses the credentials stored in the DSN.
    • Basic: Username/password are submitted when creating the connection.
    • Windows: Authenticates using the current Windows user. This authentication type requires the SSO connection property to be set. When using Kerberos, the Use Platform Kerberos API must be set to true to use the current Windows user.

    TDV Authentication.

  5. In Navigator, select the database information you want, then either select Load to load the data or Transform Data to continue transforming the data in Power Query Editor.

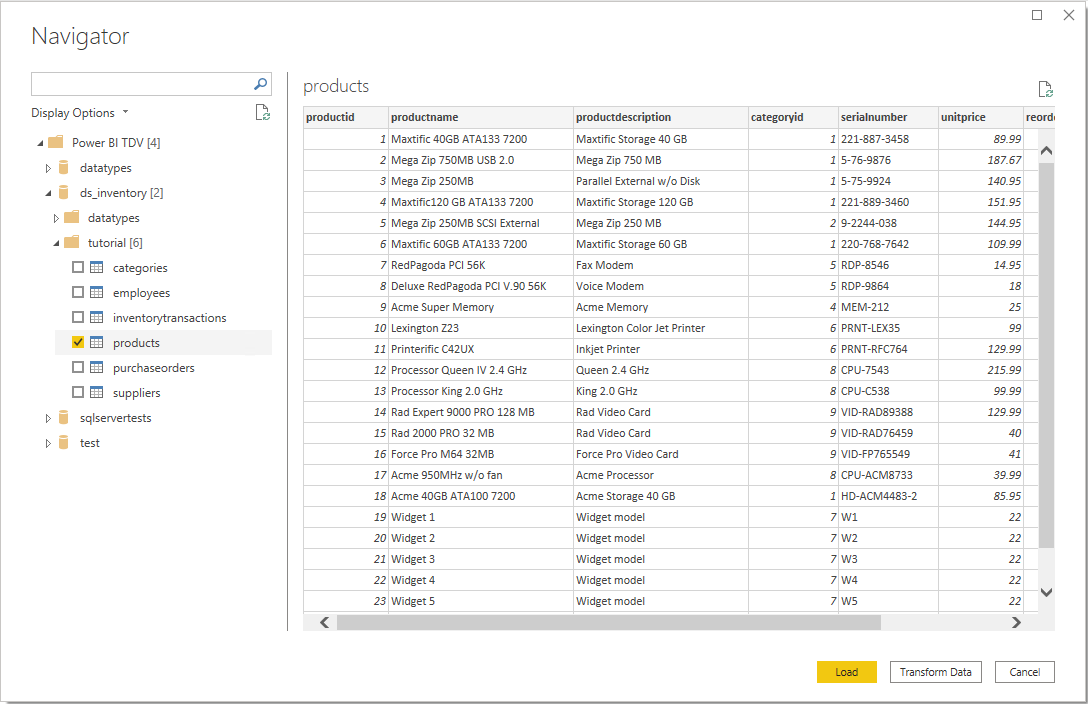

    Power Query Desktop Navigator showing the product data in TDV.

Connect using advanced options

Power Query Desktop provides a set of advanced options that you can add to your query if needed.

The following table lists all of the advanced options you can set in Power Query Desktop.

Advanced option Description
Advanced Connection Properties Takes a semi-colon separated list of connection properties. This option is used to specify other connection properties not configured in the DSN.
SQL statement For information, go to Import data from a database using native database query.

Once you've selected the advanced options you require, select OK in Power Query Desktop to connect to your TIBCO(R) Data Virtualization Server.

Kerberos-based single sign-on (SSO) for TIBCO(R) Data Virtualization

The TIBCO(R) Data Virtualization connector now supports Kerberos-based single sign-on (SSO).

To use this feature:

  1. Sign in to your Power BI account, and navigate to the Gateway management page.

  2. Add a new data source under the gateway cluster you want to use.

  3. Select the connector in the Data Source Type list.

  4. Expand the Advanced Settings section.

  5. Select the option to Use SSO via Kerberos for DirectQuery queries or Use SSO via Kerberos for DirectQuery and Import queries.

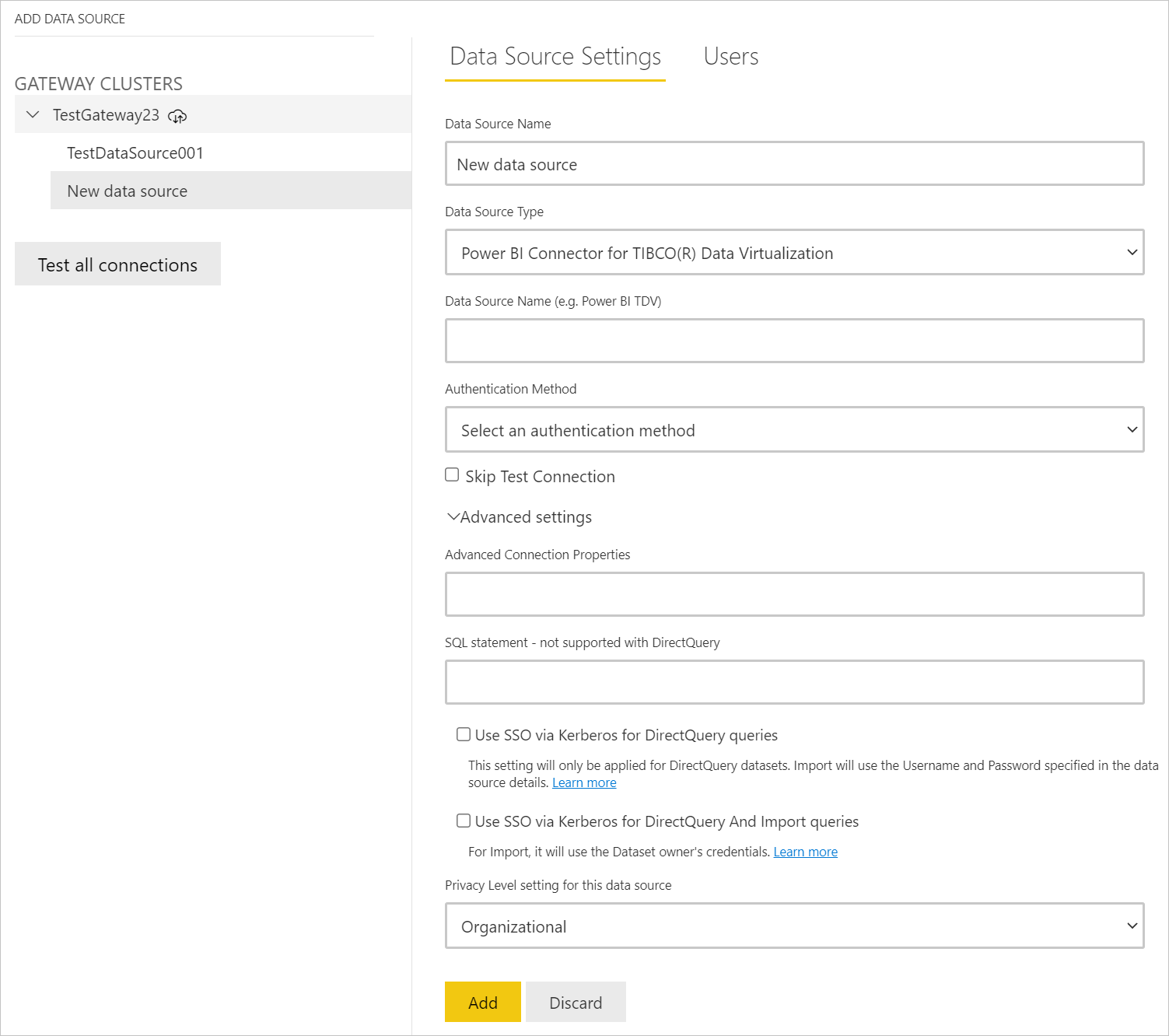

    Add data source dialog showing the Kerberos advanced settings in TDV.

More information: Configure Kerberos-based SSO from Power BI service to on-premises data sources
